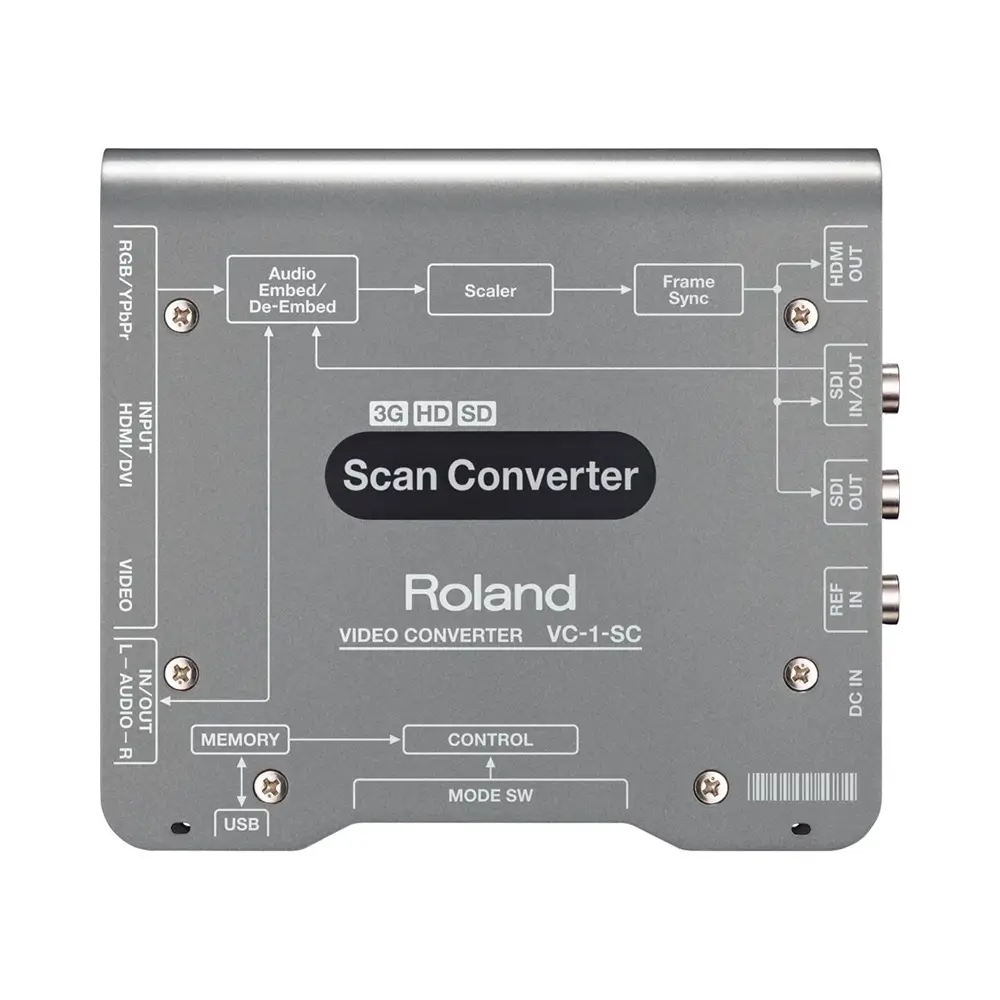

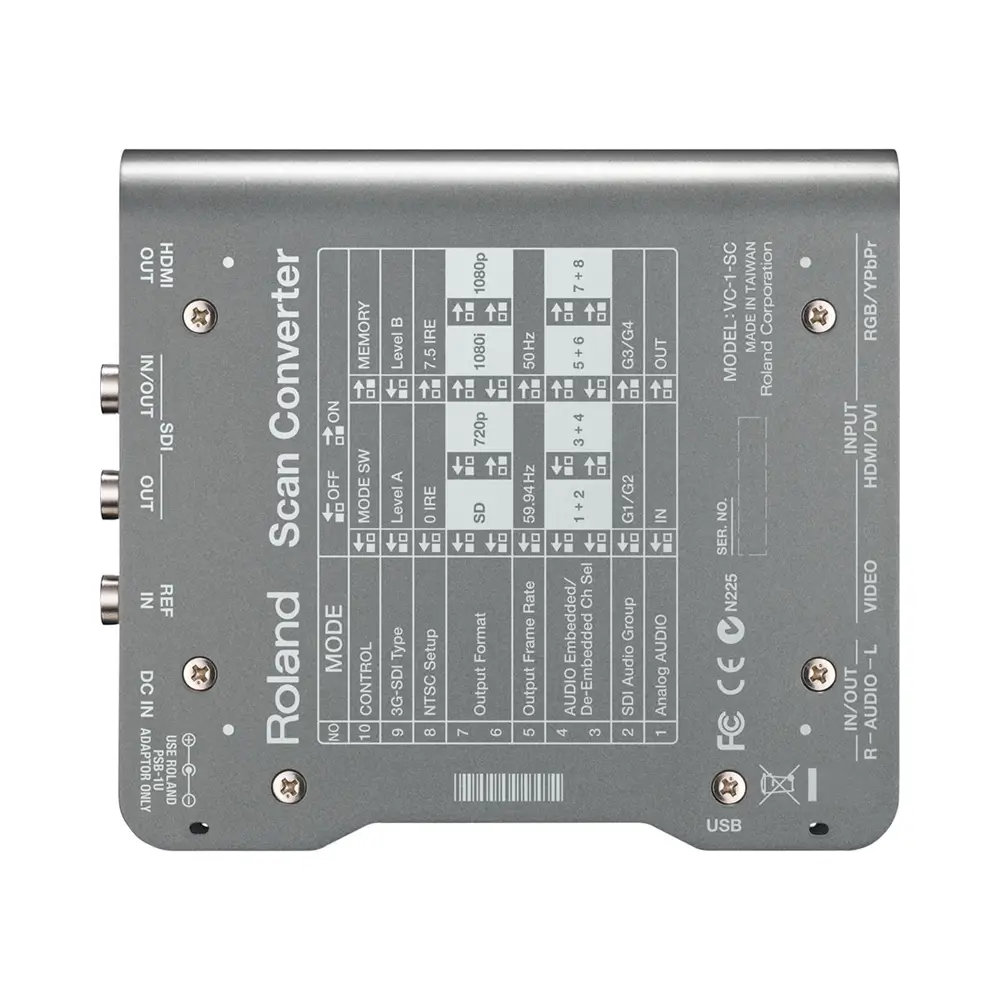

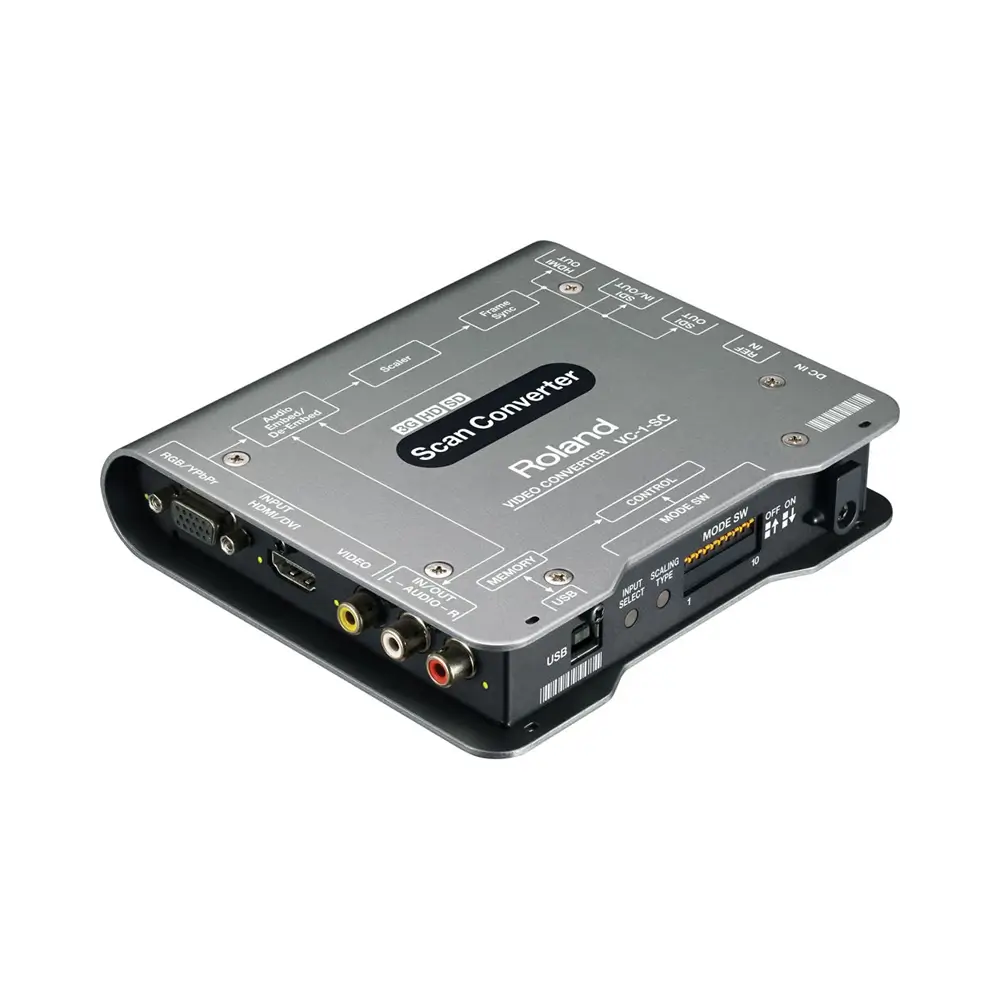

Roland VC-1-SC Up/Down/Cross Scan Converter
- Built-In Frame Synchronizer and Scaler
- HDMI / DVI / SDI In/Out

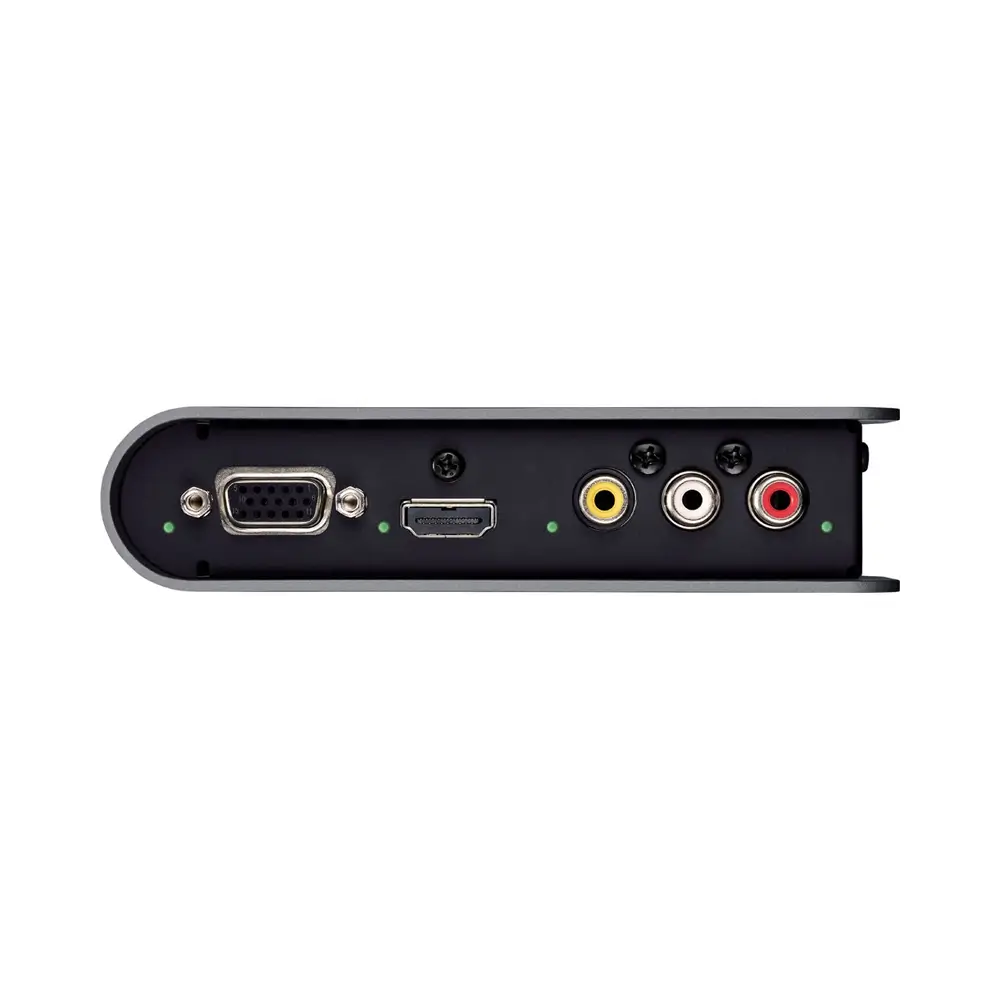

- RGB/Component, Composite In
- Audio Embedding & De-Embedding
Up/Down/Cross Scan Converter to/from SDI/HDMI with Frame Sync
Roland’s new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
The VC-1 Video Converter series
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources. The VC-1-SC also enables input from analog sources such as RGB and component along with built-in scaler.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. Selectable audio embedding or de-embedding lets you route different audio sources to or from video devices.
.
| Weight | 0.50 kg |
|---|---|
| Dimensions | 15.06 × 13.00 × 2.99 cm |
| Input |
SDI Connector: 1 x BNC type |
| Output |

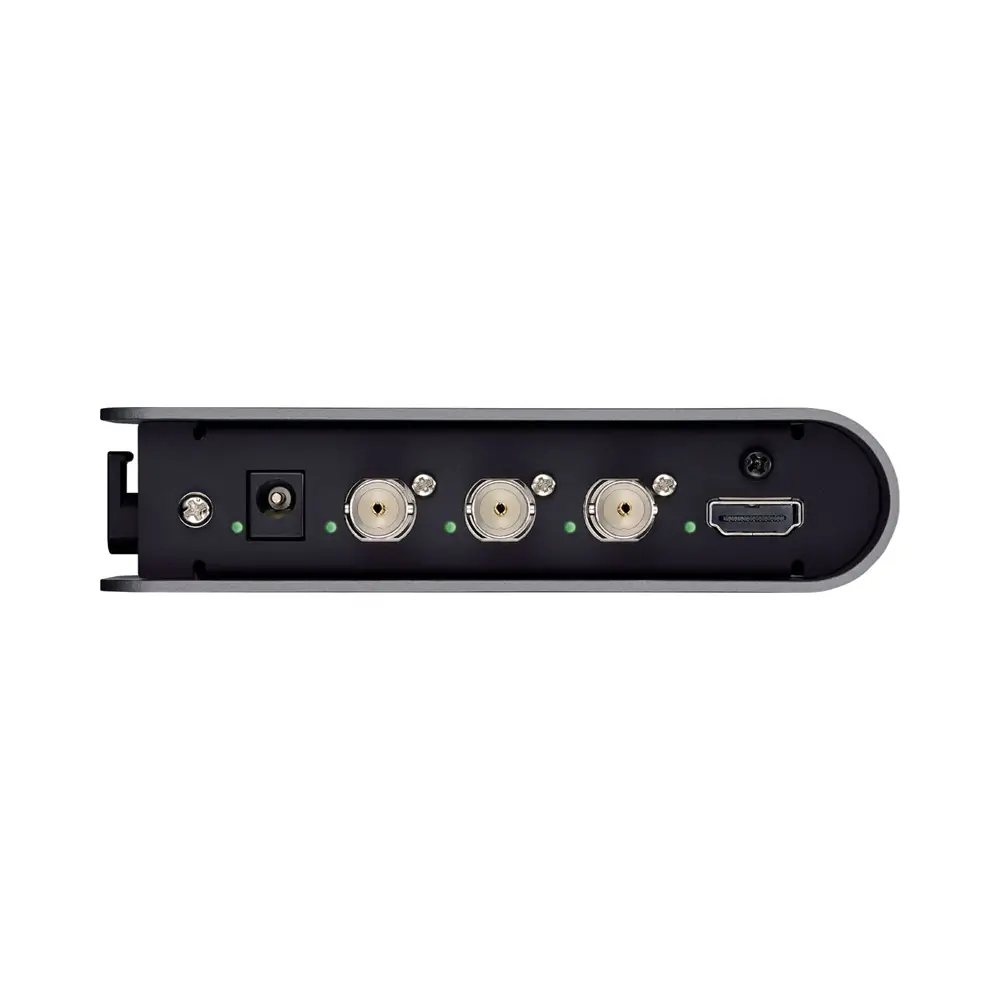

SDI Connector: 2 x BNC type (One is Combined with SDI In Connector) |
| SDI |
Signal Standards : SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C |
| HDMI |
Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p, 720 x 480/59.94p/59.94i, 720 x 576/50p/50i (Conforms to CEA-861-E) |
Related products
Roland V-4EX Four-Channel Digital Video Mixer with Effects
- 3 x SD Video HDMI / 4 x Composite Inputs
- 1 x 1080p HDMI Input with Scaler
- NTSC/PAL Internal Progressive Processing
- 4 x Built-In Frame Synchronizers
- Keyer, 259 Transitions, 148 Effects
- Audio Mixer & up to 4-Frame Delay
- Analog T-Bar Transition Control
- Built-In Multiviewer with Touch Control
- USB Streaming for Webcasting
- Built-In Output Scaler

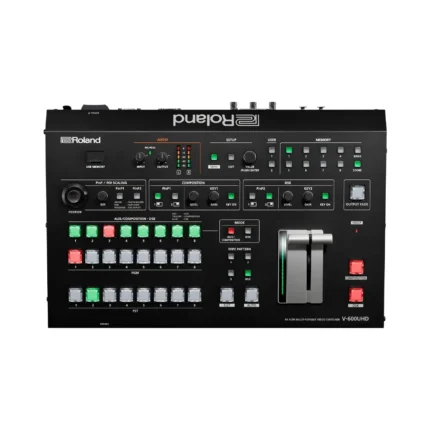

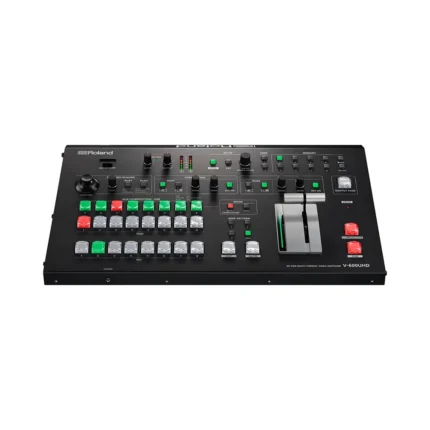

Roland V-600UHD 4K HDR Multi-Format Video Switcher
