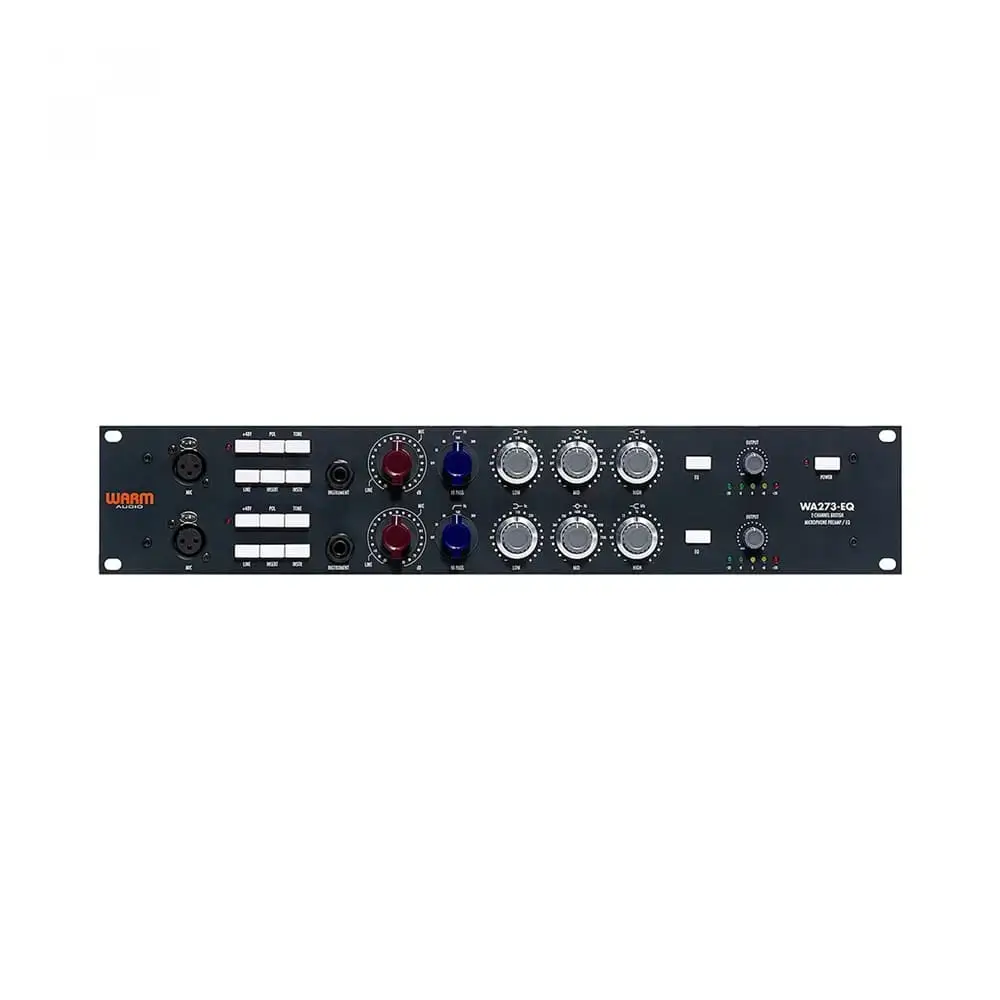

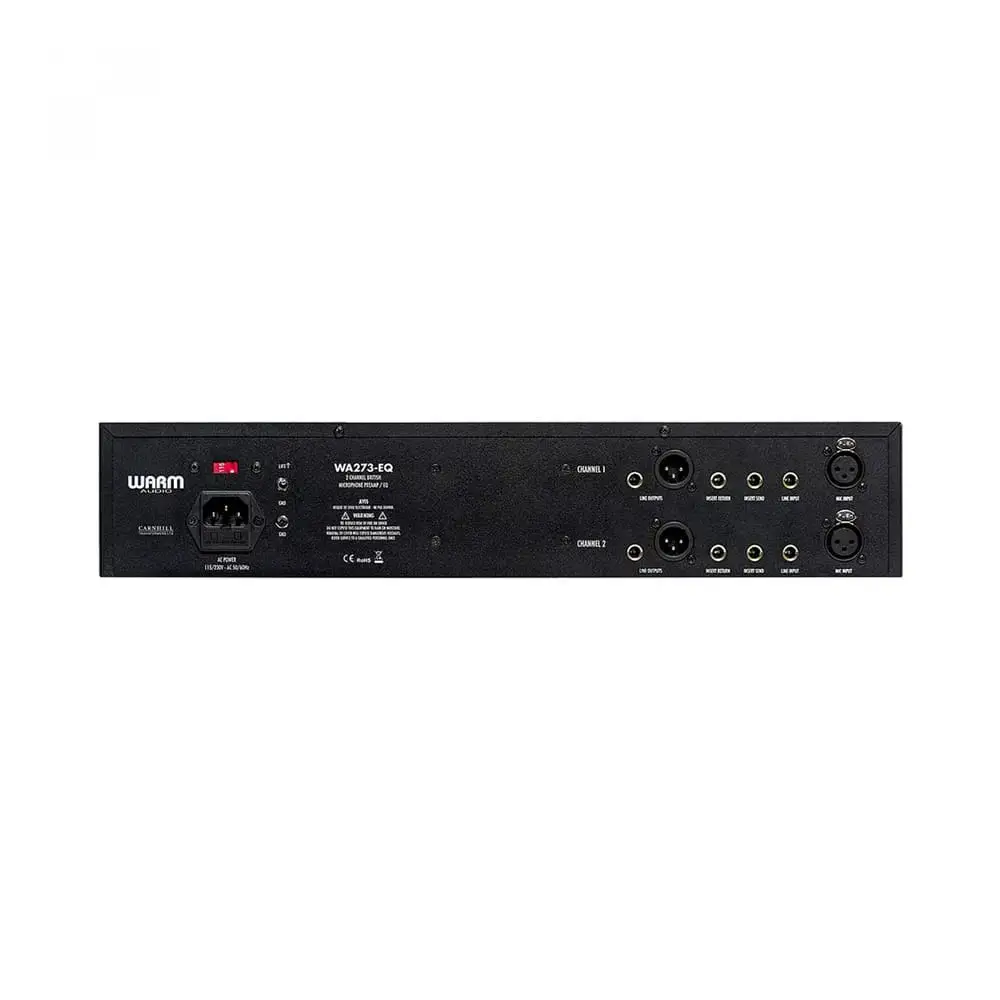

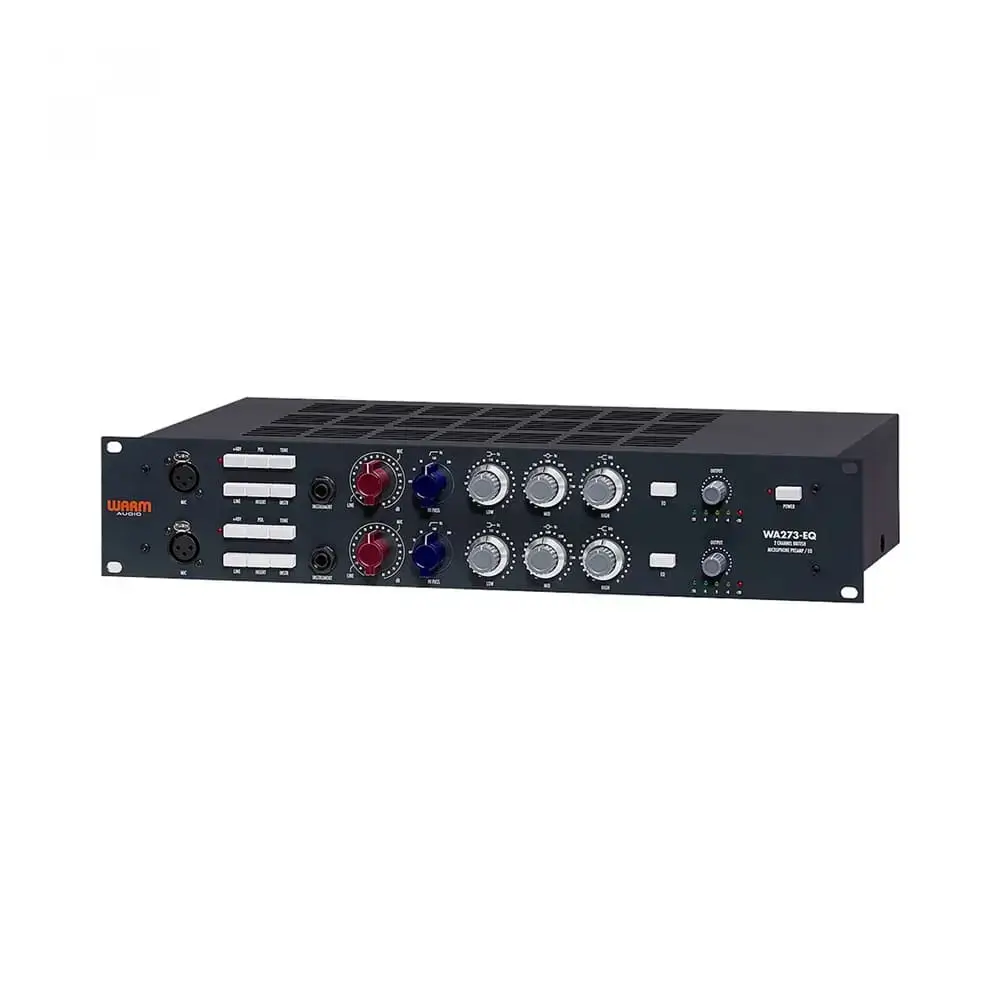

Warm Audio WA273-EQ Dual-Channel Microphone Preamplifier and Equalizer
5,943.00 Excl. VAT
-
2-channel Mic/Line/Instrument Preamp with 3-band EQ
- Fully discrete, Class A, transformer-balanced circuitry
- UK-made Carnhill Transformers
- 80dB of gain handles any type of microphone, including low-output ribbons
- Resistor-stepped rotary gain switches for easy recall
- Tone buttons change input transformer impedance for mic optimization and tonal shaping
- Polarity switches
Available on backorder
WA273-EQ
Dual-Channel British Mic Preamplifier + EQ
Properly reproducing the most legendary British console sound of all time with 3-band EQ.
The Iconic Analog Sound of Music’s Greatest Recordings + EQ
The WA73-EQ & WA273-EQ recreate the most iconic British console channel strip sound made famous by legendary recordings from the 60s and beyond. Known for delivering rich, full analog warmth with frequency control, the original became the foundation of classic rock and was the centerpiece of countless timeless hits. The sound of those famed console preamps can be heard on recordings by The Beatles, U2, Kendrick Lamar, Led Zeppelin, and many more.
The Perfect Balance Of Natural & Polished Sound
The WA73-EQ & WA273-EQ deliver the perfect balance of “unmistakably analog” tone & clarity with added frequency sculpting that every engineer is chasing. With 80 dB of gain, a discrete Carnhill Transformer balanced signal path, and onboard 3-band EQ, the 73-EQ series is perfect for any recording, mixing, or engineering task. Using hand-wired construction featuring premium components and individually testing every single unit, the 73-EQ series preamps are the ideal choice to upgrade your sound to studio-grade.
Like the original 73-series British console preamp, the WA73 series pres include all the features that deliver a complete and professional recording experience.
The high-pass filter makes it easy to remove unwanted noise from the bass frequencies that plague recording and mixing.
Switchable unbalanced send/return inserts make it possible to add a compressor, EQ, or your favorite processing gear before hitting the output transformer.
The WA73 also includes critical preamp features like 48V phantom power, instrument & line-level inputs, XLR/TRS input/output options, polarity inversion, and the classic Warm Audio Tone control to handle varying recording demands.
The WA73-EQ and WA273-EQ’s dedicated, switchable EQ sections offer added versatility and convenience, allowing users to record multiple sources simultaneously or utilize two different microphone setups.
| Weight | 8.73 kg |
|---|---|
| Dimensions | 60.96 × 39.12 × 14.22 cm |
| Preamp Type: |
Class A Solid State |
| Number of Channels: |
2 |
| Phantom Power: |
Yes |
| Polarity Switch: |
Yes |
| EQ: |
Low (35Hz, 60Hz, 110Hz, 220Hz), Mid (360Hz, 700Hz, 1600Hz, 3200Hz, 4800Hz, 7200Hz), High (10kHz, 12kHz, 16kHz), Highpass |
| Analog Inputs: |
4 x XLR (mic), 2 x 1/4" (Hi-Z), 2 x 1/4" (line) |
| Analog Outputs: |
2 x XLR, 2 x 1/4" |
| Channel Inserts: |
Yes |
| Frequency Response: |
20Hz-20kHz (±0.5 dB) |
| Rack Spaces: |
2U |
| Power Source: |
Standard IEC AC cable |
