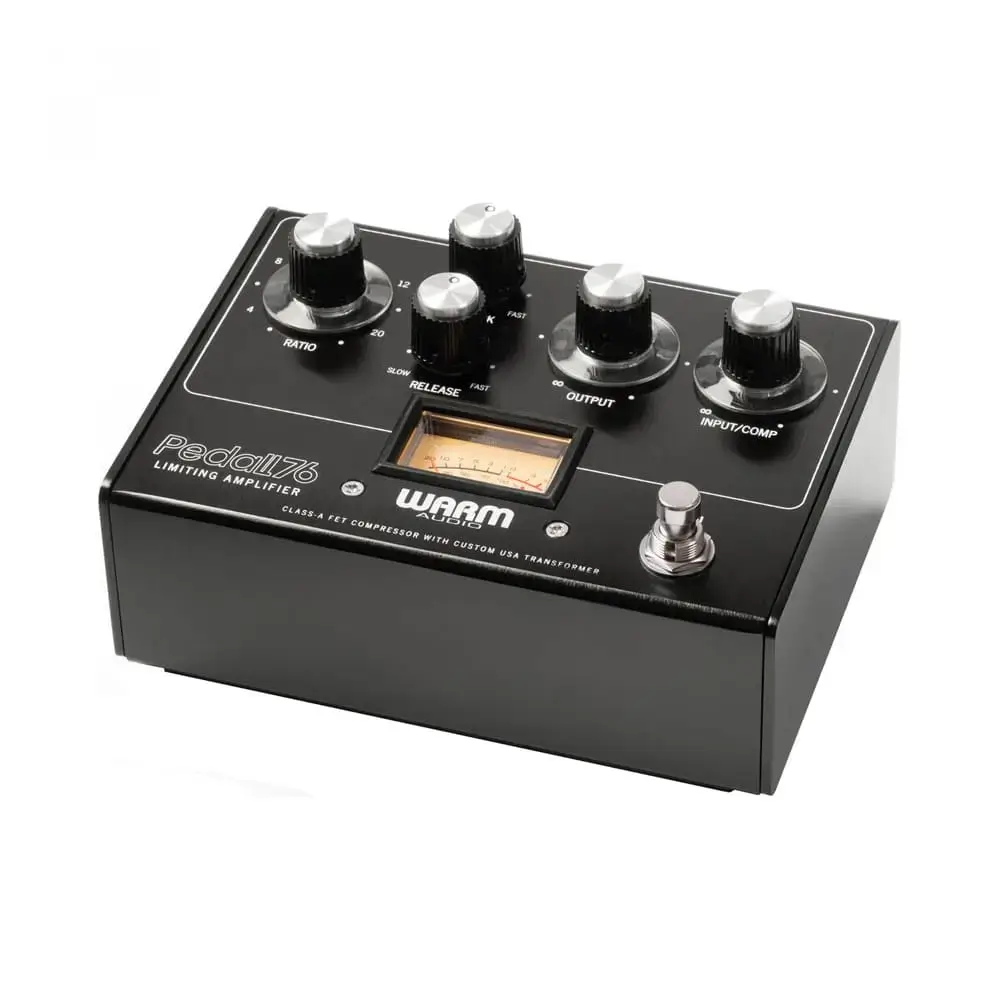

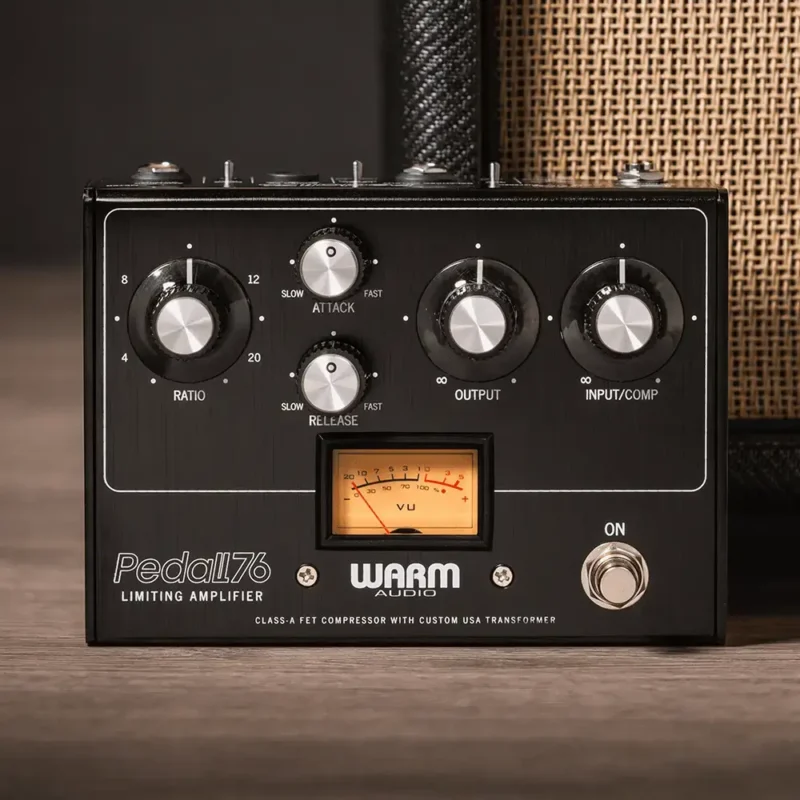

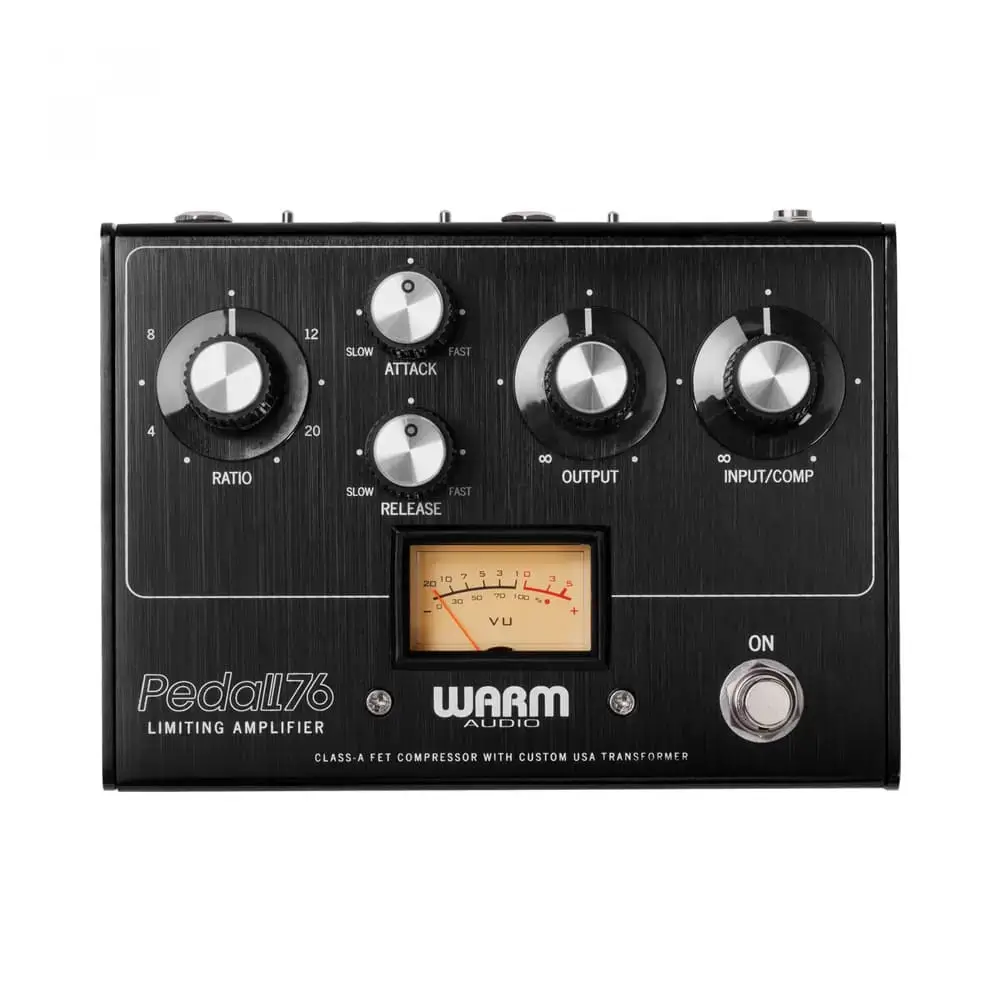

Warm Audio Pedal76 Analog FET Compressor Pedal
1,000.00 Excl. VAT
- Vintage-inspired pedal packed with hand-selected components
- Ratio, Attack, Release, Output, and Input controls
- FET topology
- Top-panel VU meter
- Generous rear-panel switches
- Dedicated balanced DI output
- Crammed with premium components, including a custom CineMag transformer
Available on backorder
Pedal76
All-Analog Transformer-Balanced FET Compressor Pedal
Recreating Legendary Studio Compression For Your Pedalboard
Classic Studio Compression Recreated For Your Pedalboard
Pedal76 accurately reproduces one of the fastest and most powerful studio compressors of all time, known for having ultra-fast attack and release and adding sweet analog tone to any source. Just like in the studio, Pedal76 has Attack & Release, Ratio, and Input controls, critical for taming unwanted changes in volume on stage. Backed by over 10 years of expertise delivering premium, award-winning studio compression with the Warm Audio WA76, the Pedal76 is capable of bringing out the wide range of legendary compression tones from subtle to hard-limiting as favored by celebrated artists such as Led Zeppelin, Pink Floyd, Periphery, Jack White and many more.
Studio-Quality Sound, Stage-Ready Control

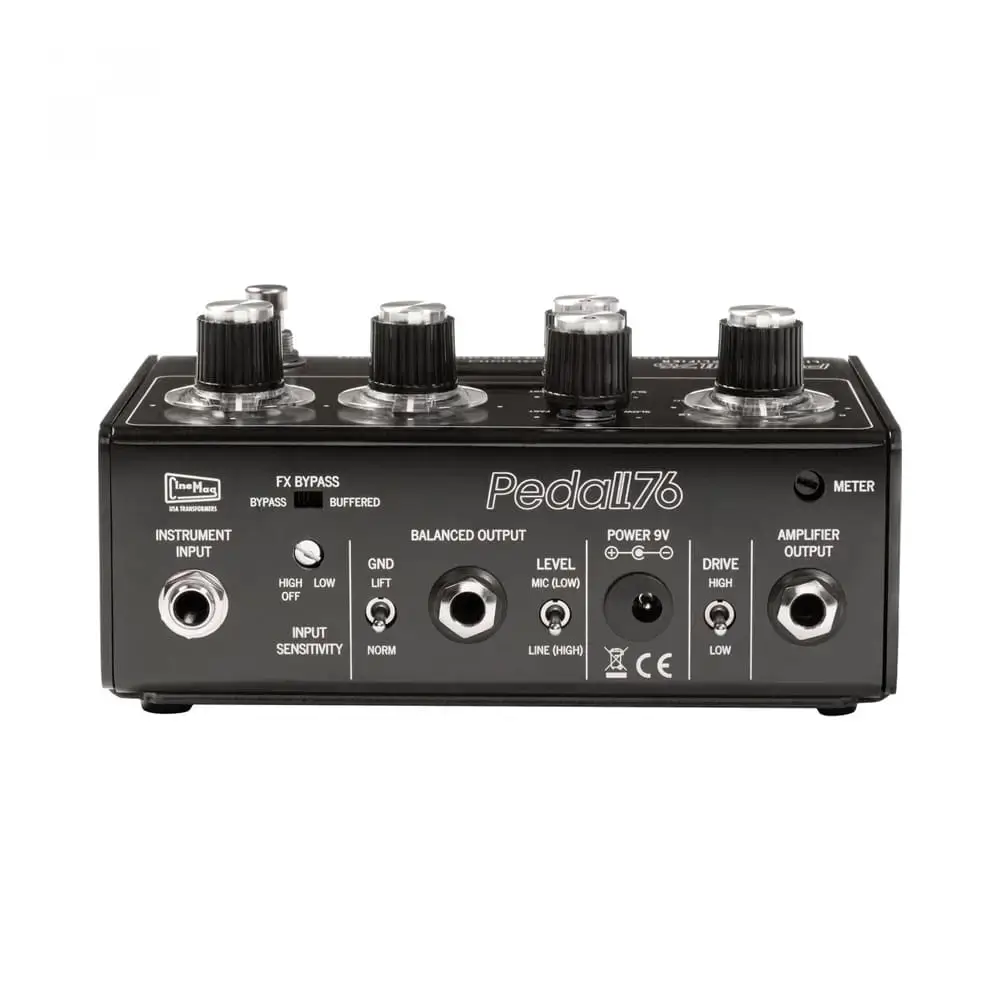

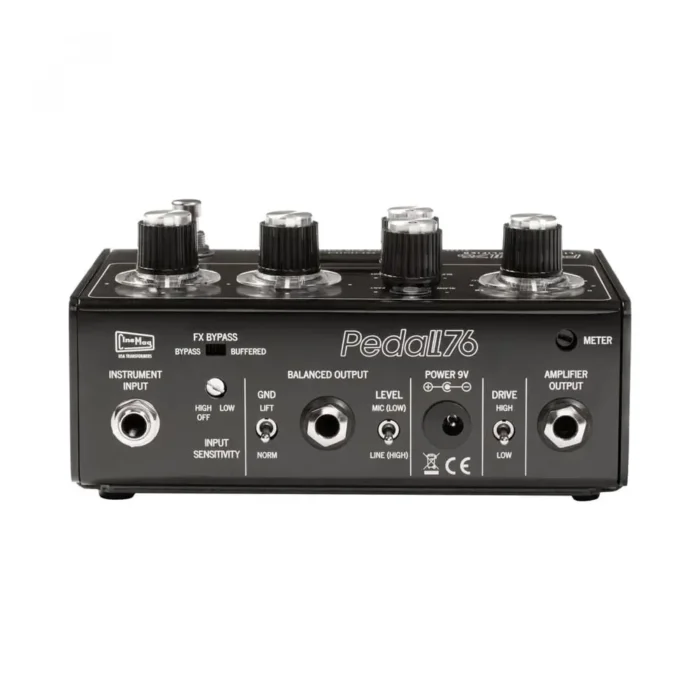

To achieve authentic 76-style FET compression, Pedal76 is built with an all-analog circuit and premium components, including a custom CineMag USA transformer. Spec’d to duplicate the professional performance of the studio units, this transformer adds rich harmonic content, and, in high gain mode, a bit of audible overdrive reminiscent of the most prized studio originals. Pedal76 features gig-ready controls like an external switch for true/buffered bypass, ensuring the compressor plays nice in your rig. Switches for input sensitivity, ground/lift, pad and high/low gain modes (both for DI operation) provide added utility at gigs or in the studio. The separate (DI) out also sends a balanced signal to any mixer or live recording rig.
Getting Started With Classic Sounds
Funky-Munks
Instant Studio Bass
Post-distortion Rhythm
Studio-Sound Rhythm
| Weight | 0.96 kg |
|---|---|
| Dimensions | 20.07 × 15.5 × 12.45 cm |
| Pedal Type: | Compressor |
| Analog/Digital: | Analog |
| Inputs: | 1 x 1/4″ |
| Outputs: | 1 x 1/4″ TRS (DI out), 1 x 1/4″ (Amp out) |
| Bypass Switching: | Buffered Bypass, True Bypass |
| Power Source: | 9V DC power supply (sold separately) |
