Warm Audio Direct Box Active DI Box for Electric Instruments
740.00 Excl. VAT
- Active direct box with Cinemag transformer
- Converts a high-impedance, unbalanced signal to a low-impedance, balanced signal
- Leaves your instrument’s tone and clarity intact
- Variable pad from -3dB to -30dB lets you set an optimal input level to prevent distortion
- Ground lift switch helps eliminate buzz and hum caused by ground loops
- Route your amp signal to a live mixer or recording interface

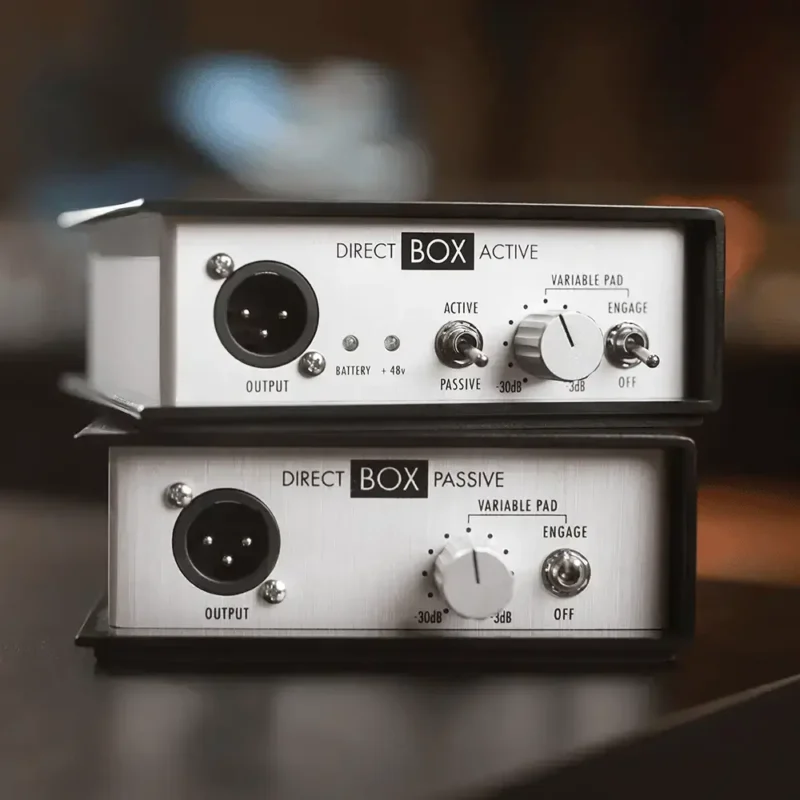

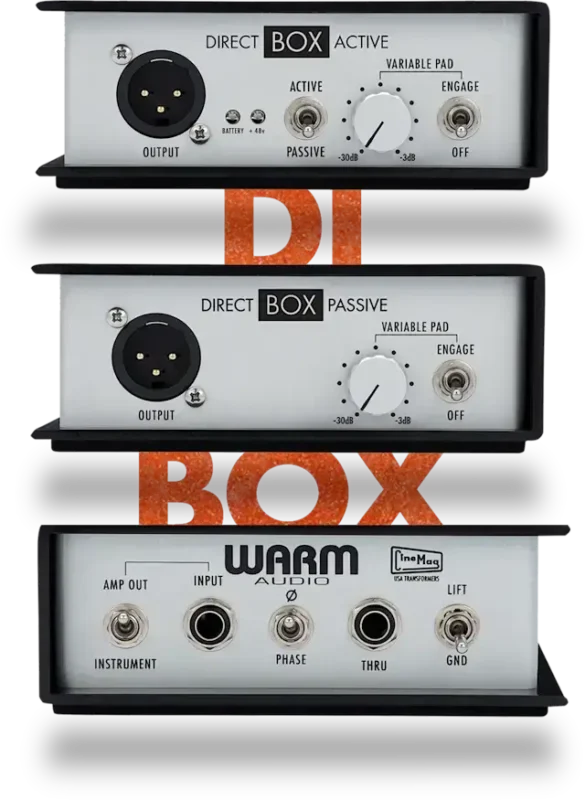

- Intuitive front- and rear-panel layout
In stock
WA-DI-A
Transformer-Balanced Active Direct Box
For Connecting Guitar, Bass, Keys And Other ¼” Instruments Directly To Mixers And Audio Interfaces.
Preserve Your Tone

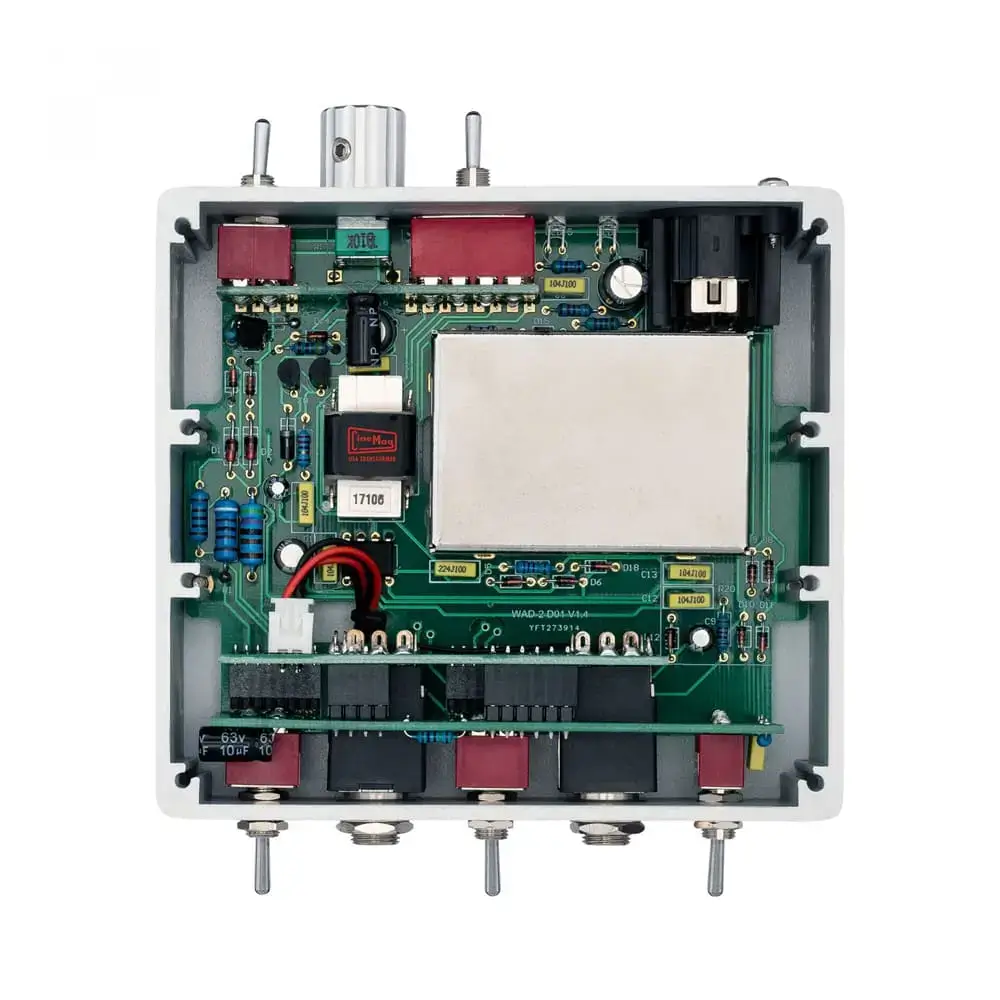

Warm Audio’s active and passive DI boxes are designed and built to deliver premium performance, from the inside-out. On the inside, you’ll find 100% Class-A circuitry using premium components, but the star of the show is a custom USA-made CineMag transformer, included in both passive and active models. The transformer ensures that any analog color and character from your instrument or signal chain is preserved before hitting any mixers or audio interfaces. On the outside, a selectable -3 – -30dB pad helps dial-in your ideal signal volume and ground/lift switch helps eliminate ground-loop noise. The active version adds 48v phantom power via dual 9v batteries. The active DI can also be switched to passive mode for added versatility.
Pro Direct Sound: Studio & Stage
Warm Audio DI Boxes allow you to run the high-impedance signals from guitar, bass, and keyboards directly into low impedance mic preamps, mixers, interfaces or to send signal over extended cable runs without losing volume, tone, and significant high-frequency information. Warm Audio’s road-worthy DI Boxes are the professional solution for this common mismatch, ensuring you won’t diminish the tone of your instrument or performance.
Like premium DI boxes costing 2-3X, Warm Audio active and passive DIs include all the features and rugged build expected to deliver a complete and professional audio experience.
The variable pad on the DI boxes is designed to help properly set levels from the DI to the mixer or audio interface. If distortion is audible, engage the bad and begin to apply attenuation until the signal is loud and clear.
The “instrument” setting on the switch works with all types of instruments using ¼” outputs. When using a signal from a guitar amplifier is desired, switch to “amp out” switch to send your amplified guitar signal to the DI and then out via the XLR output. **
The Phase switch reverses the polarity of the signal, correcting potentially poorly wired cables and eliminating phase-related noise issues.
Eliminate noise like hum and buzz caused by ground-loop issues. As more pieces of equipment connect to various power supplies, the chance of ground-loop hum issues increase.
**WARNING: Most guitar amps require a reactive load (a speaker) to be connected to the amplifier to prevent overheating. The best practice is to connect a ¼” cable to the ‘THRU’ input directly to a properly rated speaker cabinet. This ensures the amp is loaded properly, preventing serious damage to your amplifier.
ACTIVE ONLY – BATTERY MONITORING & ACTIVE/PASSIVE SWITCH: The active version of the DI has LED indicators to show if 48v is being passed and if the internal battery is the supplier. The active DI will accept 48v from the mixer or interface source to save battery power. The active/passive switch changes the operational mode of the DI from active (power engaged) or passive, using no 48v power.
| Weight | 0.844 kg |
|---|---|
| Dimensions | 18.8 × 18.8 × 8.13 cm |
| Type: |
Active (switchable to passive) |
| Channels: |
1 |
| Pads: |
Variable, -3dB to -30dB |
| Polarity Switch: |
Yes |
| Ground Lift: |
Yes |
| Inputs: |
1 x 1/4" (instrument/amp) |
| Outputs: |
1 x XLR, 1 x 1/4" (thru) |
| Power Source: |
48V Phantom Power, 2 x 9V battery |
