Vizrt Viz Connect Audio
9,995.00 Excl. VAT
- Connect and Control Audio on NDI Network
- Convert Mic/Line Analog Audio to NDI
- Eight XLR-1/4″ Combo Analog Inputs
- Four XLR Analog Outputs
- Integrated NDI Bridge
- Monitor Quality/Available Audio Streams
- Control via Web UI
Available on backorder
Estimated delivery: October 26, 2026 – November 5, 2026
Description
Convert and monitor analog audio signals on your NDI network with the Viz Connect Audio 8×4 Analog/NDI I/O Converter with Control & Monitoring from Vizrt. The Viz Connect Audio features eight XLR-1/4″ combo analog mono inputs that allows you to convert to NDI for monitoring and connection on your NDI network.
There are also four XLR outputs to convert or pass through analog audio to speakers or a mixer. You can control and monitor the audio and configure the unit via the built-in web GUI. Other features include phantom power, NDI grouping, solo monitoring, selectable mic/line input, and gain control.

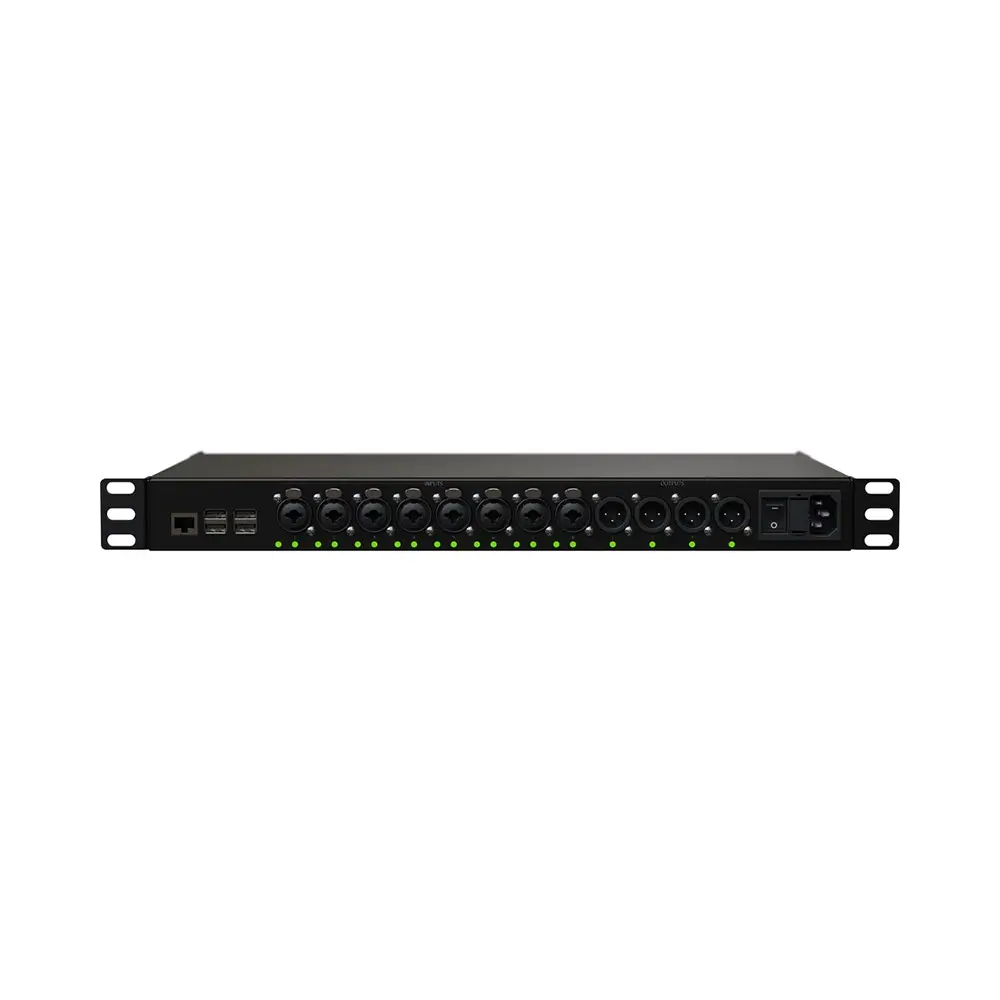

Connectivity
Viz Connect Audio features 8 analog inputs via a combination of 1/4″, XLR Line, or mic inputs as well as NDI connectivity. There are also headphone connections and up to four XLR analog outputs. Using the integrated NDI Bridge, Viz Connect Audio offers limitless connectivity from the server room to a TriCaster across the globe.
Monitoring
Whether your audio is already streaming on your NDI network or coming from one of the many physical connections, Viz Connect Audio offers visibility info every audio stream on your network.

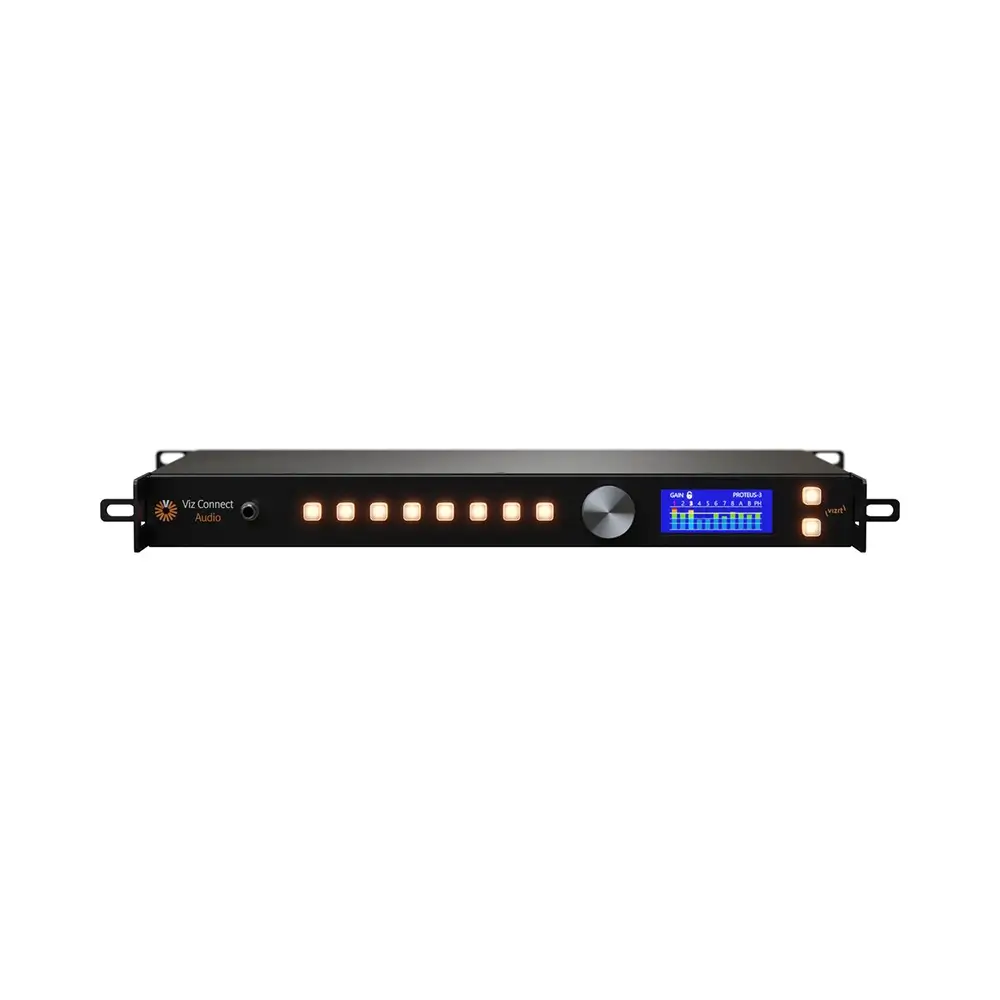

Control
Directly select Mic or Line level, phantom power on/off, solo, gain control, and NDI grouping control from the device front panel or via the WebUI.
Quick Features
- Eight mono analog inputs via XLR-1/4” combo connectors
- 48 kHz 32-bit floating point NDI conversion
- Gain setting per channel
- Phantom power on/off per channel
- Line/mic setting per channel
- Global SMPTE/EBU setting
- Four mono outputs via XLR
- Headphone jack with solo
- LED indicators for phantom, mic/line, and solo status
- Front-panel and WebUI control
Additional information
| Weight | 4.8 kg |
|---|---|
| Dimensions | 59.94 × 39.62 × 18.8 cm |
| Compatibility: | Not Specified by Manufacturer |
| USB I/O: | 4 x USB-A Female Input |
| Audio I/O: | 8x Combo XLR-1/4″ Line/Mic Input 4x XLR 3-Pin Output 1x 1/4″ Headphone Output |
| Other I/O: | 1 x RJ45 NDI/LAN |
| Phantom Power: | Yes |
| Display: | Yes, Front LCD |
| Power Source: | AC Input |
| Mounting: | 1x Rackmount Bracket System |
| Color: | Black |
