Vision+ 4KZ
3,995.00 Excl. VAT
- Cutting-edge image processor, Vision+ 4KZ outputs 4K video
- Side Control Panel for Key Image Parameters & IP Address
- Seamless switching between panoramic and CROP views via HDMI/USB interfaces.
- Dual Smart Tracking Modes
- FreeD Integration Unlocks Immersive Virtual Productions
- Perfect Color Match for Multi-Camera Productions
- Offers 20X optical zoom options with FOV of 60°
- Local Recording for Backup and Cloud Production
Available on backorder
Estimated delivery: October 27, 2026 – November 6, 2026
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 8.2 × 8.53 × 18.65 cm |
| Camera: | • 1/1.8-inch, 9MP UHD CMOS sensor • 20X optical zoom • Lens: f = 6.25mm ~ 112.5mm, F1.58 ~ F3.96 • Horizontal View Angle: 61° (Wide) ~ 3.5° (Tele) • Vertical Viewing Angle: 34.1°~1.9° • Diagonal Viewing Angle: 60.7°~3.5° • Minimum Working Distance: 1.0m • S/N Ratio: ≥50dB |
| Noise Reduction: | 2D&3D |
| Minimum lux: | 0.5Lux(50 IRE Max AGC, 1/30, F1.58) |
| White Balance: | Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature |
| Exposure: | Auto/Manual/Shutter Priority/Iris Priority/Brightnes |
| Anti-Flicker: | OFF, 50Hz, 60Hz |
| Image Flip/Mirroring: | Support |
| Focus/Iris/Electronic-shutter: | Auto/Manual |
| Gamma: | Support |
| Backlight Compensation: | Support |
| HDMI2.0 | 3840*2160P60/59.94/50/30/29.97/25 1920*1080P60/59.94/50/30/29.97/25 /24/23.98 ; 1920*1080I60/59.94/50 ; 1280*720P60/59.94/50/30/29.97/25 |
| NDI®|HX3 | Main Stream: 3840*2160P15~30; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60 Sub Stream (CROP): 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60;640*360P15~60; |
| USB 2.0 | NV12：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P30/25 YUYV：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P20/15 MJPG：1080P60/50/30/25; 1280*720P60/50/30/25; 1024*576P60/50/30/25; 800*448P60/50/30/25 |
| • Video Encoding: | H.264/H.265 |
| Bitrate Control: | Variable bitrate(VBR), Constant bitrate(CBR) |
| Bitrate Range: | 1024Kbps~61440Kbps • Network Port Speed: 1000 |
| Protocol: | NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC |
| Control Port: | RS232, RJ4 |

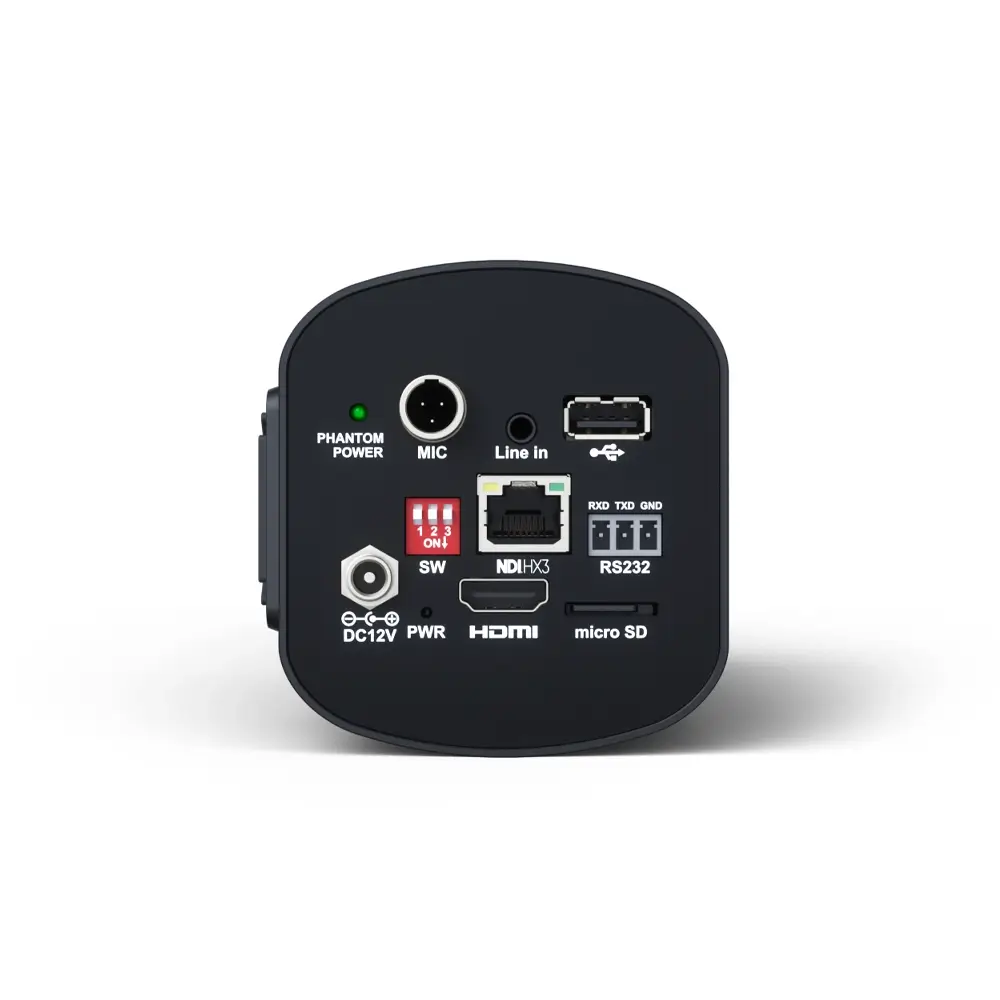

| Video Port: | NDI®HX3, HDMI2.0, USB Type-A |
