Sonnet Twin10G SFP28 Thunderbolt Adapter – Dual-port SFP28 Gigabit Ethernet Thunderbolt Adapter
- Adds High-performance 10GbE Fibre Connectivity
- SFP28 Transceivers Included
- Supports Teaming on Windows and Linux
- Increased Throughput
- Mac Compatible
- Windows Compatible
- Linux Compatible
- Compact. Rugged. Nearly Noiseless
- Thunderbolt to PCIe Device
- Daisy-chain Additional Thunderbolt Devices
Description
Twin10G SFP28 Thunderbolt Adapter
Dual-port SFP28 Gigabit Ethernet Thunderbolt Adapter
Compatible with Mac®, Windows®, and Linux® computers with Thunderbolt™ Ports
Add Blazing-fast Optical 10GbE Connectivity Over Thunderbolt
Are you looking for the most economical dual-port approach to connecting to a high-speed 10 Gigabit Ethernet (10GbE) fiber network using the Thunderbolt port on your Mac, Windows, or Linux computer? You’ll need the Sonnet adapter. Sonnet Twin10G™ SFP28 Thunderbolt Adapter is the powerfully simple solution for adding blazing-fast dual-port 10GbE optical network connectivity to your computer.
Twin10G SFP28 Thunderbolt Adapter is a pre-configured bundle of Sonnet Twin10G SFP28 PCIe Card with Sonnet Echo™ Express SEL Thunderbolt Expansion System.

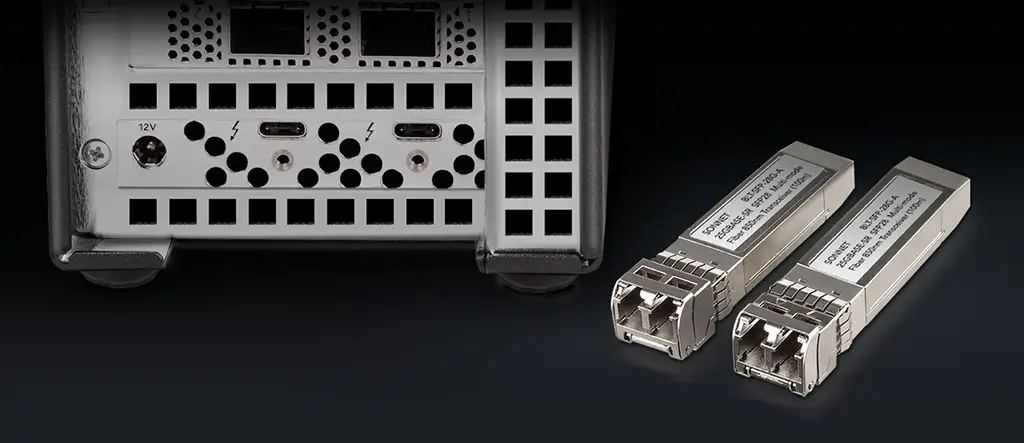

Includes Two SFP28 Transceivers
Easy Network Connection
To enable easy connection to your 10GbE optical network, Twin10G SFP28 adapter includes two short-range multi-mode fibre SFP28 transceivers (up to 300 meters).
Long Range SFP28 Transceivers Available – Sonnet also offers long-range single-mode fiber modules that support 10Gb connections at up to 10 kilometers.
10x Performance
More Bandwidth
10x the Performance of Gigabit Ethernet
Each Twin10G port supports ten times the performance of Gigabit Ethernet with even more bandwidth when combining ports.
SMB Multichannel Support
Maximizes Throughput and Reliability with SMB Multichannel
Harness the full potential of Sever Message Block (SMB) Multichannel support with our Twin10G SFP28 adapter. When both ports are connected to your SMB server, you can combine their bandwidth to achieve significantly higher data transfer speeds, and more. SMB Multichannel support brings several key benefits:
Small. Cool. Adaptable.
Suitable for Use in Noise-sensitive Environments
Small enough to easily fit in most workspaces, Twin10G SFP28 adapter is still large enough to support proper airflow inside the case – its design enables the adapter’s temperature-controlled, variable-speed fan to keep the adapter running cool and whisper-quiet at all times, making it suitable for use in in almost any workspace. Constructed of rugged and lightweight aluminum, the adapter’s outer shell securely protects the inner circuitry.
Secure Connections for High Performance
Thunderbolt Cable and ThunderLok Included
Sonnet includes a Thunderbolt cable that supports Thunderbolt’s maximum bandwidth and is fully compatible with Thunderbolt 5, 4, and 3 computers. Sonnet also provides ThunderLok, a Thunderbolt connector cable lock, that prevents accidental cable disconnections.
Thunderbolt Technology
Fastest External Interface Available
Sonnet Thunderbolt products feature a high-speed Thunderbolt interface that delivers PCIe bandwidth needed to support data transfers at full speed.
Additional information
| Weight | 1.86 kg |
|---|---|
| Dimensions | 10.3 × 21 × 7.3 cm |
| Compatibility | Mac (M series) Mac (Intel®) with Thunderbolt 3 ports macOS 13+ macOS Sequoia compatible Windows computer with Thunderbolt 5, 4, or 3 ports Windows 11 and 10 Linux computer with Thunderbolt 5, 4, or 3 ports Linux Kernel 5.4+ |

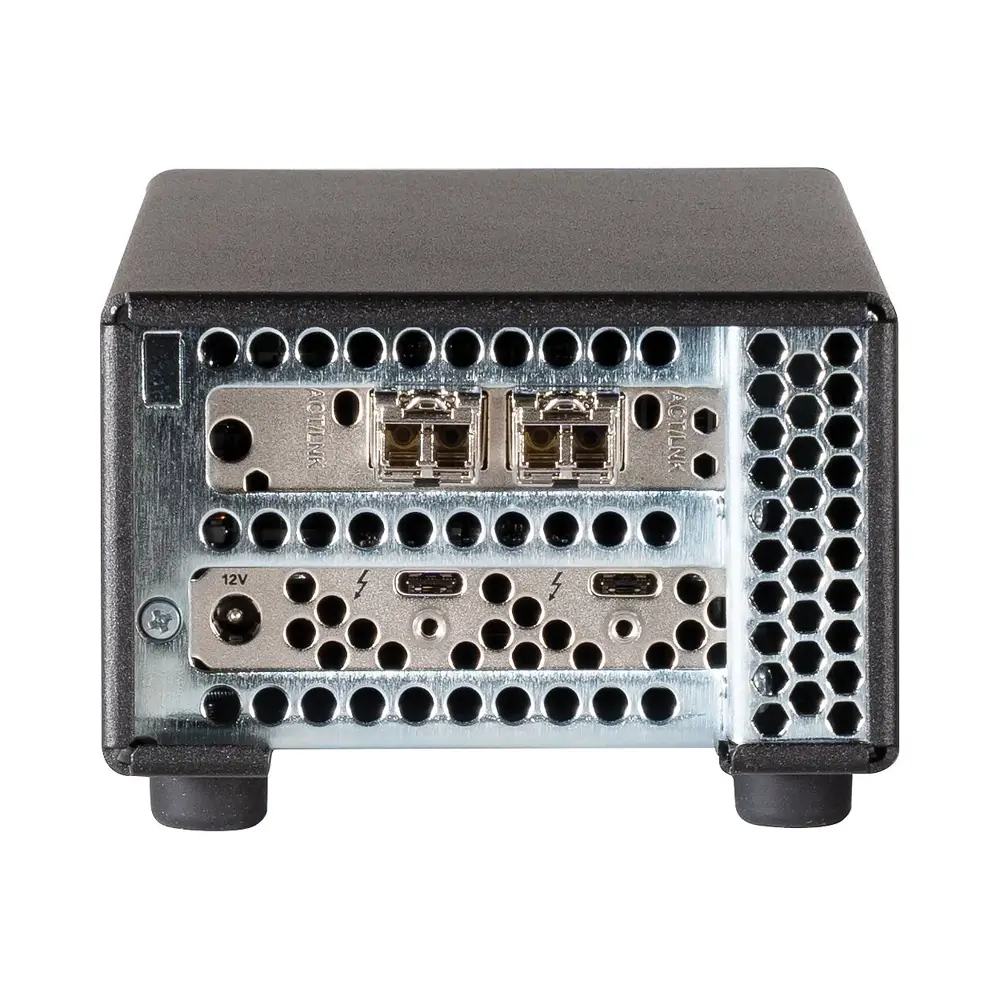

| External Connectors | Two Thunderbolt ports (second port supports a Thunderbolt peripheral, USB device, or a display) Two SFP28 sockets (with two short-range SFP28 optical transceivers) 12V power port |
| 10GbE Controller | Mellanox ConnectX |
| Teaming and SMB Multichannel Support | macOS SMB Multichannel can double transfer speeds p to 20Gb/s Windows 11 and 10, Windowser Server, and Linux Teaming or SMB Multichannel can double transfer speeds up to 20Gb/ |
| Packets | Maximum packet size: 9000 bytes (jumbo frames) |
| Advanced Features | Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Multicast filtering 64-bit address support for systems using more than 4GB of physical memory Wake-on-LAN not supported |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
