SKAARHOJ TCP Link for ATEM
2,788.00 Excl. VAT
- Control Blackmagic Design ATEM Switchers
- Use with Ethernet-Based Control Systems
- PoE Compatibility and 12V Power Supply
- Connects via TCP/IP
In stock (can be backordered)
Description

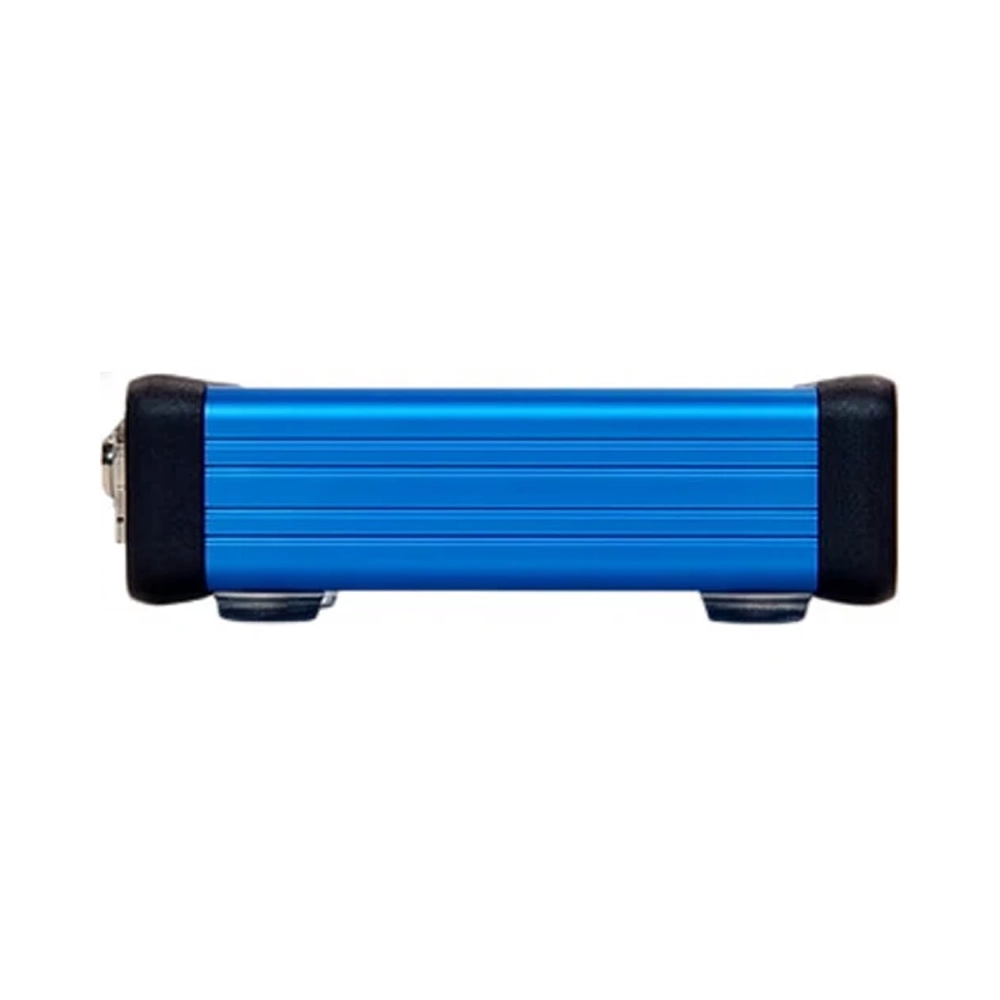

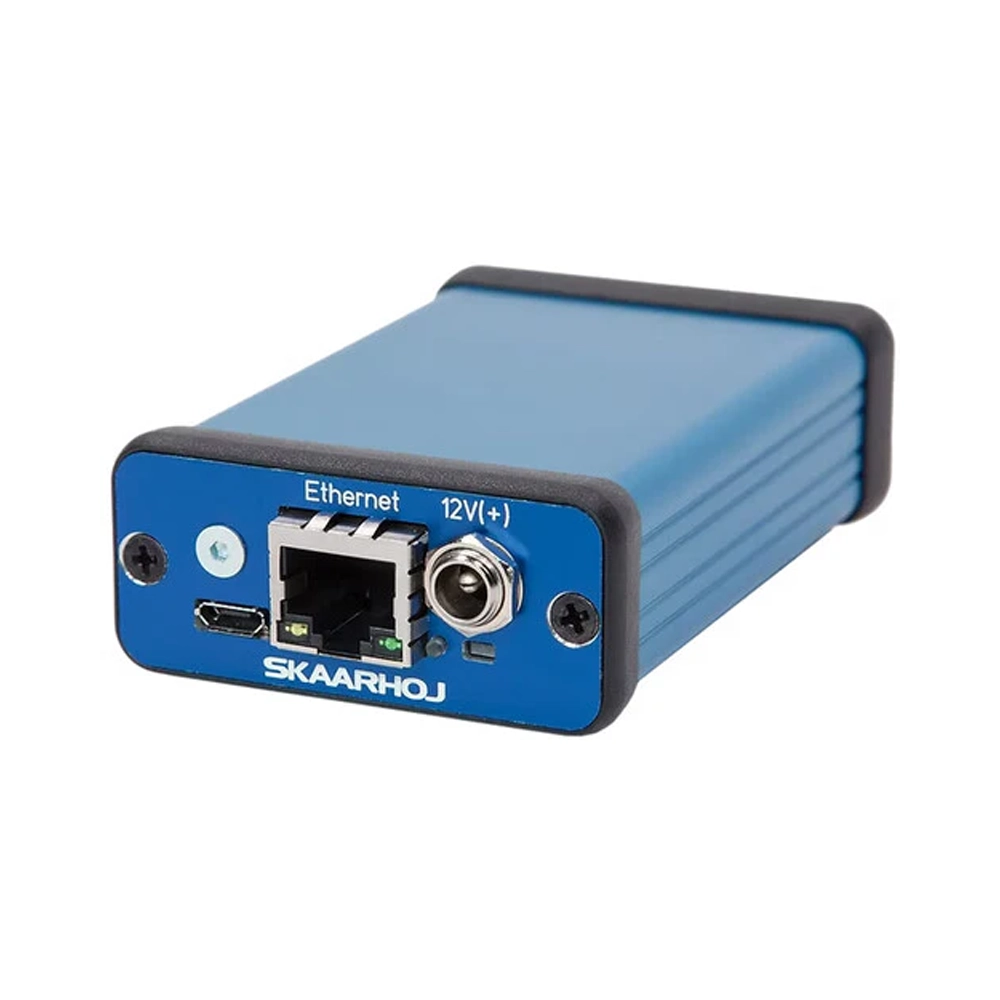

The SKAARHOJ TCP Link Control Bridge for ATEM Switchers is a compact Ethernet-to-TCP/IP interface designed to simplify third-party control of Blackmagic Design ATEM switchers. Built for system integration, it streamlines the complexity of ATEM communication into simple, bi-directional TCP commands, enabling reliable control from Ethernet-based platforms such as Crestron, AMX, Q-SYS, and Extron systems. Power is supplied via PoE or a 12 VDC barrel input for flexible installation, while a durable metal enclosure ensures dependable operation in professional broadcast, corporate, and other AV environments.
Additional Details
- Bridges Ethernet-based control systems with ATEM switchers
- TCP/IP communication for streamlined, bi-directional control
- Compatible with Crestron, AMX, Q-SYS, Extron, and custom systems
- Power-over-Ethernet (PoE) or 12 VDC barrel power input
- RJ45 Ethernet port and micro-USB I/O
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 5.7 × 8.9 × 2.7 cm |
| Compatibility: | Blackmagic Design ATEM Switchers Crestron Control Systems AMX Control Systems Q-SYS Control Systems Extron Control Systems |
| USB I/O: | 1 x Micro-USB Female Input/Output |
| Other I/O: | 1x RJ45 Ethernet Port 1x 12 VDC Barrel Power Input |
| Power Source: | PoE, DC Input |
| DC Input Power: | 12 VDC |
| Color: | Blue |
| Material of Construction: | Metal |
| Operating Conditions: | 32 to 104?F / 0 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C up to 90% Humidity |
| Cable Length: | 4.9′ / 1.5 m |
