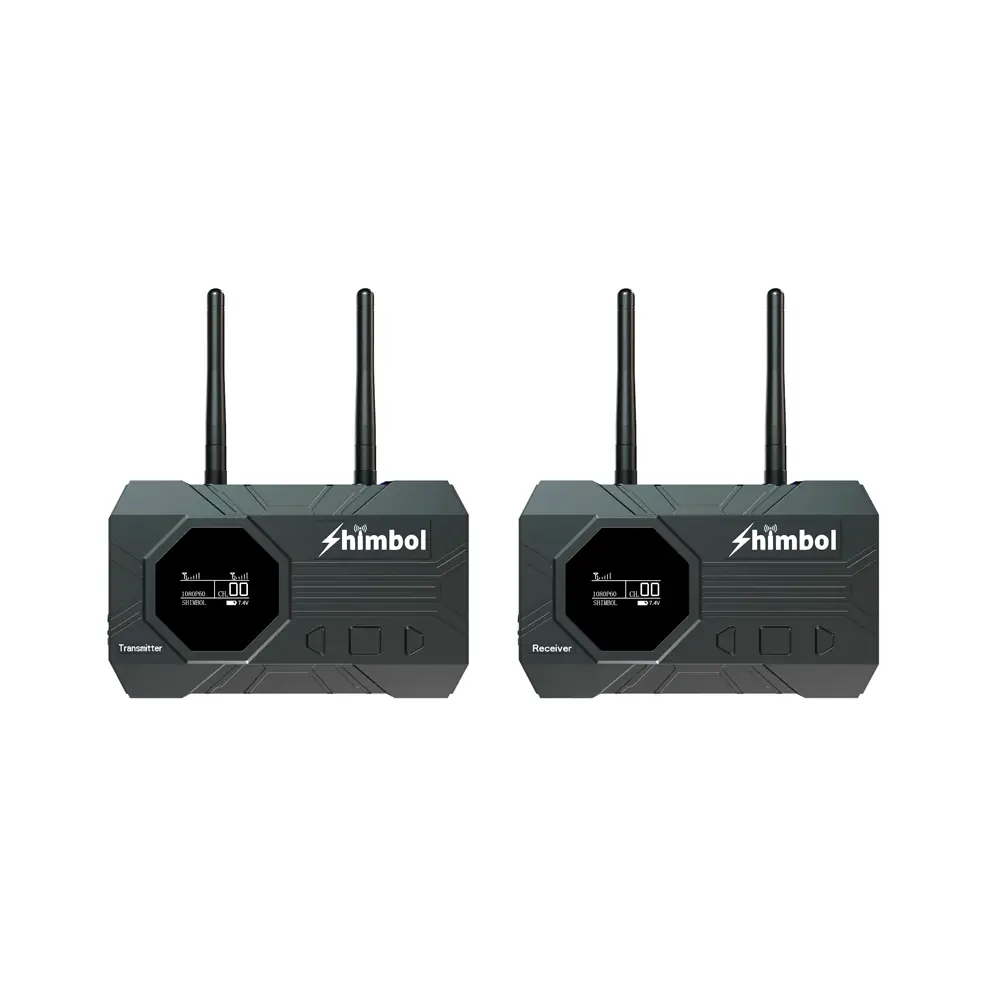

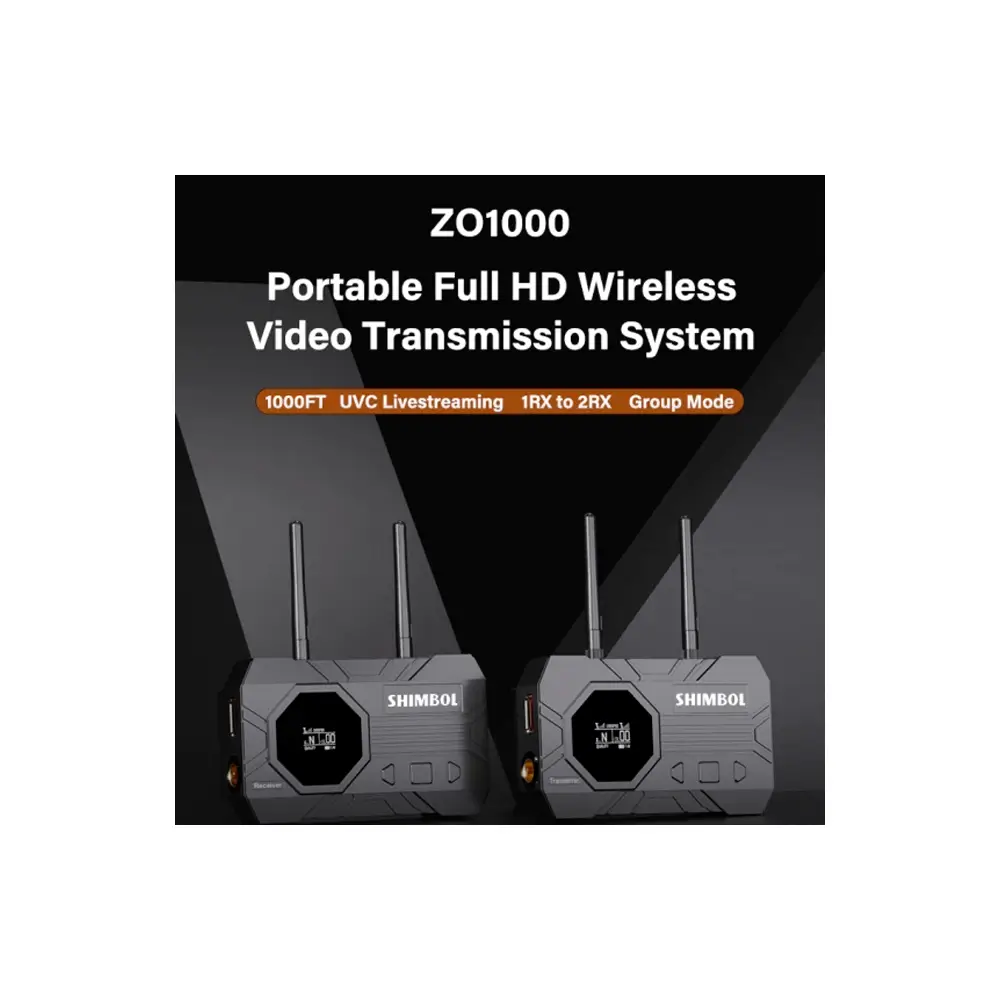

Shimbol ZO1000 SDI/HDMI Wireless Video Transmitter and Receiver Kit

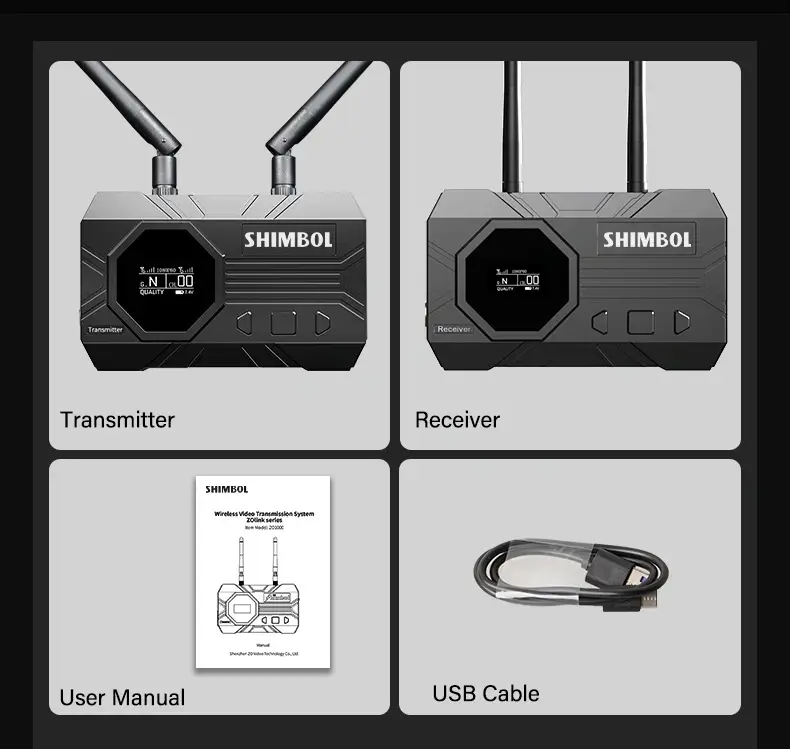

- 1 x Transmitter and 1 x Receiver Set
- Transmits up to 1080p60 Video

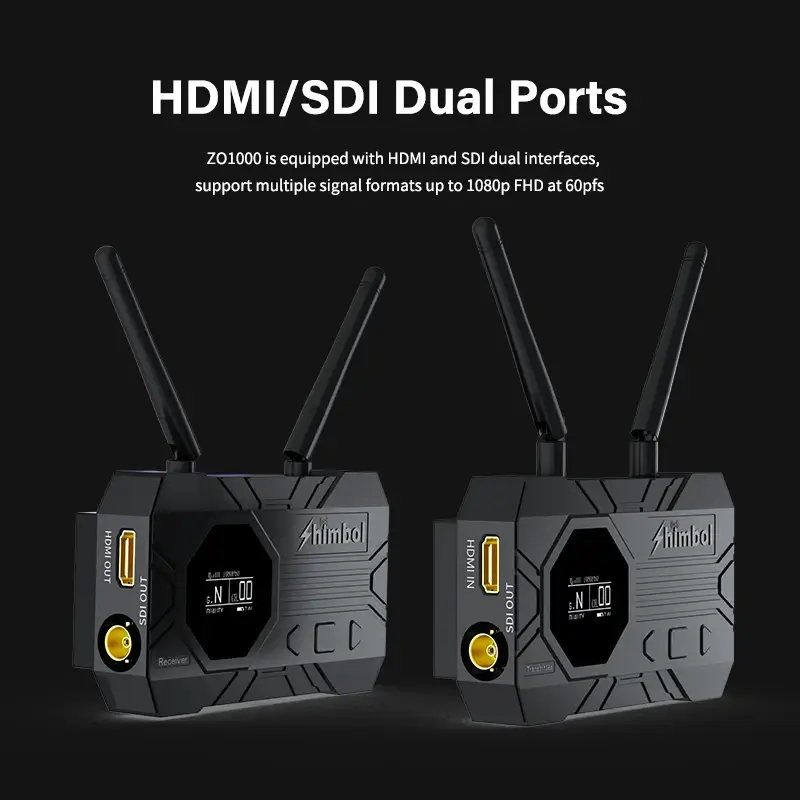

- SDI and HDMI In/Out, USB-C UVC Output
- Up to 1000′ Line-of-Sight Transmission

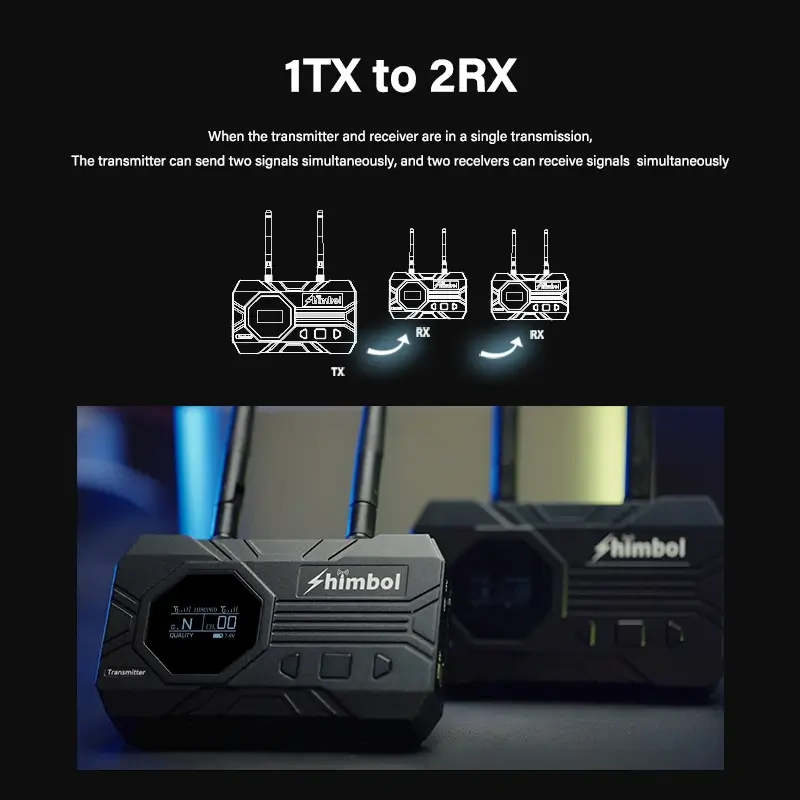

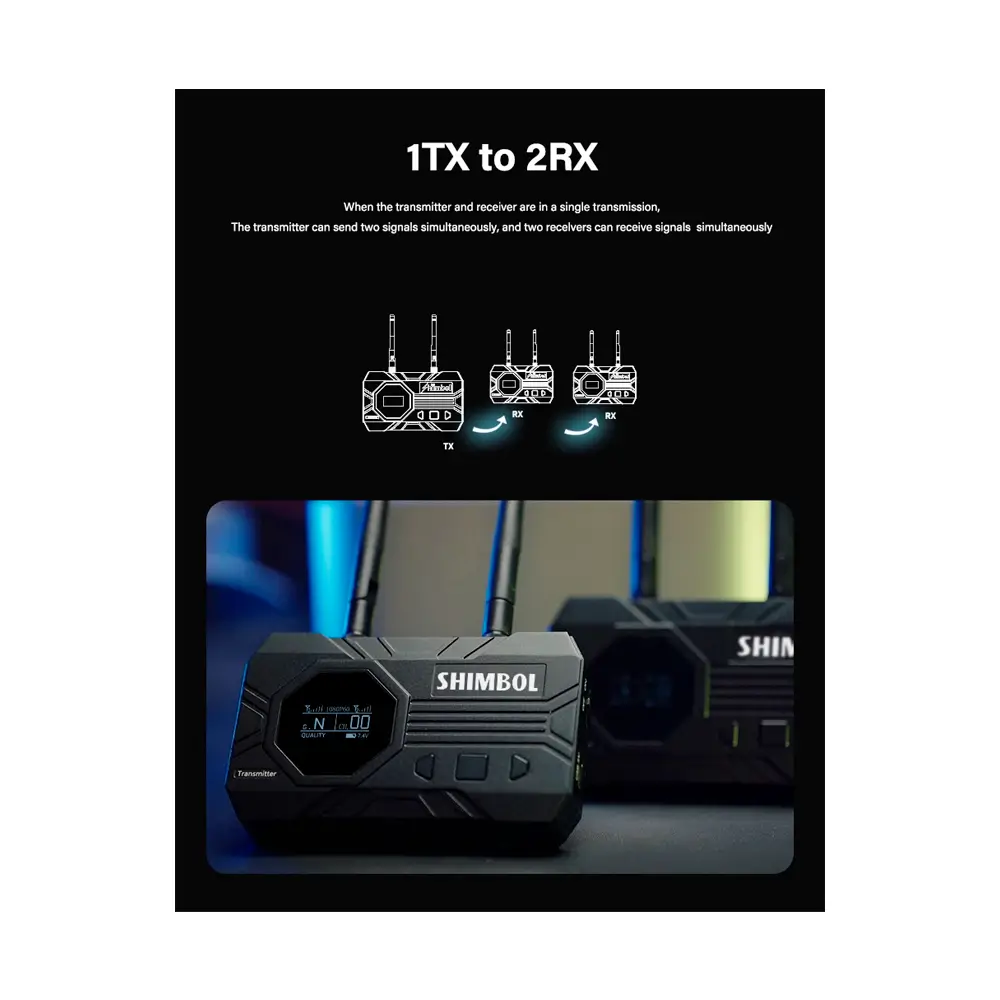

- Transmit to up to 2 x Receivers
- Shimbol App Transmission to iOS Devices

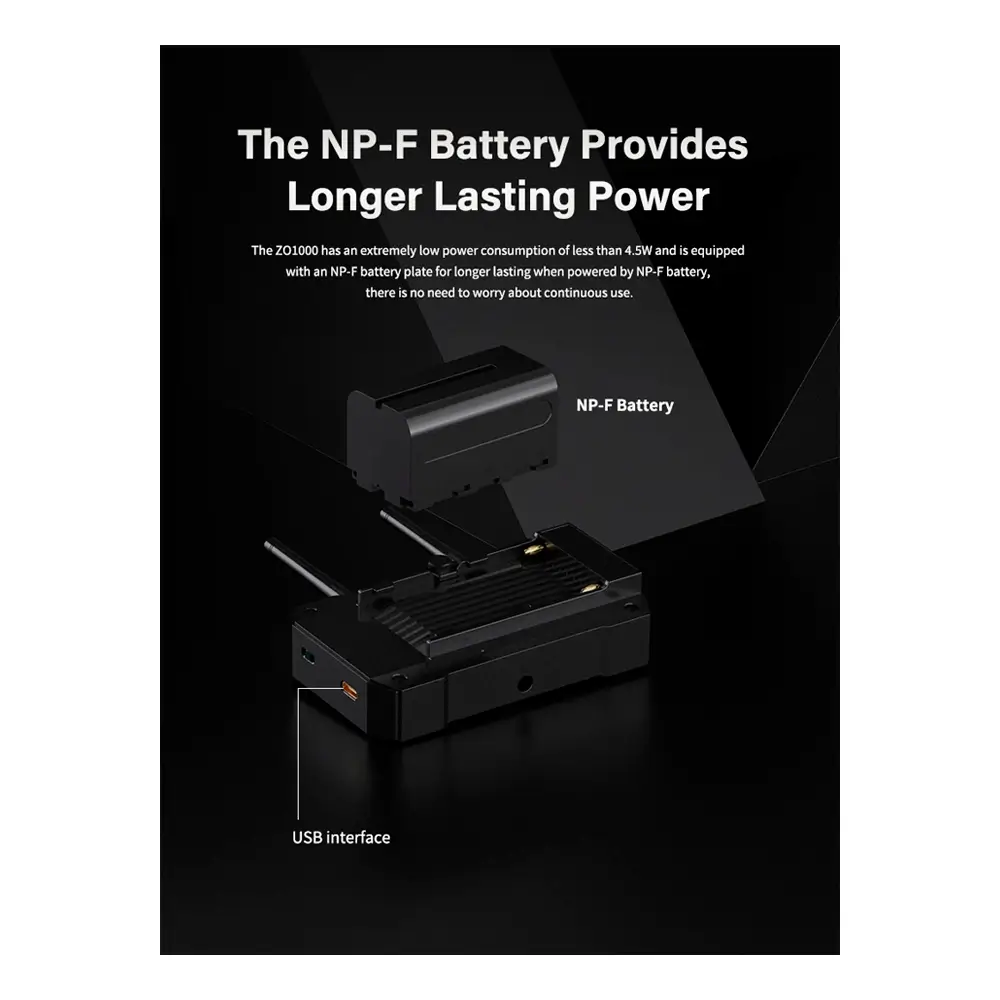

- L-Series Battery/USB Type-C Power Input
Description
ZO1000
Additional information
| Weight | 0.243 kg |
|---|---|
| Dimensions | 20.07 × 19.304 × 4.572 cm |

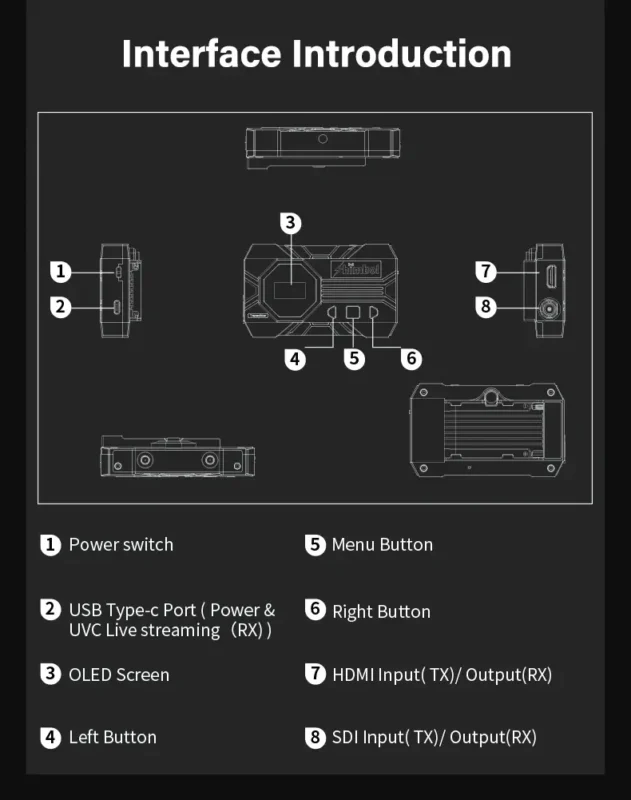

| Video I/O : | Transmitter: 1x HDMI (Unspecified Signal) Input Transmitter: 1x BNC (3G-SDI) Input Receiver: 1x HDMI (Unspecified Signal) Output Receiver: 1x BNC (3G-SDI) Output |
| Video Format: | HDMI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/50 USB 1080p: 60/50/30/25/24 |
| Battery: | Receiver/Transmitter: 1x L-Series Mount on Fixed Plate |
| Power Consumption: | Transmitter/Receiver: 4 W (Maximum) |
| Antenna I/O: | Transmitter/Receiver: 2x RP-SMA |
| Audio I/O: | No |
| Power I/O: | Transmitter: 1x USB-C (5 VDC / 2 A) Input Receiver: 1x USB-C (5 VDC / 2 A) Input |
| Encryption: | Yes: 128-Bit AES |
| Wireless Range: | 1000′ / 304.8 m |
| Frequency Range: | 5.1 to 5.8 GHz |
| Latency: | 80 ms |
| RF Power: | 17 dBm |
| RF Sensitivity: | -80 dBm |
| Mobile App Compatible: | Yes: iOS Only App Name: Shimbol |
