MultiView 4

The easiest SD, HD andUltra HD multi view you’ll ever use!

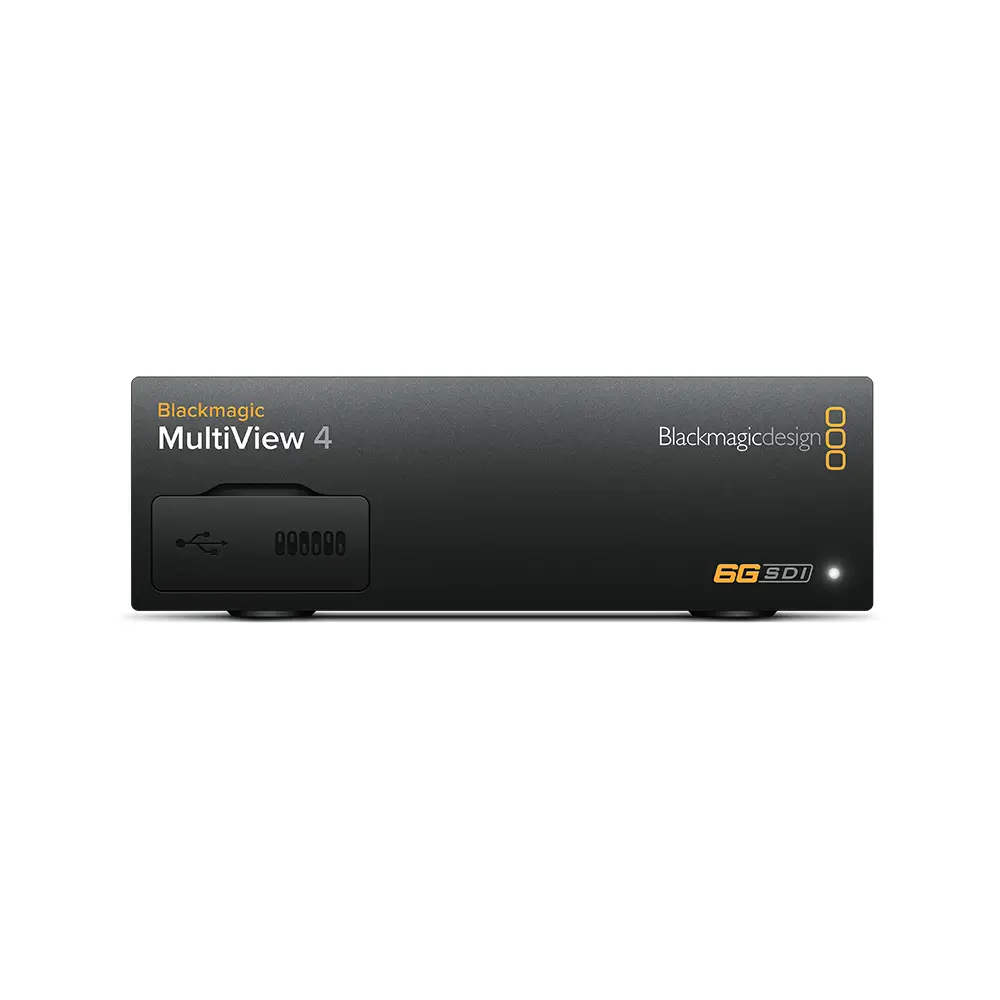

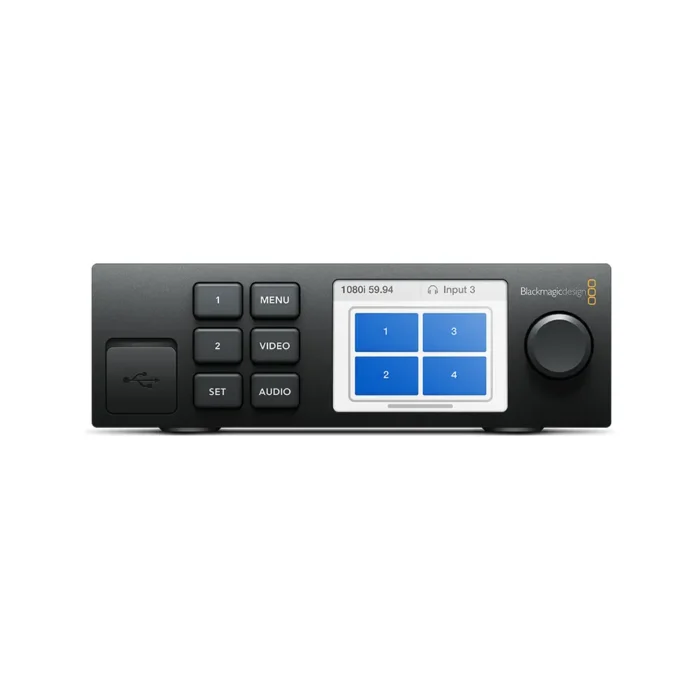

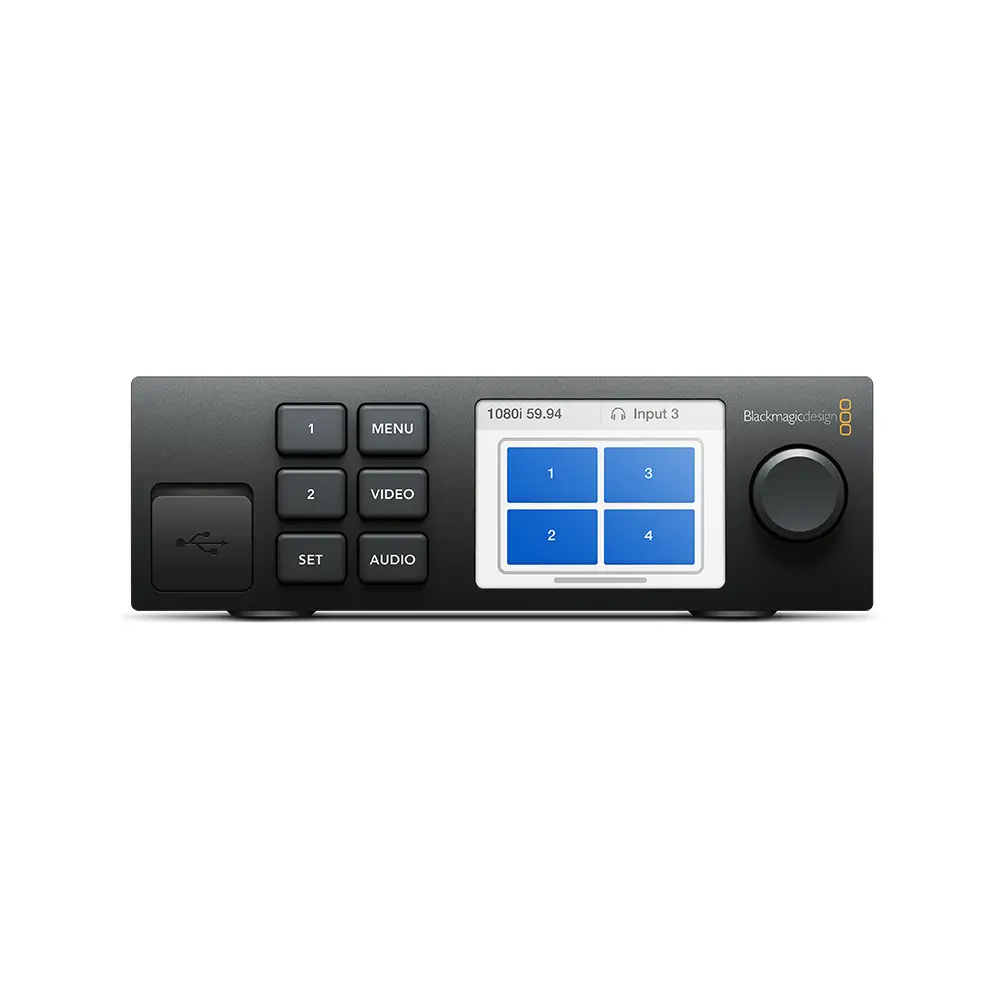

Blackmagic MultiView 4 has four independent 6G‑SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. The included Ethernet remote control software lets you turn on audio meters, select audio to output, and create custom labels. MultiView 4 displays your sources in a standard 2×2 grid. You can also add a Teranex Mini Smart Panel for full front panel control and rack mount it using the optional Teranex Mini Rack Shelf!

Studio or Live Use!

Multi source monitoring designed for broadcasters

Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don’t have room for multiple monitors. With Blackmagic MultiViews you don’t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!

Independent Monitoring

Mix any combination of SD, HD and Ultra HD sources

Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re‑synchronization on all SDI inputs, which means that they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30 on some models, all on the same display at the same time! It’s like getting 4 or 16 independent monitors in one!

High Resolution Monitoring

The world’s highest resolution multi viewer!

All Blackmagic MultiView models work with HD displays, while the 6G-SDI models also work with Ultra HD displays, so you get maximum compatibility with your existing equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness! Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before! What this means is when displaying the 2×2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling! MultiView includes both SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more!

Multi Rate SDI Connections

Supports all of your SD,HD and Ultra HD equipment!

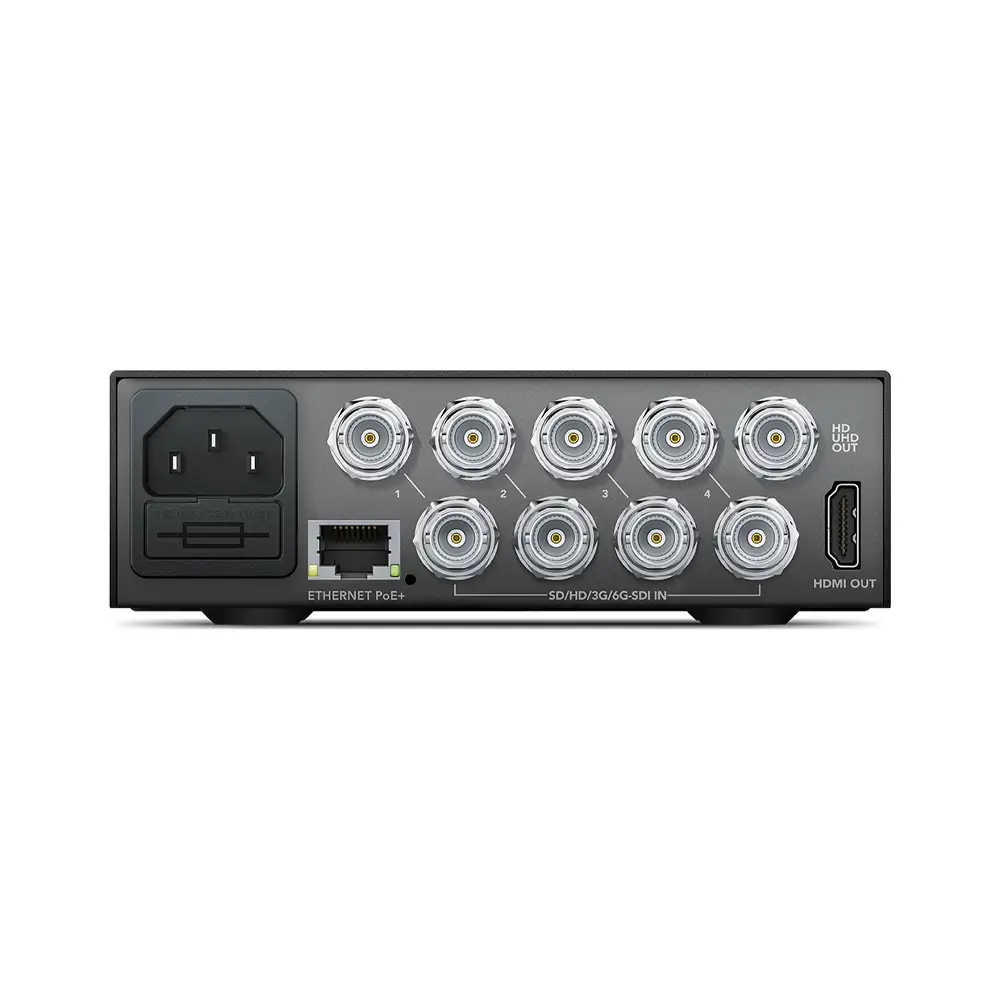

Blackmagic MultiView models feature multi rate SDI inputs with full frame re-synchronization and some models also have separate loop through outputs, making them compatible with your existing equipment. The SDI inputs automatically detect and re-sync SD and HD formats, plus some models also re-sync Ultra HD formats up to 2160p30. You get HDMI and SDI output, and MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.

Flexible Design!

Three great designs to fit any installation!

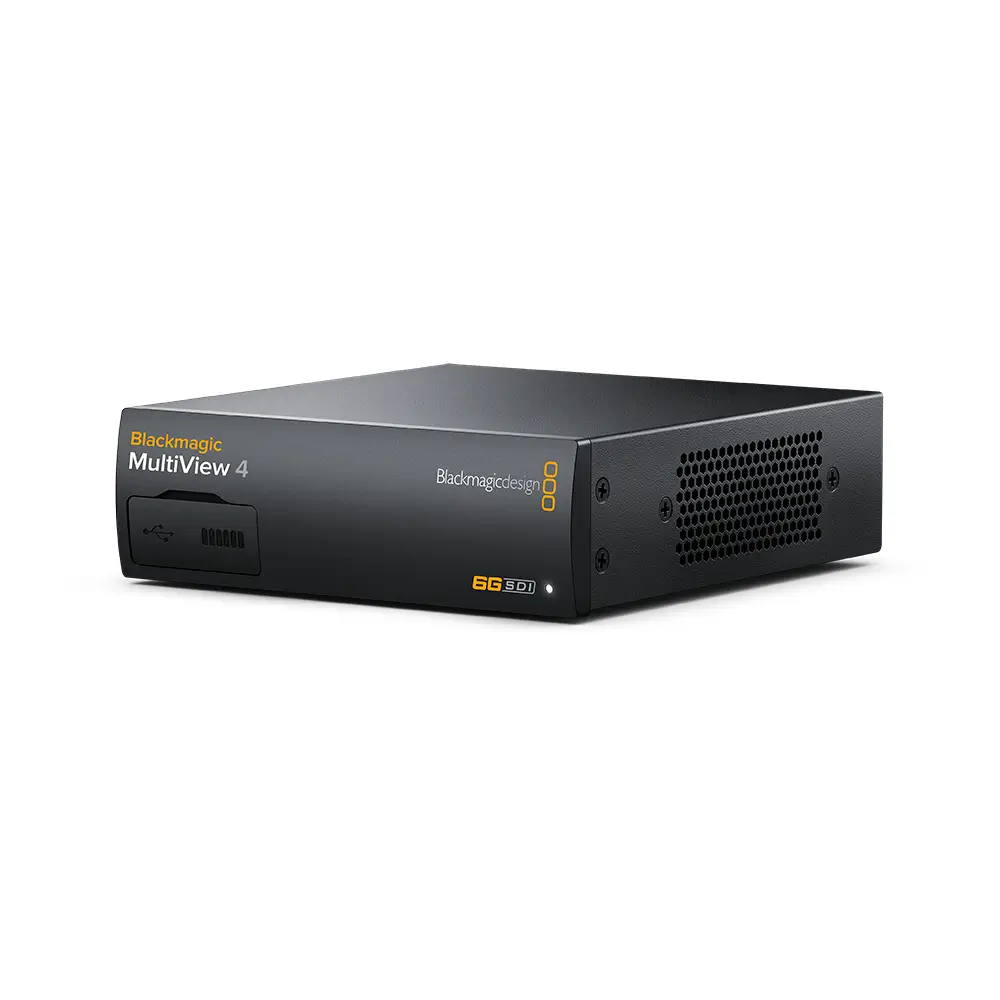

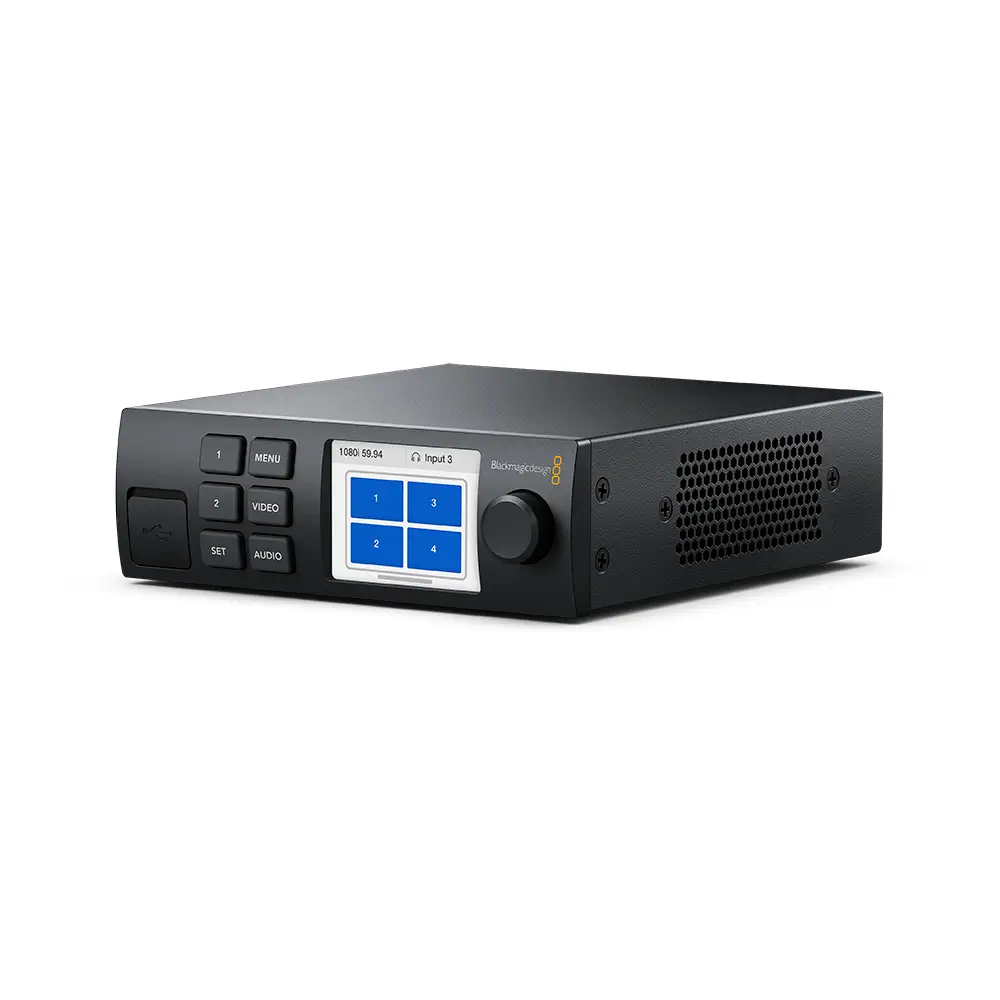

The tough metal mini converter style design of MultiView 4 HD makes it perfect for use on the road or in tough broadcast environments. Simply plug in your sources and start monitoring! The MultiView 4 works with HD or Ultra HD and features a Teranex Mini style design which means you can use it rack mounted or on a desktop. You can add an optional front panel or use Ethernet for more control options. MultiView 16 is designed for larger setups in which you need to view more sources on the same screen. You get router style front panel controls, a spin knob and LCD screen that make it fast to adjust settings, add overlays, and quickly route any source to any view on the grid!

Multi MultiViews

Create customized views with even more sources!

Blackmagic MultiView 4 handles 4 sources in an incredibly compact size, however if you have more sources, you can combine multiple MultiViews together to create customized displays! Simply daisy chain two together by connecting the output of one MultiView 4 to one of the inputs on another. That means you can now monitor seven sources at once, all on the same display! There’s no limit to how many units you can combine together to create your own customized display!
