Lynx Studio Technology E22 PCI Express Card
- PCIe Card
- 2 Channels of Analog AD/DA
- 2 Channels of AES3 or S/PDIF I/O
- 24-Bit/192 kHz
- Uses Field Programmable Gate Arrays
- Low Latency Operation
- Mac OS X
- Windows 7/8
- Lynx Mixer Application Included
E22
The two analog, two digital PCI express card.

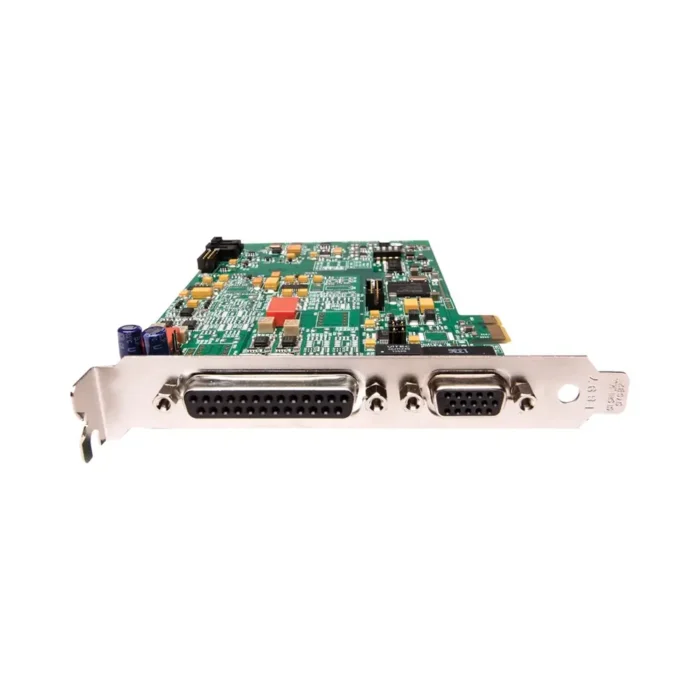

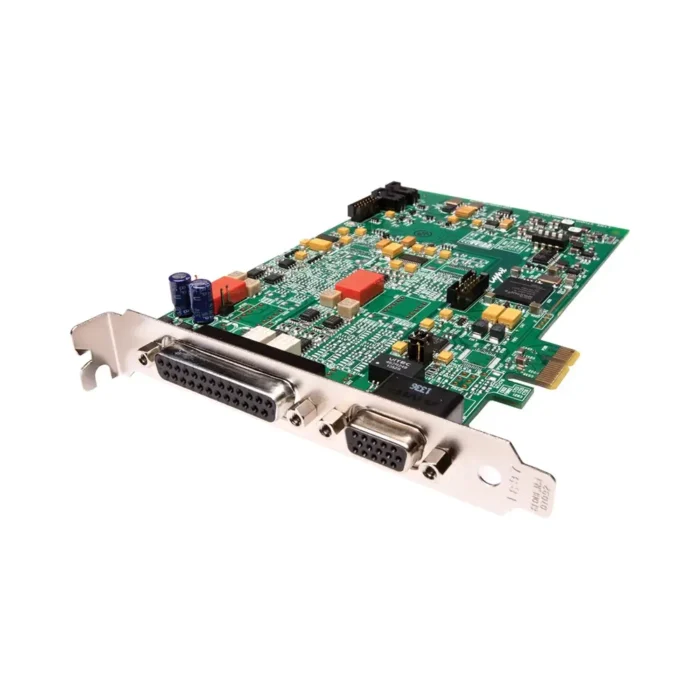

The E22 PCI Express card is designed to satisfy the most demanding professional recording and broadcast studio requirements. Built upon the legacy of the LynxL22 card, the E22 takes a leap forward to offer the highest performance A/D and D/A conversion system ever incorporated into a PCI Express card.
Since 1998, Lynx has provided high-reliability add-in cards engineered for 24/7 operation. The E series improves upon this tradition with upgraded enhancements for I/O protection and shielding.
The E22 is ideal for:
Audio production. The E22 is the best sounding 2 channel PCIe card for DAW recording and playback.
Broadcast applications requiring 24/7 flawless operation
Capturing and archiving historic and classic material with extreme accuracy and transparency
Audio playback. The E22’s pristine audio quality makes it ideal for the most demanding high-end hi-fi systems
Audio measurement. As a precise audio instrument the E22 is exceptionally accurate and transparent
Medical, military and industrial applications that require full audio spectrum capabilities and extreme reliability and precision

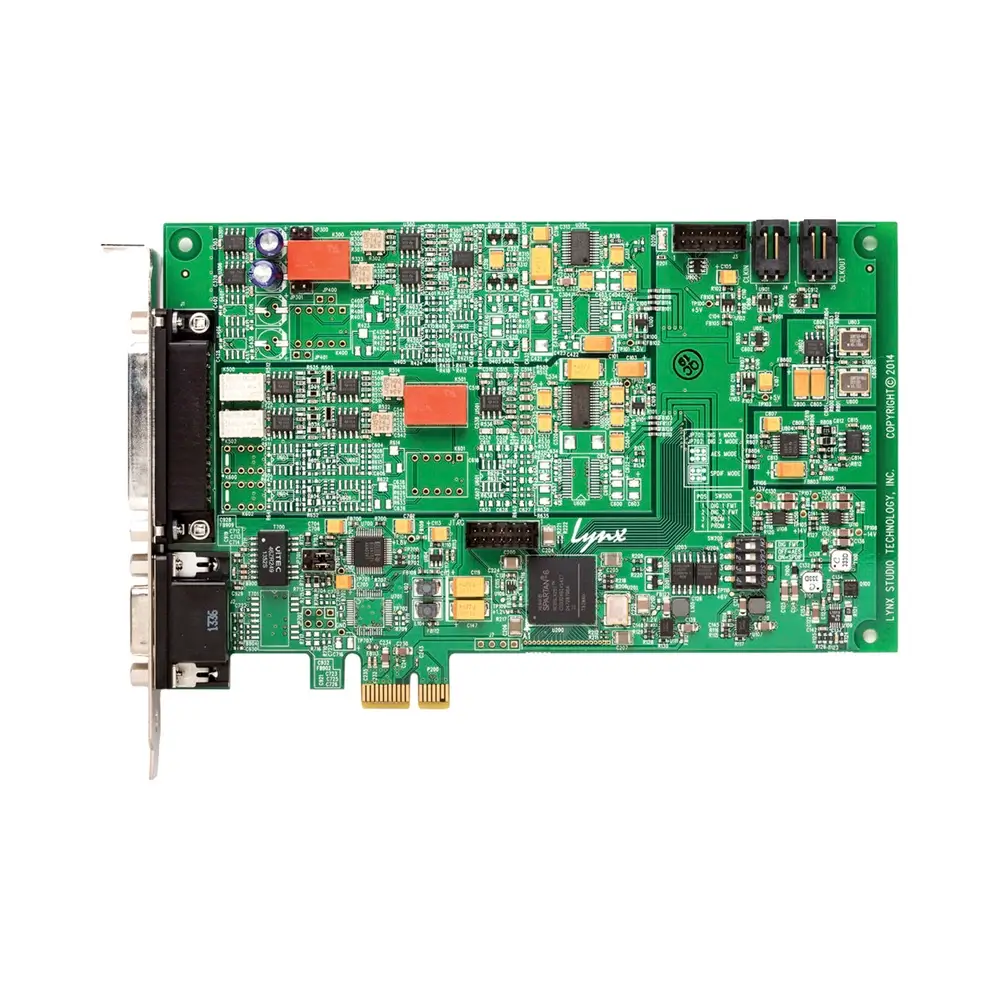

The E22 card utilizes sophisticated design methodologies to achieve high performance levels. Components are meticulously chosen to support low noise and distortion. Circuit topologies are compact and cancel external noise pickup. Capacitors with solid dielectrics provide high reliability and long life. Considerable effort is applied to PCB layout which focuses on component placement and routing of traces, as well as copious use of copper planes for shielding and power distribution.
The use of field-programmable-gate-arrays (FPGA) is another core technology pioneered for use in audio devices by Lynx. The E series uses the latest devices with a wealth of resources for parallel processing in our 16 X 8 mixer and V2 DMA engine which maximizes throughput on the PCIe bus while minimizing CPU workload. As always, FPGA’s allow for field-upgradeability to add features in the future.
| Weight | .38 kg |
|---|---|
| Dimensions | 28.19 × 19.56 × 6.6 cm |
| Channels of I/O: |
2 Input / 2 Output |
| Maximum Sampling Rate: |
192 kHz / 24-Bit |
| Number of Mic Inputs: |
No |
| Host Connection: |
PCIe |
| Power Requirements: |
PCIe |
| Analog Audio I/O: |
1x DB-25 25-Pin Line In/Out |
| Digital Audio I/O: |
2x XLR 3-Pin AES3 Input |
| Frequency Response: |
20 Hz to 20 kHz ±0.05 dB |
| Maximum Input Level: |
+24 dBu |
| Impedance: |
Inputs: Outputs: |
| Dynamic Range: |
Analog Inputs: 117 dBA |
