Kiloview MG300 v2
3,058.00 Excl. VAT
- Multi-Channel Video Encoding
- Transcodes Between H.264 and H.265
- Resolutions up to UHD 4K60 via HDMI
- Resolutions up to 1080p60 via 3G-SDI
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
MG300v2

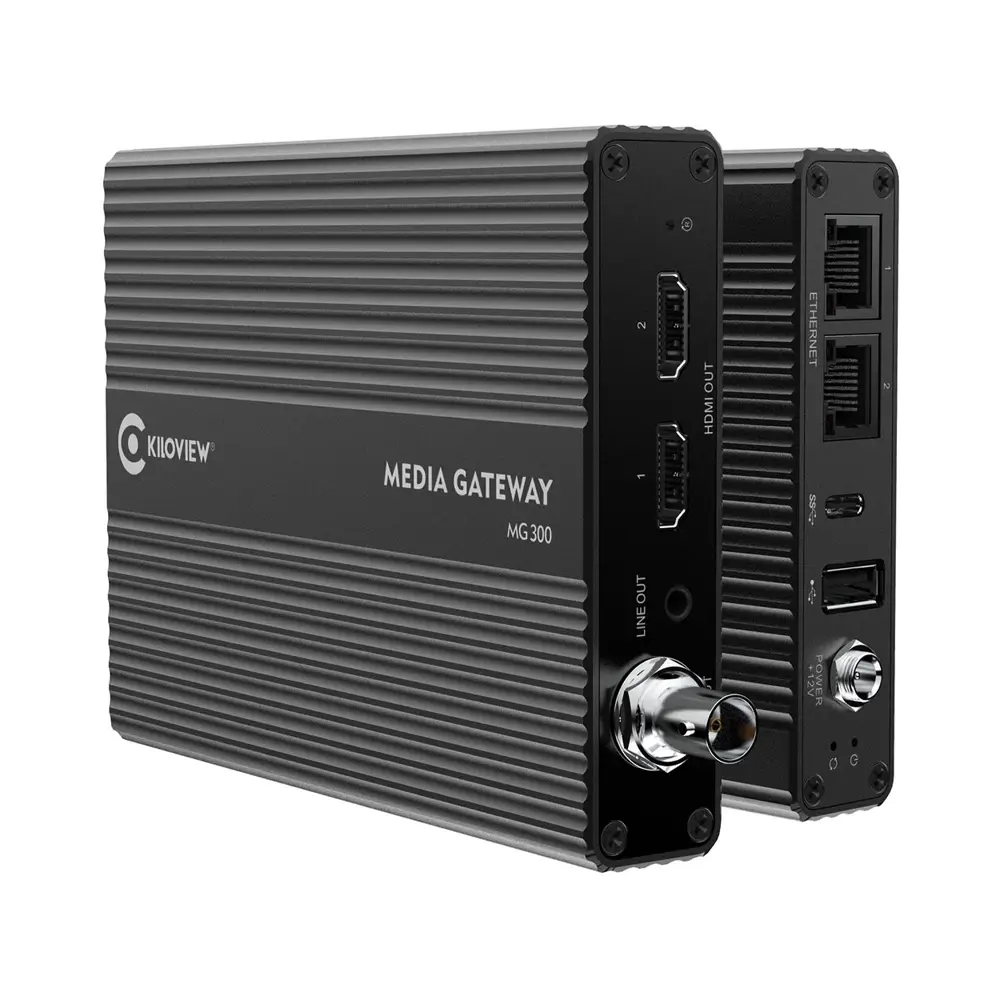

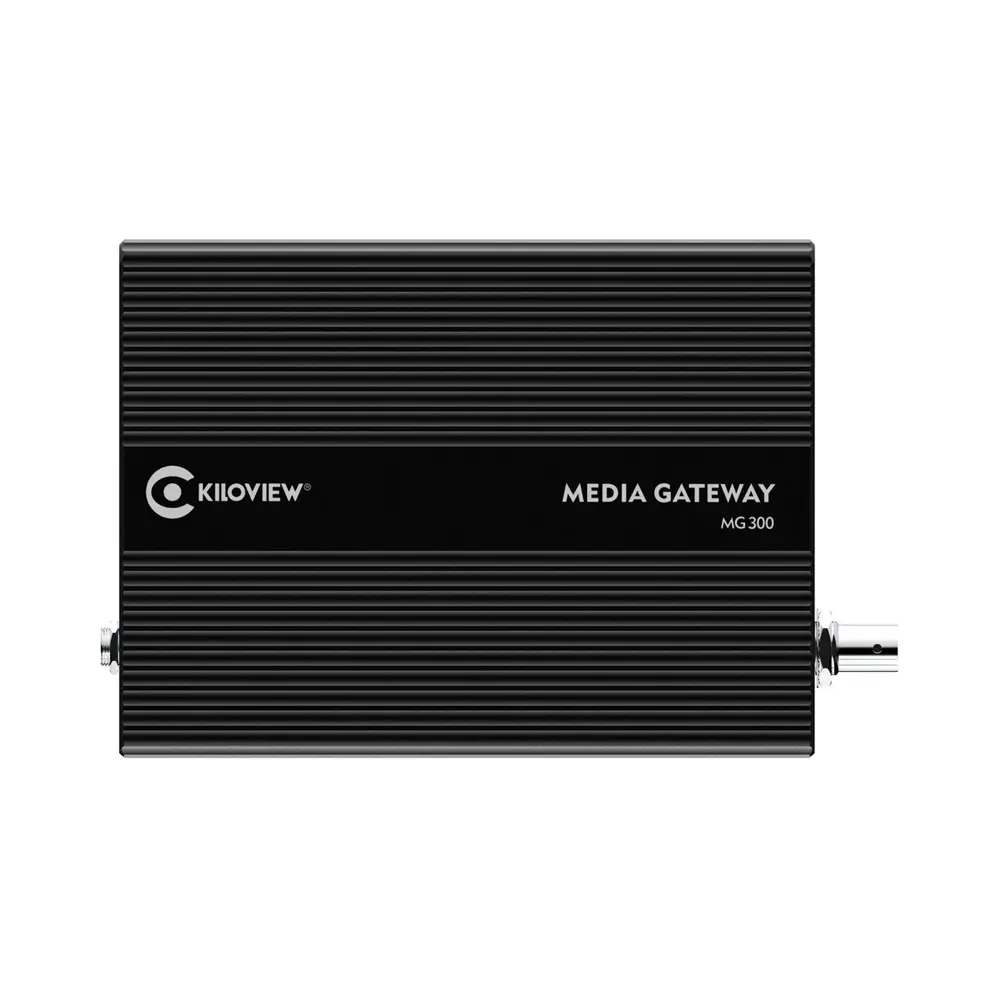

4K HDMI & 3G-SDl Media Gateway
Easily Bridges Your IP World
Kiloview MG300v2 media gateway is a high-performance embedded multi-functional IP Media Gateway device. It integrates functions such as transcoding between H.265 and H.264, multi-channel video decoding to SDI and HDMI output and protocol conversion between NDI HX, SRT, RTMP, RTSP, TS-UDP, and HLS, as well as video combination streaming-all in one. Designed to interconnect systems and devices from different manufacturers and protocols, MG300v2 enables seamless IP video interoperability. It functions not only as a versatile converter, but also as a powerful streaming media server—ideal for building flexible IP video workflows.

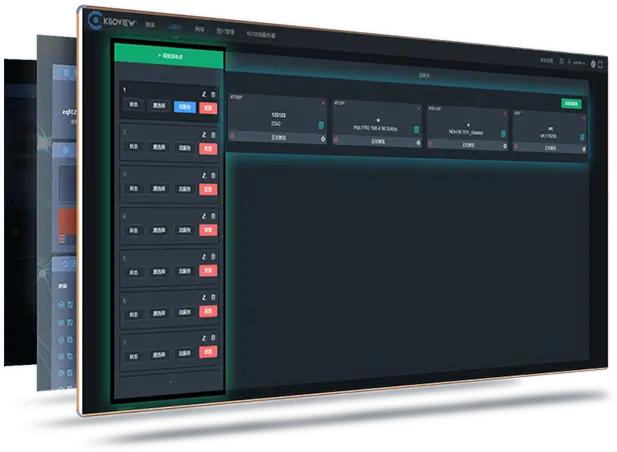

It’s a Protoc ol Converter
MG300v2 supports bidirectional conversion between a wide range of streaming protocols, including NDI HX, SRT , RTMP, RTMPS, RTSP, TS-UDP and HLS to NDI HX/SRT/RTSP/RTMP. Whether you’re converting RTSP to RTMP for security monitoring streaming or turning remote SRT streams into local NDI|HX sources for production, MG300 v2 is the perfect device to get the conversion done efficiently.

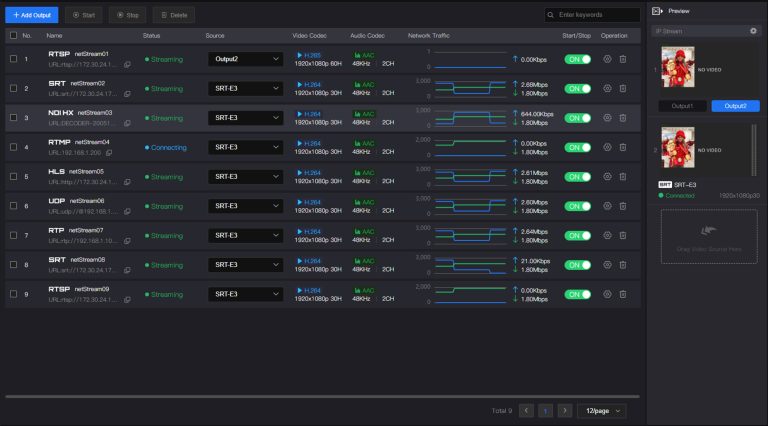

Powerful IP Stream Function
MG300v2 supports up to 9 input streams simultaneously for protocol conversion.
Each IP stream can be converted and distributed into up to 4 same/different protocol outputs, enabling up to 36 protocol conversions in total. Sources can be dynamically switched to match different applications.
It’s a Media Server
It supports up to 50 concurrent access for streams distribution/live streaming;
*Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps.

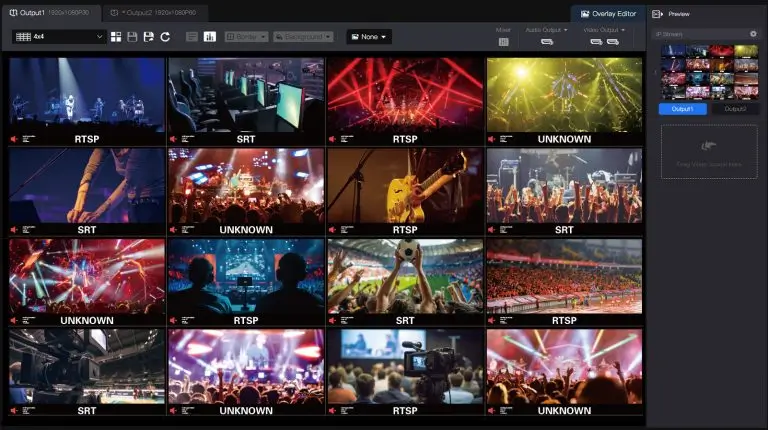

It’s a Transcoder and Multiview Creator
Kiloview MG300v2 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a multiview layout and stream it to the live broadcast platforms.
It’s Also a Decoder
It supports decoding 4K H.264/H.265 IP streams and output to 3G-SDI and 4K HDMI. It supports decoding up to 9 channels of videos simultaneous.
*Note: 9 channels with 1080P60, or 2 channels of 4KP60, or 4 channels of 4KP30.
| Weight | 0.67 kg |
|---|---|
| Dimensions | 18.8 × 17.02 × 8.38 cm |
| Inputs/Outputs: | 2x RJ45 |
| Audio Inputs: | 1x 1/8″ / 3.5 mm TRS Female |
| Video Outputs: | 1x BNC (3G-SDI) Female 1x HDMI |
| Audio Outputs: | 1x 1/8″ / 3.5 mm TRS Female |
| Other I/O: | 1x USB-A Control, 3.0 / 3.1/3.2 Gen 1 |
| Latency: | HDMI Output: 200 ms SDI Output: ? 200 ms |
| Output Video Format: | HDMI UHD 4K at 30/60 fps 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps 720p at 50/60 fps SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 60 fps |
| Embedded Audio: | HDMI/SDI |
