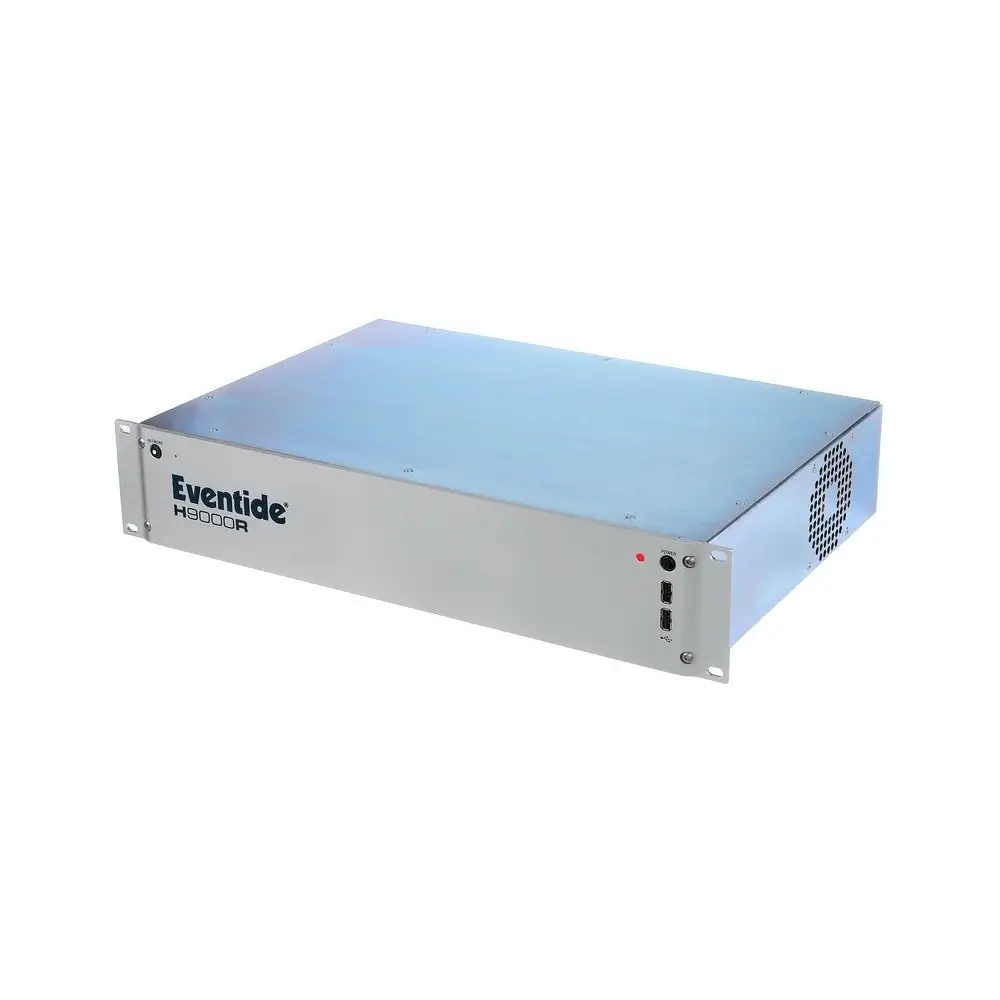

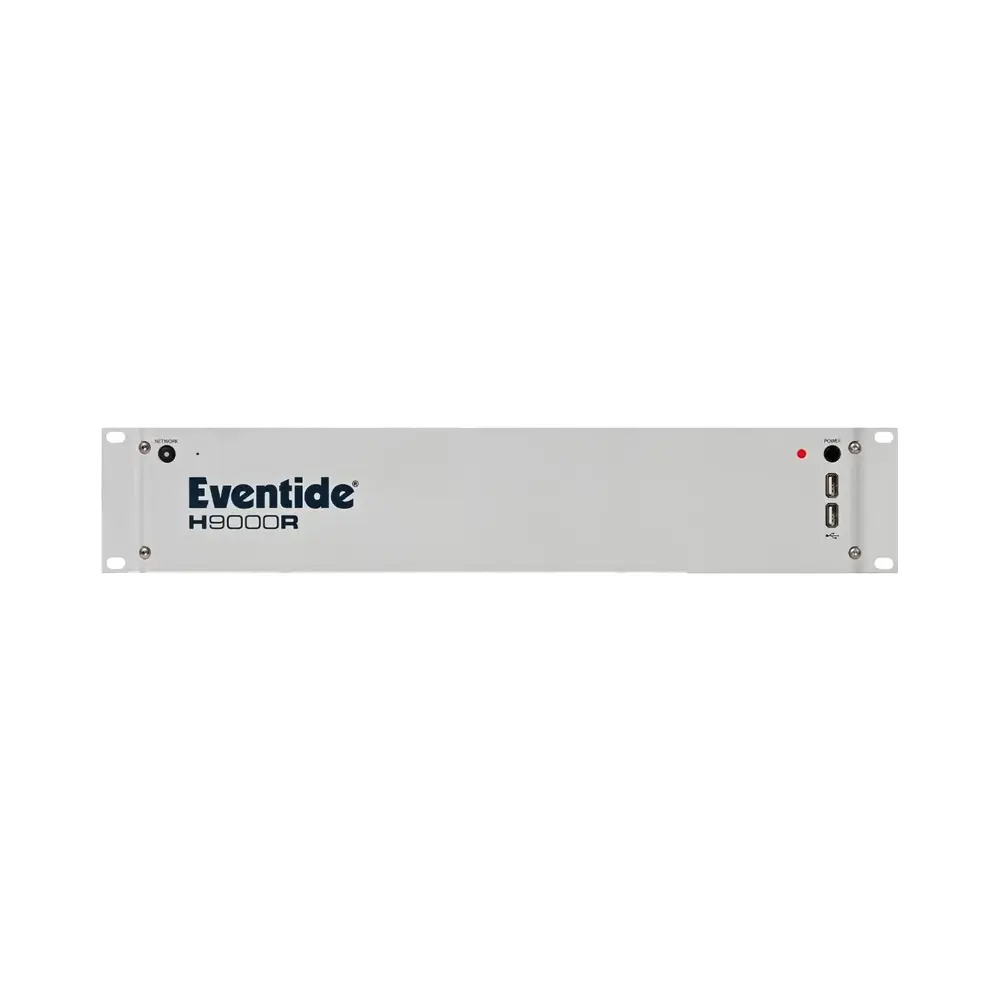

Eventide H9000R Expandable 16-Channel Effects Processor (Blank Panel)
21,995.00 Excl. VAT
- 4 x Quad-Core ARM Processors
- Run up to 16 Simultaneous Effects
- Utilize up to 4 Multi-Effect Chains
- 50 Effects; Over 9000 Presets
- Up to 96 kHz Sample Rate
- Analog, Digital, and USB Audio I/O
- Use Standalone or as a Plug-In
- Requires Emote Software for Operation
- Mac OS X and Windows Compatible
- AAX Native, Audio Units, VST
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Eventide H9000R Overview
The Eventide H9000R is an expandable 16-channel effects processor designed to deliver efficient, versatile, and customizable audio processing for recording and mixing engineers in broadcast, film and music production, and live stage applications. It features all the power and I/O of the H9000 at a lower price point due to its blank front panel—operation and control requires Eventide’s Emote software.
Its four quad-core ARM DSP processors provide power for up to 16 simultaneous effects instantiated on individual channels or configured as chains with up to four effects per chain. Route 16 channels of audio I/O via USB or up to eight channels via analog, AES/EBU, or ADAT connections.
Run the H9000R at sample rates up to 96 kHz clocked internally or to external word clock. An array of 50 effect types are used in over 9000 presets. Store presets to the internal memory or external USB drives. It allows standalone operation or plug-in use thanks to compatibility with Mac OS X and Windows systems and AAX Native, Audio Units, and VST plug-in formats.
- 16 channels of audio I/O via USB
- Eight channels of audio I/O via analog, AES/EBU, and ADAT
- Two channels audio I/O via S/PDIF
- Three expansion slots enable simple installation of additional I/O cards
- Send, process, and return up to 16 separate channels of individual DAW tracks
- Arrange up to four separate FX chains, each containing up to four separate algorithms routed in series, parallel, and more
- Clock internally or lock to an external clock via BNC word clock I/O
- Versatile preset types allow you to store and recall individual algorithms, FX chains, or entire sessions
- Blank front panel—requires Eventide Emote software for operation and control
- Presets can be loaded from and saved to the internal memory or a USB drive connected to the front- or rear-panel USB ports
- Supports manipulation via MIDI controller connected to a USB or MIDI port
- Includes USB Wi-Fi dongle for easy access and full control via a network-connected computer
- Search for presets by effect, product, instrument, source character, and more
- Custom map parameters and adjust multiple parameters simultaneously
- Tap tempo, set it manually, or lock it to incoming MIDI clock
- Supports control via footswitches and expression pedals
| Weight | 7.96 kg |
|---|---|
| Dimensions | 55.37 × 45.47 × 21.08 cm |
| System Requirements: | For Emote Software: Mac OS X 10.9.5 or Later Available USB Type-A Port Windows 7 or Later Available USB Type-A Port For Audio Interface Functionality: Mac OS X 10.10 or Later Core Audio?Compatible Application Host Software That Supports AAX Native, Audio Units, or VST Plug-In Formats (for Plug-In Use) Windows 7 or Later ASIO-Compatible Application Host Software That Supports AAX Native or VST Plug-In Formats (for Plug-In Use) |
| Rack Height: | 2 RU |
| Effects Type: | Multi-Effects |
| Channels: | 16 |
| Effect Variations: | 50 Effect Types |
| Presets: | Types: Algorithm, FX Chain, and Session Total: Over 9000 |
| User Memory: | Internal Memory External Storage Via USB Flash Drive |
| Inputs: | 2 x XLR 3-Pin Female (Analog) 1 x DB25 Female (8 Channels, Analog) 1 x XLR 3-Pin Female (2 Channels, AES/EBU) 1 x DB25 Female (8 Channels I/O, AES/EBU) 1 x RCA Coaxial (2 Channels, S/PDIF) 1 x TOSLINK Optical (2 Channels in S/PDIF Mode, 8 Channels in ADAT Mode) |
| Output: | 2 x XLR 3-Pin Male (Analog) 1 x DB25 Female (8 Channels, Analog) 1 x XLR 3-Pin Male (2 Channels, AES/EBU) 1 x DB25 Female (8 Channels I/O, AES/EBU) 1 x RCA Coaxial (2 Channels, S/PDIF) 1 x TOSLINK Optical (2 Channels in S/PDIF Mode, 8 Channels in ADAT Mode) |
| AD/DA Conversion: | Up to 96 kHz |
| Sample Rates: | Up to 96 kHz using Analog, USB, AES/EBU, or S/PDIF via RCA Up to 48 kHz using ADAT or S/PDIF via Optical |
| USB: | 4 x USB 2.0 Type-A for External Storage, Wi-Fi Dongle, and USB MIDI Controller 1 x USB 2.0 Type-B for 16-Channel Audio Interface Functionality |
| MIDI: | 1 x MIDI 5-Pin Input 1 x MIDI 5-Pin Output 1 x MIDI 5-Pin Thru |
| Word Clock: | 1 x BNC Input (50 Ohms) 1 x BNC Output (50 Ohms) |
| Ethernet: | 1 x RJ45 |
| Pedal Control: | 2 x 1/4″ TRS Inputs |
| Relay Input: | 2 x 1/4″ TRS |
