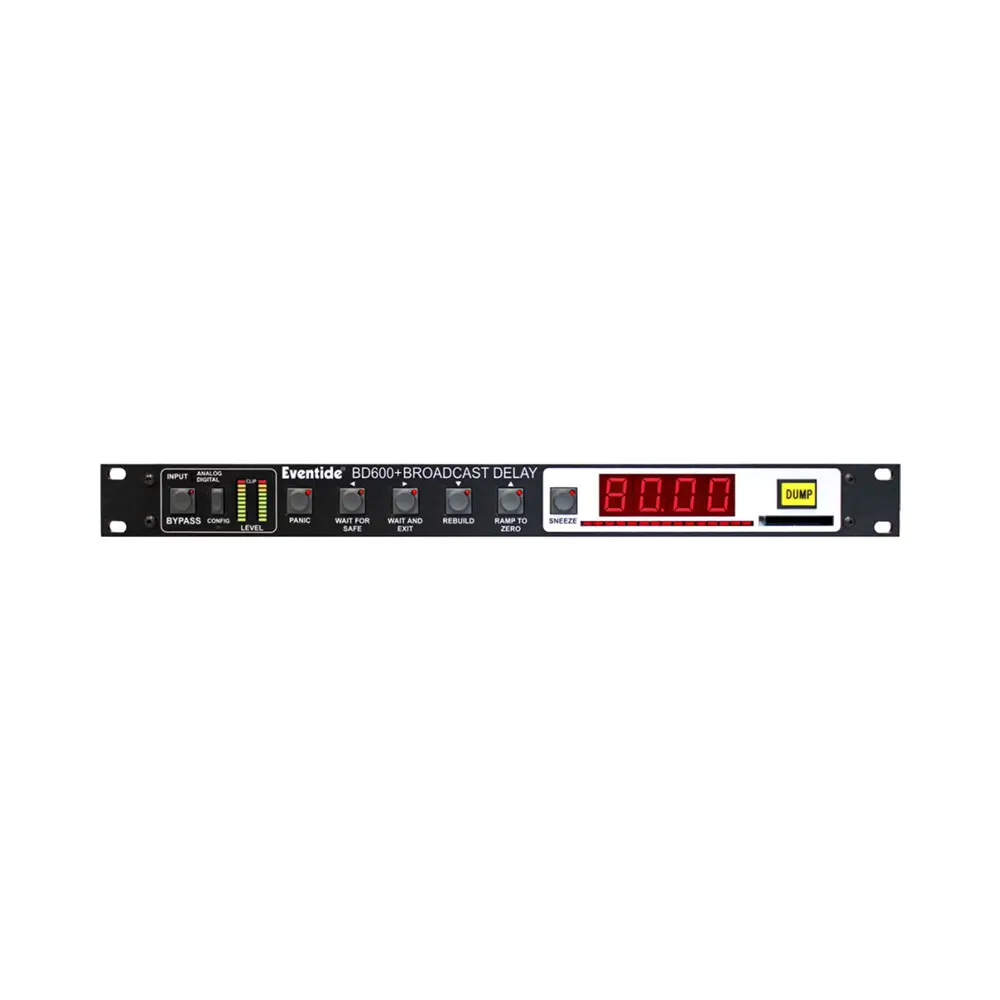

Eventide BD600+ Broadcast Delay
14,995.00 Excl. VAT
- 80 sec. 80-second stereo delay unit w/PANIC mode or HD synchronization
- Microprecision delay mode for HD synchronization
- 80 seconds of delay protection
- USB Remote Control
- “Panic” allows WAV file play back during delay rebuild
- 24-bit analog XLR I/O
- opto-isolated inputs and 16 open-collector outputs
Available on backorder
The New Standard for Protection
The BD600 offers an unprecedented 80 seconds of the highest quality revenue and license-protecting delay – twice as much as other delays. You have the flexibility to customize the delay buffer length from four seconds to the full 80 seconds. Dump can be customized in 1/2 second increments up to 10 seconds. Each time the DUMP button is pressed, only one segment is deleted. For example, if a unit is set to the full 80 seconds of delay buffer, and is set up to provide 8-second dumps, you will have ten separate dump segments. Pushing the DUMP button the first time cuts out one 8-second segment. You still have 72 seconds of delay protection. If this is followed by more trash-talk, push the DUMP button again and you still have over a minute of delay protection. The “sneeze” button momentarily “edits” audio entering the delay, allowing the host to sneeze, cough, or make a short comment without being heard on-air – and without dead air. Your station cannot afford to work without a net. With the BD600, you will never worry about running out of delay memory.
The New Standard for Features
If 80 seconds of delay protection were not enough, the BD600 has a secondary backup called PANIC. This plays a .WAV file stored on a compact flash card. While the file – a jingle, ID, or another message – is played, delay is being built up in real-time, allowing programming to continue in safety as soon as the jingle is over. This can also be used for painless entry into delay.

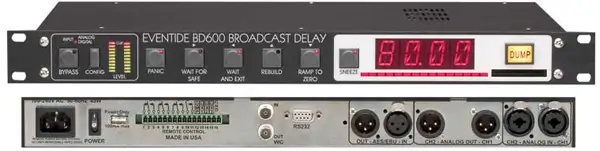

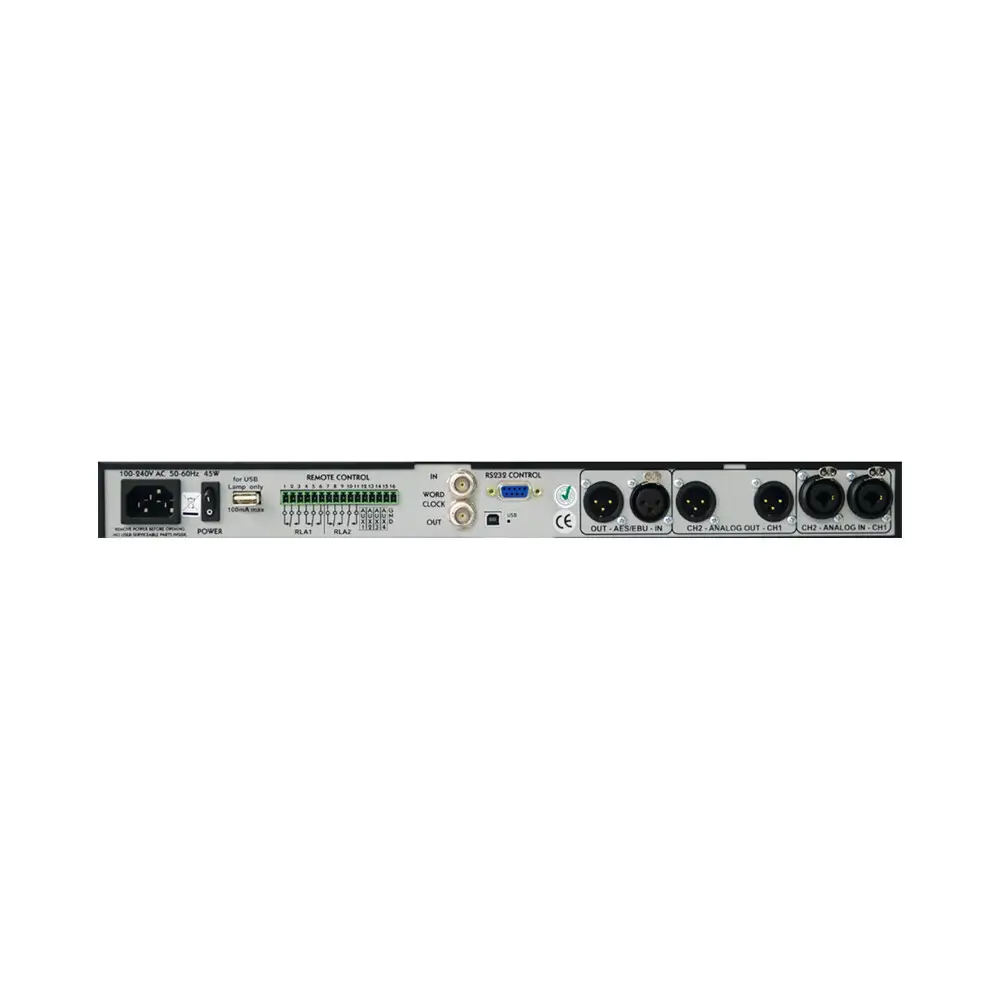

The unit shows not only an exact digital readout of delay time but also has a “quick read” bar graph which instantly confirms “you’re safe” at a glance. The BD600 is an 80-second stereo delay unit featuring analog XLR-type inputs and outputs, as well as AES/EBU digital audio inputs and outputs. All front panel switches (except “configure”) can be remoted, as can the status indicators. Both RS-232 in and out are included; four configurable control inputs and two configurable relay-isolated control outputs are provided via an easy-to-wire Euroblock barrier strip.
Expanded Remote Capability
The Optional BD600 Extended Remote is perfect for more sophisticated automated broadcast chains. 16 bipolar optoisolated inputs may be configured to drive BD600 functions and general-purpose delay inputs. 16 open-collector outputs may be configured to output BD600 status indicators or to pass through delayed versions of the inputs. An RS-232 output provides a delayed version of the input, useful for driving a time display or for other control purposes.
| Weight | 4.1 kg |
|---|---|
| Dimensions | 26.7 × 48.3 × 4.5 cm |
| Frequency Response: | Live or Bypass: 20Hz-20kHz +- 0.1dB |
| Profanity Delay Maximum Length: | Can be set to 4, 6, 8, 12, 16, 20, 30, 40, 60, or 80 seconds |
| Micro Precision Fixed Delay: | Can be set from .010 seconds to 9.999,999 seconds in microsecond steps |
| Remote Control Inputs: | RS-232 control input and output USB Remote Control |
| Basic Remote: | 4 configurable inputs (closure to ground) 2 relay-isolated status outputs |
| Optional Extended Remote: | 16 bi-polar opto-isolated inputs 16 open-collector outputs RS-232 input and delayed output |
| Compact Flash Interface: | Supports Type I and Type II Compact Flash cards for .WAV sample playback and software update |
