Blackmagic SDI Expander 8x12G
12,346.00 Excl. VAT
- Connect 12G-SDI Gear to 100GbE Systems
- Convert 16 Channels of 4K60 10-Bit Video
- 8 x 12G-SDI Inputs to 100GbE Output
- 100GbE Input to 8 x 12G-SDI Outputs
- SMPTE 2110 IP Video Compliance
- 2.2″ LCD Monitor & Control Knob/Buttons
- 1 RU Form Factor
- External NMOS Control via RJ45 Port
- 16 Audio Channels per 100GbE Connection
- 2 Redundant AC Power Inputs
Available on backorder
Blackmagic Design SDI Expander 8x12G Overview
The Blackmagic Design SDI Expander 8x12G is a 1 RU bidirectional SMPTE 2110 IP converter designed to integrate 12G-SDI infrastructure into high-bandwidth 100GbE broadcast systems. Supporting up to 16 channels of simultaneous 10-bit 4:2:2 video conversion, the unit converts eight independent 12G-SDI inputs to SMPTE 2110 IP while concurrently converting eight SMPTE 2110 IP streams back to 12G-SDI outputs. Dual 100GbE QSFP28 connections provide SMPTE ST 2022-7 redundancy, ensuring uninterrupted signal delivery across IP-based production workflows.

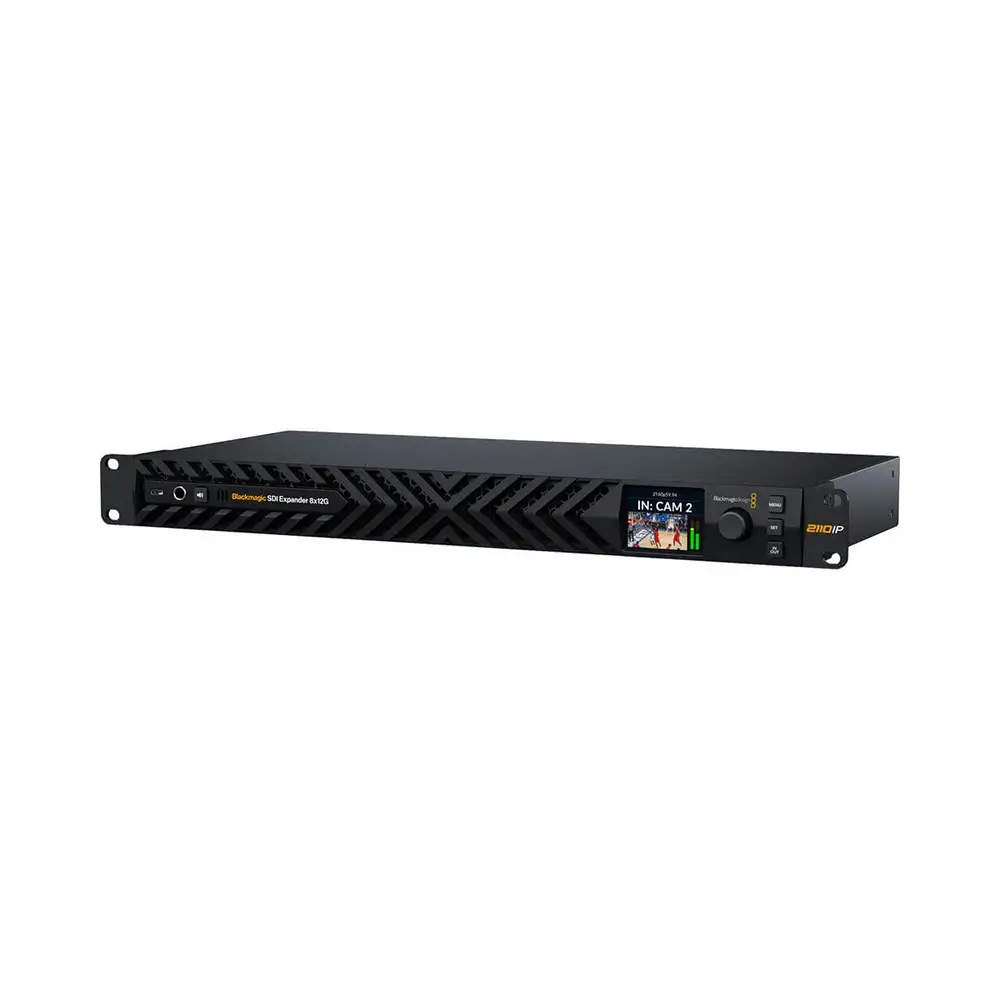

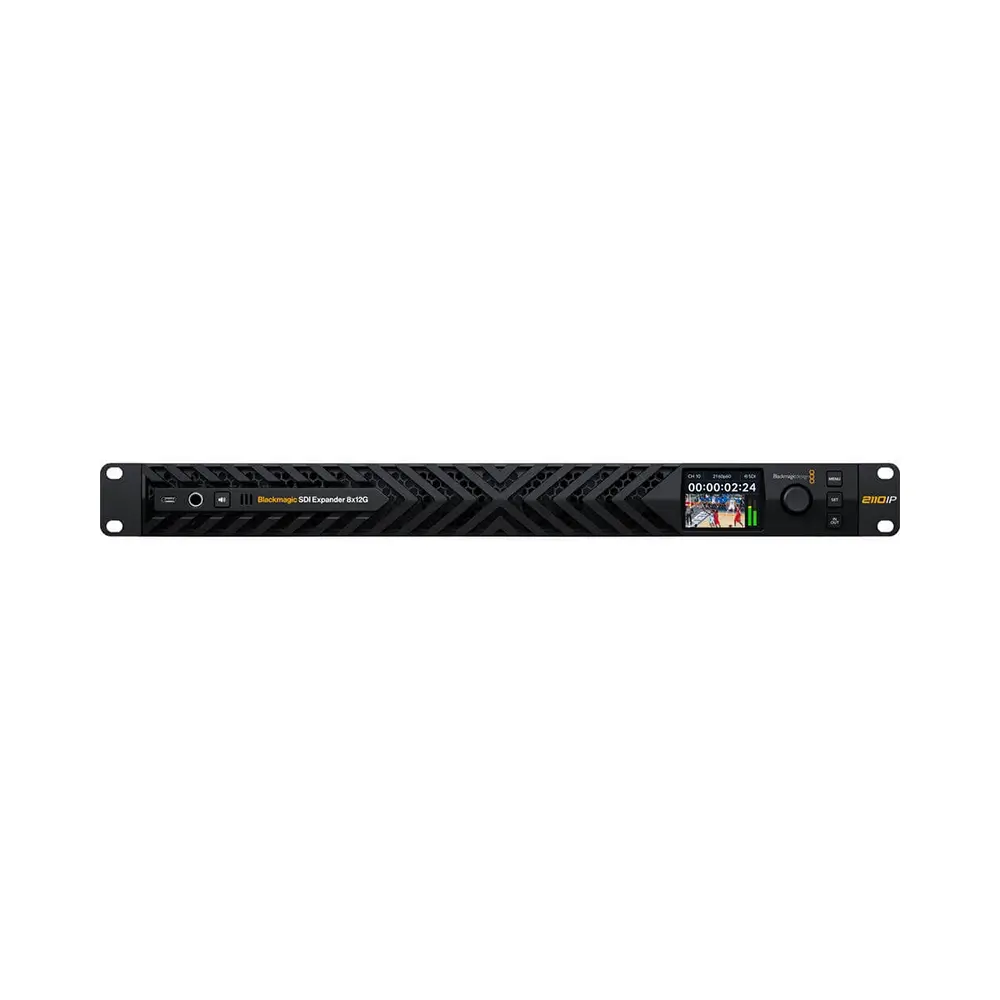

Engineered for hybrid SDI/IP environments, the expander supports SD, HD, and Ultra HD formats up to 4K60 with automatic detection, along with 16 channels of embedded audio per 2110 IP video stream. A front-panel 2.2″ LCD with integrated control knob and buttons enables real-time monitoring of video, audio, and system parameters, while a built-in speaker and headphone output allow for direct audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Simultaneous bidirectional conversion between 12G-SDI and SMPTE 2110 IP video
- Eight 12G-SDI inputs and eight 12G-SDI outputs in a single 1 RU chassis
- Dual 100GbE QSFP28 ports with SMPTE ST 2022-7 redundant streaming
- Auto-detection of SD, HD, and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2″ front-panel LCD for video, audio, and system monitoring
- Integrated control knob and buttons for configuration and routing
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
| Dimensions | 48.26 × 21.84 × 4.32 cm |
|---|---|

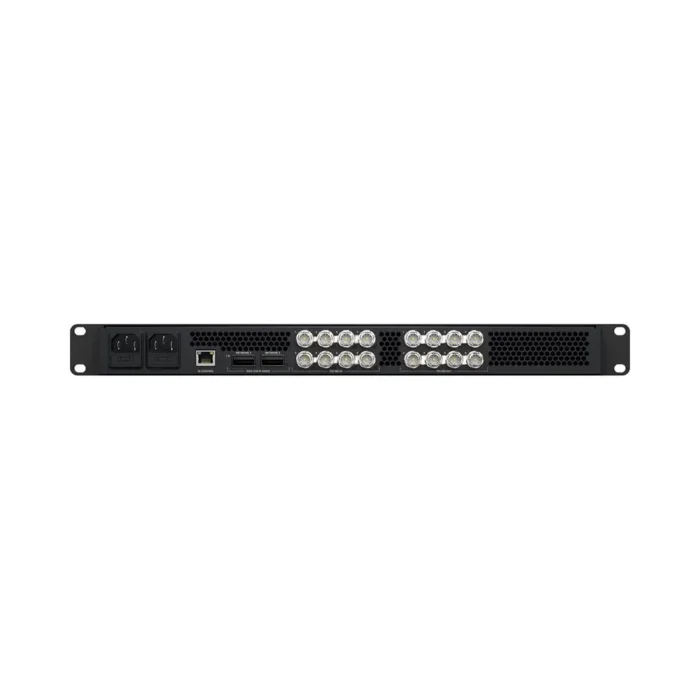

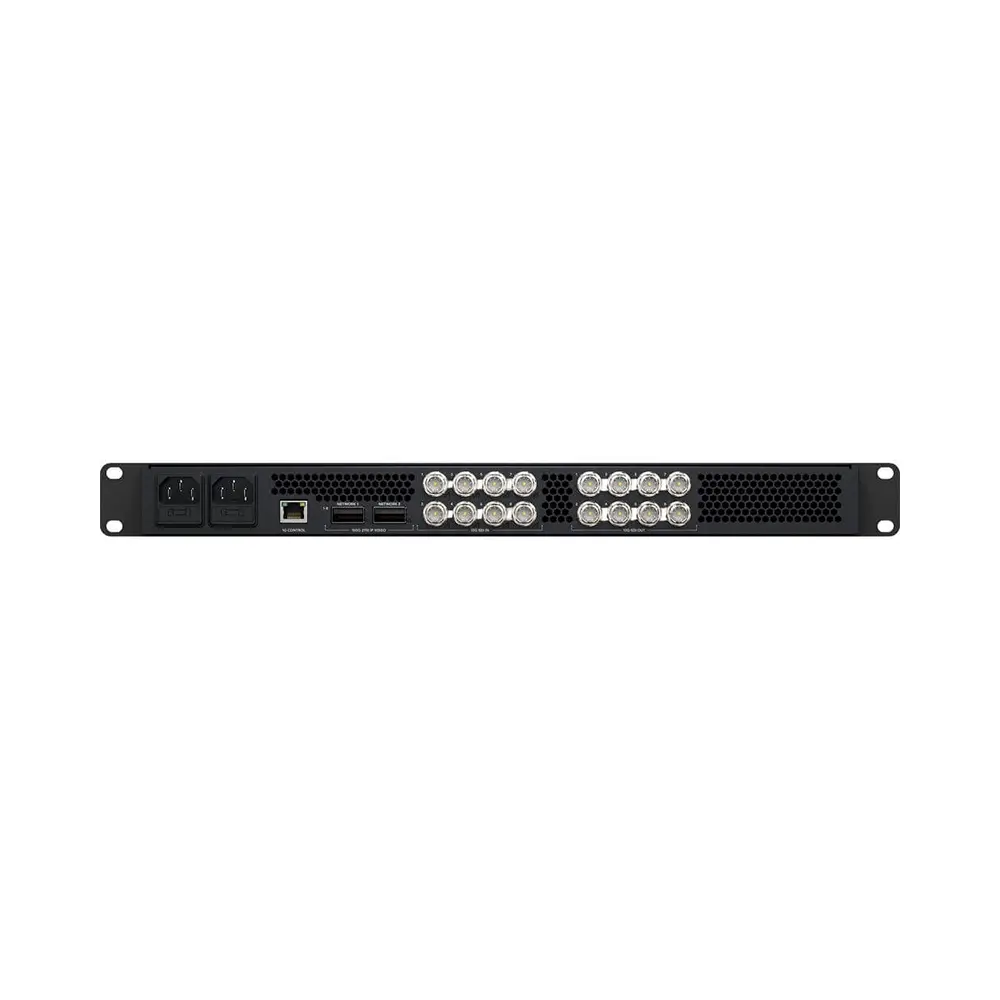

| Inputs: | 8 x BNC (12G-SDI) 1 x QSFP28 (100G Ethernet) |
| Embedded Audio: | IP/SDI: 32-Channel |
| Outputs: | 8x BNC (12G-SDI) 1x QSFP28 (100G Ethernet) |
| Other I/O: | 1x RJ45 Input 1x USB-C (Firmware) Input |
| Video Standard Compliance: | SMPTE 292M/296M/424M/425M/2110-30/2110-40/ST 2110-20/ST 2110-21/ST-2022-7/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084/ST-2108-1 |
| HDR Support: | Yes |
| OS Compatibility: | macOS 26.0 or Later Windows 11 or Later |
| Video Format: | SDI Input (10-Bit 4:2:2 YUV) 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i: 50/59.94/60 fps 1920 x 1080PsF: 25/29.97/30 fps 1280 x 720p: 50/59.94/60 fps |
| Maximum Data Rate: | 100 Gb/s |
| Power I/O: | 2x IEC C14 Input |
| Power Consumption: | 100 to 240 VAC |
| Rack Form Factor: | 1 RU |
| Certifications: | IEEE 1588-2008 |
| Operating Conditions: | 41 to 104?F / 5 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C up to 90% Humidity |
