Blackmagic HyperDeck ISO Recorder 100G
19,854.00 Excl. VAT
- Record 8 Channels of 4K60 10-Bit Video
- Dual Redundant 100GbE Video I/O
- Records Direct to Network Storage
- SMPTE 2110 IP Video Compliance
- ProRes HQ, 422, LT & Proxy Support
- Live Replay via DaVinci Resolve
- 2.2″ LCD with Search Dial Control
- External Control via RJ45 & RS-422
- 2 RU Form Factor
- Dual Redundant AC Power Inputs
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.

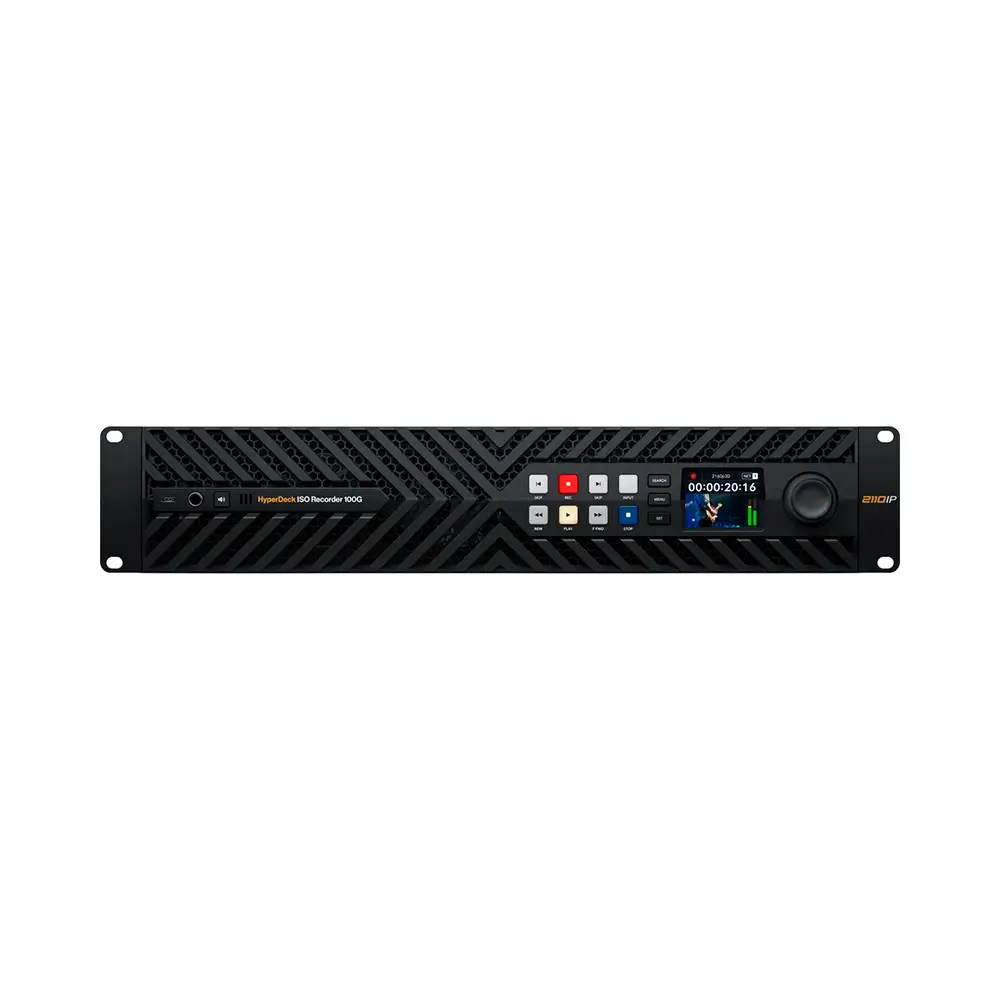

Blackmagic Design HyperDeck ISO Recorder 100G Overview
The Blackmagic Design HyperDeck ISO Recorder 100G is a 2 RU SMPTE 2110 broadcast recorder engineered for multicamera live production and high-bandwidth IP workflows. Capable of recording up to eight channels of 10-bit 4:2:2 video at resolutions up to DCI 4K60, the unit captures each feed as an individual ProRes file directly to network storage over dual 100GbE connections. SMPTE ST 2022-7 redundancy ensures uninterrupted recording across dual network paths, while support for 16 channels of embedded audio per stream preserves full multichannel audio integrity for post-production.
Designed for live production and broadcast environments, the HyperDeck ISO Recorder enables simultaneous recording and playback of all eight channels, making it suitable for live switching, replay, and post-event editing. A front-panel 2.2″ LCD with machined metal search dial and transport controls provides precise clip navigation and monitoring, complemented by a built-in speaker and headphone output for audio confidence. External control is supported via RS-422 serial, NMOS over RJ45, and USB-C configuration, while dual AC inputs, redundant network paths, and advanced Blackmagic OS management ensure reliable operation in demanding scenarios.
- Records eight simultaneous SMPTE 2110 IP video channels up to DCI 4K60
- Two pairs of 100GbE QSFP28 ports with SMPTE ST 2022-7 redundancy
- Direct recording to shared network storage over 100G Ethernet
- Supports ProRes 422 HQ, 422, 422 LT, and Proxy codecs
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per video stream
- Simultaneous multichannel playback for testing and replay
- 2.2″ front-panel LCD for video, audio, and system monitoring
- Machined metal search dial with electronic clutch and transport controls
- Built-in speaker and headphone output for audio monitoring
- RS-422 deck control and Ethernet-based remote control support
- Dual 10G RJ45 ports for NMOS control and configuration
- USB-C interface for setup and firmware updates
- Dual IEC C14 AC inputs for redundant power delivery
| Dimensions | 48.26 × 24.13 × 8.89 cm |
|---|---|
| Supported Formats: | MOV / ProRes 422 / ProRes 422 HQ / ProRes 422 LT / ProRes 422 Proxy |
| Recording Modes: | ProRes/ProRes 422/ProRes 422 HQ Proxy 4096 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1280 x 7200 at 50/59.94/60.00 fps 3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps |
| Video Output: | 4:2:2 10-Bit via HDMI / RJ45 / SDI/BNC 4096 x 2160 at 24.00/25/29.97/30.00/50/59.94/60.00 fps 3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Video I/O: | 2x SMPTE LEMO Fiber SMPTE 2110 Input 2x SMPTE LEMO Fiber SMPTE 2110 Output 2x BNC (12G-SDI) Monitor Output 1x HDMI Monitor Output |
| Audio I/O: | 1x 1/8″ / 3.5 mm Stereo Output |
| Power I/O: | 2x IEC C13/C14 Input |
| Input Power: | 100 to 240 VDC |
| Display: | 2.2″ / 5.6?cm LCD |
| Rack Mountable: | Yes 2 U |
| Operating Conditions: | 32 to 104?F / 0 to 40?C up to 90% Humidity |
| Storage Conditions: | -4 to 113?F / -20 to 45?C up to 90% Humidity |
| Certifications: | IEEE 1588-2008, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10 |
