Blackmagic GPI and Tally Interface
1,969.00 Excl. VAT
- Displays Tallies for Video Signals
- Indicates On-air Status
- For ATEM Switchers / Videohub Routers
- 8 Contact Closure Inputs & Outputs
- Connects with Multiple Interfaces
Available on backorder
Estimated delivery: October 27, 2026 – November 6, 2026
Description

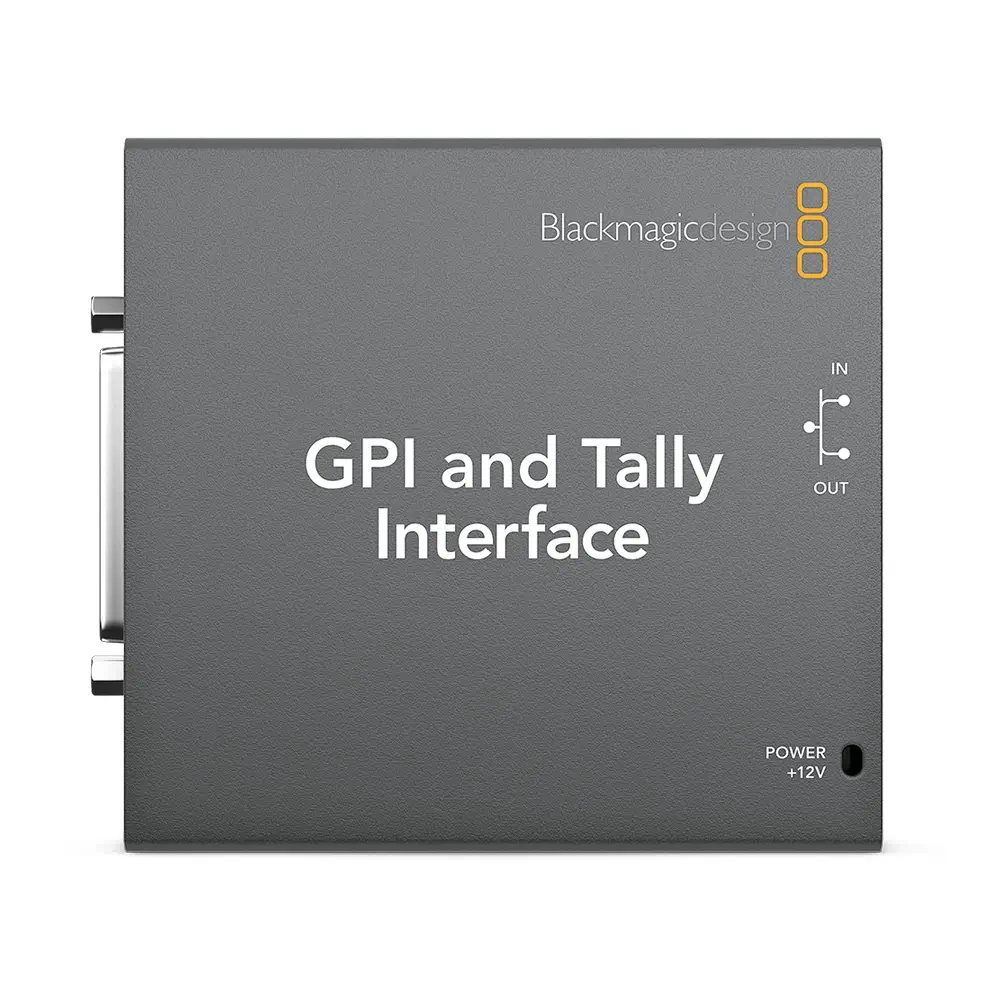

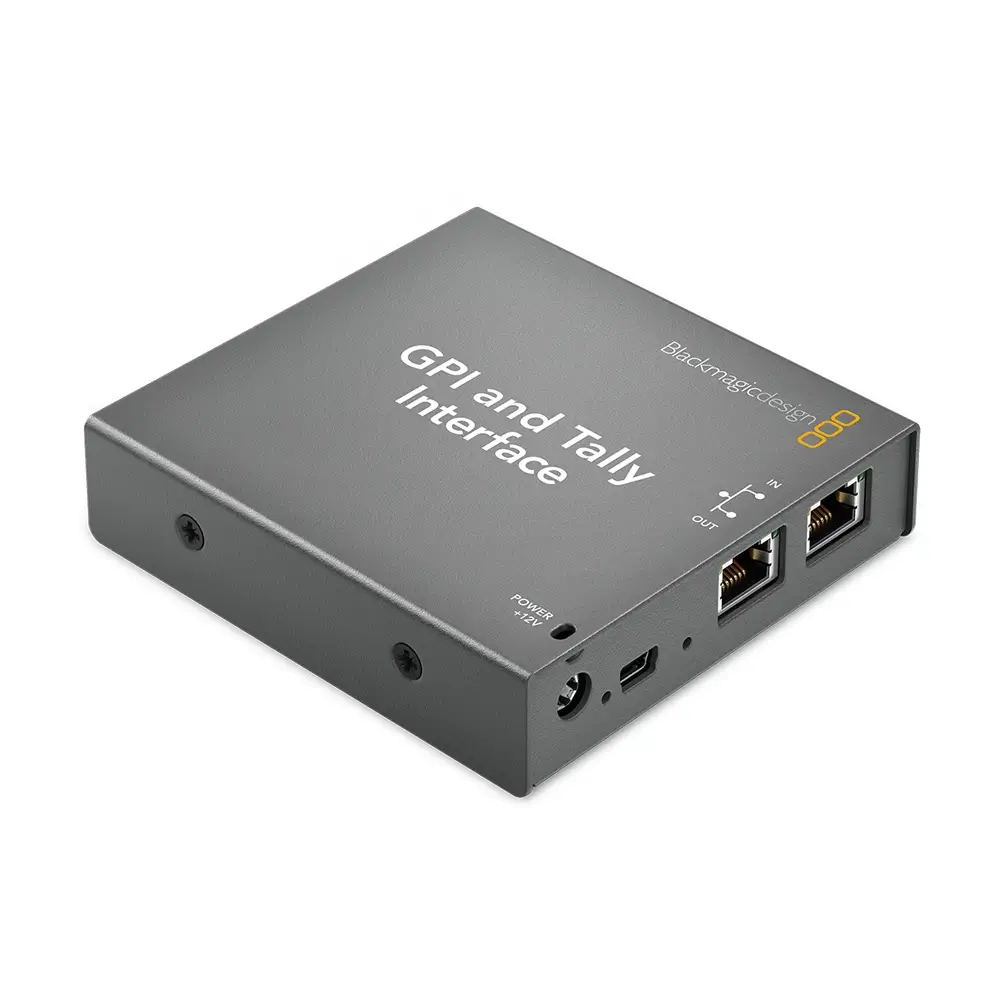

Blackmagic Design GPI and Tally Interface Overview
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
- Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
Additional information
| Weight | 0.45 kg |
|---|---|
| Dimensions | 14.48 × 13.84 × 6.48 cm |

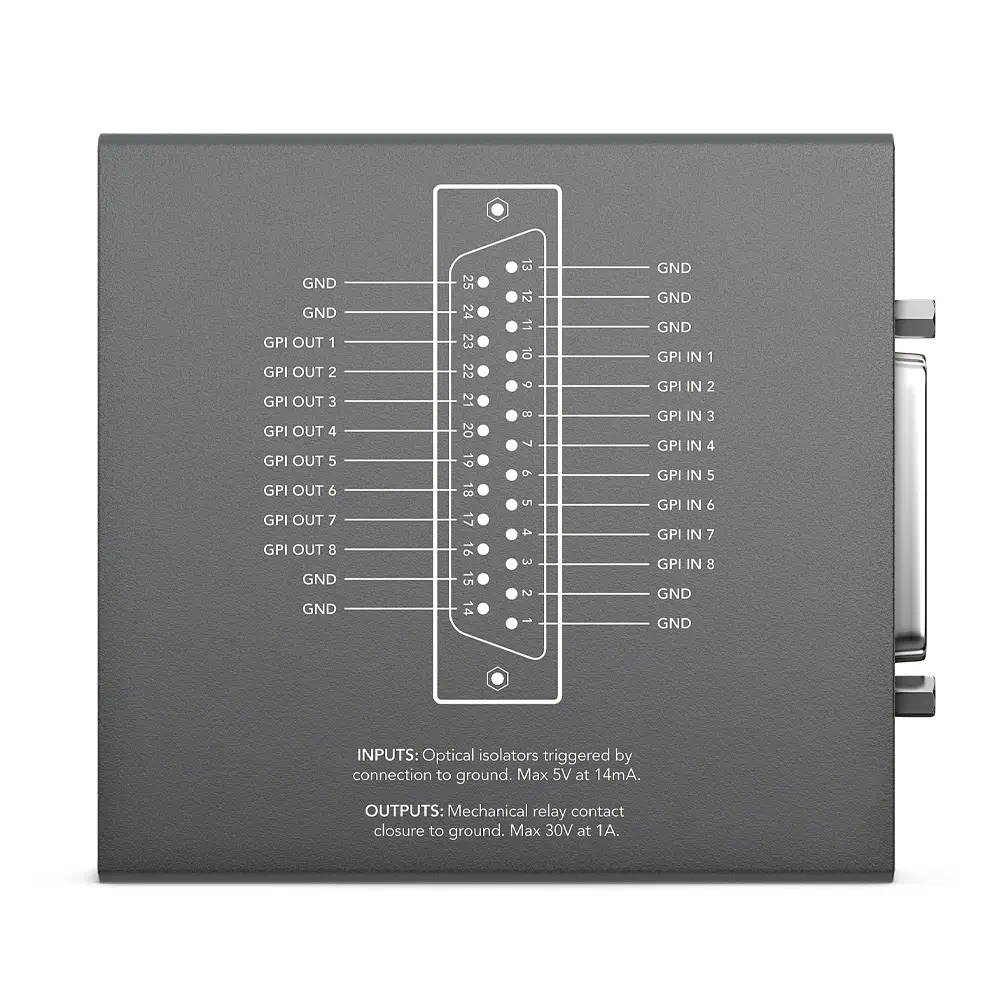

| Contact Closure: | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
| Inputs: | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
| Outputs: | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
| Ethernet: | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
| Computer Interface: | 1 x USB 2.0 high speed interface for configuration and firmware updates |
| Operating System: | Microsoft Windows 7 and Apple Mac OS X |
