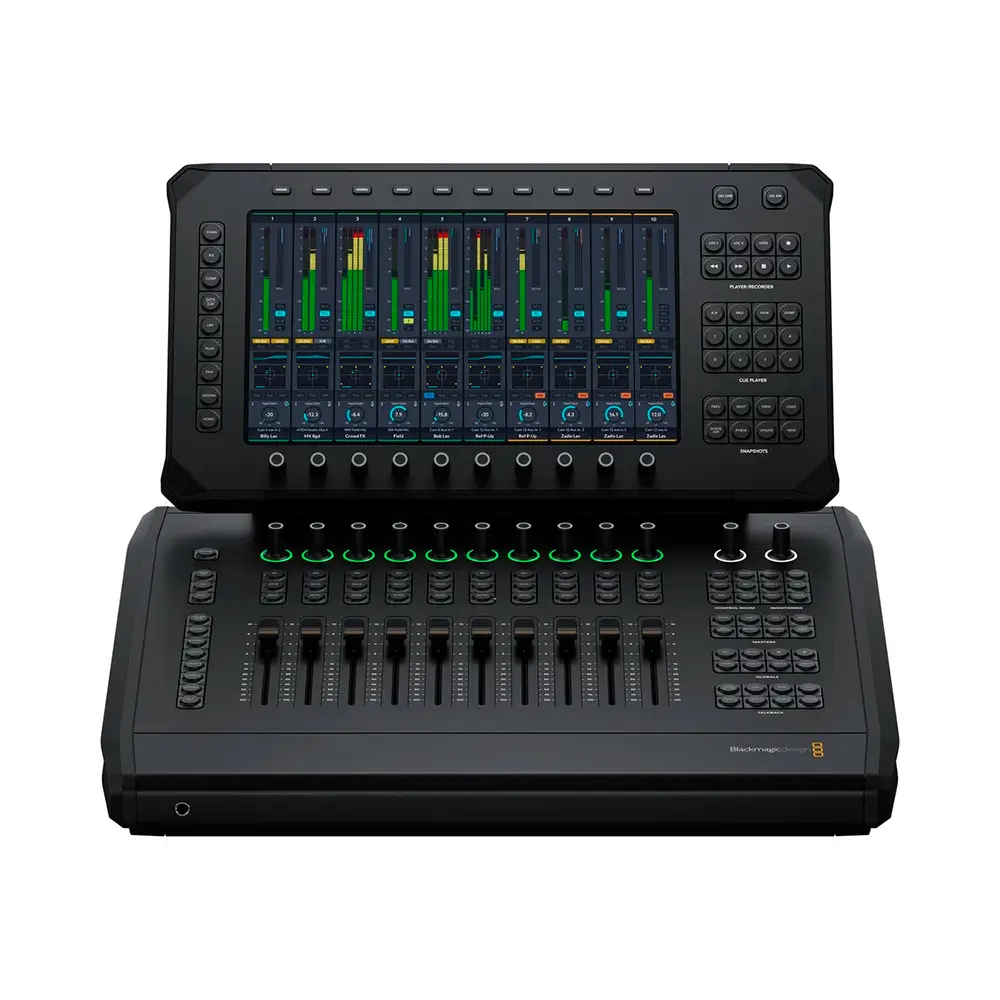

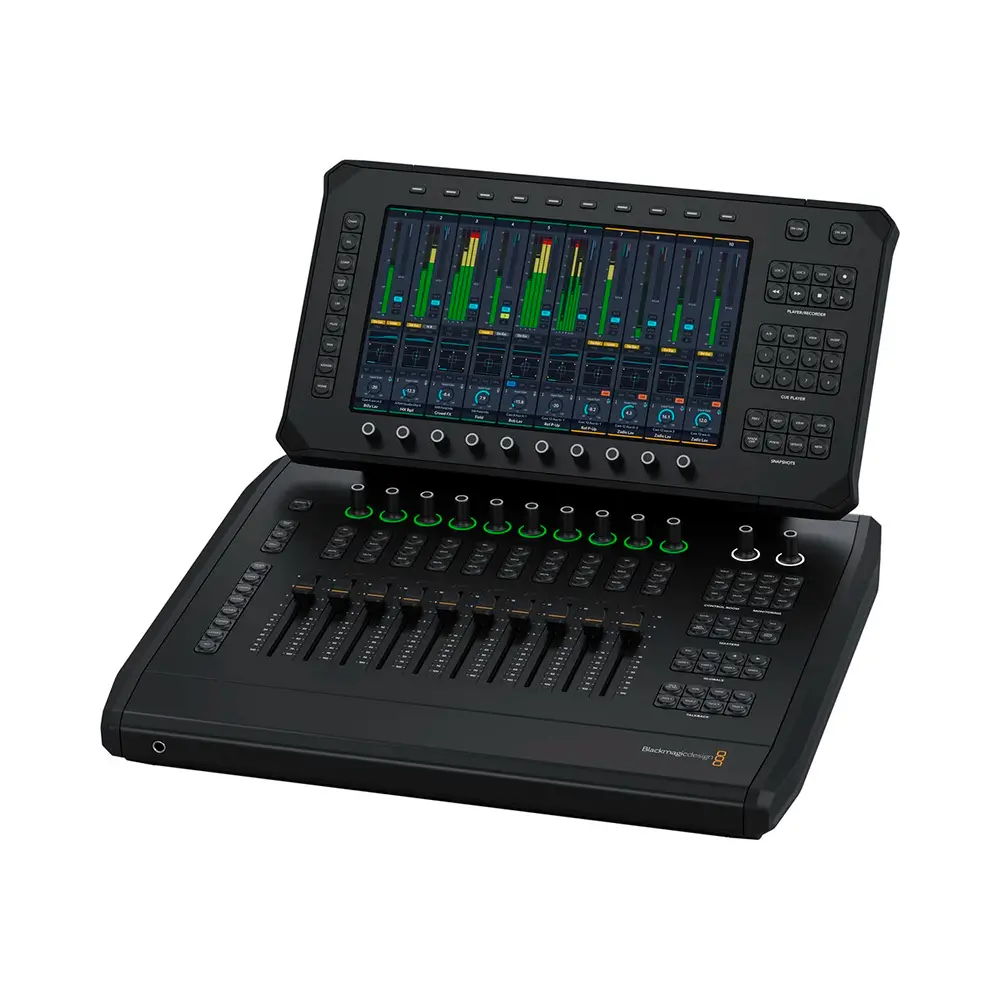

Blackmagic Fairlight Live Audio Panel 10
8,078.00 Excl. VAT
- For Audio Mixing with Fairlight Live
- 10 Motorized Faders, 10 LED Ring Knobs
- Large 11.6″ Color 1080p Touchscreen
- Layer, Bus, Matrix, Aux, VCA Controls
- Submasters and Talkback Controls
- XLR 3-Pin Mic Input and Line Outs
- XLR 5-Pin Headset Connector, HDMI Port
- Two 10G 2110 IP Video and Audio Ports
- Supports up to 4K 60 Video Input
- Integrated Talkback Mic
Available on backorder
Estimated delivery: October 27, 2026 – November 6, 2026
Additional information
| Weight | 4.54 kg |
|---|---|
| Dimensions | 47.8 × 45.49 × 27.31 cm |

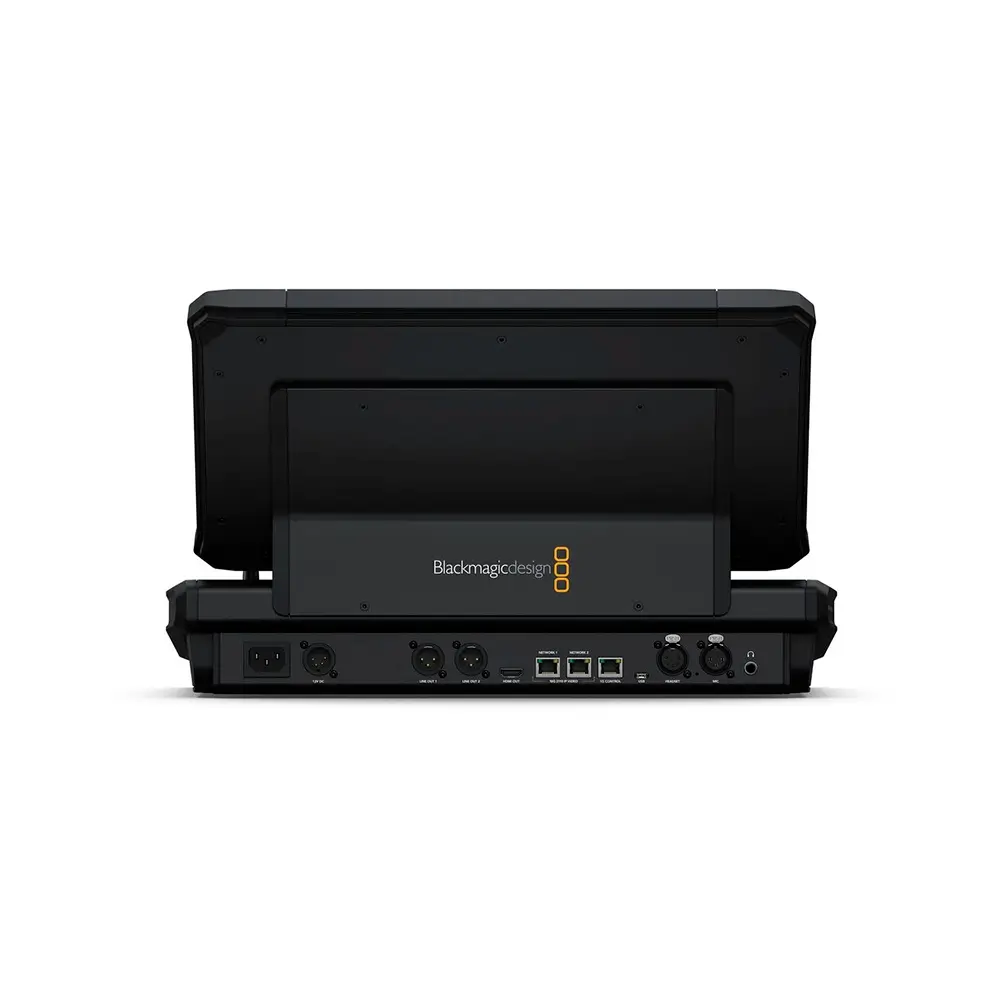

| Connections: | 2110 IP Video and Audio Networks 2 x 10G RJ45 Ethernet connections. |
| Analog Audio Outputs: | 2 x 3-pin XLR for line level analog audio. 1 x 5-pin XLR for talkback headset. 2 x 6.35mm headphone jack. |
| Senders and Receivers per 10G Pair: | Supports 2110 IP video and audio plus analog audio in and out of panel. |
| Computer Interface: | 1 x USB Type?C for computer connection, software configuration and software updates. |
| 1G Control Network: | 1 x 1G RJ45 for computer connection, configuration and software updates. |
| HDMI Video Output: | 1 x HDMI Type A. |
| HDMI Monitor Outputs: | 1 |
| Power: | 1 x IEC C14 power input. 1 x 4-pin XLR 12V DC power input. |
| Analog Audio Inputs: | 1 x 3-pin XLR for mic level analog audio. 1 x 5-pin XLR for talkback headset. |
| Display: | Built in Display 1 x 11.6 inch 1920 x 1080 LCD touch screen. |
| Video Standards: | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| HDMI Out: | HD or Ultra HD |
| Controls: | Channel Faders 10 flying faders. |
| Cue Player Keypad: | Cue Player controls – Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices. |
| Channel Rotary Knobs: | 10 multi function rotary knobs with ring LED indicators. |
| Channel Control Buttons: | Select, Solo and Mute for each channel. |
| Snapshots Keypad: | Store and recall mixer settings and configurations. |
| Channel Focus: | Processing and input controls for selected channel. |
| Control Room and Monitoring Keypad: | Controls for source selection and monitor circuit selection. |
| Contextual Rotary Knobs: | 10 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens. |
| On Line Button: | Online mode follows timecode from external source. |
| On Air Button: | On Air mode locks panel. |
| Talkback Keypad: | Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen. |
| Player/Recorder Keypad: | Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks |
| Microphone: | 1 x built in talkback microphone. |
| Talkback Connections: | 1 x 5-pin XLR headset 1 x 3-pin XLR Mic input 2 x 6.35mm headphone sockets 2 x 3-pin XLR audio monitor outputs. |
| Talkback Selection: | Talkback groups, direct to channel, or all. |
| Talkback Groups: | 4 |
| Power Supply: | 1 x 100 ? 240V AC 50/60Hz internal power supply. |
