Blackmagic Design Streaming Encoder 4K
2,742.00 Excl. VAT
- H.264 & H.265 Streaming to SRT or RTMP
- 12G-SDI Input & Loop Output
- DCI 4K Streaming up to 60 fps
- Ethernet 10/100/1000BASE-T Support
- SDI & HDMI Monitor Outputs
- Integrated 2.2″ LCD Screen
- USB-C for Phone Tethering & Webcam Out
- Tethers to 4G & 5G Phones for Streaming
In stock
SKU:
BDLKWEB/D/SED4K
Categories: Blackmagic Design, Streaming and Encoding
Description
Blackmagic Streaming Encoder 4K is powerful self-contained streaming processor with H.264 and H.265 streaming in HD or Ultra HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoringĀ output.
Additional information
| Weight | 1.13 kg |
|---|---|
| Dimensions | 26.67 × 17.78 × 6.6 cm |
| IP Video: | H.264/H.265: 4096 x 2160 Encoding |

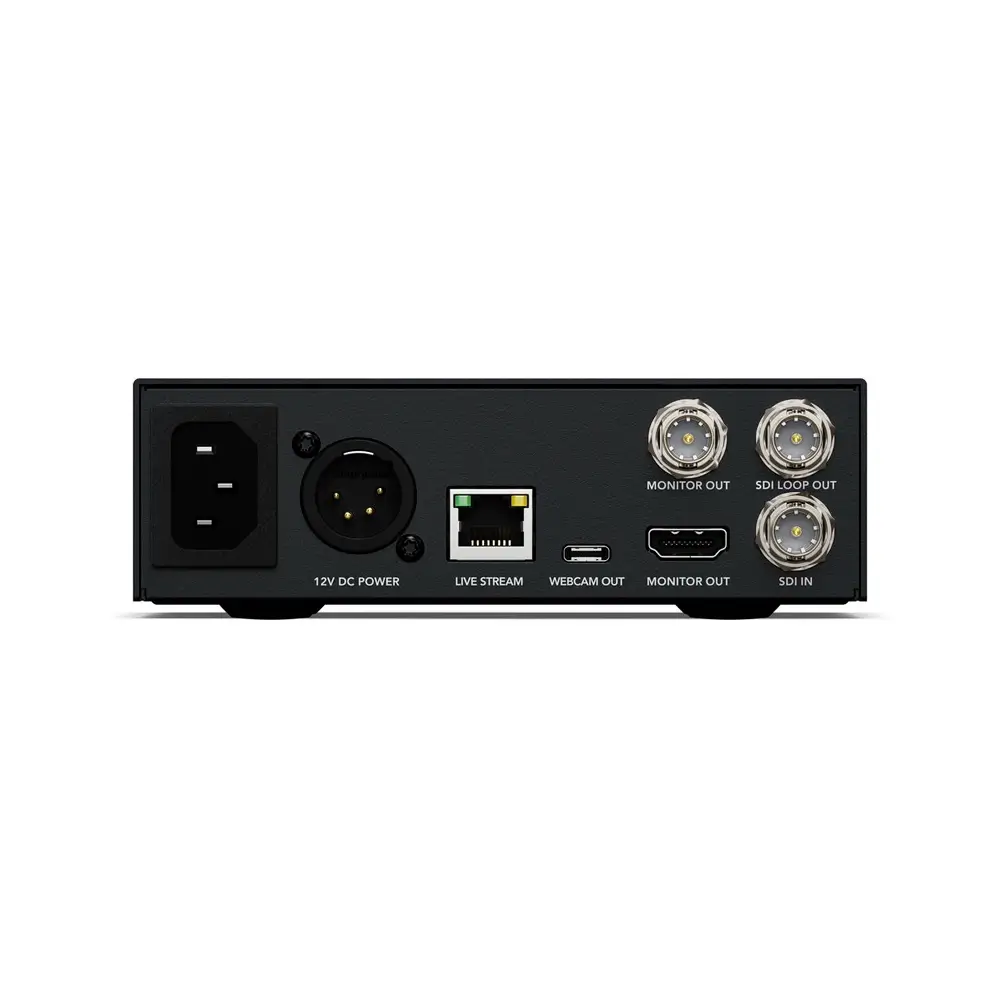

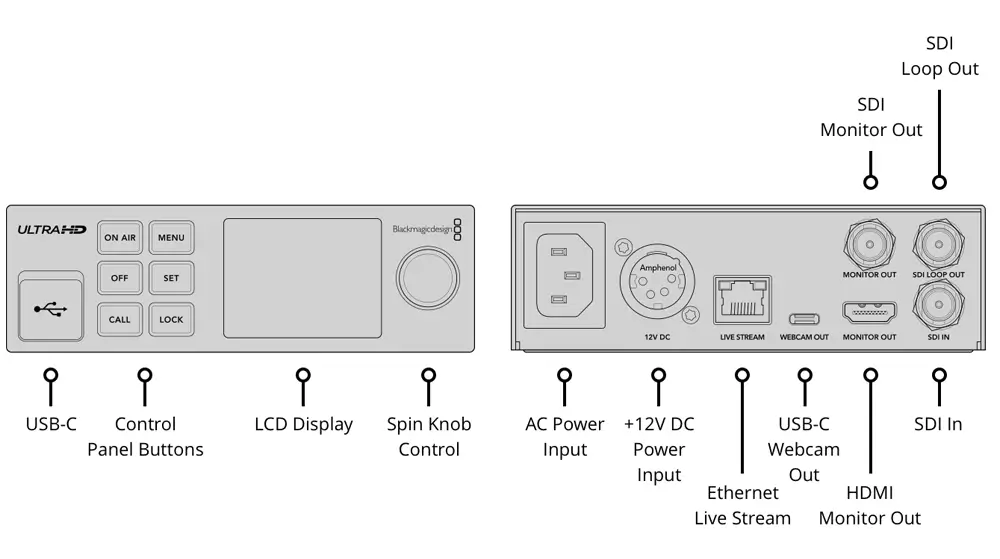

| Video I/O: | 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output 1x HDMI Monitor Output |
| Embedded Audio: | SDI Input: 16-Channel SDI Output: 16-Channel HDMI Output: 2-Channel LAN (RJ45)/USB Output |
| Display: | LCD |
| Transport Protocols: | RTMP, SRT |
| Compatible Services: | Facebook Live, Twitch, YouTube Live |
| Cellular Support: | 5G NR / 4G LTE via Unspecified SIM Type |
| Other I/O: | 1x RJ45 Fast Ethernet Input/Output 1x USB-C Output 1x USB-C Input/Output |
| Power I/O: | 1x IEC C14 Input 1x XLR 4-Pin Input |
| Power Consumption: | (25 W) |
| Operating Conditions: | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions: | -4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
| Rackmount Size: | 1U |
