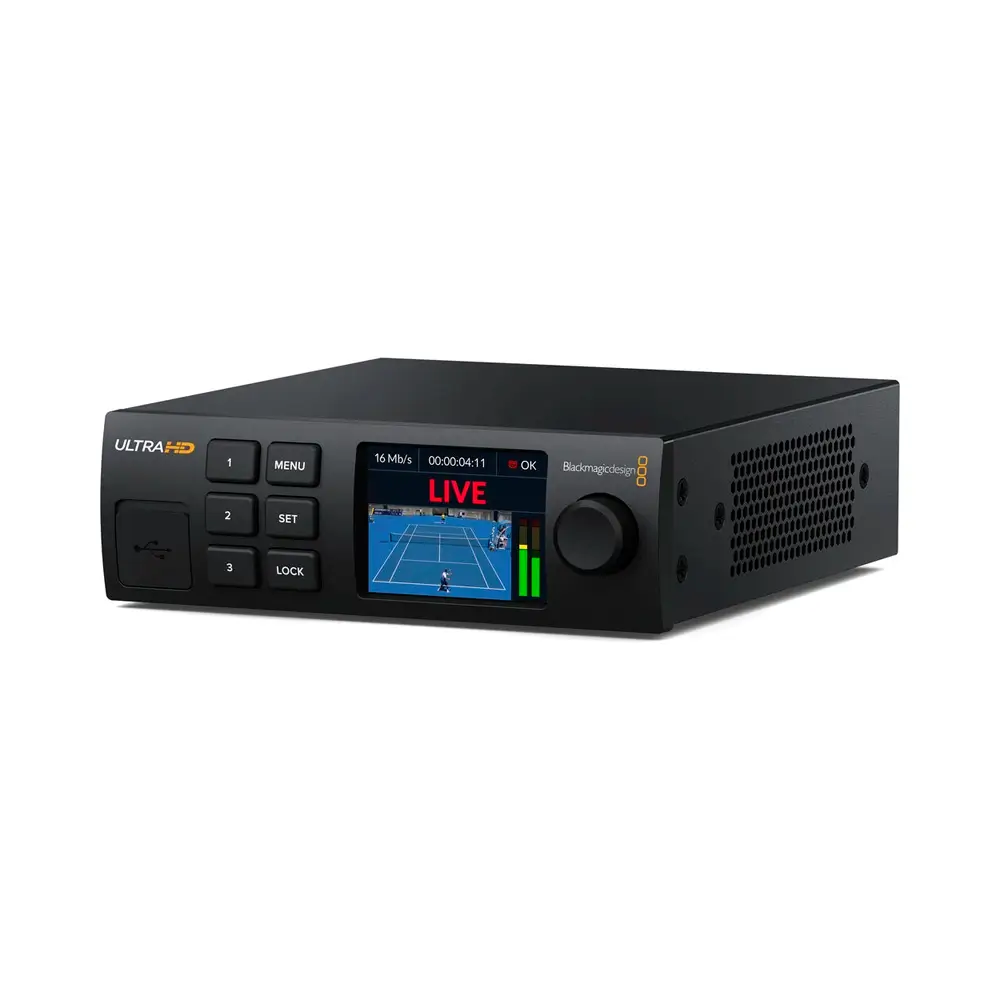

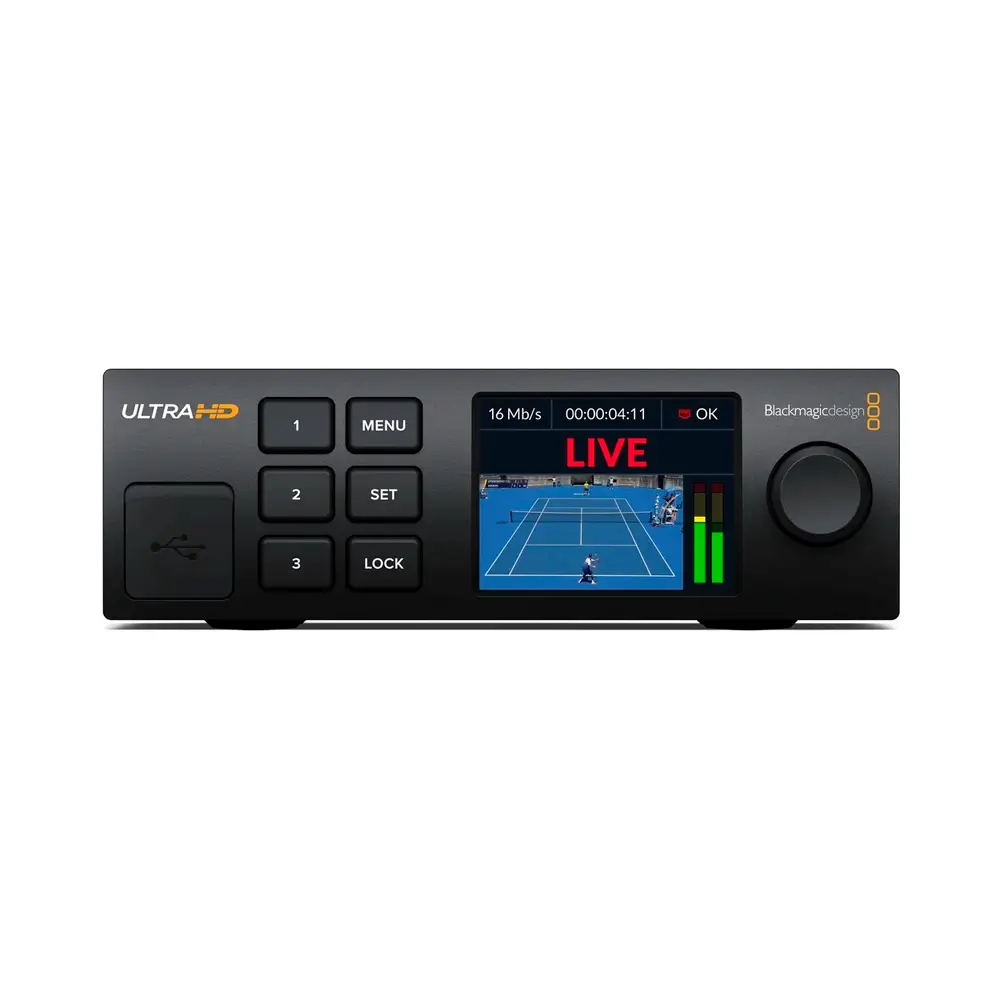

Blackmagic Design Streaming Decoder 4K
2,742.00 Excl. VAT
- Decodes H.264 & H.265 to SDI & HDMI
- Camera Control, Talkback & Tally Support
- USB-C Ports for Phone Tethering
- Tethers to 4G & 5G Phones for Streaming
- Blackmagic Streaming Utility Software
In stock
Description
Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.
Additional information
| Weight | 0.97 kg |
|---|---|
| Dimensions | 26.67 × 17.78 × 6.6 cm |
| IP Video: | H.264/H.265: 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding |

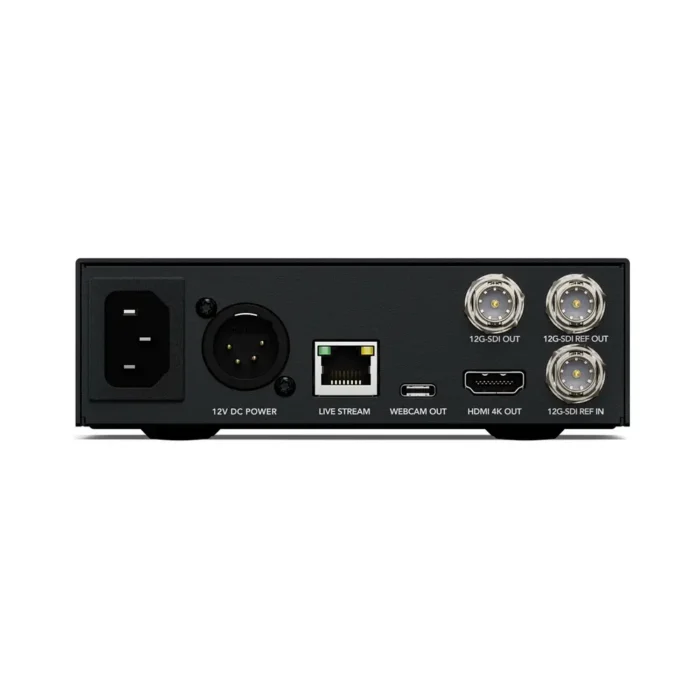

| Video I/O: | 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output 1x HDMI (HDMI 2.0) Output |
| Display: | LCD |
| Transport Protocols: | RTMP, SRT |
| Cellular Support: | 5G NR / 4G LTE via Unspecified SIM Type |
| SIM Card Slots: | Not Specified by Manufacturer |
| Other I/O: | 1x RJ45 Fast Ethernet Input/Output |
| Embedded Audio: | SDI Input: 16-Channel SDI Output: 16-Channel SDI Output: 2-Channel HDMI Output: 8-Channel LAN (RJ45)/USB |
| Power I/O: | 1x IEC C14 Input 1x Mini-XLR 4-Pin (12 VDC) Input |
| Operating Conditions: | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions: | -4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
