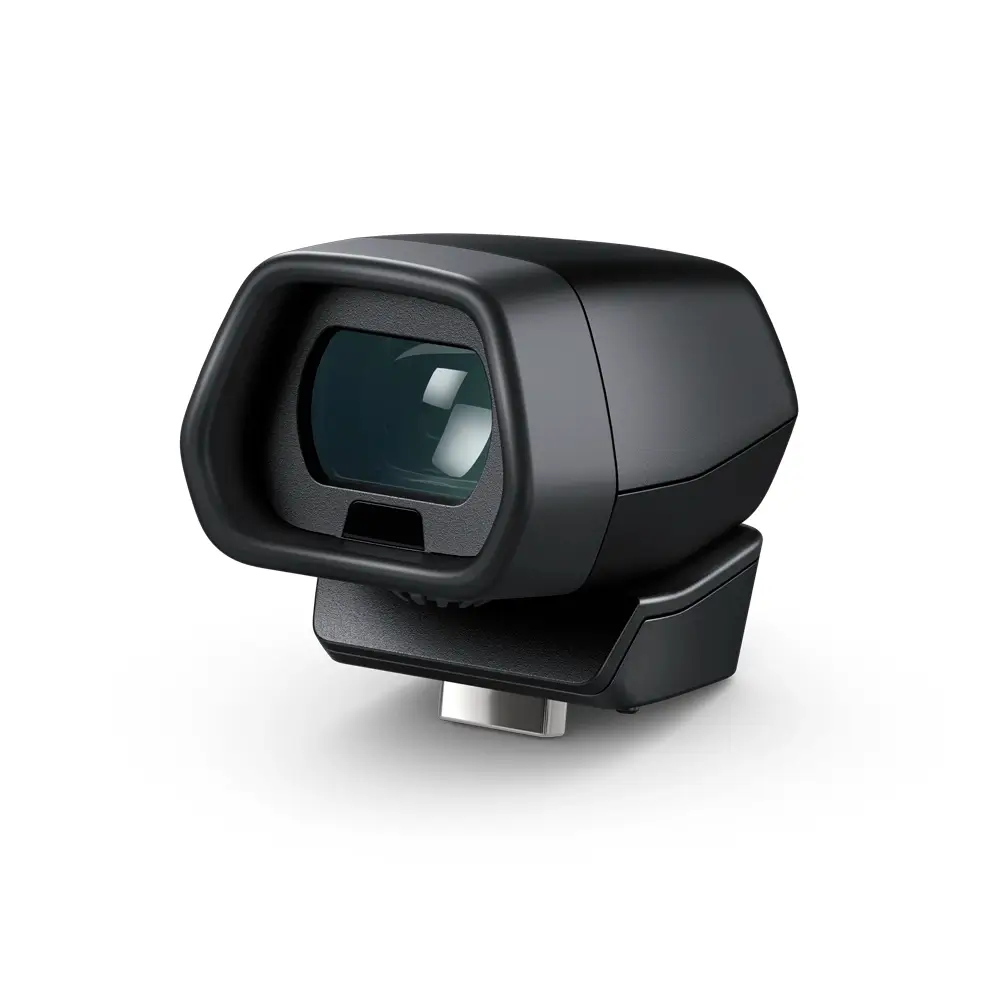

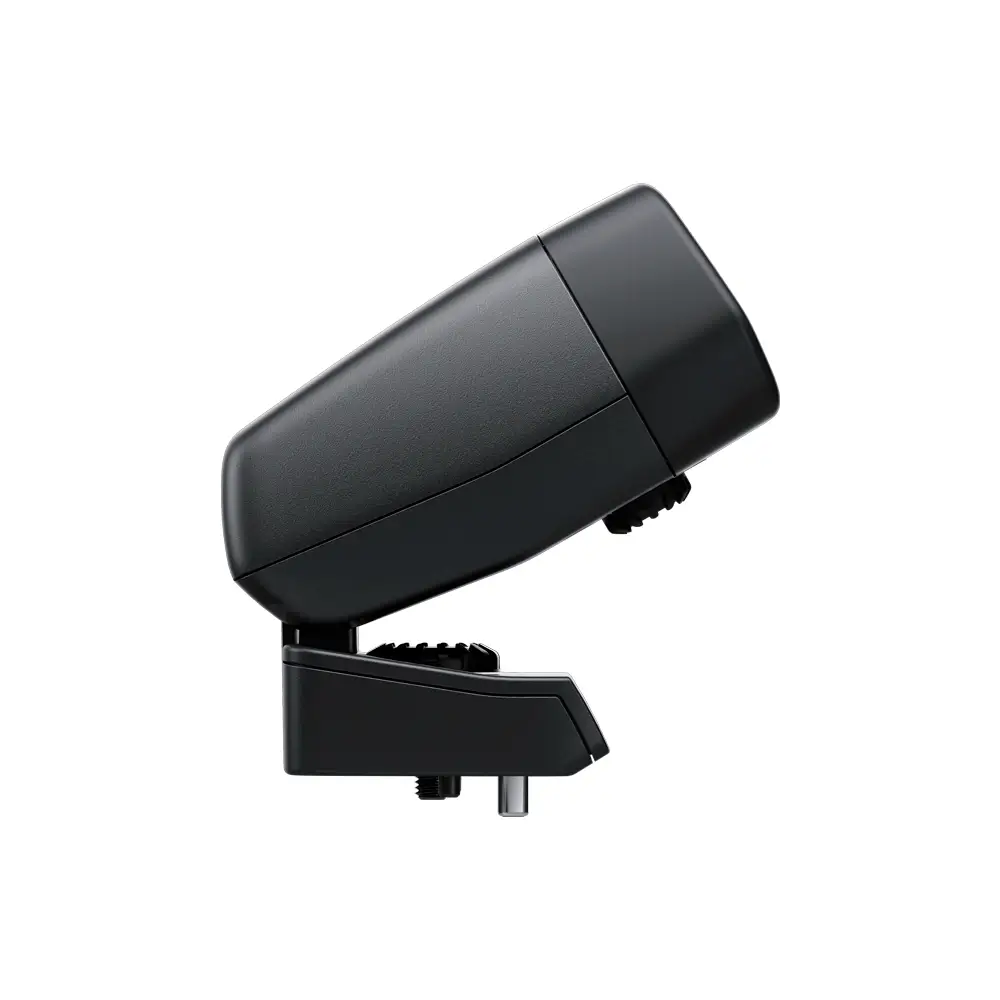

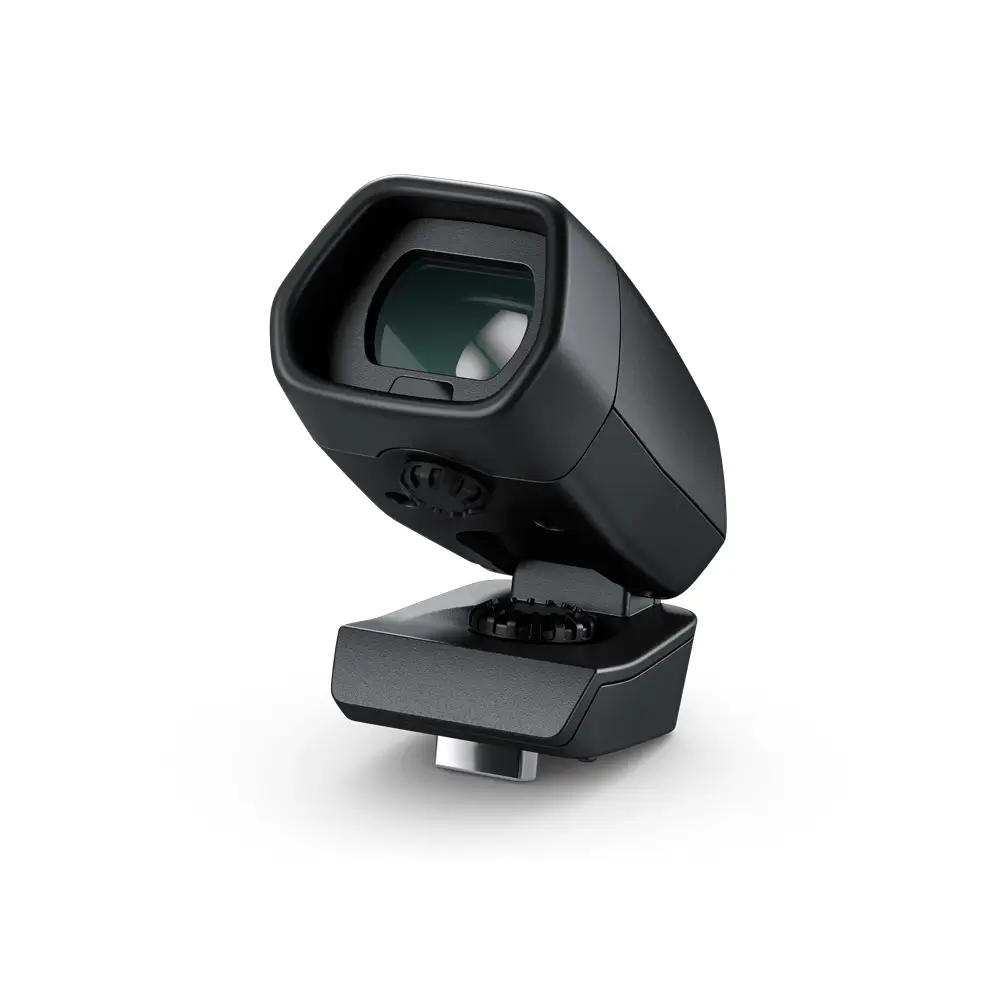

Blackmagic Pocket Cinema Camera Pro EVF

2,006.00 Excl. VAT

  • EVF for Pocket Cinema Camera 6K/6K Pro
  • Glass Diopter with -4 to +4 Adjustment
  • Built-In Status & Digital Focus Chart
  • 70° Swivel, 1280 x 960 Resolution
  • Micro OLED, 24-Bit RGB, 16.7M Colors
  • Set of 4 Eyecups for Right & Left Eyes

In stock

SKU: CINECAMPOCHDMFTEVF Categories: ,
Description

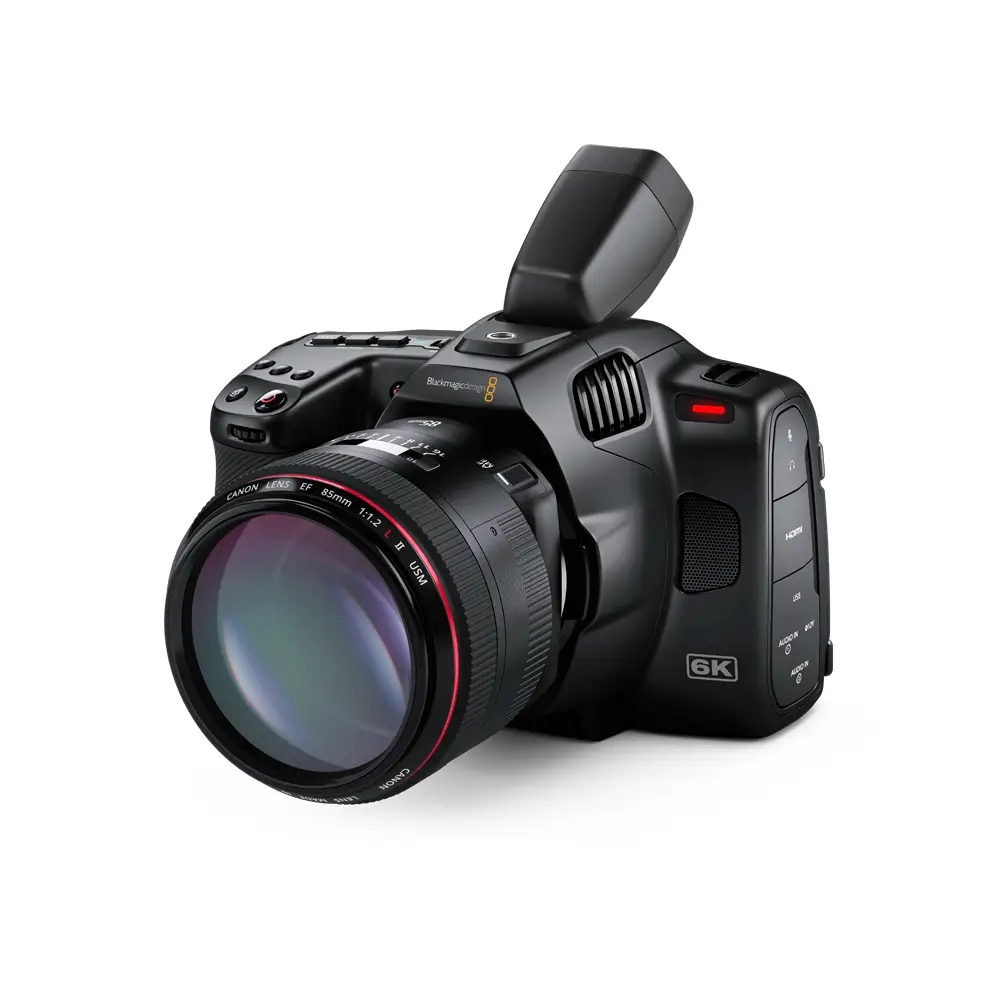

Add a compact viewfinder to your Pocket Cinema Camera 6K or 6K Pro with this Pocket Cinema Camera Pro EVF from Blackmagic Design. The EVF is designed specifically to fit into the EVF slot on the 6K Pro, and it locks using an integrated M4 screw. When in use, it turns off the built-in touchscreen LCD, so you don’t accidentally change settings while using the EVF. The display provides a 1280 x 960 resolution image on its crisp micro-OLED display.

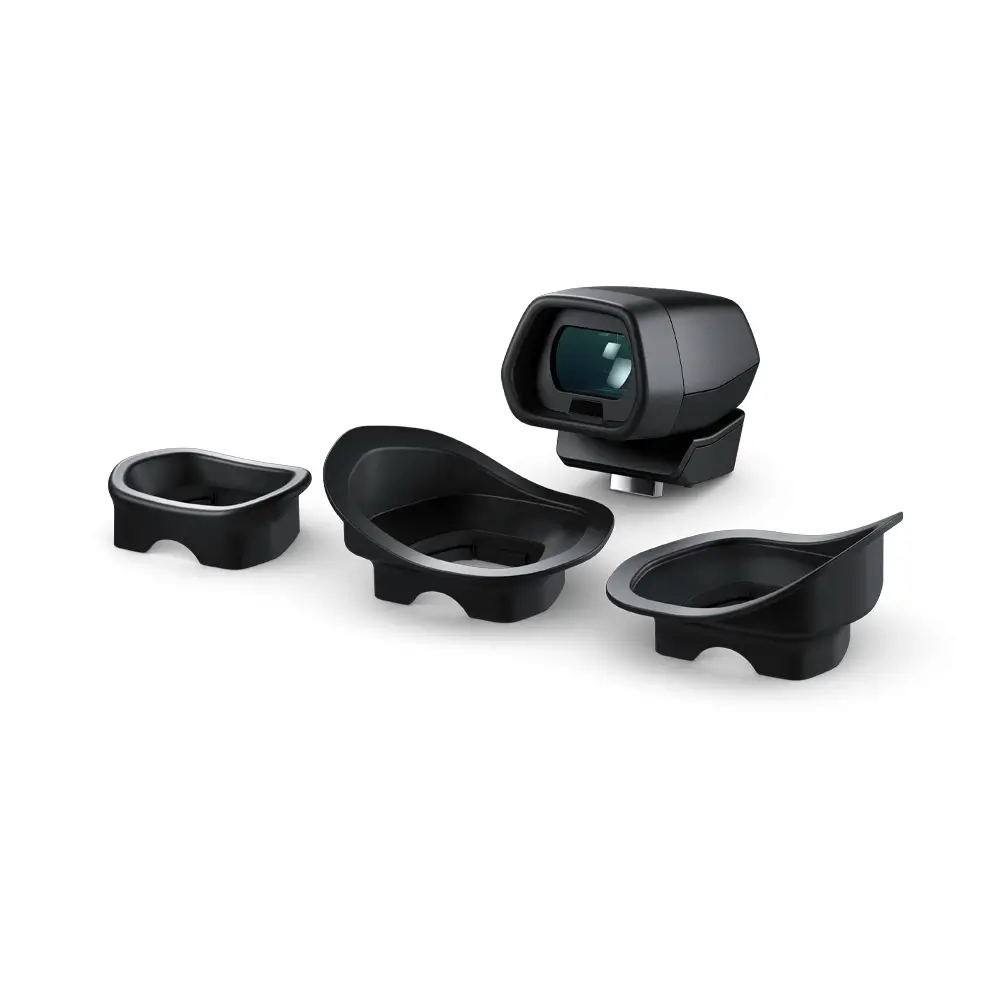

The display provides a variety of overlays such as status, meters, and settings in the blank areas above and below the camera image. It accepts input frame rates up to 60 fps and 24-bit RGB color for a clear representation of your image. Its glass diopter features -4 to +4 adjustment, and the display also features a digital focus chart. It can swivel up to 70°, and a set of four eyecups are included and provide compact, medium, cinematic left eye, and cinematic right eye configurations.

Compatibility
Blackmagic Design Pocket Cinema Camera 6K Pro
Blackmagic Design Pocket Cinema Camera 6K
Additional information
Weight 0.080 kg
Dimensions 2.56 × 1.59 × 1.91 cm
Connections

Video and Power Inputs
Via Pocket Cinema Camera 6K Pro EVF connector

Fixing
Integrated M4 x 3.3 (0.7 pitch) locking screw

Display Resolution

1280 x 960

Display Pixels

3.68 million dots

Display Type

Micro OLED

Frame Rates

Up to 60 fps

Color Precision

24 bit RGB, 16.7 million colors

Focus

4 element diopter.

What's Included

Blackmagic Pocket Cinema Camera Pro EVF
Small Eye Cup
Medium Eye Cup
Left Eye Cup
Right Eye Cup

Eyepiece

Can be tilted +70° vertically.

Eye Cup

4 x interchangeable silicone eye cups including small, medium, left eye and right eye.
