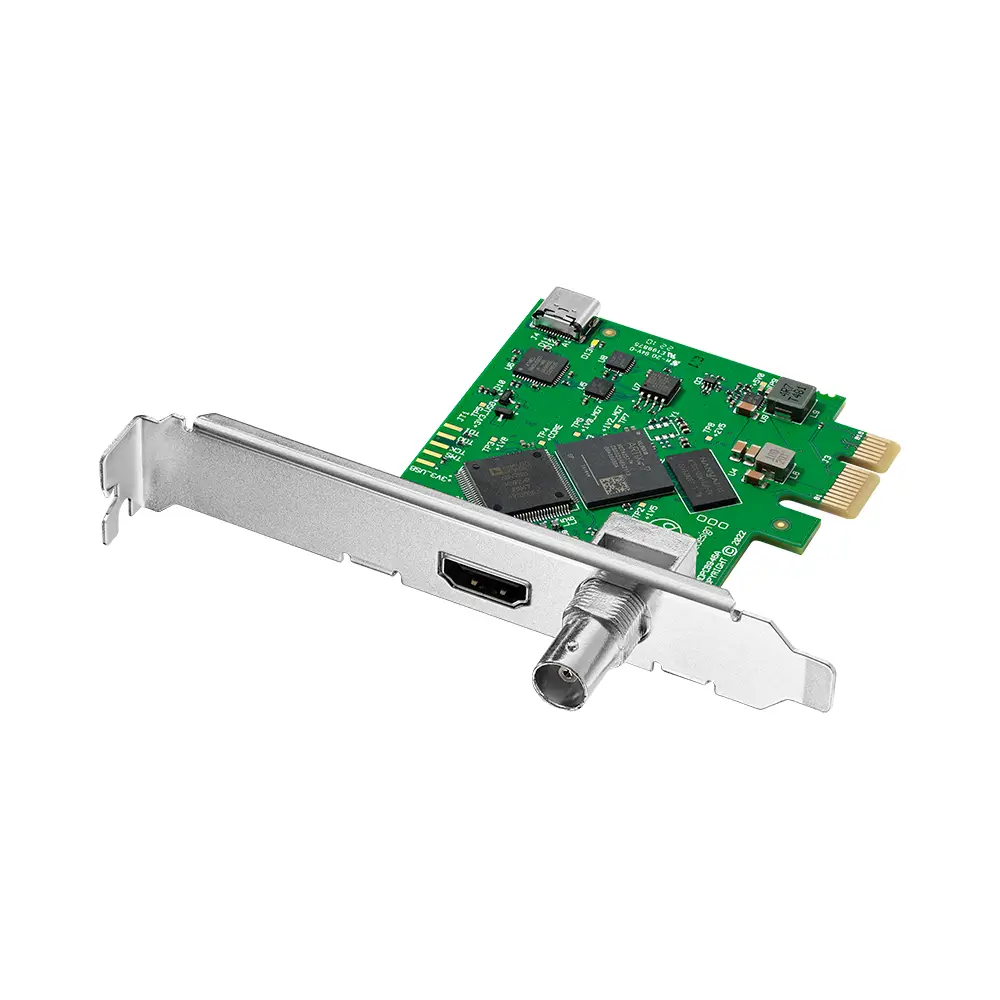

Blackmagic Design DeckLink Mini Monitor HD – 4-channel 3G-SDI Video Card
534.00 Excl. VAT
- Broadcast-Quality Playback & Monitoring
- 1-Lane PCIe Slot Card (for 1-16 Lanes)

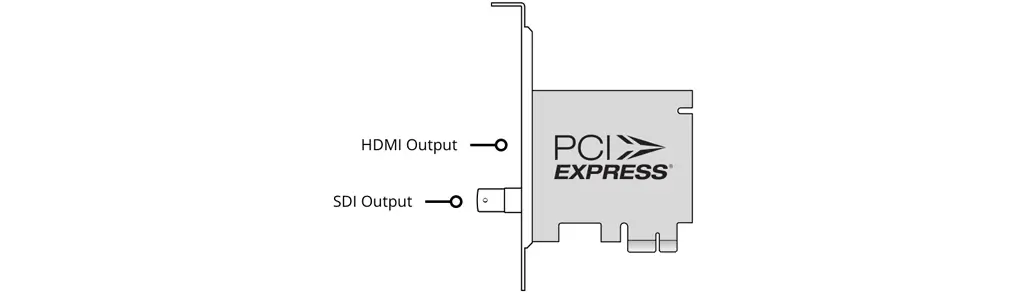

- SDI and HDMI Outputs
- Up to 1080p60 Resolution Support in HDMI
- Supports up to 2K DCI over SDI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
In stock
Description
A Pro-grade Compact Playback Card
Get broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer! DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 that let you connect to any television, monitor or projector for broadcast monitoring, including the latest high dynamic range (HDR) formats! Works with software such as DaVinci Resolve, Final Cut Pro and more.
Broad OS, software, and streaming compatibility
DeckLink cards work with professional editing software across all major operating systems, including Mac, Windows, and even Linux! Popular supported Mac and Windows applications include DaVinci Resolve, Avid Media Composer, Premiere Pro, Photoshop, Fusion, Nuke, Nuendo, Cubase, and Pro Tools (Mac only). DeckLink cards are ready for streaming and work with top software such as OBS, Wirecast, Xsplit Broadcaster (Windows), Livestream Producer/Procaster, and more! Linux users will also be pleased to learn that DeckLink cards are open standard and perfect for developing video-based Linux applications.
Additional information
| Weight | 0.13 kg |
|---|---|
| Dimensions | 13.46 × 13.21 × 3.05 cm |
| Connections | SDI Video Output 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G SDI Audio Output 16 channels embedded in SD/HD HDMI Video Output 1 x HDMI 2.0 type A connector HDMI Audio Output 8 channels embedded in SD/HD Computer Interface PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| SDI Video Standards | SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI,2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108–1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space REC 601, REC 709 and REC 2020 SDI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support SDI video connection is switchable between SD and HD. |
| HDMI Video Standards | SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display. HDMI Color Space REC 601, REC 709 and REC 2020 HDMI HDR Support HDR metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI video connection is switchable between SD and HD. |
