Blackmagic Design DeckLink Mini Monitor 4K – 4-channel 3G-SDI Video Card
791.00 Excl. VAT
- SD/HD/3G/6G-SDI Output
- HDMI Output
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible
In stock
A Pro-grade Compact Playback Card

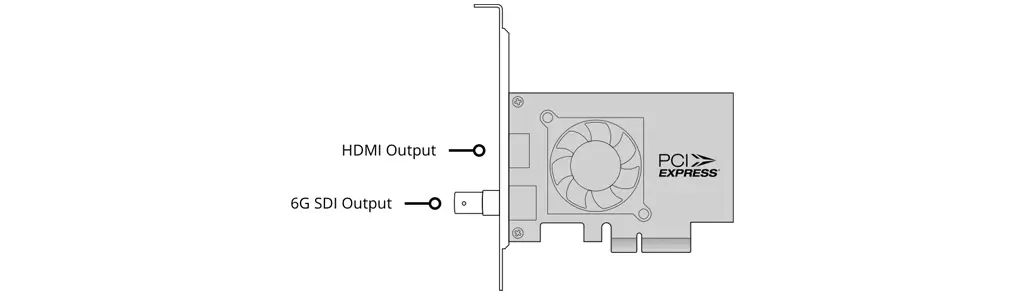

DeckLink Mini Monitor 4K is a low profile PCI Express playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.
Broad OS, software, and streaming compatibility
DeckLink cards work with professional editing software across all major operating systems, including Mac, Windows, and even Linux! Popular supported Mac and Windows applications include DaVinci Resolve, Avid Media Composer, Premiere Pro, Photoshop, Fusion, Nuke, Nuendo, Cubase, and Pro Tools (Mac only). DeckLink cards are ready for streaming and work with top software such as OBS, Wirecast, Xsplit Broadcaster (Windows), Livestream Producer/Procaster, and more! Linux users will also be pleased to learn that DeckLink cards are open standard and perfect for developing video-based Linux applications.
| Weight | 0.17 kg |
|---|---|
| Dimensions | 13.84 × 13.59 × 2.79 cm |
| Connections | SDI Video Outputs 1 x 10 bit SD/HD/Ultra HD switchable. SDI Audio Outputs 16 channels embedded in SD, HD, Ultra HD. HDMI Video Outputs 1 x HDMI 2.0a connector. HDMI Audio Outputs 8 Channels embedded in SD, HD, Ultra HD. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2. |
| Video Standards | SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K DCI Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p. 2K Video Standards (SDI Only) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes. SDI Video Sampling 4:4:4 & 4:2:2 Color Space REC 601, REC 709, REC 2020. SDI HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. HDMI Video Sampling 4:4:4, 4:2:2 & 4:2:0 HDMI Configuration HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display. HDMI Resolution Pixel for pixel HD resolution output to connected device. HDMI Color Precision Up to 12-bit (Deep Color) HDMI HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and 4K. |
| Processing | HD to SD Down Conversion Software based down conversion during video playback. HD Cross Conversion Software based cross conversion from 720p to 1080HD on playback. Colorspace Conversion Hardware based real time. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
