Blackmagic Design DeckLink Duo 2 – 4-channel 3G-SDI Video Card
1,969.00 Excl. VAT
- SD/HD/3G-SDI Input/Output
- PCI-E Interface
- 1080p 4:4:4 by Single-Link 3G-SDI
- 10/12-Bit Processing
- Down/Up/Cross Conversions
- Mac OS X, Windows, and Linux Compatible
In stock
Description
A Pro-grade Playback Card

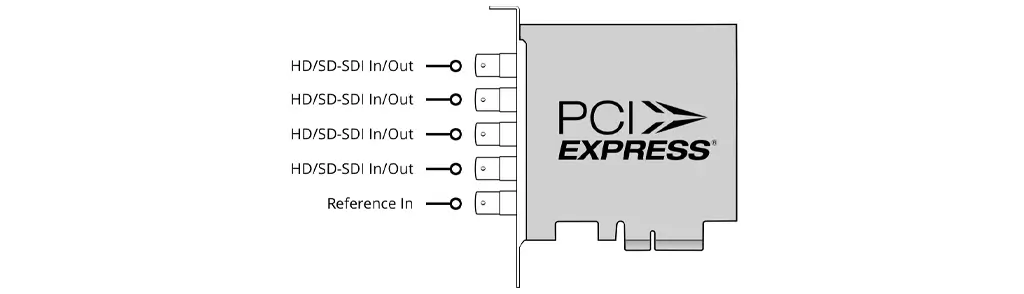

Featuring 4 independent 3G-SDI connections, DeckLink Duo 2 is a PCI Express capture and playback card that supports SDI formats in SD and HD up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!
Broad OS, software, and streaming compatibility
DeckLink cards work with professional editing software across all major operating systems, including Mac, Windows, and even Linux! Popular supported Mac and Windows applications include DaVinci Resolve, Avid Media Composer, Premiere Pro, Photoshop, Fusion, Nuke, Nuendo, Cubase, and Pro Tools (Mac only). DeckLink cards are ready for streaming and work with top software such as OBS, Wirecast, Xsplit Broadcaster (Windows), Livestream Producer/Procaster, and more! Linux users will also be pleased to learn that DeckLink cards are open standard and perfect for developing video-based Linux applications.
Additional information
| Weight | 0.24 kg |
|---|---|
| Dimensions | 14.35 × 14.1 × 3.05 cm |
| Connections | SDI Video Inputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. SDI Video Outputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. SDI Audio Inputs 16 channels embedded in SD and HD. SDI Audio Outputs 16 channels embedded in SD and HD. Sync Input Tri-Sync or Black Burst. Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4 |
| Video Standards | SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. SDI Video Sampling 4:2:2, 4:4:4 Color Space REC 601, REC 709, REC 2020 HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. |
| Processing | Colorspace Conversion Hardware based real time. HD Down Conversion Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. Cross Conversion Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
