Name: Blackmagic Design 48TB Cloud Store Max
Brand: Blackmagic Design
SKU: DWCLDF/CLDMAX48
Availability: OutOfStock

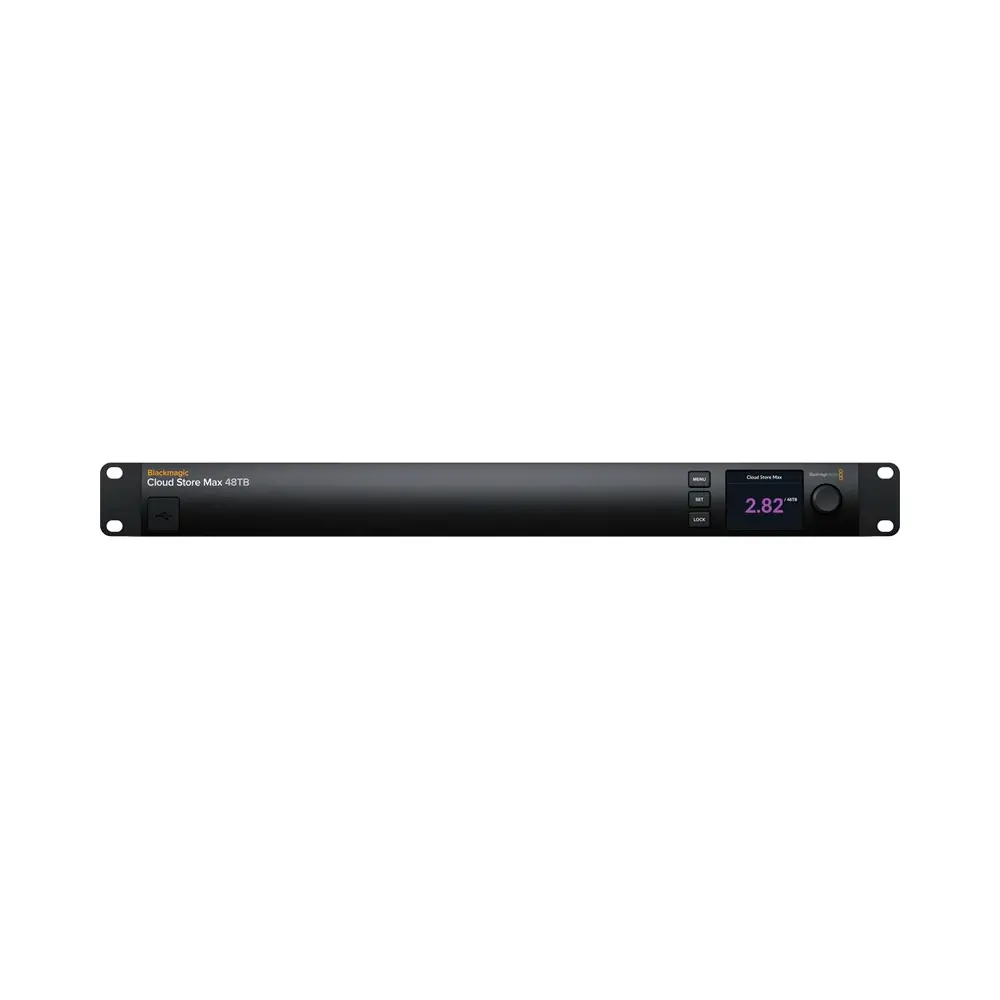

Blackmagic Design 48TB Cloud Store Max

53,599.00 Excl. VAT

48TB NVMe M.2 Storage
Rackmount Design with Silent Cooling
12 Internal Flash Memory Cards
10GbE and 100GbE RJ45 Network Ports
HDMI and SDI Monitoring Output
USB-C-to-Ethernet Port
Sync to Blackmagic Cloud/Dropbox/Drive

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Blackmagic Cloud Store Max 48TB is an extremely high performance flash storage solution in a compact 1RU design. Cloud Store Max features 48TB capacity 12 card RAID 0 flash memory core, 4 x 10G Ethernet, 100G Ethernet, QSFP connection for high speed copper cables or longer optical fiber cables, USB-C and Blackmagic Cloud sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time!

Portable and Quiet Design

A rackmount design ensures the Max unit remains portable and quiet. The Max model is a full rack width with 12 flash memory cards, and 100GbE and 10GbE Ethernet connections. If you need to access files quickly, use the USB-C port as an alternate network connection via your personal computer. HDMI and SDI monitoring outputs provide a live graphic view of the storage status.

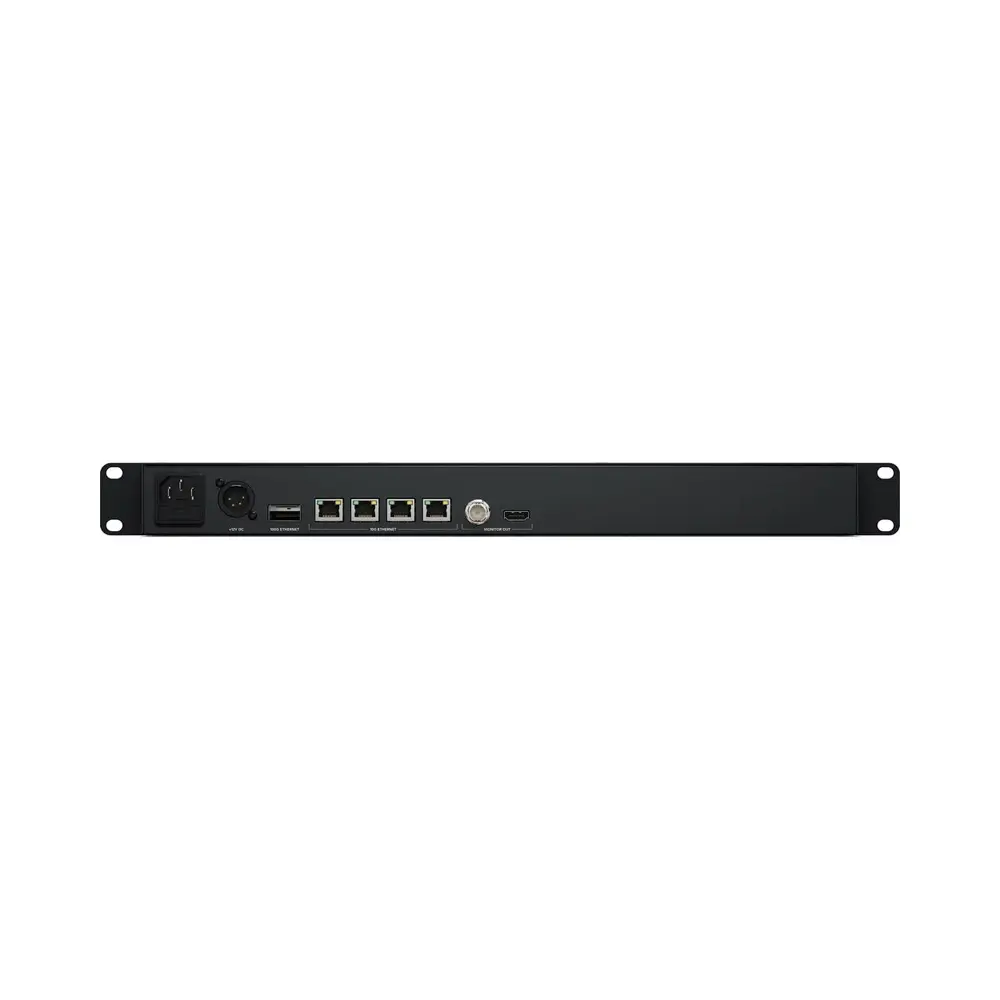

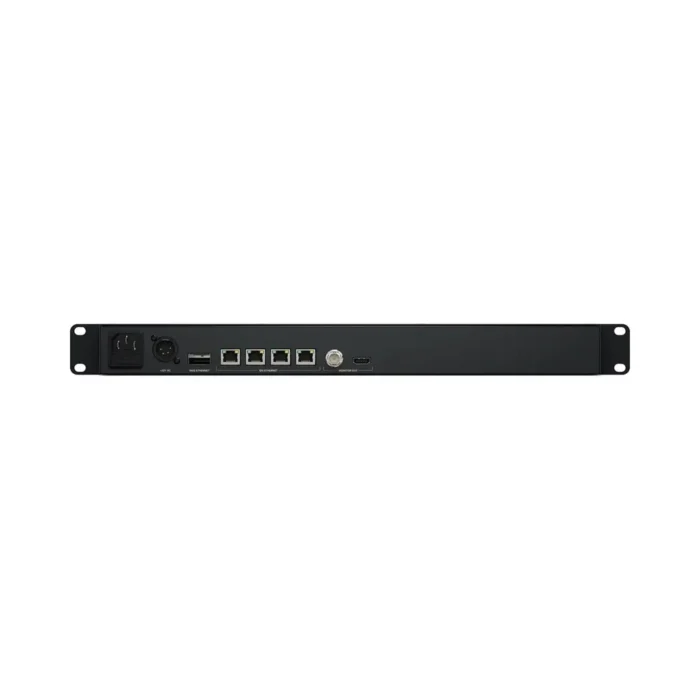

Connectivity

An IEC power socket is included for connecting AC power. An additional 4-pin XLR 12V DC power input is provided for redundancy.
The USB-C port supports Ethernet for direct connection to a computer for quick file access.
The 100GbE Ethernet port connects the unit to high-speed Ethernet switches. Its flexible QSFP socket allows you to use copper cables or longer optical fiber cables.
Four 10GbE RJ45 Ethernet ports connect high-speed computers to the Max unit. You can then create four separate edit workstations.
Use the SDI and HDMI output connectors to connect the Max to compatible displays and monitor the status of your Cloud Store in real time or integrate it into broadcast trucks. The HDMI port allows you to see a storage map, speed graphs, sync, active users, and power status.

Flash Memory for Multiple Users

Large parallel flash memory cores with lots of storage space allow you to have multiple users working off of your Cloud Store Max unit. The Max unit features 12 M.2 cards arranged in a RAID 0 group for high-capacity performance. This can accommodate dozens of individual users and has enough speed for HyperDeck recorders and editing workstations simultaneously.

Sync to Blackmagic Cloud

Install a local cache of media to upload to the Blackmagic Cloud, Dropbox, or Google Drive to distribute files globally. Blackmagic Cloud Store will stay in sync to save space on editing workstations and provide access within your production network.

Weight

3.49 kg

Dimensions

53.34 × 27.69 × 8.89 cm

Storage Capacity:

48 TB

Included Drives:

2x 24 TB SSD

Number of Bays:

4x M.2 (Length Unspecified)

Inputs/Outputs:

4x RJ45 10GbE 1x QSFP 1x USB-C 3.0 / 3.1/3.2 Gen 1 1x BNC Output 1x HDMI Output

Media Card Slots:

PCI Expansion:

OS Compatibility:

macOS 14.3 or Later Windows 10 to 11

Input Power:

100 to 240 VAC, 50 / 60 Hz

Operating Conditions:

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions:

-4 to 140°F / -20 to 60°C
