Blackmagic Cloud Dock 4
5,553.00 Excl. VAT
- Fits Two SSDs or HDDs
- 4 x 10G Ethernet Ports
- Supports Ethernet over USB-C
- Compatible with Dropbox & Google Drive
- ExFAT & HFS+ File Systems
Available on backorder

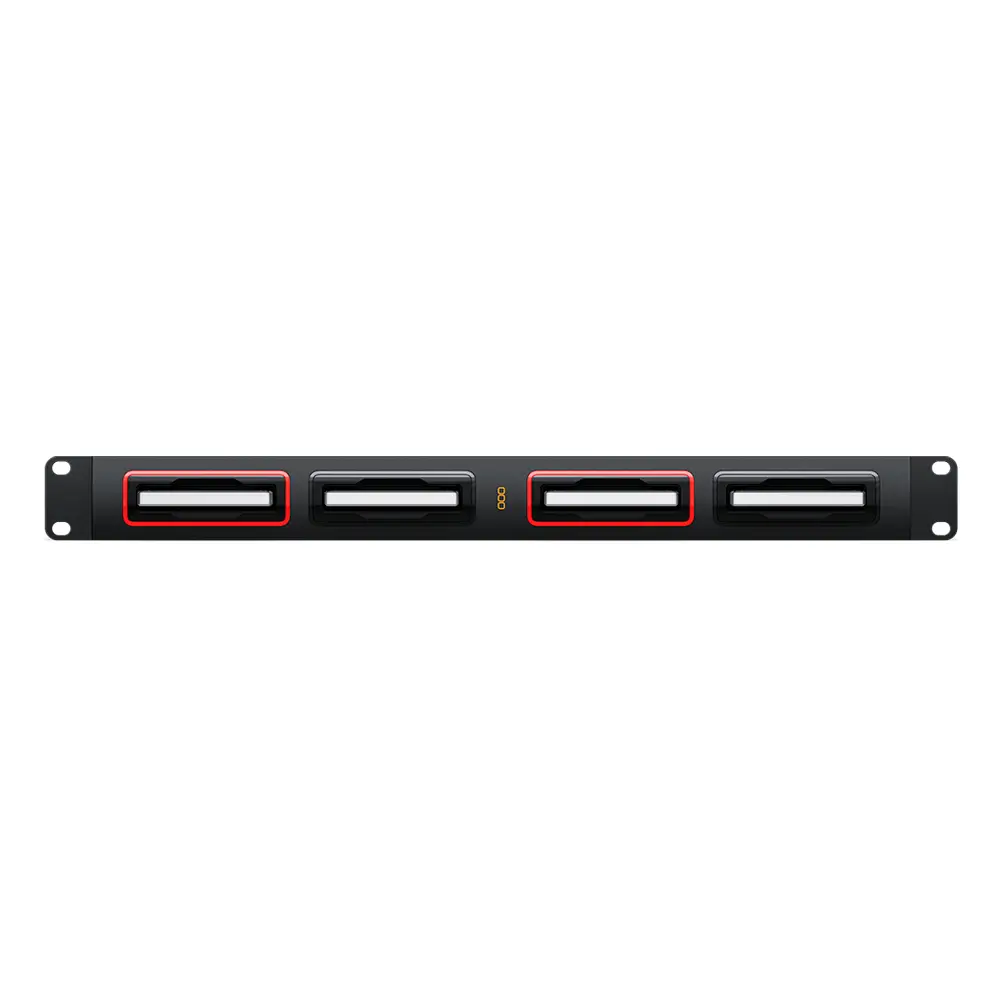

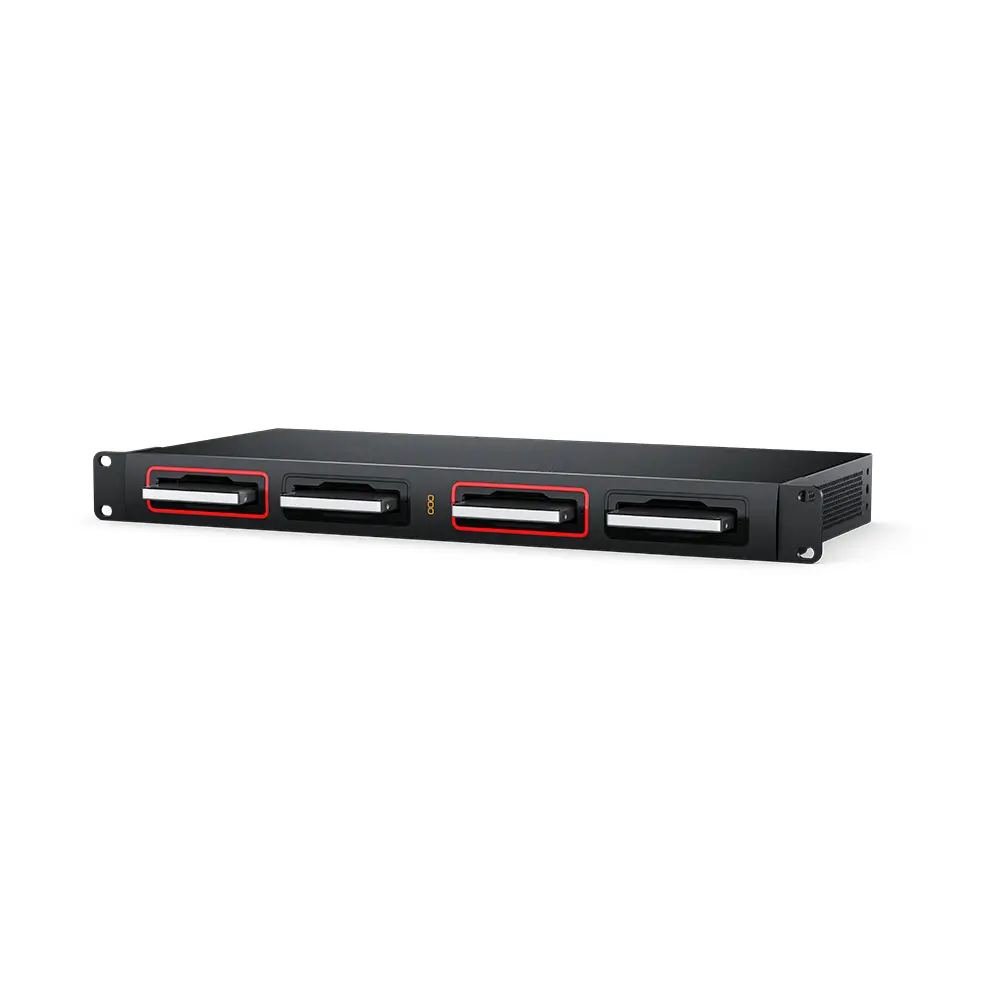

Share the content from up to four 2.5″ drives over a high speed 10G Ethernet network with this Cloud Dock 4 from Blackmagic Design. Plug in any four HDD or SSD drives and share your files over a network via the four 10G Ethernet ports or the Ethernet over USB-C port.
Files formatted in ExFAT or HFS+ file systems may be synced globally and shared using Dropbox or Google Drive with an HDMI output providing the option to monitor your activity with graphic representations of the memory core of your drives, which are available separately. The 1 RU unit is compact and lightweight for portability and integrates seamlessly within any film and television environment where collaboration among numerous technical and creative entities is the norm.
| Weight | 2.65 kg |
|---|---|
| Dimensions | 53.34 × 28.45 × 8.89 cm |

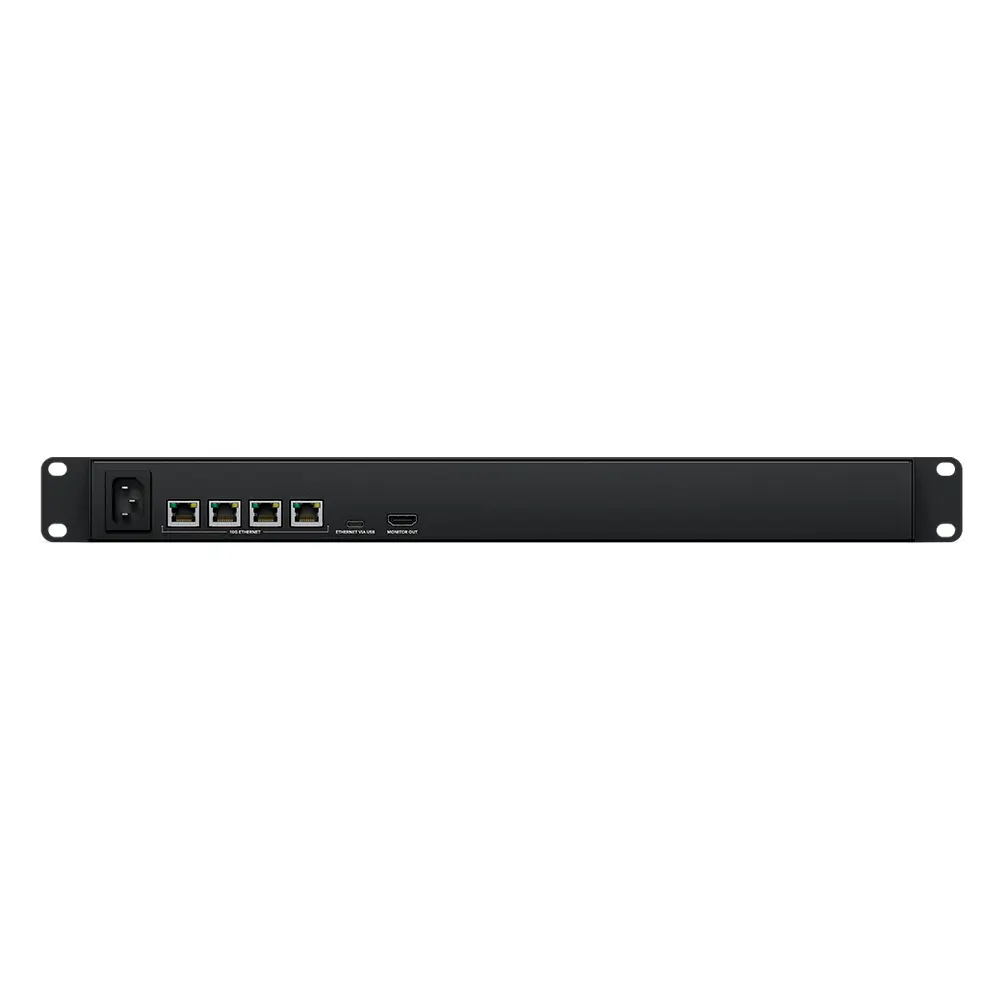

| Connections | SSD Interface 4 x removable and hot-swappable 2.5 inch U.2 SSD or SATA. SSD maximum height 11mm. 10G Ethernet Ports 4 x 10G BASE-T USB-C Port 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB HDMI Monitor Outputs 1 Computer Interface USB-C or Ethernet for shared file access, configuration and software updates. |
| File Sharing Protocol | Protocol SMB Computer Connections 50 max. |
| Storage | Storage Type Bring your own drive. External Storage Format ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Displays | HDMI Monitor Out Standards 1080p50, 1080p59.94, 1080p60 Monitor Out Displays Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. Status Indicator LED bezel indicator lights around SSD media slots. |
| Power Requirements | Power Supply Internal 100 – 240V AC 50/60Hz with IEC C14 mains input. Power Usage 60W without SSDs. |
| What's Included | Blackmagic Cloud Dock 4 Welcome wallet with QR code for software download |
