Blackmagic Cloud Dock 2

2,226.00 Excl. VAT

  • Fits Two SSDs or HDDs
  • 2 x 10G Ethernet Ports
  • Supports Ethernet over USB-C
  • Compatible with Dropbox & Google Drive
  • ExFAT & HFS+ File Systems

Available on backorder

SKU: DWCLDB/DOCK02 Categories: ,
Description

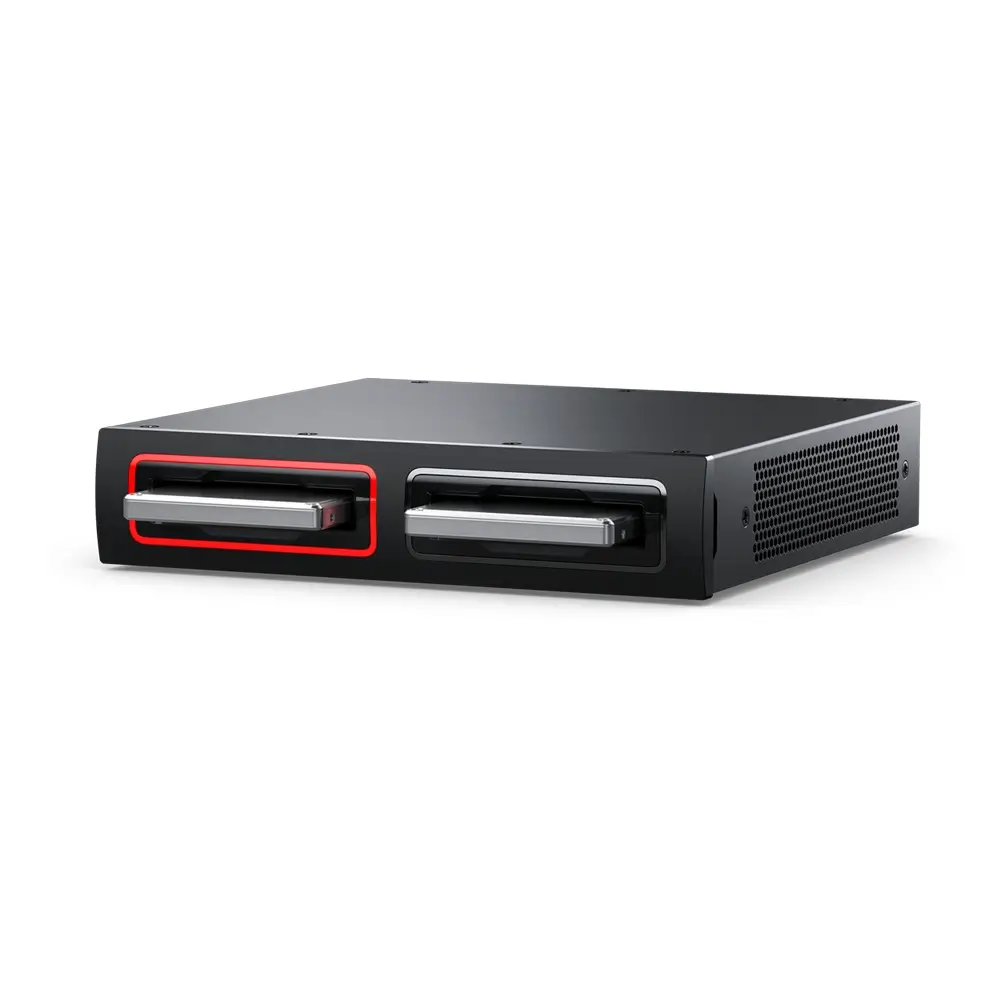

Share the content from up to two 2.5″ drives over a high speed 10G Ethernet network with this Cloud Dock 2 from Blackmagic Design. Plug in any two HDD or SSD drives and share your files over a network via the two 10G Ethernet ports or the Ethernet over USB-C port.

Files formatted in ExFAT or HFS+ file systems may be synced globally and shared using Dropbox or Google Drive with an HDMI output providing the option to monitor your activity with graphic representations of the memory core of your drives, which are available separately. The 1 RU unit is compact and lightweight for portability and integrates seamlessly within any film and television environment where collaboration among numerous technical and creative entities is the norm.

Additional information
Weight 1.29 kg
Dimensions 21.05 × 20.5 × 4.6 cm

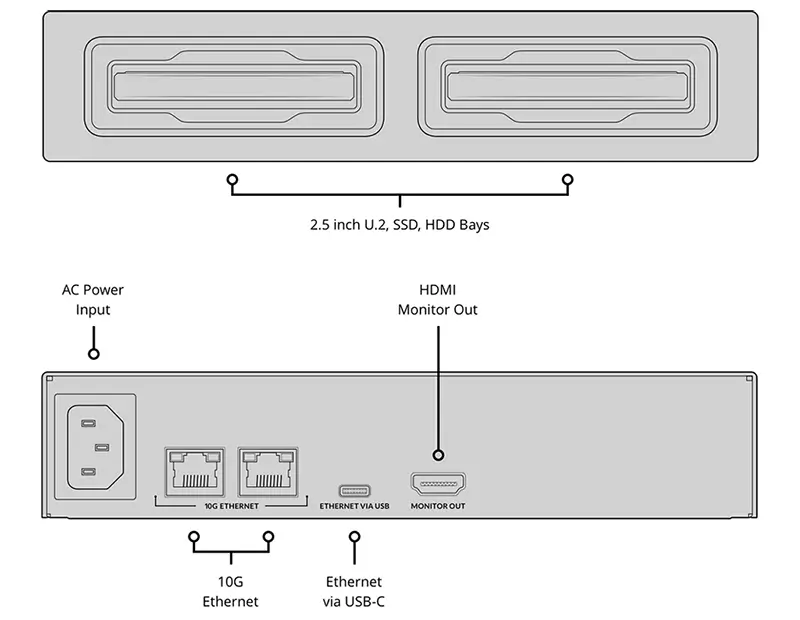

Connections

SSD Interface

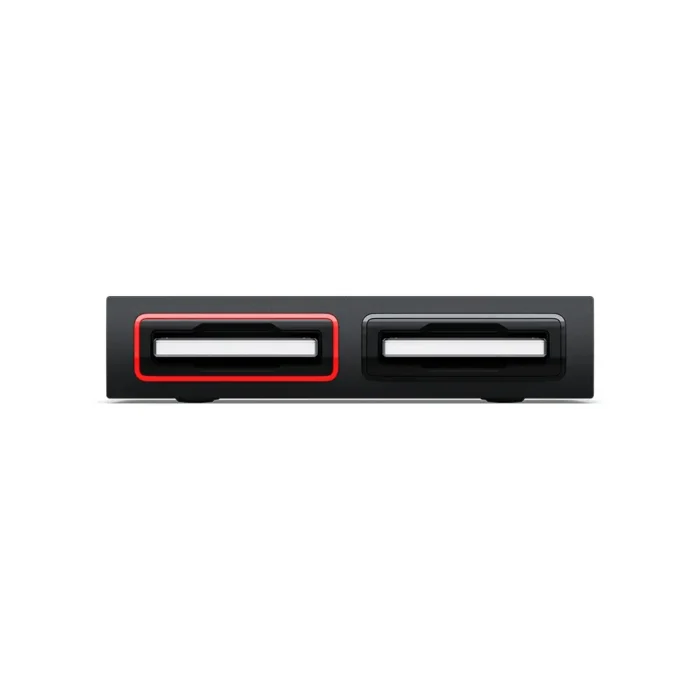

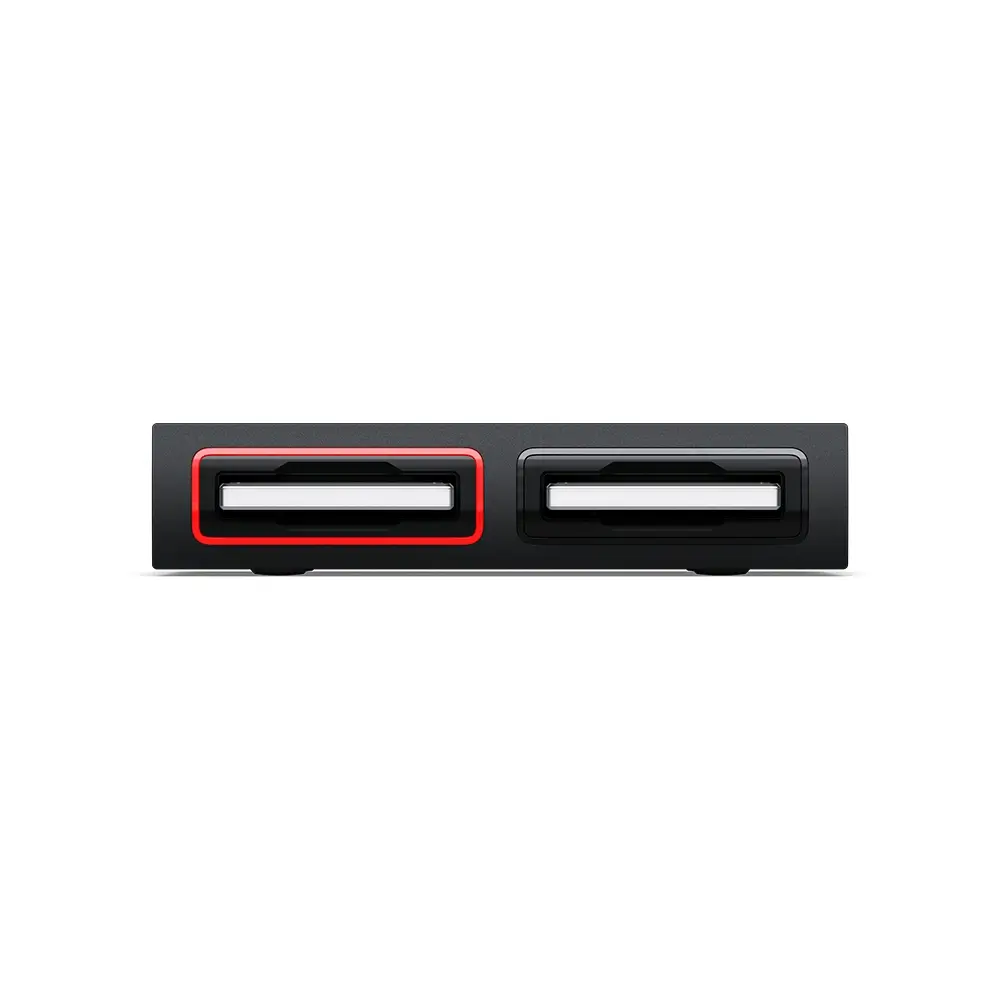

2 x removable and hot-swappable 2.5 inch U.2 SSD or SATA. SSD maximum height 11mm.

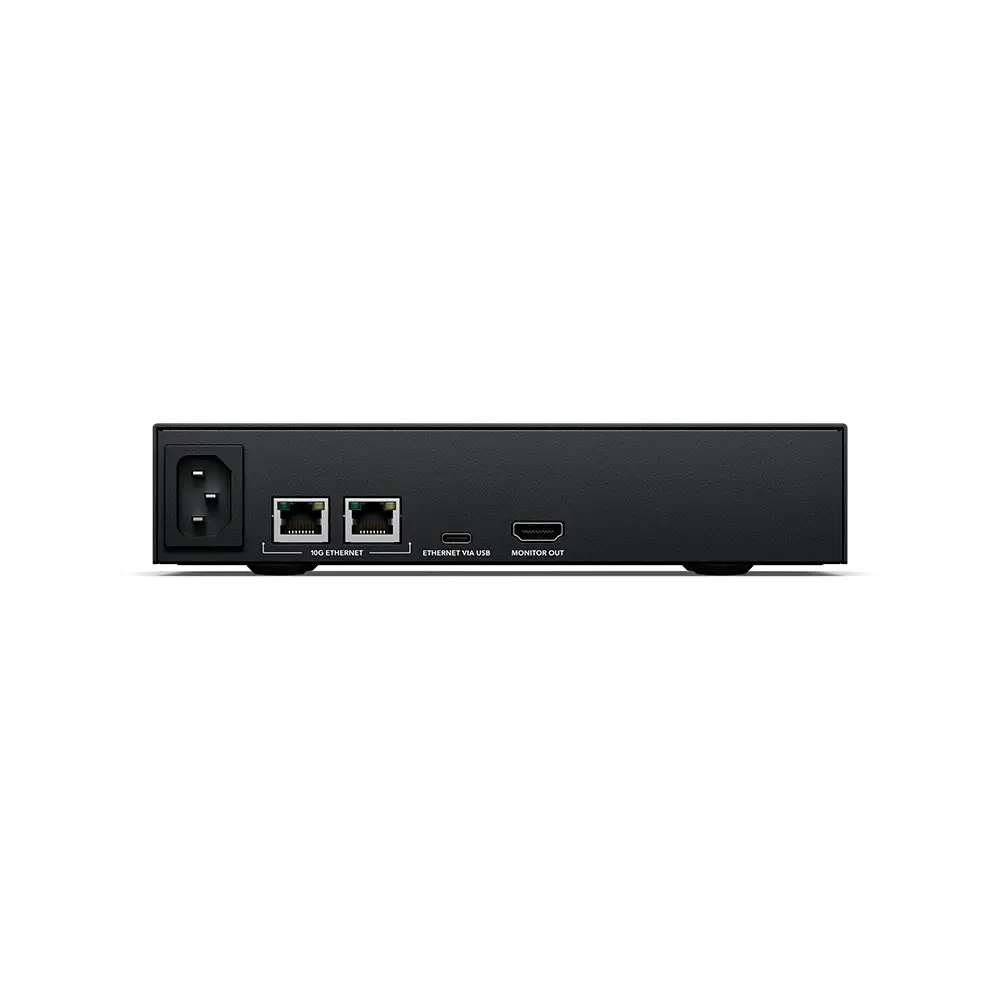

10G Ethernet Ports
2 x 10G BASE-T

USB-C Port
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB

HDMI Monitor Outputs
1

Computer Interface
USB-C or Ethernet for shared file access, configuration and software updates.

File Sharing Protocol

Protocol
SMB

Computer Connections
50 max.

Storage

Storage Type
Bring your own drive.

External Storage Format
ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Displays

HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60

Monitor Out Displays
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

Status Indicator
LED bezel indicator lights around SSD media slots.

Device Control

External Control
USB-C or Ethernet for configuration and software updates.

Power Requirements

Power Supply
Internal 100 – 240V AC 50/60Hz with IEC C14 mains input.

Power Usage
25W without SSDs.

What's Included

Blackmagic Cloud Dock 2
Welcome wallet with QR code for software download
