Blackmagic ATEM 2 M/E Advanced Panel 30
32,402.00 Excl. VAT
- Panel for ATEM Constellation Switcher
- 2 x M/E Rows, 30 x Input Buttons Each
- 3 x System Control LCDs for Each Row
- High-Quality Buttons/Knobs/Controls
- 4 x GbE Ethernet Ports with Loopouts
- Custom Labeling, Redundant Power Supply
- 12 On-Air Indicators, 30 Cross-Points
- 3-Axis Joystick, Keypad, 2 x Fader Bars
- USB Type-C Input for Firmware Updates
Available on backorder
Estimated delivery: October 27, 2026 – November 6, 2026
Description

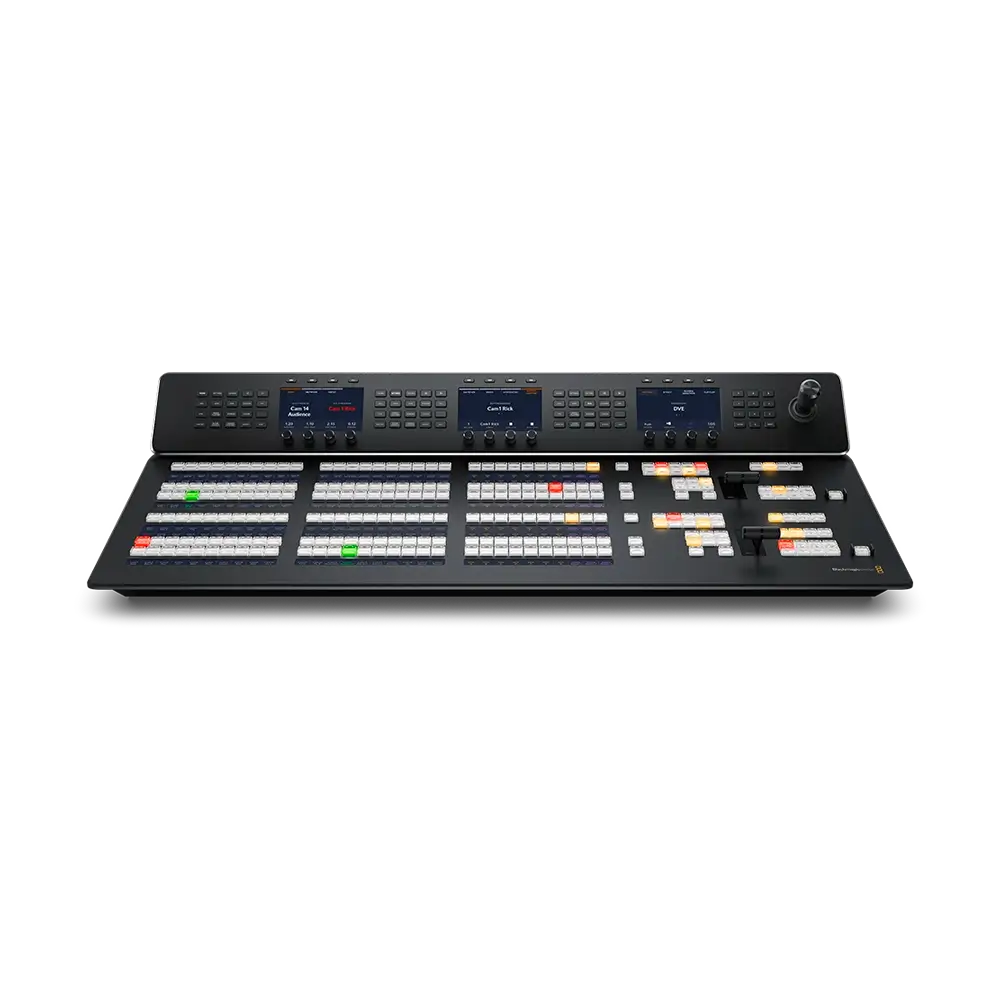

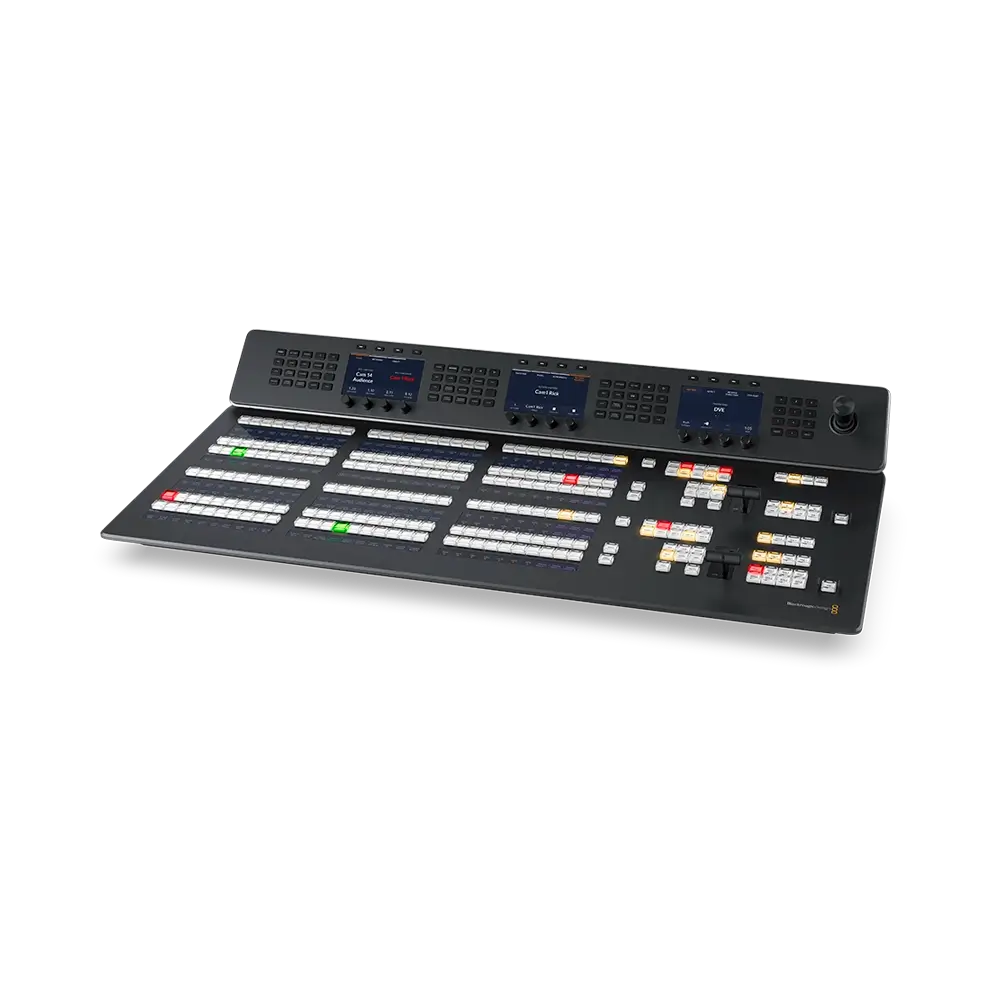

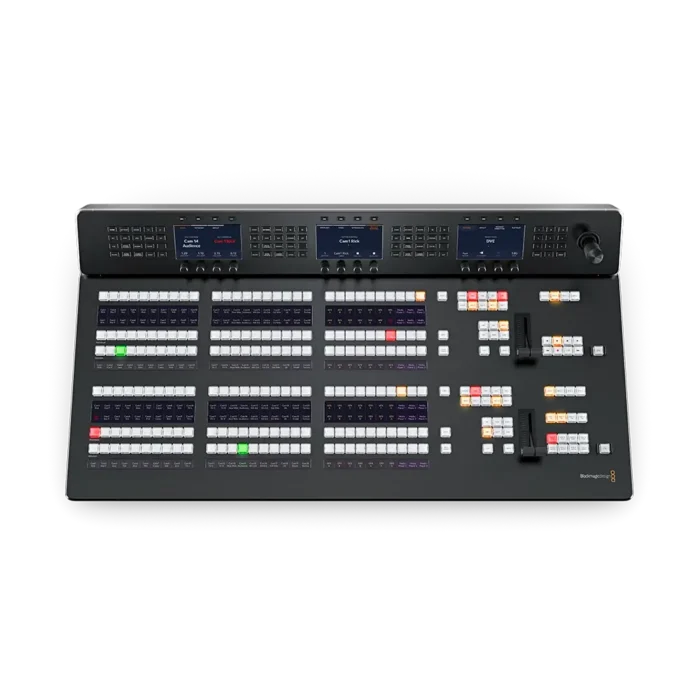

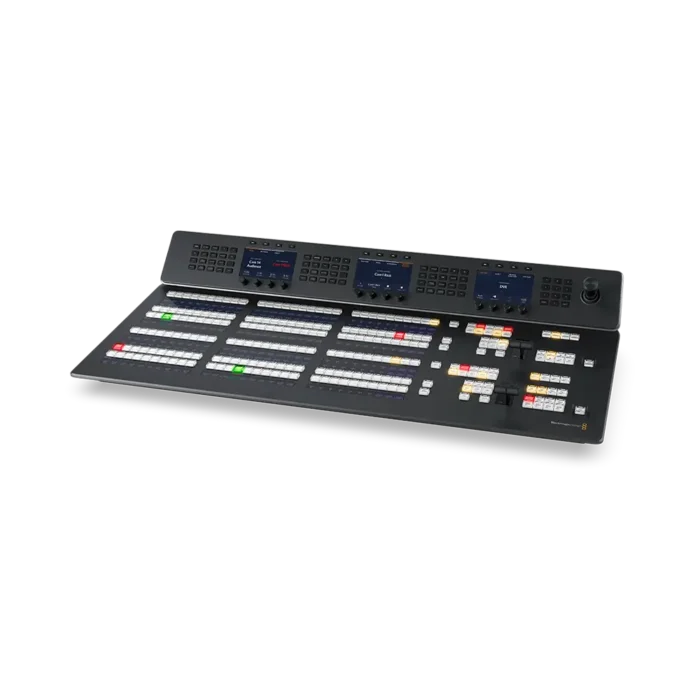

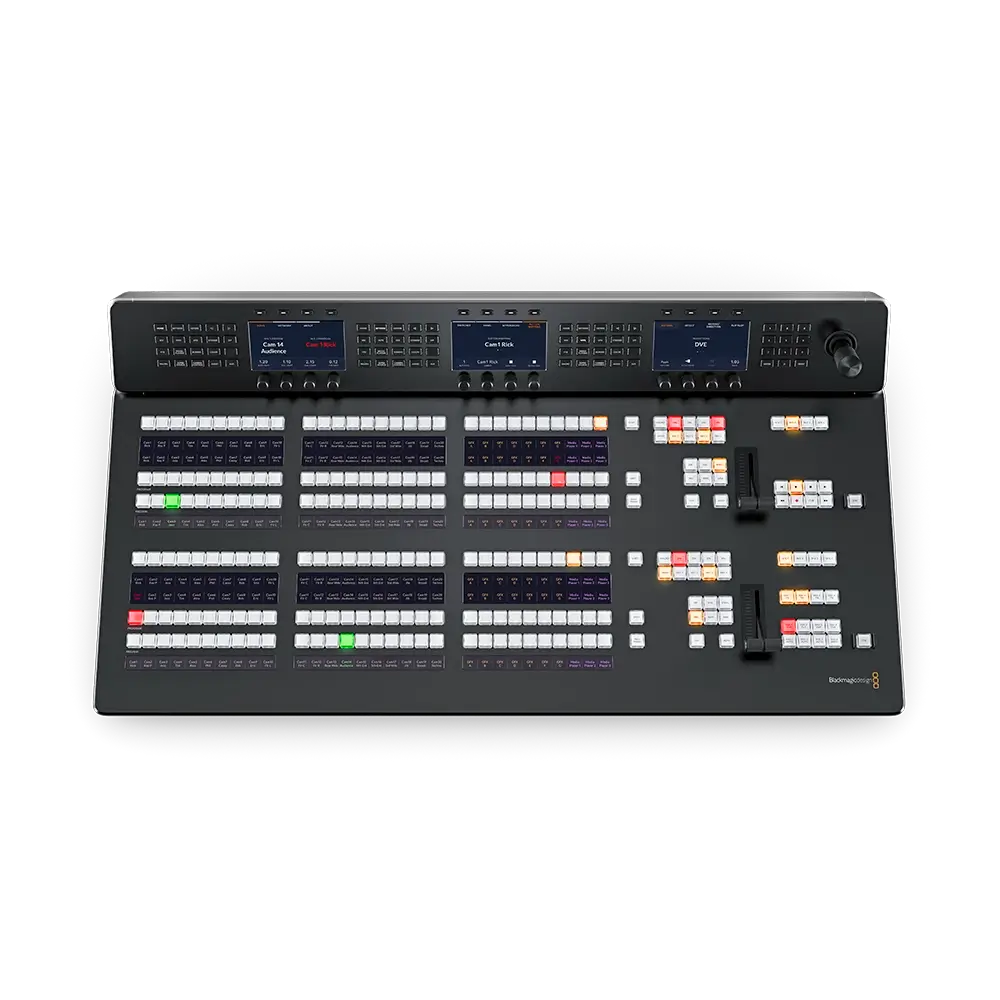

Blackmagic Design ATEM 2 M/E Advanced Panel 30 Overview
The ATEM 2 M/E Advanced Panel 30 is a sophisticated control interface for the separately available ATEM Constellation Switcher from Blackmagic Design. Use the numerous buttons, knobs, two fader bars, and a 3-axis joystick to customize your panel’s program/preview operation.
Applications
Designed for complex live productions, the ATEM 2 M/E Advanced Panel 30 enables you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and 12 on-air indicators. The ATEM 2 M/E Advanced Panel 30 connects to your switcher via 10/100/1000 BaseT Ethernet and incorporates four Ethernet loop outputs for connecting to another panel or to a media-management computer.
Compatibility
Provides pro switching controls for the ATEM Constellation HD line of switchers
Interface
- Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers
- USB Type-C for firmware updates
Cross-Points
Tri-color LED cross-point buttons; 30 direct cross-points, and 60 shifted cross-points
Mix Effect Rows
Two M/E rows, 30 input buttons per row
LCD Menu Displays
Three system control LCDs for each row with custom labeling for all rows and input buttons
Controls
One 3-axis joystick, one numeric keypad, and two fader bars
On-Air Indicators
12 indicators let you easily see which feeds are on air
DSK Selectors
Four transition previews with auto, cut, and tie/preview options
Additional information
| Weight | 11.6 kg |
|---|---|
| Dimensions | 107.95 × 62.23 × 26.04 cm |
| Number of Mix Effects Rows: | 2 |
| Direct Cross Points: | 30 |
| Shifted Cross Points: | 60 |
| Crosspoint Button Type: | Tri-Color LED |
| Crosspoint Label: | 6 rows 24 character LCD |
| On-Air indicator: | 12 |
| Power Status Indicators: | None |
| DSK Transition Selectors: | 4 x Auto, Cut, Tie/Preview |
| Preview Transition: | 2 |
| Transition Rate Displays: | Via main menu |
| LCD Menu Displays: | 3 |
| Menu Control: | 3 x 20 buttons |
| Dedicated Macro Buttons: | 2 x 30 |
| Transport Control Buttons: | 8 |
| Destination Bus: | 2 |
| Source Select Bus: | 2 |
| Fader Bar: | 2 |
| 3 Axis Joystick: | 1 |
| Numeric Keypad: | 1 |
