ATEM Mini Pro ISO – HDMI Video Production Studio with 5-stream Recording Engine
1,969.00 Excl. VAT
- 4-Channel Live Stream HDMI Switcher
- Program and 4 x Input ISO Recording
- Generates DaVinci Resolve Project
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- 2-Channel Digital Audio Mixer per Source
- HDMI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
Available on backorder
Comprehensive 5-channel Video Mixer
Affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor. Plus with the ATEM Mini Pro ISO model you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.
Change your livestreams for the better
The Blackmagic Design’s ATEM Mini Pro ISO will change the way you livestream. With Ethernet connection, the ATEM Mini Pro ISO can livestream directly to your favorite platforms, including YouTube, Twitch, and Facebook, all in stunning quality without dropping frames. Also, if you’re out on the field and need to access the Internet quickly, the ATEM Mini Pro ISO can connect via USB to Apple or Android phones and utilize their 5G or 4G mobile data. Record easily to USB flash disks in H.264 video files and AAC audio, and upload your files wherever you need them. What’s more, all HDMI video formats get converted to the switcher video standard automatically, but you can also set the Mini Pro’s switcher to any video standard.
All about that audio
However you roll, the ATEM Mini Pro ISO can connect both desktop and lapel microphones to its dual independent 3.5mm stereo audio inputs. You’ll easily be able to control the audio levels, thanks to dedicated buttons on the Mini’s face. You’ll also benefit from a Fairlight audio mixer — live sound mixing during your streams and broadcasting has never been easier!
A brilliant broadcast-quality switcher

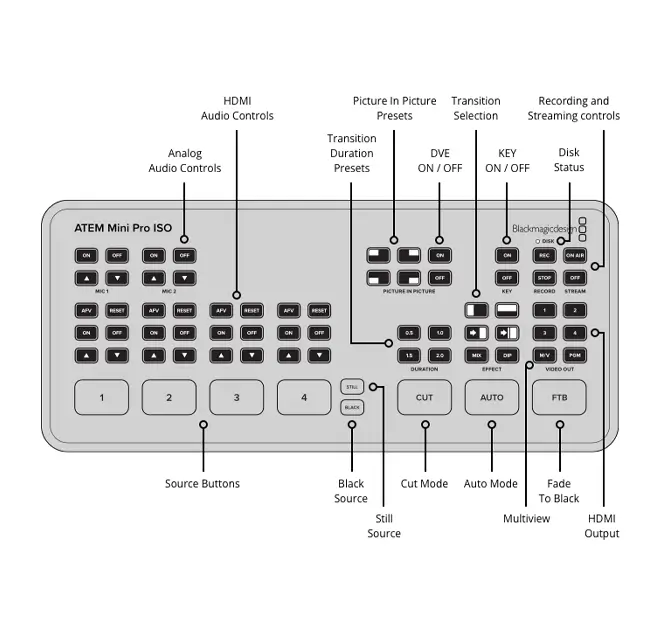

For those interested in careers in broadcasting, the ATEM Mini Pro ISO offers features found in high-end broadcast studios like ATEM Advanced Chroma Key, Fairlight audio mixer, DVE, Still Store for graphics, and more. Users can easily toggle between views, set up a multiview with four cameras, preview, program, and stay updated on the status of recording. Select the Cut or Auto buttons to choose between cut or effects transitions like dissolve, dip to color DVE squeeze, DVE push, and more. Access even more extended features, thanks to the built-in ATEM Software Control app on Mac/Windows through USB or Ethernet.
When you first receive your ATEM Mini Pro ISO, it’ll function in “cut bus” mode. Users can easily change this to “program/preview” style operation to suit their needs. The former operational mode takes little effort to master, while the latter operational mode most closely resembles that used by professional large broadcasters.
Professional production for a wide variety of applications
Business presentations, interviews, and more just got better! Hook the ATEM Mini Pro ISO up to Skype, Zoom, or Microsoft Teams and deliver your PowerPoint presentations with tools like picture in picture. Education and training videos will benefit from multi camera productions, fast setup, and the ATEM Software Panel. eSports competitions become easily tackled with a frame rate of 60 fps — instead of lagging, that means you get a super quick and responsive picture. Lastly, investors and Kickstarter presenters can easily connect cameras with different shots of products while also showing the business plan slide from a tethered laptop or computer. Whatever application you use it for, the ATEM Mini Pro ISO makes production easy.
A Mini Pro with a view
With ATEM Mini Pro ISO’s multiview, you’ll be able to monitor a professional multiview of your video inputs in use, as well as preview and program on a monitor or HDMI television screen. Tally indicators also let you know when each source is on air. Custom labels and audio meters further help you toward a broadcast or livestream that’s always better than the last!
Advanced Chroma Key
The ATEM Mini Pro ISO hooks you up with an uber-powerful green-screen keying effect with the ATEM Advanced Chroma Key. Use a color picker to sample background colors, take advantage of a foreground color corrector, and precisely control edge and flare. Even create graphics and use them in concert with the Chroma Key for title overlays.
| Weight | 1.04 kg |
|---|---|
| Dimensions | 28.45 × 16.51 × 11.68 cm |
| Media Player | Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Product Specifics | Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE with Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768 |

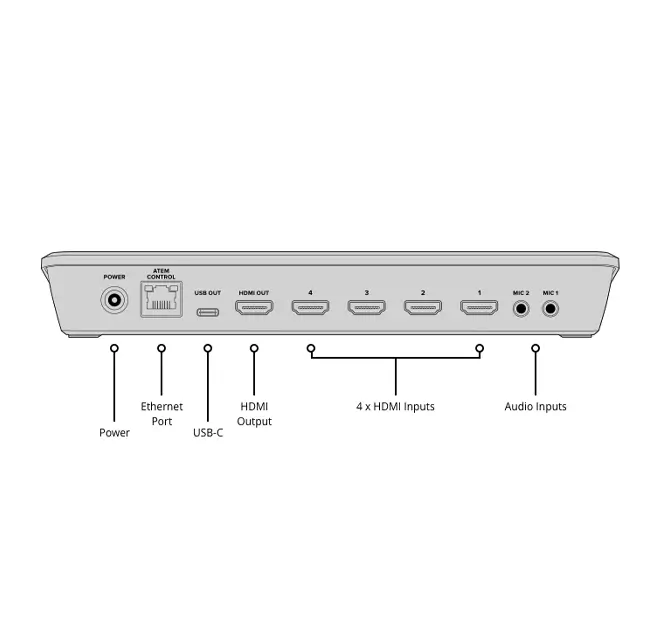

| Standards | Total Video Inputs 4 Total Outputs 2 Total Aux Outputs 1 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None HDMI Video Inputs 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 HDMI inputs. Frame Rate and Format Converters On all 4 HDMI inputs. HDMI Program Outputs 1 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| Audio | Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections. |
| Streaming | Direct Streaming ATEM Mini Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB?C. |
| Recording | Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 6 x 2 channel audio inputs recorded as seperate 24?bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system. |
| Multi View Monitoring | Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD |
| Control | Control Panel Built in control panel. Software control panel with camera control included. Supports optional hardware panel. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB?C connection. Ethernet or USB?C used for updating the software. Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Included ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only. |
| Operating Systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11. |
| Power Requirements | Power Supply 1 x External 12V power supply. Power Usage 36W |
| What's Included? | ATEM Mini Pro ISO External 12V DC power supply with international socket adapters |
