Dynamics

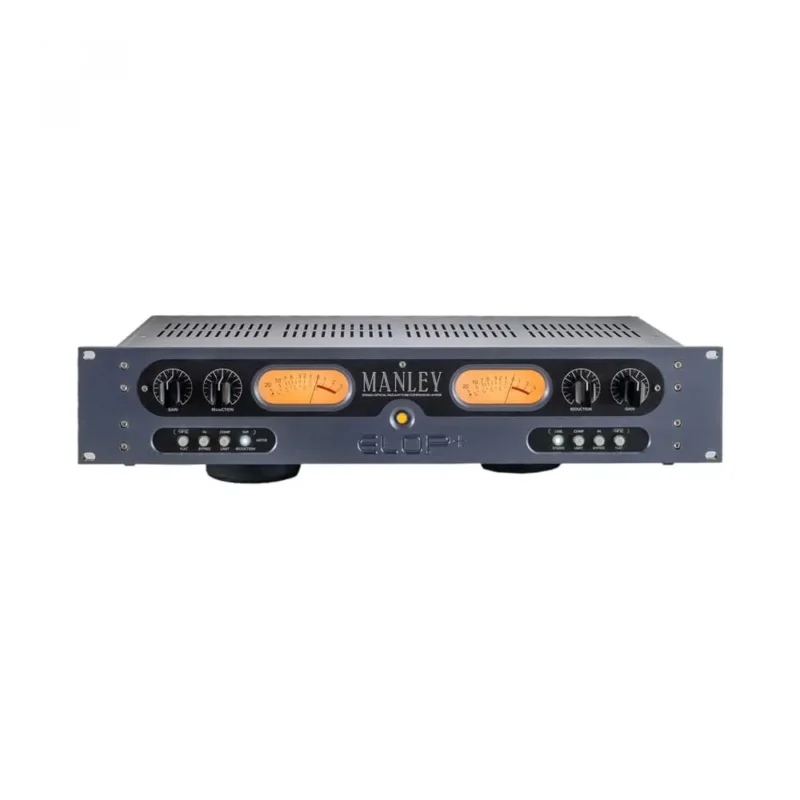

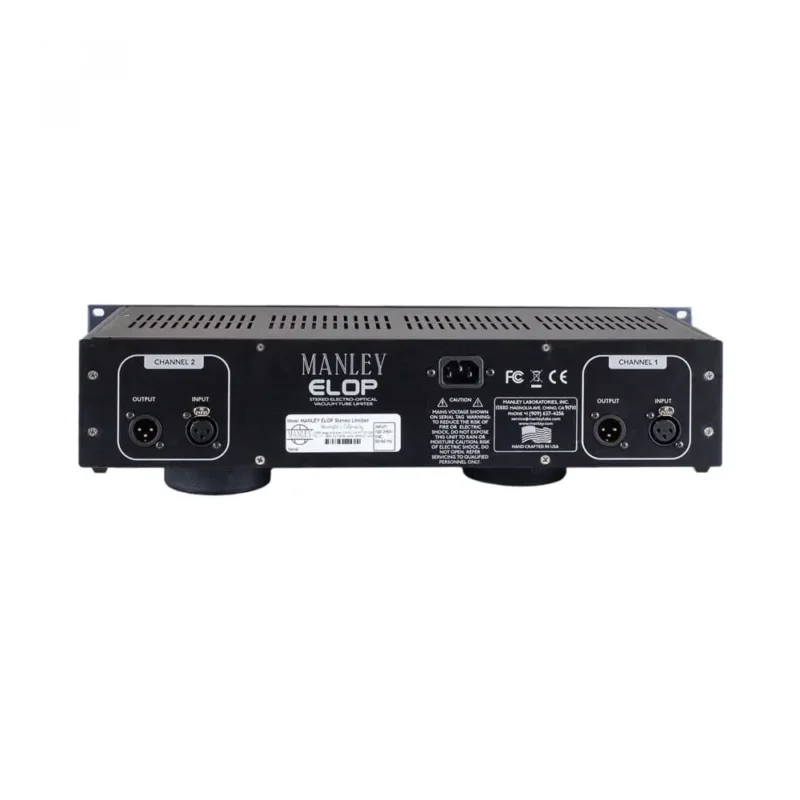

Manley ELOP+ Dual-channel Tube Compressor/Limiter
- 10:1 Limiter and 3:1 Compressor ratios
- All-tube audio path uses 5751 (gain)
- 6922 (White Follower Output) dual triodes each channel
- Balanced Manley IRON® transformer-coupled XLR Inputs
- XLR impedance-balanced outputs
- BYPASS switches and AUTOMUTE with warm-up delay
- Large illuminated VU meters read Gain Reduction or Output levels
Manley Labs Nu Mu Stereo Limiter and Compressor

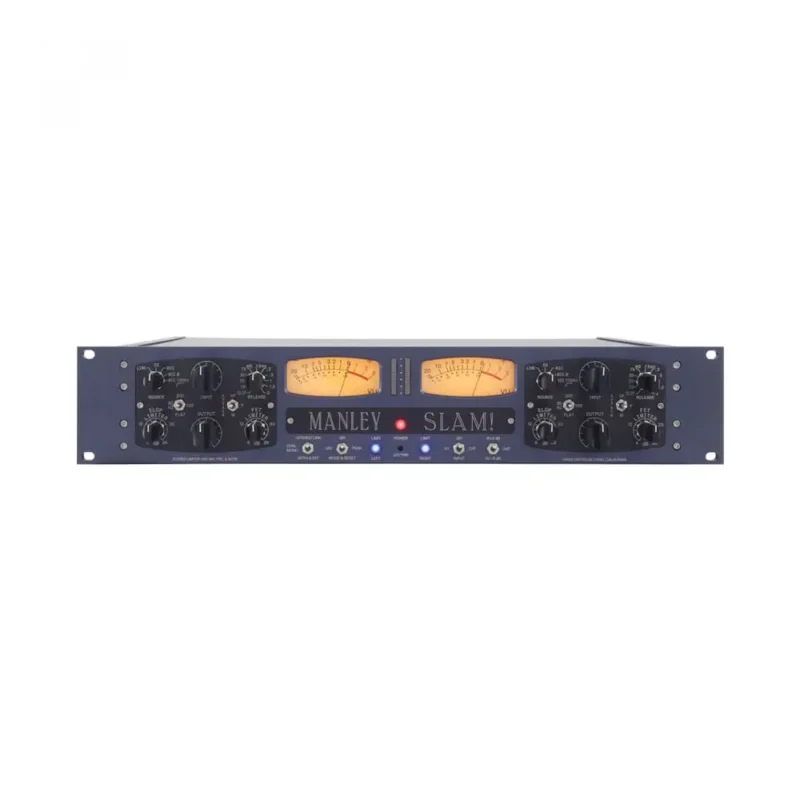

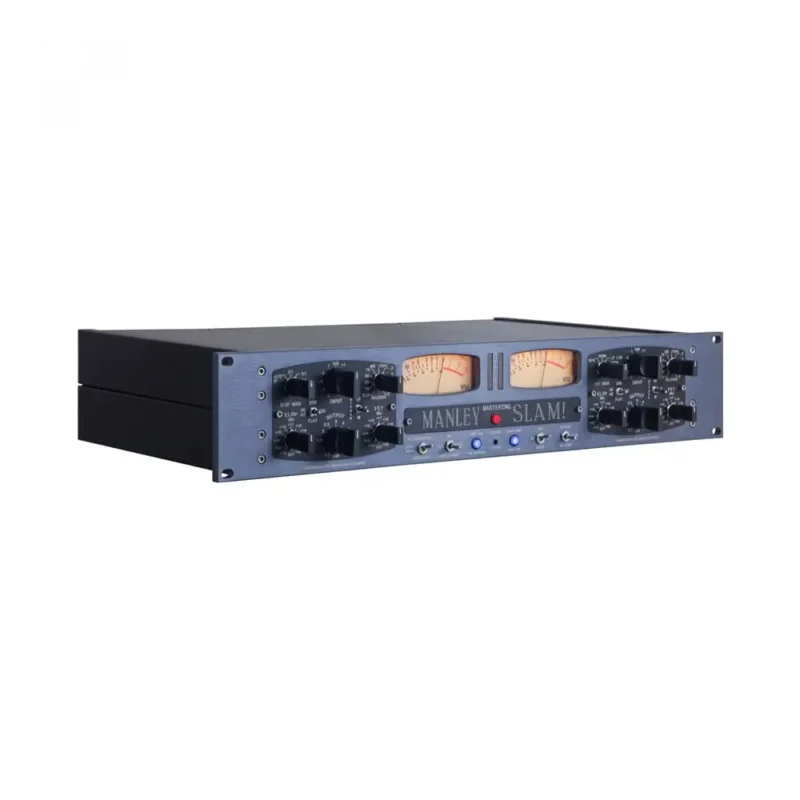

Manley SLAM 2-channel Tube Microphone Preamp & Limiter
- Input Tubes: 2 x 12AT7A NOS GE specially selected by Manley Labs for low noise and stable bias
- Output Tubes: 2 x 6414W NOS USA dual triodes
- I/O: Manley transformer-coupled, Balanced Inputs and Outputs
- Microphon epreamplifier: Selectable 48V phantom power and phase reverse
- Gain: 60dB max Microphone preamplifier, 43dB max DI, 20dB max Limiter Gain
- Input Impedance: 2000 ohms Micpre, 1Meg ohms DI
- FET Limiter: Attack: approx. 100S; Release: 10mS to 2Sec; Ratio: better than 20:1
- ELOP Limiter: Attack: approx. 10mS for 6dB GR; Release: 2.5 Sec; Ratio: 10:1
