CUSTOM MODIFICATIONS

HIGH PASS SIDE CHAIN

This modification comes stock on all Manley Variable Mu Limiter Compressors since 12/2009, on both regular and mastering versions.

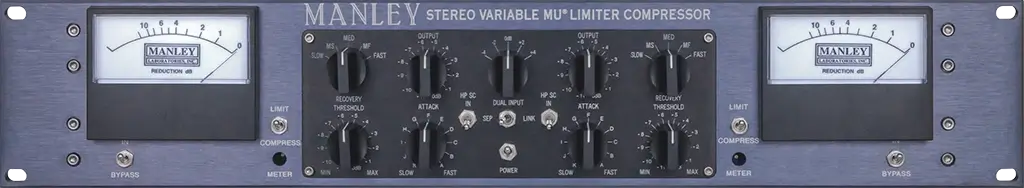

This mod adds two switches to the front panel, one for each channel, so that when engaged, the side chain will not respond to frequencies lower than 100Hz. (We standardly use 100Hz as the -3dB point. Other frequencies can be custom ordered.) This HP SC Mod can be used with music with heavy bass lines or bass-heavy mixes where you don’t want the bass driving the whole action of the compressor.

The filter is a very gentle 6db per octave 1 pole filter, and will typically be down 1-3db at 100 Hz, and down 4-6db at 50Hz. As you decrease the frequency the amount of limiting will decrease also. At the extreme LF (<20Hz) there should be very little gain reduction going on. The whole intent of the filter is to keep very LF stuff (like a heavy kick drum) from activating the compression/limiting so that the overall level doesn’t duck with every drumbeat. We can add the High Pass Side Chain option stock boards to older Manley Variable Mu limiters – please contact Manley Service team for more information.

THE T-BAR MODIFICATION

Backstory: The newer Variable Mu units use 5670 tubes instead of the 6386. By now the availability of the original USA GE 6386 is poor; we don’t have any left at all, and what we do have are not usable due to noise, microphonics, bad side-to-side match, etc.

So does the 5670 sound different? Well, up to about 6db of limiting it’s about the same. After that point, the 5670 version tends to sound more “squashed” than the original 6386 version. Some like it better, some don’t – depends on what you’re trying to do.

To solve all these problems, Paul came up with a really good solution: the T-Bar Mod. This uses a pair of 6BA6 pentodes wired as single triodes to replace each dual triode 5670 (or 6386). The 6BA6 T-Bar Mod is the preferred system to use in the Manley Variable Mu® for reasons of ability to perfectly match each phase-halve section and each stereo set, ability to select for lo-noise and lo-microphonic sets for a low cost, and because the action of the 6BA6’s so closely resemble the smooth 6386 limiting curves.

We can add the T-bar mod to your Variable Mu unit – contact our Service team for more information, and read more about Paul’s special T-bar mod here.

You won’t see any differences on the front panel aside from different meter scaling, whose left-most number is 12dB of reduction instead of 10dB.

Also of note – both the Manley NU MU’s LIMIT and COMPRESS reduction curves are very, very similar to those in a T-BAR modded Stereo Variable Mu. Check them out in this graphic.

MID/SIDE (a.k.a. Vertical/Lateral, or Sum/Difference)
