Manley Core Reference Tube Channel Strip
AED 10,695.000 Excl. VAT
- ALL-TUBE preamplifier audio path using 1 x 12AX7 for gain and 1 x 6922 White Follower
- Balanced Transformer Coupled XLR Microphone Input Impedance: 1200 Ohms
- Balanced XLR Line Input Impedance: 10 kOhms
- Unbalanced 1/4″ Direct Input Impedance: 10 Meg Ohm
- Hi-current drive Direct XLR output Impedance: 50 Ohms
- Silent conductive plastic INPUT attenuator
- Microphone preamp high pass filter starting at 120Hz with a 6dB/8va slope
Available on backorder
Manley CORE
Building upon its 25-year legacy producing revered recording studio equipment; Manley Labs has distilled its core technologies from this lineage. 2014 delivered the Manley CORE, an innovative channel strip that combines Manley’s Greatest Hits with fresh technology.

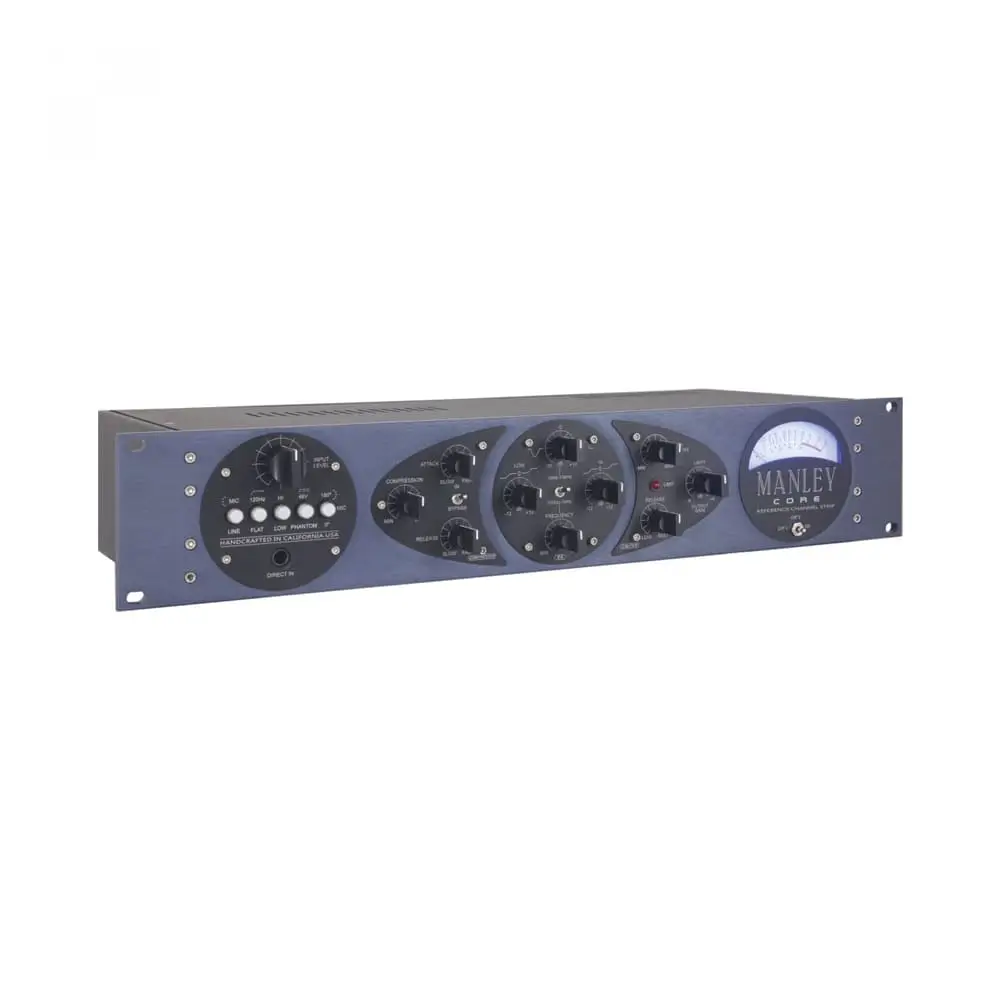

The remarkably intuitive front panel combines musical and forgiving circuitry that allows the musician to concentrate on his performance instead of being lost in a sea of knobs. Ease of use and intelligently chosen operating points make it virtually impossible to cut a bad sounding track!
Manley’s experience and insight working with the industry’s top recording engineers and musicians culminates in the CORE. At this price, there is no other channel-strip with higher headroom or more seductive sound than the CORE. Handcrafted in the USA, built like a tank, built to endure, the epicenter of your recorded art will be the Manley CORE.

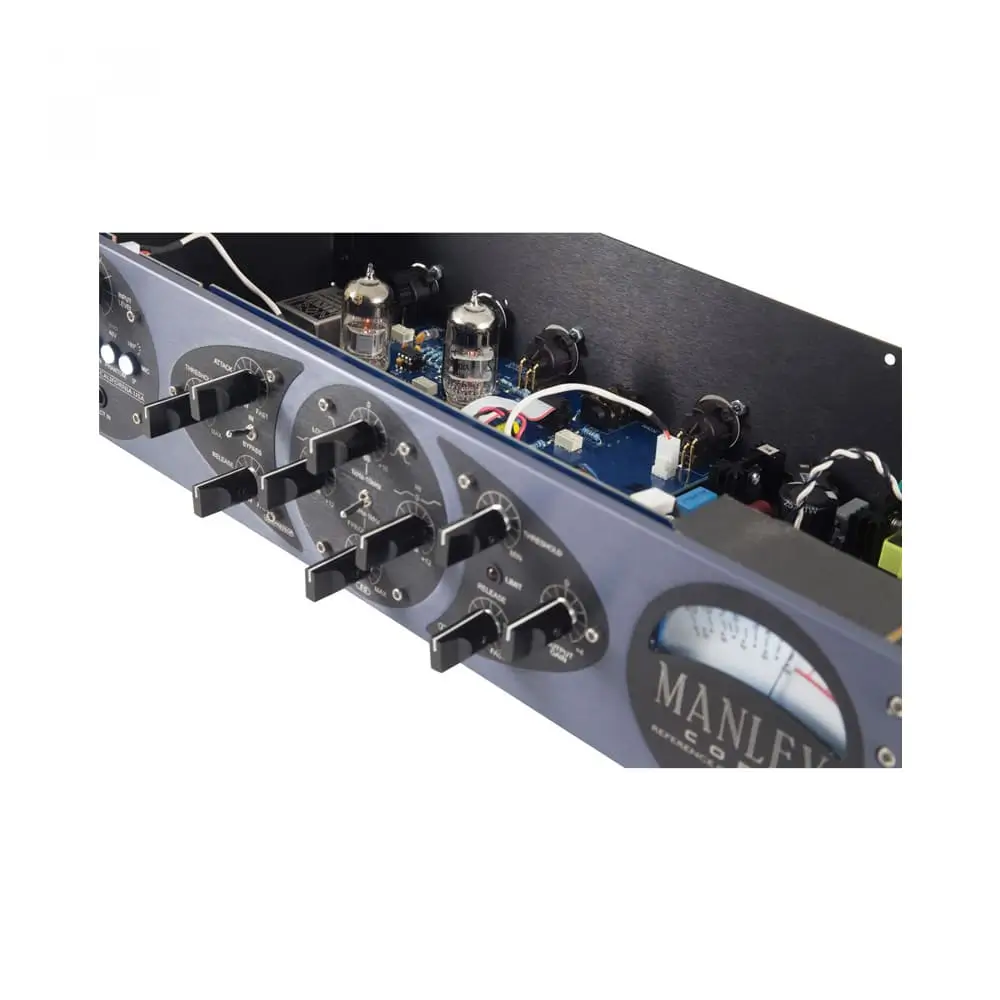

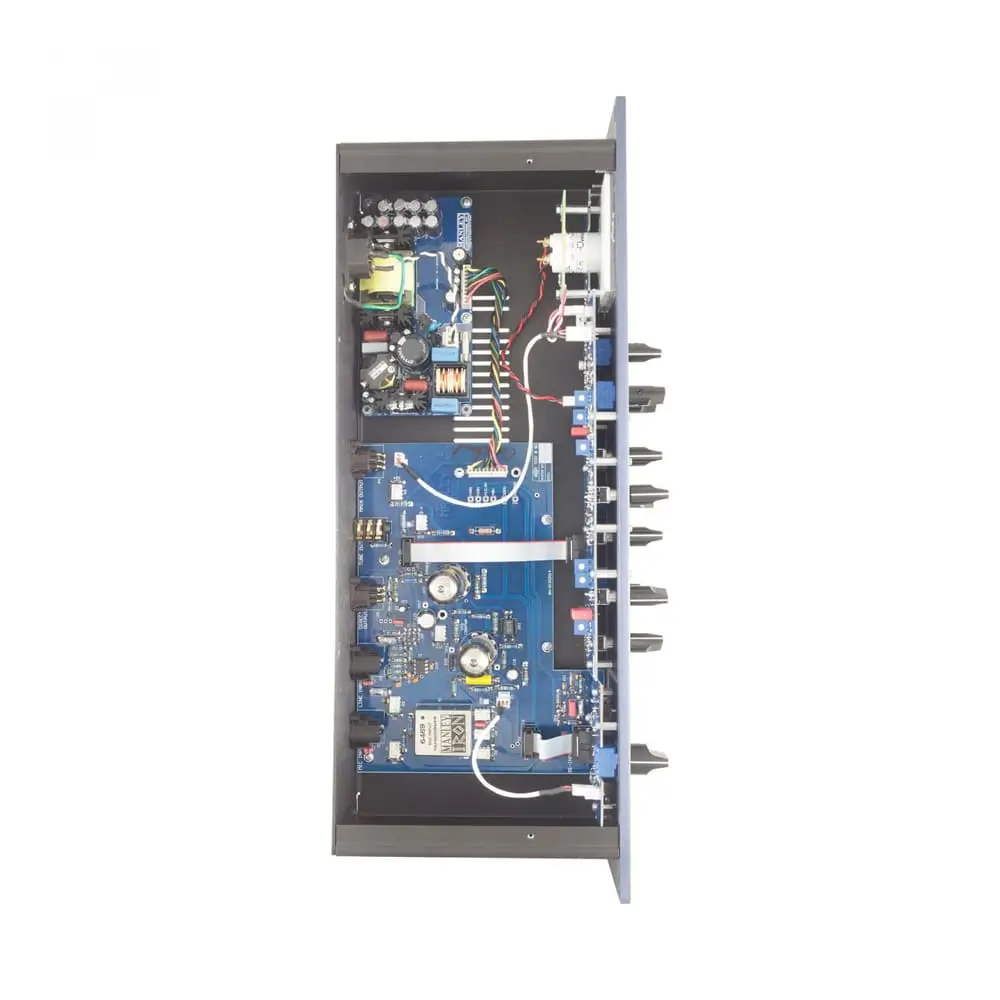

The signal enters through our renowned hand-wound MANLEY IRON® input transformer with nickel laminations in a mu-metal can. The tube amplifying stage is the latest implementation of our famous Class-A circuit topology found in the VOXBOX® and Manley Dual Mono & Mono Microphone Preamplifiers. This all-triode vacuum tube circuit runs on a regulated 300 Volt B+ supply yielding huge headroom and relentless output drive capability.
DETAILS

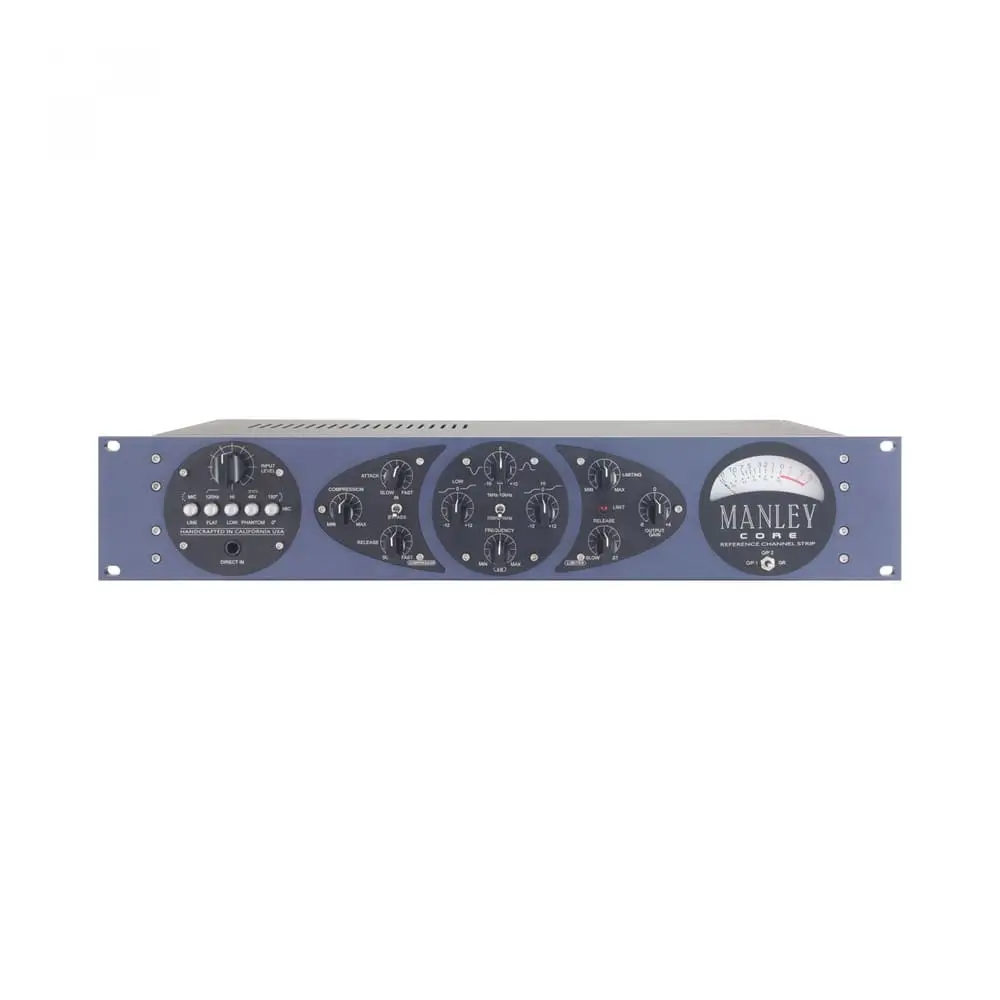

FRONT PANEL CONTROLS + DIRECT INPUT
48V Phantom power switch
120Hz High Pass Filter switch
Phase Invert switch
Input Attenuator (Variable Pad)
Mic Pre Selectable Gain 40dB or 60dB
Line Amp Selectable Gain 20dB or 40dB
DIRECT IN: Similar to the DI in the Manley SLAM!®, this all-discrete solid-state circuit with 10 Meg Ohm input impedance is perfect for guitars, bass, keyboards, etc.
COMPRESSOR
Featuring our successful ELOP® technology also found in our famous Manley VOXBOX®
Compressor is uniquely before the Mic Preamp making it virtually impossible to clip
Ratio 3:1
Continuously variable Attack, Release, and Threshold controls
Silent Bypass switch
EQUALIZER
Low and High Baxandall Shelves (80Hz and 12kHz) with ±12dB range
Sweepable Midrange Bell EQ (100Hz – 1kHz) or (1kHz – 10kHz) with ±10dB range
LIMITER
Fast attack FET “brickwall” limiter
Continuously Variable Threshold and Release controls
Peak Limit LED indicator
10dB range output gain control
METER
Large illuminated analog display
3-way meter-select switch shows Compressor Gain Reduction, Micpre Output Level, and Main Output audio levels.
| Weight | 5.31 kg |
|---|---|
| Dimensions | 59.44 × 28.19 × 22.61 cm |
| EQ: |
Yes |
| Frequency Response: |
20Hz to 20KHz |
| Inputs: |
1 x 1/4", 2 x XLR |
| Number of Channels: |
1 |
| Outputs: |
2 x XLR |
| Phantom Power |
Yes |
| Power Supply |
Universal Power Supply: 90 to 254 VAC Power Consumption: 35 W Mains Voltage Frequency: 50~60 Hz |
| Rack Spaces: |
2U |
| Dynamic Range |
>90 dB |
| Compressor: |
Yes |
Related products
Manley ELOP+ Dual-channel Tube Compressor/Limiter
- 10:1 Limiter and 3:1 Compressor ratios
- All-tube audio path uses 5751 (gain)
- 6922 (White Follower Output) dual triodes each channel
- Balanced Manley IRON® transformer-coupled XLR Inputs
- XLR impedance-balanced outputs
- BYPASS switches and AUTOMUTE with warm-up delay
- Large illuminated VU meters read Gain Reduction or Output levels

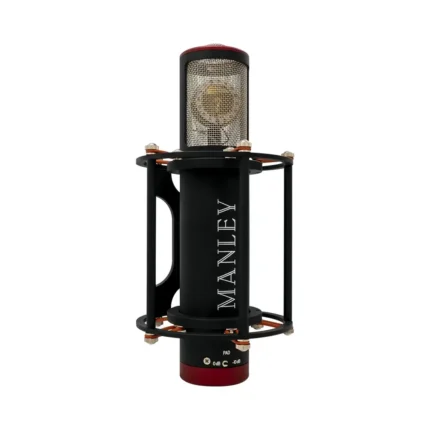

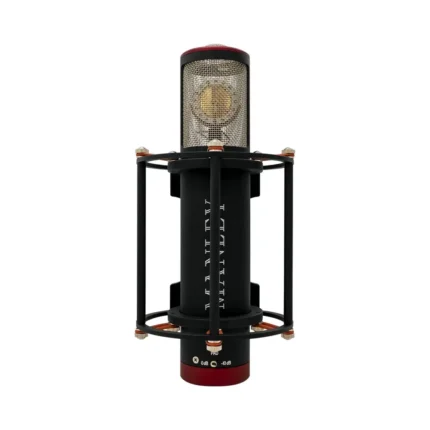

Manley Labs Reference Cardioid Tube Microphone
- All-tube Reference Cardioid Microphone
- Traditional Manley tube circuitry for that larger-than-life sound
- All-tube design with triode 12AT7
- Custom-wound output transformer with nickel laminations and humbucking bi-filar windings
- Switchable 10dB pad tames extra-hot sources
- Highest-quality components used throughout
- External PSU and 20' power supply cable with locking 6-pin connectors
Manley Labs Stereo Variable MU Limiter Compressor
-
Dual-channel Tube Limiter/Compressor with Stereo Link and True Variable Gain
- Manley input and output transformers with pure nickel laminations in mu-metal case
- Flat frequency response from 20Hz–25kHz
- Balanced Inputs and Outputs
- Fully differential all-tube circuitry using one 5751, 7044, and 12AL5 per channel
- Variable Gain vacuum tube (per channel): 5670
- Independently regulated B+ and Heater supplies
Manley Labs Stereo Variable MU Limiter Compressor Mastering Version
- Dual-channel Tube Limiter/Compressor
- T-Bar Mod, Detented Rotary Switches, and True Variable Gain
- Variable Gain vacuum tube (per channel): 2 x 6BA6 single pentodes
- Rotary switches with detented steps for precise channel matching and settings recall
- Switch steps built with 1% metal film resistors on sealed gold-contact Grayhill switches
- Manley input and output transformers with pure nickel laminations in mu-metal case
- Flat frequency response from 20Hz–25kHz

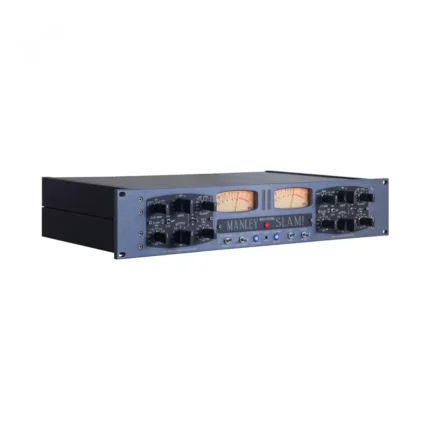

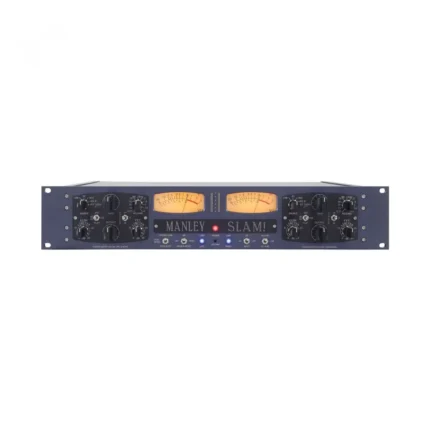

Manley SLAM 2-channel Tube Microphone Preamp & Limiter
