Lynx Studio Technology Hilo 2 Reference AD/DA Converter

Pristine, independently coupled 2 in, 6 out, AD/DA conversion
With digital expansion up to 16×16.
Future-proof LSlot design with swappable USB, Thunderbolt and DANTE cards.
Powered by mains or 9-18v DC battery packs for location recording.
Upgraded conversion technology provides even more transparent performance.

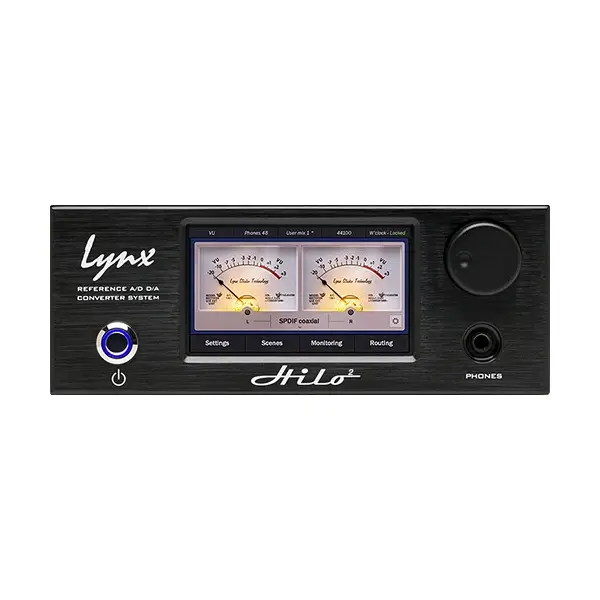

In-plane switching LCD with capacitive touch
Selectable linear and minimum phase filters on line I/O.

SKU: HILO2 Category: Lynx

Hilo 2

Name: Lynx Studio Technology Hilo 2 Reference AD/DA Converter - MCX Store
SKU: HILO2

is our most transparent interface ever.

Who it’s for

Hilo 2 (pronounced hee-loh) is for professionals who demand the purest audio quality. Engineered to be a true all-in-one device, Hilo offers class-leading AD/DA conversion, built-in metering and analysis, multiple ins and outs, hyper-flexible routing and monitoring control — all easily saved and recalled via touchscreen, whatever work you do.

Mastering with an analog chain

Mixing with multiple speakers

Location sound recording

Voice recording and overdubbing

Audiophile listening

Archiving

The software

Metering

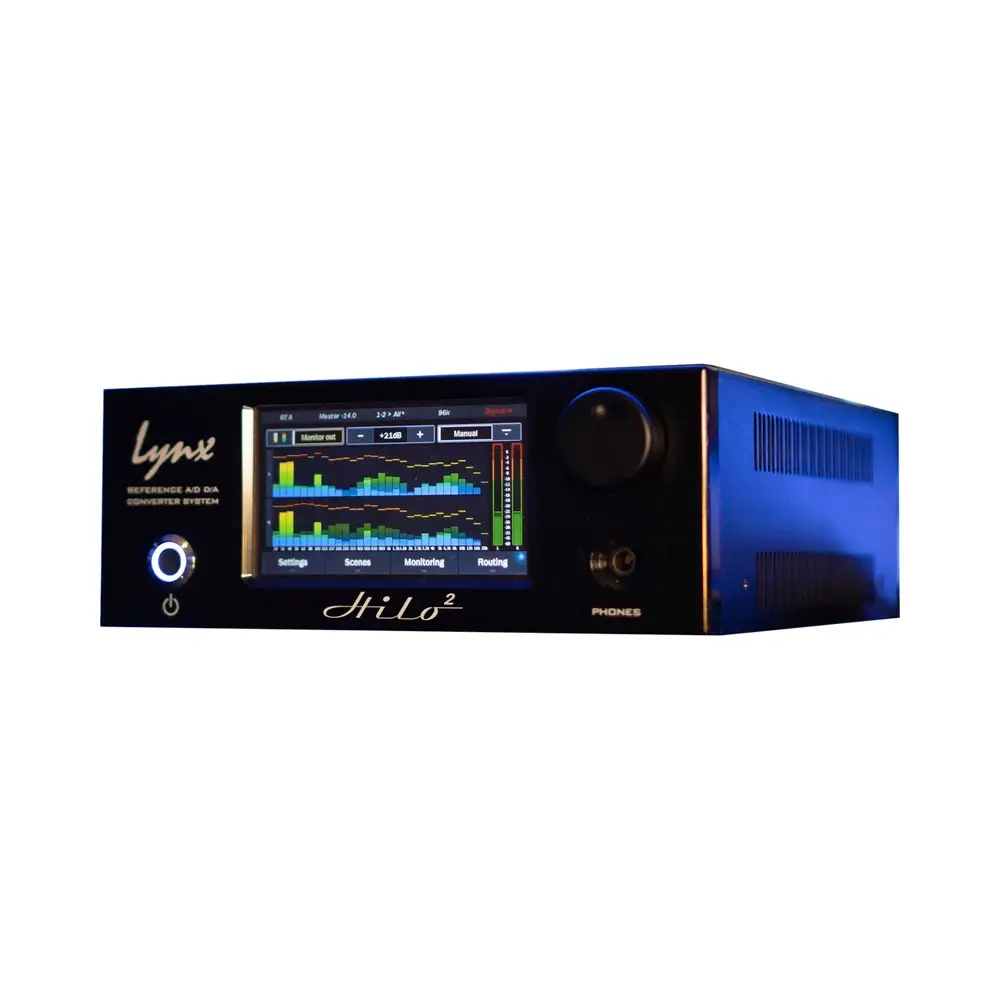

Hilo displays real-time, accurate metering and analysis. Dual horizontal, VU analog, all I/O and spectrum analysis cover all tasks.

Routing

Route anything, anywhere. Set independent input levels, channel modes and mute states for each output. Then set unique level offsets for each output. Truly flexible.

Monitoring

One-to-one monitoring. Independently level-match your 4×4 selected sources, then globally control with the master-volume.

Scenes

Device-wide settings recall. Save custom scenes for different tasks and switch through them in a click.

Settings

No need for extra computer software, change any setting directly on Hilo, such as sample rate, clock source or trims.

Connected apps

With Hilo 2, you get free connected applications. Hilo Remote for iPad and desktop offer you full control with extended features.

LSlot connectivity options

We don’t restrict how you choose to connect your devices. With LSlot, you can change your connection whenever you need. We have you covered now, and in the future when new standards are made available.

As of today we have USB, Thunderbolt3 and Dante.

Weight

3.06 kg

Dimensions

21.59 × 25.4 × 8.255 cm

Type:

AD/DA Converter

Sample Rate:

192kHz

Bit Depth:

24-bit

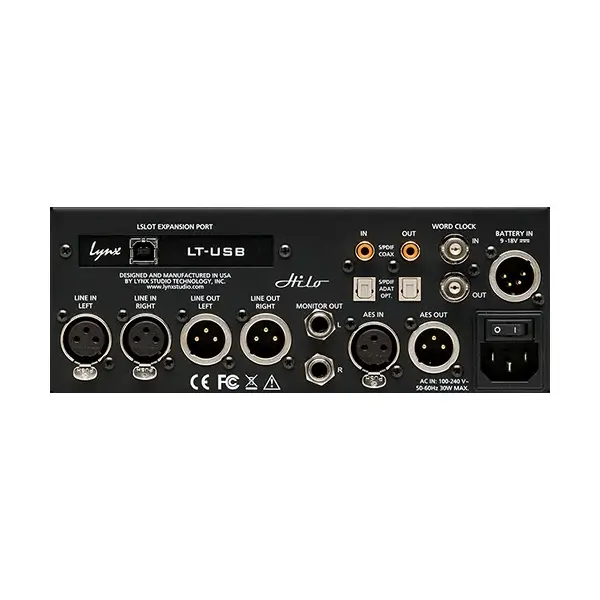

Analog Inputs:

2 x XLR (line in)

Analog Outputs:

2 x XLR (line out), 2 x 1/4" (monitor)

Digital Inputs:

1 x XLR (AES), 1 x Optical (ADAT, S/PDIF), 1 x Coax (S/PDIF)

Digital Outputs:

1 x XLR (AES), 1 x Optical (ADAT, S/PDIF), 1 x Coax (S/PDIF)

Headphones:

1 x 1/4" TRS

Clock Inputs:

1 x Word Clock

Clock Outputs:

1 x Word Clock

Rack Spaces:

Power Source:

Standard IEC AC cable / 9V DC battery pack (sold separately)

Lynx Studio Technology Hilo 2 Reference AD/DA Converter
