Kiloview N5 3G-SDI to NDI & NDI HX 2/3 Bidirectional Converter
AED 1,743.000 Excl. VAT
- Convert 3G-SDI to NDI & NDI|HX 2/3
- Convert NDI & NDI|HX 2/3 to 3G-SDI
- Resolutions up to 1080p60
- Large Preview/Program Tally Display
- Low-Latency Switching, Web-Based GUI
- Embedded & 3.5mm Audio In/Out
- USB Keypad Control in Decoder Mode
In stock
N5/N6
Full-Functional NDI Converter
Kiloview N5/N6 is a bi-directional NDI converter that supports 3G-SDI/HDMI input (encoder) and loop output(decoder). With the support of both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device.
Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, intercom and centralized management, N5/N6 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.
N5: 3G-SDI I/O
N6: 1080P HDMI I/O
2-IN-1 for NDI Encoding & Decoding
Kiloview N5/N6 supports encoding/decoding of NDI High Bandwidth and NDI HX 2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.
In encoding mode, N5/N6 can encode 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI HX 2/3 video stream.
In decoding mode, N5/N6 will automatically adapt the NDI High Bandwidth/NDI HX 2/3 and output through 3G-SDI/HDMI.
Audio And Intercom
Kiloview N5/N6 supports 3.5mm analog audio line in/out or embedded audio. Max 4 CH audio encoding will be supported.
It also supports voice intercom with Kiloview Intercom server.

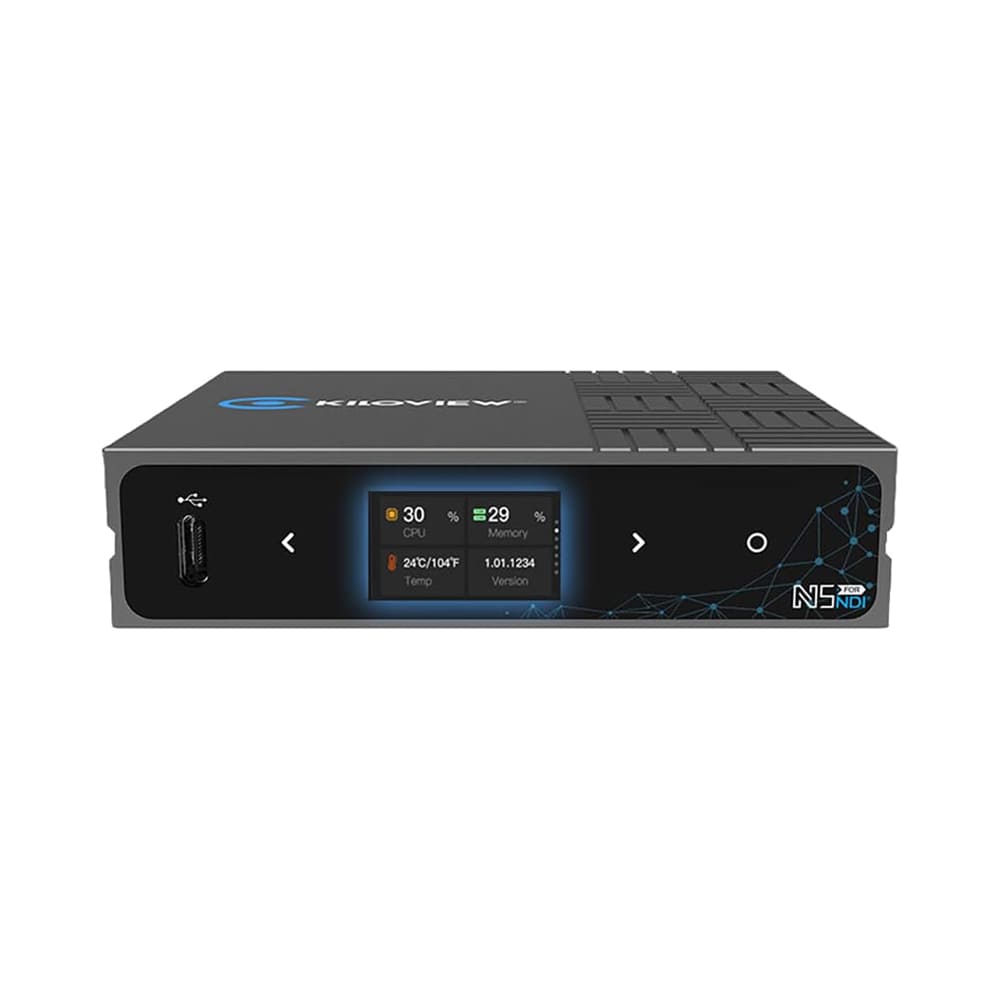

Built-in LCD Screen and Touch Button
N5/N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.
PTZ Control
Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required.
Control with a USB Keypad
Or you can even use the USB keypad to control a PTZ camera-the cheapest PTZ keyboard you can get.
Power It as You Wish
With PoE, the N5/N6 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or a camera battery.
Appearance
| Weight | 0.71 kg |
|---|---|
| Dimensions | 21.08 × 17.27 × 8.64 cm |
| Input |
1*3G-SDI |
| Power |
PoE/DC/D-tap |
| Output |
1*3G-SDI ( Loop-out ) |
| Audio ports |
1*3.5mm Line I/O |
| Video resolution |
Encoding&Decoding: Up to 1080p60 (Please refer to datasheet for details) |
| NDI codec capacity |
NDI Highbandwidth: YCbCr 4:2:2 8bit 125Mbps in 1080p60 NDI ,HX: YCbCr 4:2:0 8bit 80Mbps in 1080p60 |
| Tally |
Ye |
| USB Webcam Input |
Yes |
