Focusrite RedNet HD32R 32-Channel Dante Networks Pro Tools | HD Bridge
AED 9,495.000 Excl. VAT
- Allows Dante Ethernet-based audio networking products to interoperate w/ PT|HD & PTls|HDX .
- Ethernet and power supply redundancy
- Provides the vital link to an extensive high-quality audio network on standard Cat 5e or Cat 6
- Cost-effectively increase audio I/O
- Permits multiple workstations to access the same interface hardware and I/O.
- No changes to Pro Tools workflow required
- Up to 32 I/O with Pro Tools|HD over single DigiLink
Available on backorder

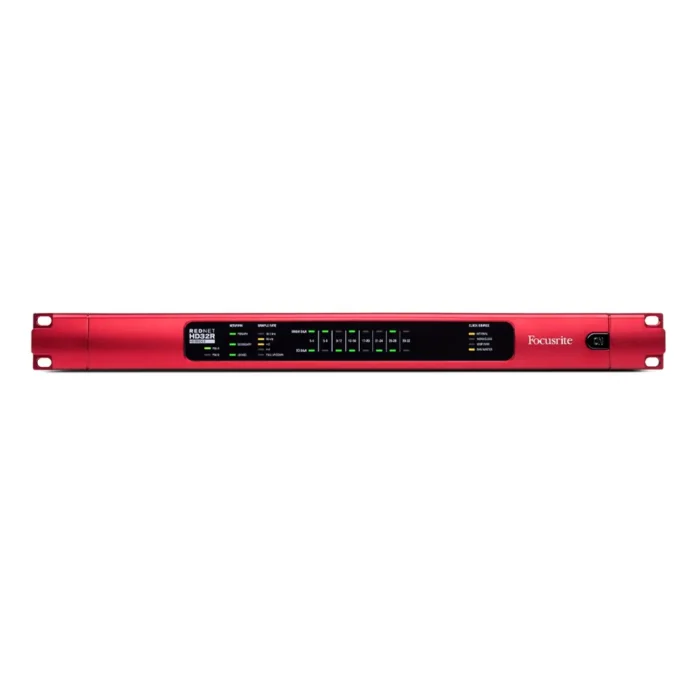

RedNet HD32R
32 x 32 Dante Network Digital I/O HD Bridge
RedNet HD32R is a 1U, 19in rack-mount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports.

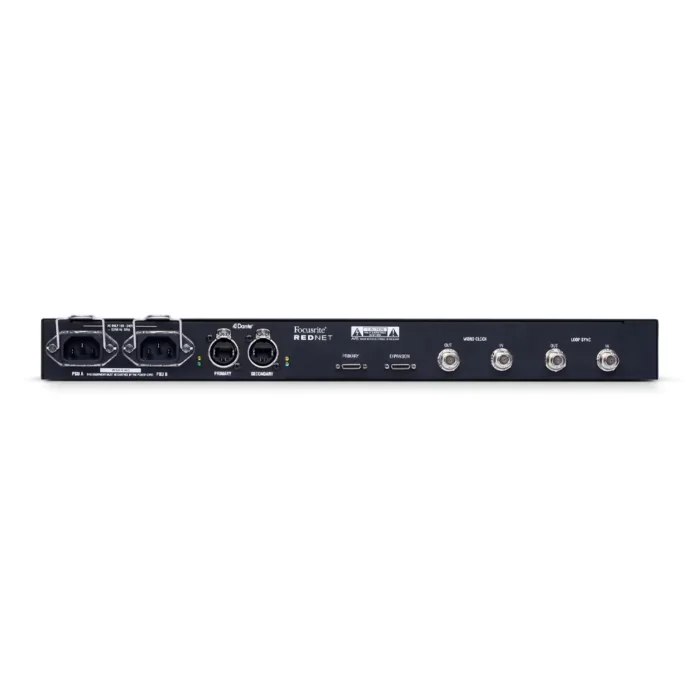

Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. Power state is indicated both remotely and on the front panel. The HD32R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.
HD32R acts as a 64-channel (32 in/32 out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools|HDX and HD cards. Supported Pro Tools systems include Pro Tools|HDX, Pro Tools|HD Native, Pro Tools|HD Native Thunderbolt, and Pro Tools|HD TDM. Up to six HD32R modules can be used with a Pro Tools|HDX system and three with Pro Tools|HD, allowing the maximum channel count for either. Simply connect the HD32R to Pro Tools|HD with standard Mini DigiLink connectors.
HD32R allows the use of the low latency performance of Pro Tools|HD cards, bringing the full benefits of Dante audio-over IP networking and the RedNet product range to a Pro Tools|HD system. The entire range of Dante-compatible products including the superb RedNet analogue and digital interfaces can then be used with a Pro Tools|HD system, all connected via Ethernet cable.
From complex multi-room systems to single installations Dante and RedNet offer the ability to create a sophisticated and comprehensive high-quality audio production environment around a standard Ethernet network, with HD32R providing the bridge to any Pro Tools|HD system. Assign any available Dante source or destination via HD32R and it appears in Pro Tools exactly as it would with any other Pro Tools-compatible interface, maintaining traditional Pro Tools workflows.
32×32 Pro Tools | HD I/O with dual PSUs
RedNet HD32R is a 1U, Pro Tools | HD™ interface for any Dante™ audio-over-IP network, providing up to 32×32 channels of I/O (16×16 at 192kHz) Featuring network and power supply redundancy, RedNet HD32R is the ideal choice for integrating your Pro Tools HD system into a Dante networked I/O environment in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.
A pair of DigiLink mini connectors allows RedNet HD32R to connect directly to any Pro Tools | HD system whether it’s Native, HDX or even a legacy TDM system. Multiple RedNet HD32R units can be on the same Pro Tools system up to the maximum I/O channel count of Pro Tools, and Loop Sync I/O allows seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD I/O.
Brainworx bx_console
The Focusrite Studio Console reborn in your DAW
| Weight | 4.99 kg |
|---|---|
| Dimensions | 59.69 × 37.59 × 10.16 cm |
| Computer Connectivity: |
IP Network |
| Data I/O: |
2 x etherCON Ethernet |
| Network: |
Dante, RedNet |
| Rack Spaces: |
1U |
| Simultaneous I/O: |
32 x 32 |
| Clock I/O: |
Word Clock In/Out, Loop Sync In/Out |
| Rackmount |
Rackmount |
Related products
Focusrite ISA 828 MkII 8-Channel Preamp for Mic, Line-Level, and Hi-Z Instruments
- Classic ISA mic preamp design w/ Lundahl LL1538 input transformer
- Switching power supply design allows for efficient and cool operation
- Front-panel instrument inputs to the first four channels offer 2 impedance options
- Line inputs with dedicated input connectors and front-panel switch
- Switchable input impedance including classic ISA 110 setting
- High-pass filters
- Switchable insert points when used with A-D card
Focusrite ISA ADN2 Two-Channel A-D Card for ISA One
- Two-channels of high-quality, precision A/D converter for ISA One
- Up to 24-bit/192kHz sample rate
- Dante connectivity via Primary and Secondary Ethernet ports
- Two-channel XLR connection for AES3 output
- Two-channel RCA connection for S/PDIF output
- Two-channel TOSLINK connector for ADAT output
- Word Clock I/O on BNC connectors
Focusrite RedNet A16R MkII Rackmount 16×16 Dante Analog Audio Interface
- 16-channel bi-directional analogue interface for Dante networks
- Precision A-D and D-A conversion
- with 119dB dynamic range, flat from 20Hz - 20 kHz (+/- 0.15dB).
- Individual input/output channel level control
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors
- Power supply and ethernet redundancy with auto switchover

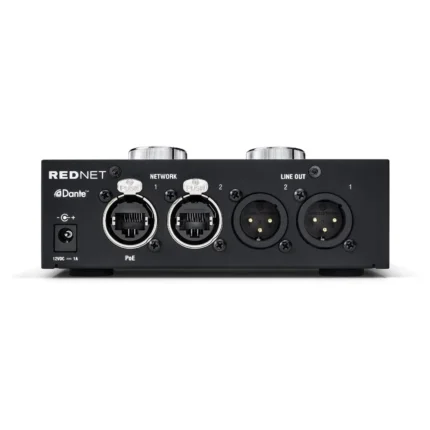

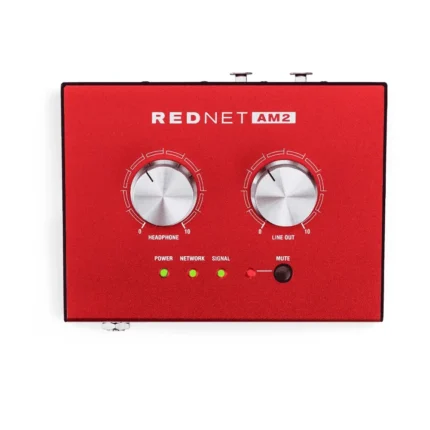

Focusrite RedNet AM2 Stereo Dante Headphone Amplifier and Line-Out Interface
