Focusrite RedNet D16R MkII Rackmount 16×16 Dante Digital Audio Interface
AED 10,495.000 Excl. VAT
- 16-channel bi-directional digital interface for Dante networks.
- Individual input and output channel level control
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors
- Power supply and ethernet redundancy
- Front-panel LED indicators for PSU
- Sample rate conversion on all input channels.
In stock

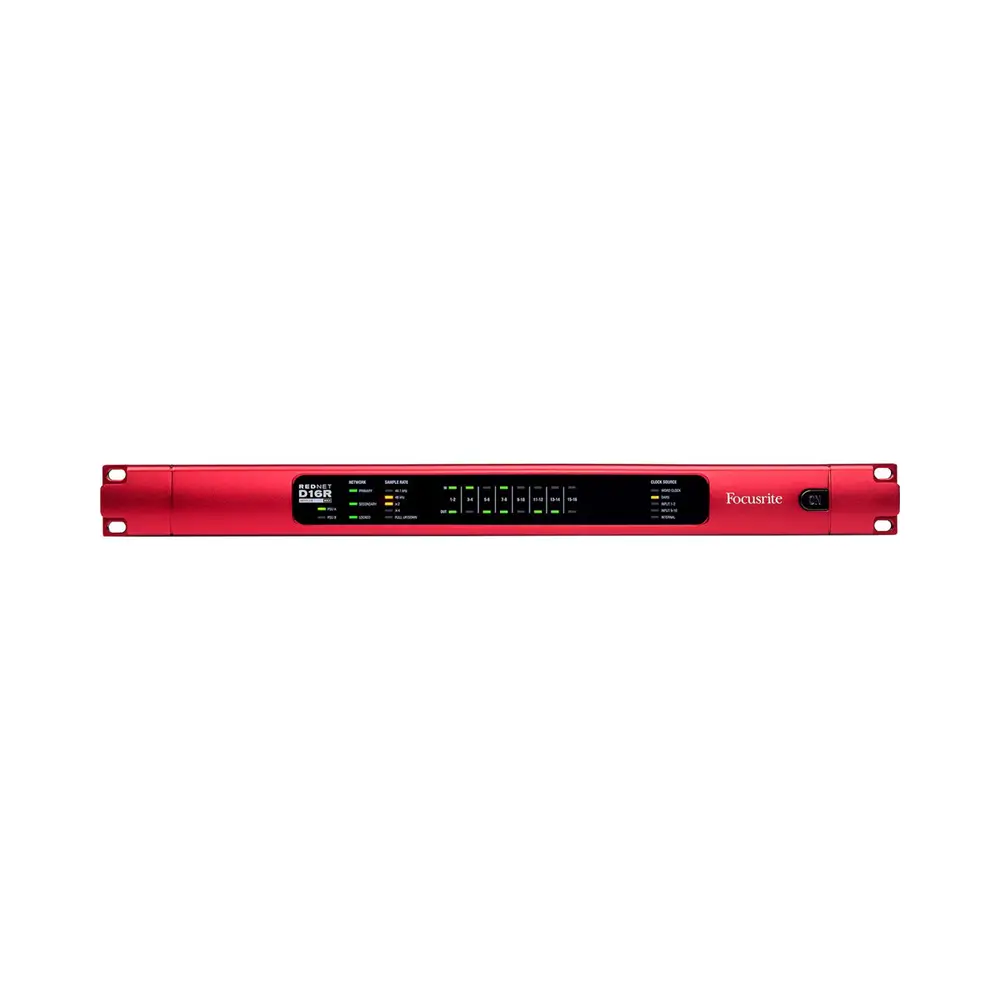

RedNet D16R MkII
16-channel AES3-RedNet Bridge, with Redundant Power Supplies and Redundant Network Connections

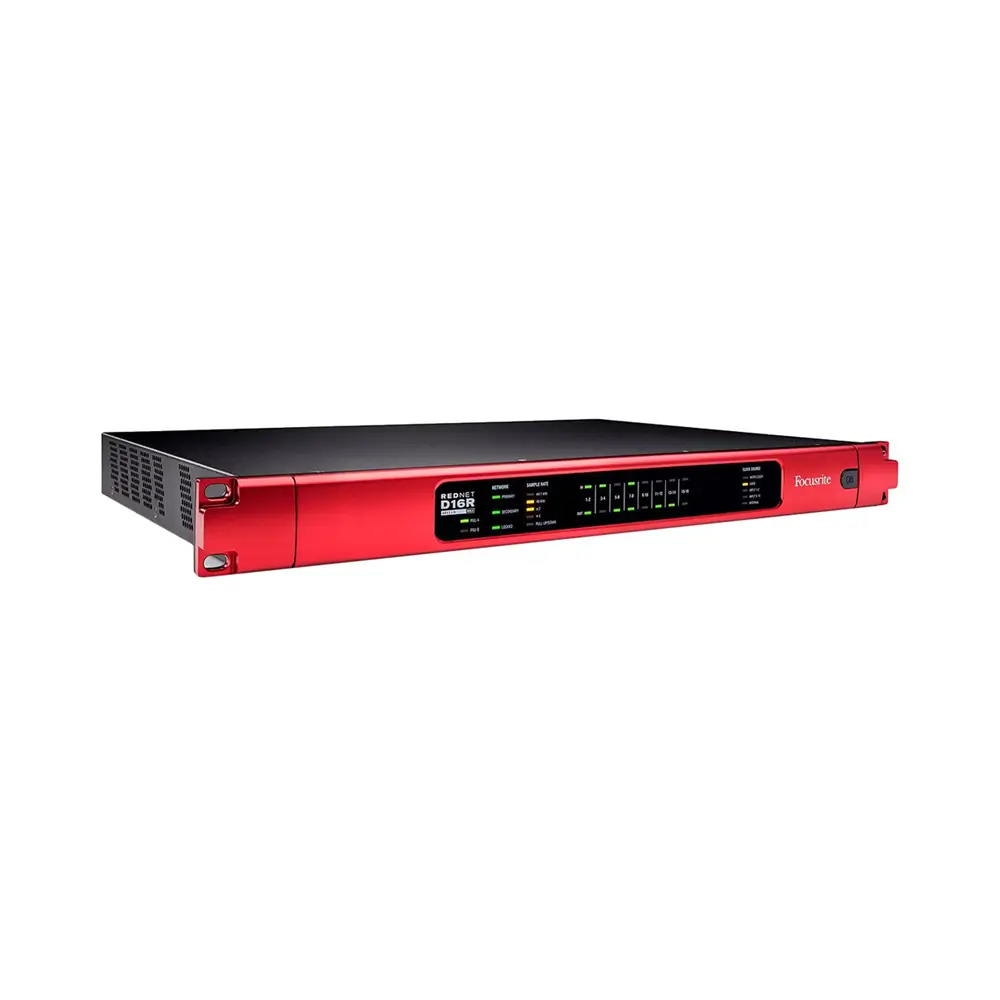

RedNet D16R MkII is a 16-channel bi-directional digital interface for Dante networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MK2 features power supply and Ethernet redundancy with auto switchover in case of failure.

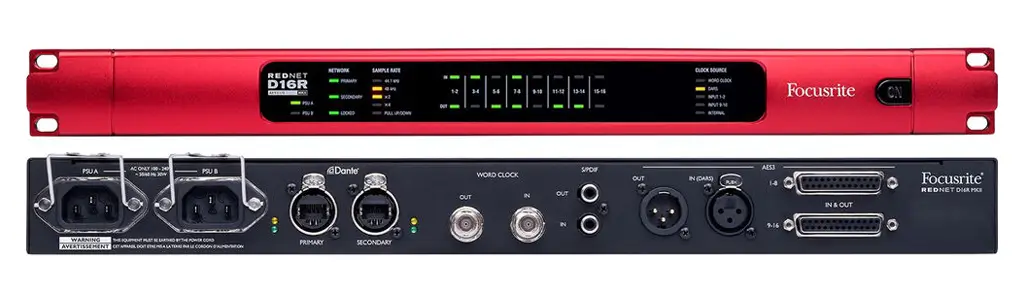

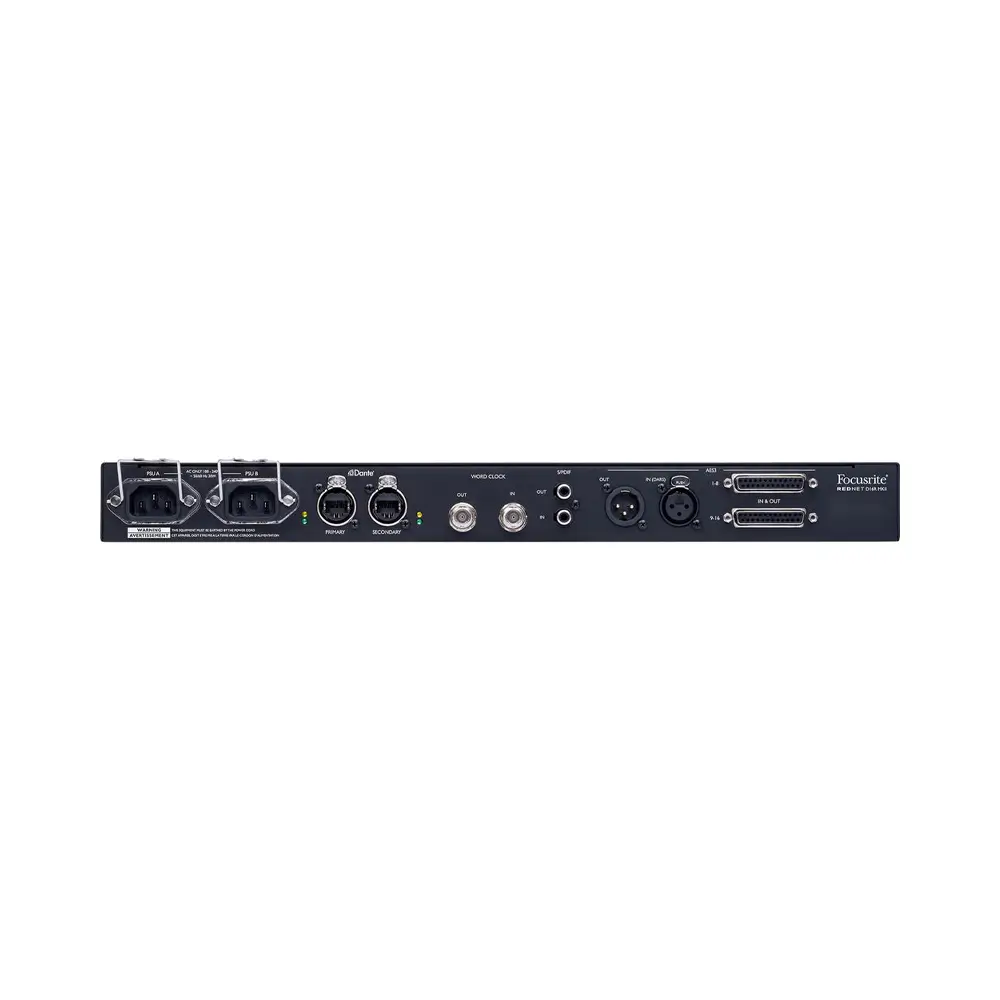

Various connection options make RedNet D16R MK2 a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made. Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.
16×16 AES3 I/O with independent level control
The RedNet D16R MkII is a 16-channel bi-directional AES3 interface for Dante® networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure.
Various connection options make RedNet D16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made.
Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.
Brainworx bx_console
The Focusrite Studio Console reborn in your DAW
| Weight | 6.34 kg |
|---|---|
| Dimensions | 60.45 × 43.69 × 11.18 cm |
| A/D Resolution: |
Up to 24-bit/192kHz |
| Data I/O: |
2 x Ethernet (Dante) |
| Digital Inputs: |
1 x Coax (S/PDIF), 1 x DB-25 (AES3), 1 x XLR (AES3) |
| Digital Outputs: |
1 x Coax (S/PDIF), 1 x DB-25 (AES3), 1 x XLR (AES3) |
| Network: |
Dante, RedNet |
| OS Requirements |
Mac: OS X 10.9.5 or later PC: Windows 7 SP1 or later |
| Power Supply: |
2 x Standard IEC AC cables |
| Rack Spaces: |
1U |
| Software: |
RedNet Control |
| Clock I/O: |
2 x BNC (1 x word clock) |
Related products
Focusrite ISA 828 MkII 8-Channel Preamp for Mic, Line-Level, and Hi-Z Instruments
- Classic ISA mic preamp design w/ Lundahl LL1538 input transformer
- Switching power supply design allows for efficient and cool operation
- Front-panel instrument inputs to the first four channels offer 2 impedance options
- Line inputs with dedicated input connectors and front-panel switch
- Switchable input impedance including classic ISA 110 setting
- High-pass filters
- Switchable insert points when used with A-D card

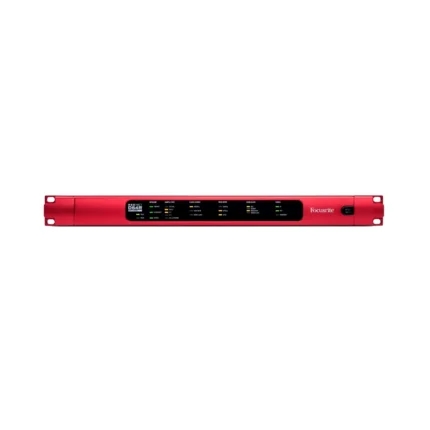

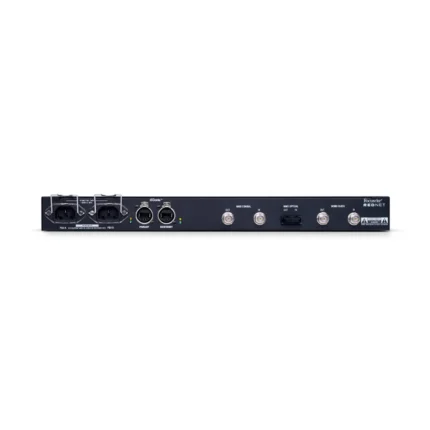

Focusrite RedNet D64R 64-Channel MADI-Dante Bridge
- Connects a MADI system and a Dante network seamlessly together.
- Connect Dante to digital mixing consoles, interfaces and cards that use MADI
- Built-in redundancy
- Supports both coax and optical interfaces
- Slave either the Dante system or MADI streams to an external clock.
- Supports up to 64 channels of digital audio I/O
- Sample rate conversion (SRC) on each input and output
Focusrite RedNet MP8R 8-Channel Remote-Controlled Mic Pre and A/D for Dante
- Rredundant power supplies and networking
- Ideal for live sound, broadcast, and large installations
- 8 high-quality Focusrite mic preamps
- Remote-controllable from any computer on the RedNet network
- Each preamp channel provides two channels on the network
- Redundant networking via two Neutrik Ethercon locking network connectors
- Redundant power supplies for maximum system reliability in any environment

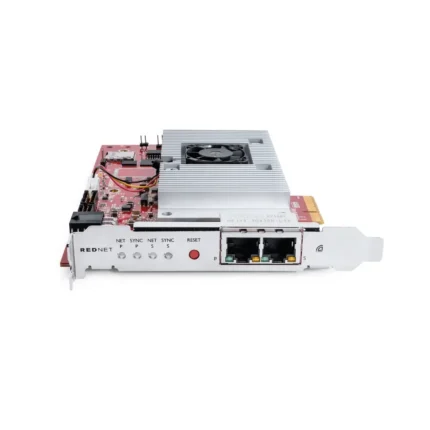

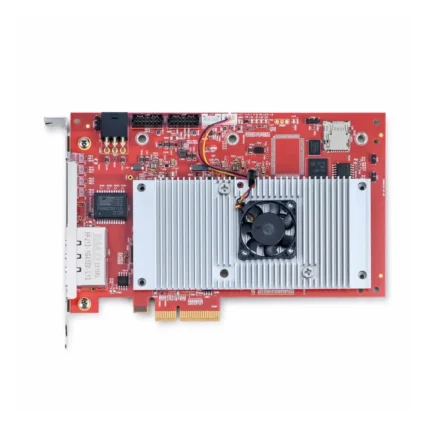

Focusrite RedNet PCIeNX Dante PCIe Dante Interface Card
