Focusrite RedNet A16R MkII Rackmount 16×16 Dante Analog Audio Interface
AED 15,995.000 Excl. VAT
- 16-channel bi-directional analogue interface for Dante networks
- Precision A-D and D-A conversion
- with 119dB dynamic range, flat from 20Hz – 20 kHz (+/- 0.15dB).
- Individual input/output channel level control
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors
- Power supply and ethernet redundancy with auto switchover
In stock

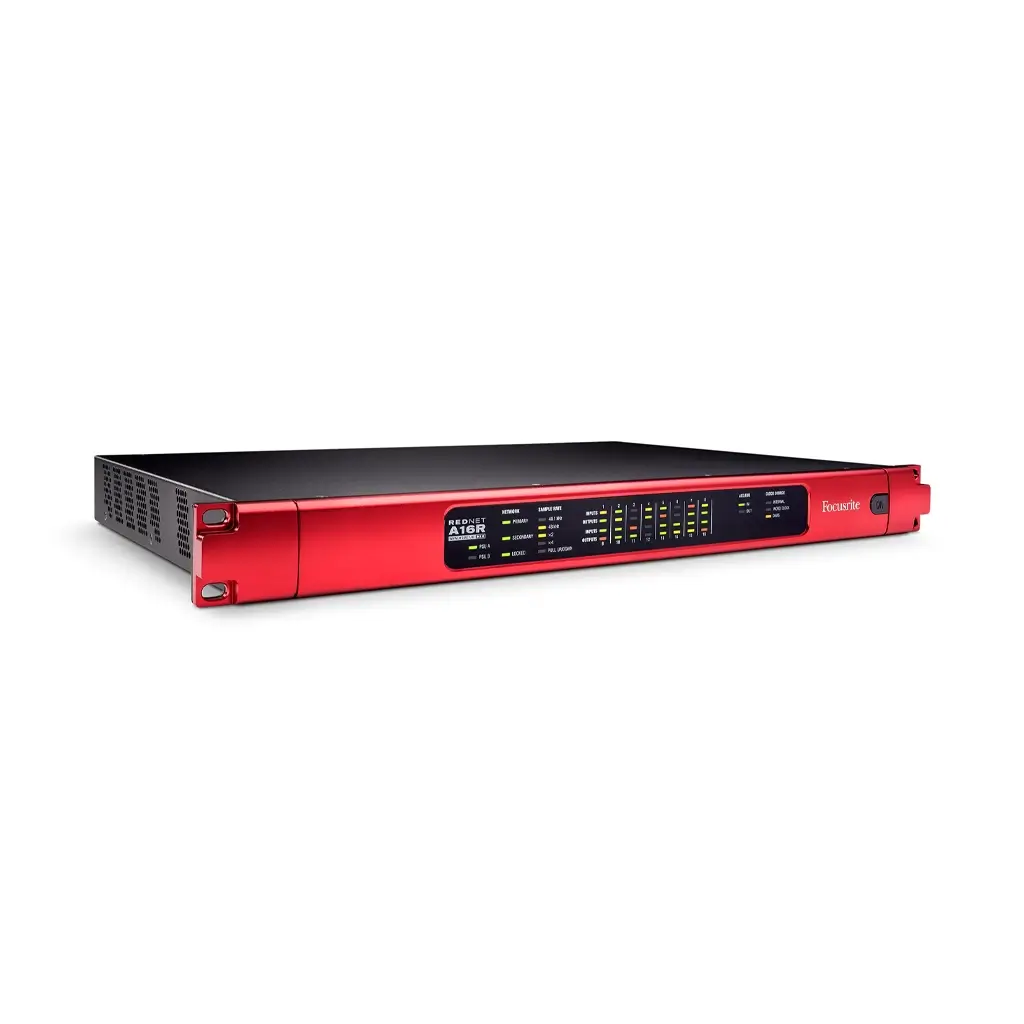

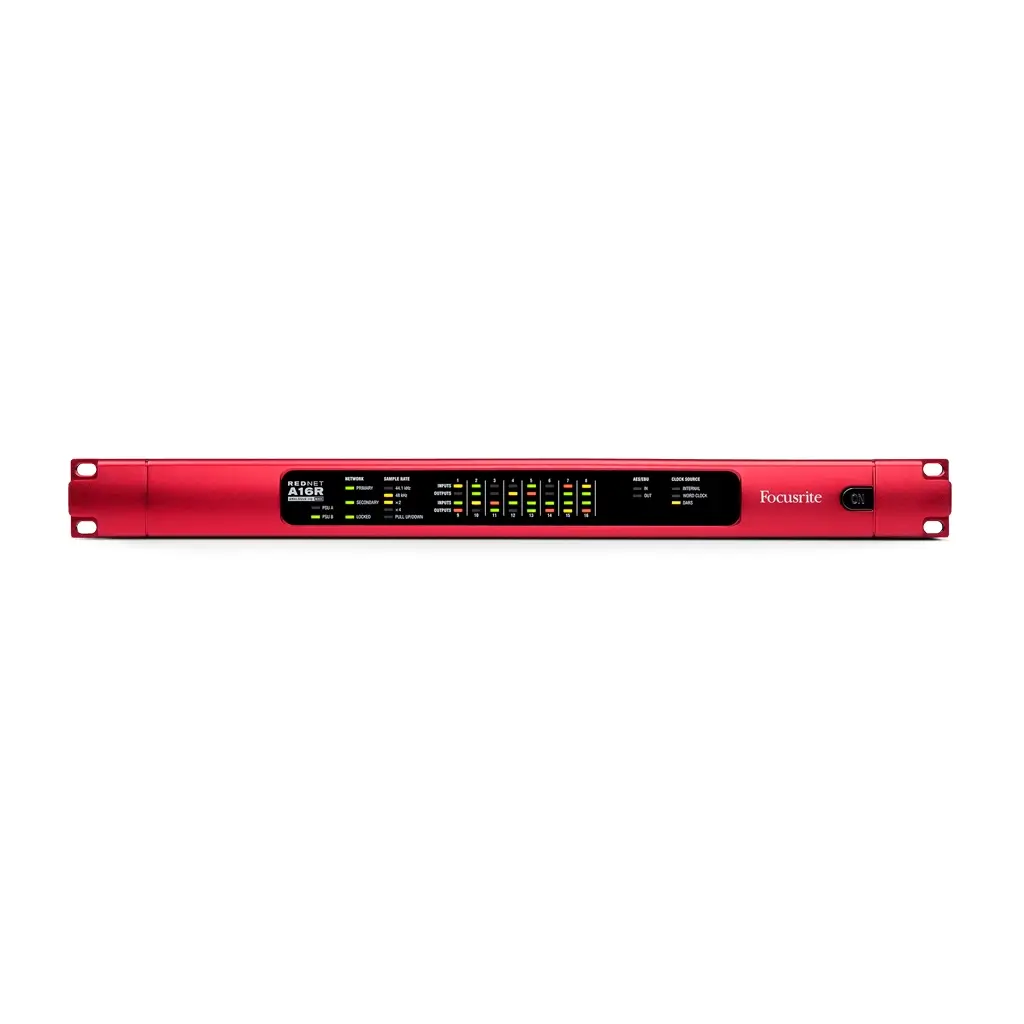

RedNet A16R MkII
16-in/16-out Dante Network Interface with Network and Power Supply Redundancy
RedNet A16R MKII is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O. Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MKII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

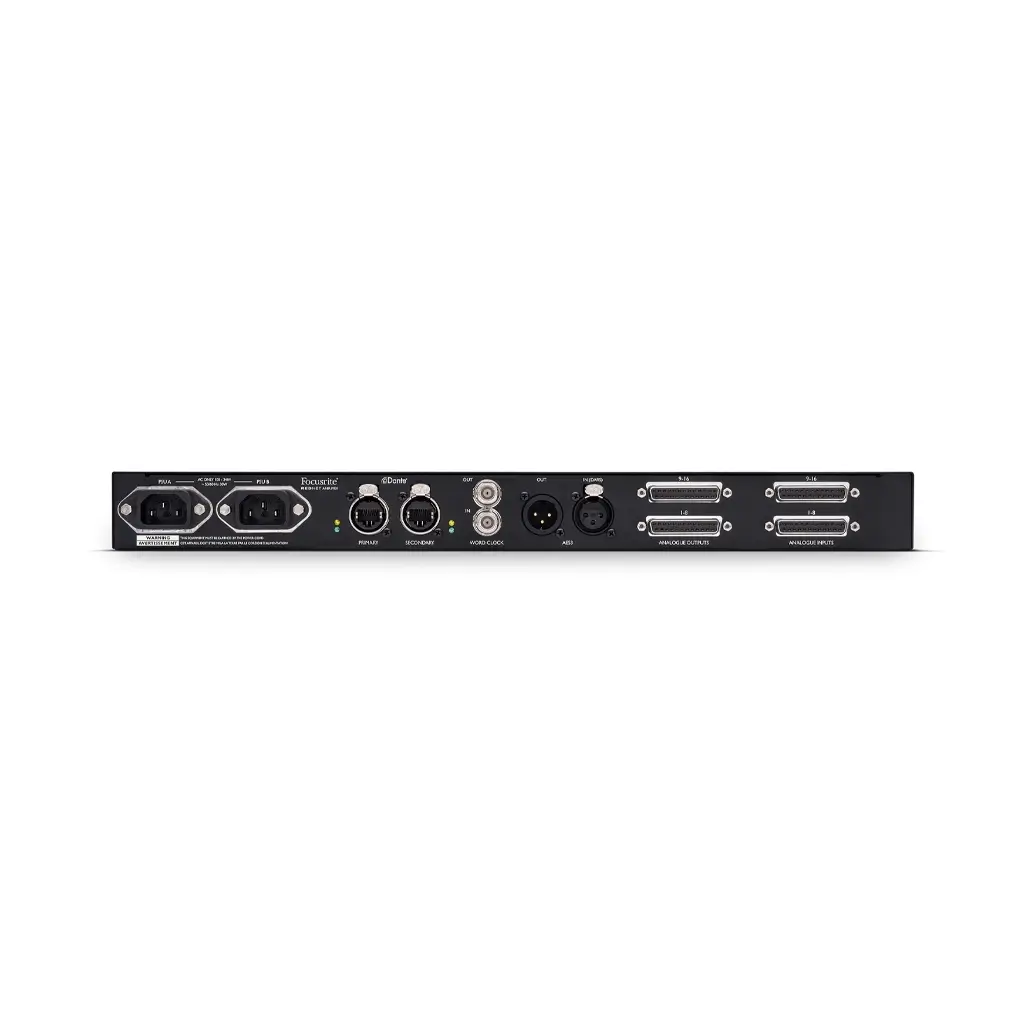

Analogue inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MKII, or alternatively allows RedNet A16R MKII to act as a network clock grand master, synchronised to external input. RedNet A16R MKII is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite products come with a three-year warranty and award-winning customer support.
16×16 AES3 I/O with independent level control
The RedNet A16R MkII is a 16-channel bi-directional AES3 interface for Dante® networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet A16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure.
Various connection options make RedNet A16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made.
Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.
Brainworx bx_console
The Focusrite Studio Console reborn in your DAW
| Weight | 6.34 kg |
|---|---|
| Dimensions | 60.45 × 43.69 × 11.18 cm |
| A/D Resolution: |
Up to 24-bit/192kHz |
| Analog Inputs: |
2 x DB-25 |
| Data I/O: |
2 x Ethernet (Dante) |
| Digital Inputs: |
1 x XLR (AES3) |
| Digital Outputs: |
1 x XLR (AES3) |
| Network: |
Dante, RedNet |
| OS Requirements |
Mac: OS X 10.9.5 or later PC: Windows 7 SP1 or later |
| Power Supply: |
2 x Standard IEC AC cables |
| Rack Spaces: |
1U |
| Software: |
RedNet Control |
| Clock I/O: |
2 x BNC (1 x word clock) |
Related products

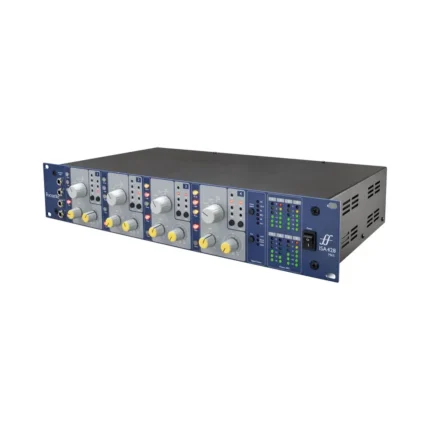

Focusrite ISA ADN8 8-Channel A-D Card for ISA 428/828 MkII
