Sonnet Echo 11 Thunderbolt 4 Dock
- 3 x Thunderbolt 4 Ports
- 1 x Thunderbolt 4 Port (System, 90W)
- 3 x USB 3.2 Gen 2 Type-A Ports
- 1 x USB 2.0 Type-A Charging Port
- 1 x Gigabit Ethernet RJ45 LAN Jack
- 1 x SDXC Card Slot
- 1 x 3.5mm Headphone/Mic Combo Jack
- Powered via AC Adapter
- Power Button
- Mac and Windows Compatible
Description

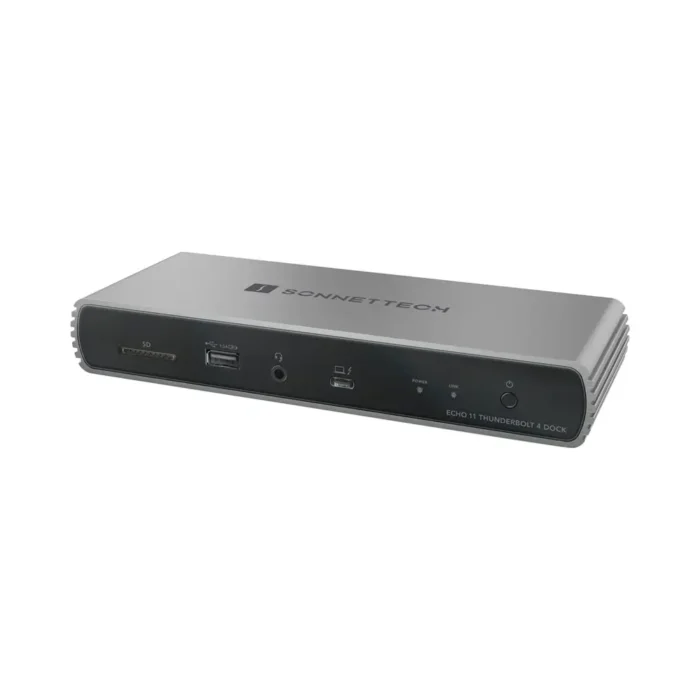

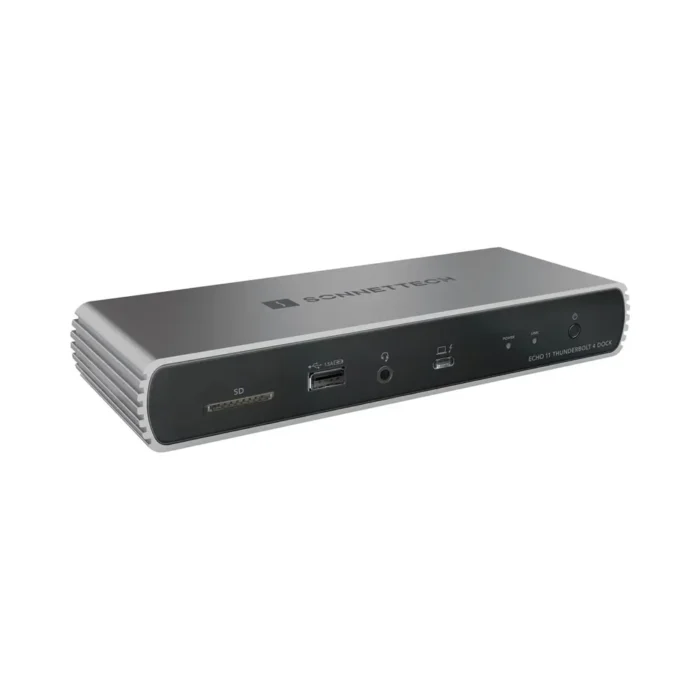

Echo 11 Thunderbolt 4 Dock
Universal Thunderbolt 4 Docking Station with Four Thunderbolt 4 Ports and 8K Display Support
for Mac®, Windows®, Chromebook™, and iPad Pro®
Low-cost, Full-featured Dock
Standard Ports for Everyday Connections

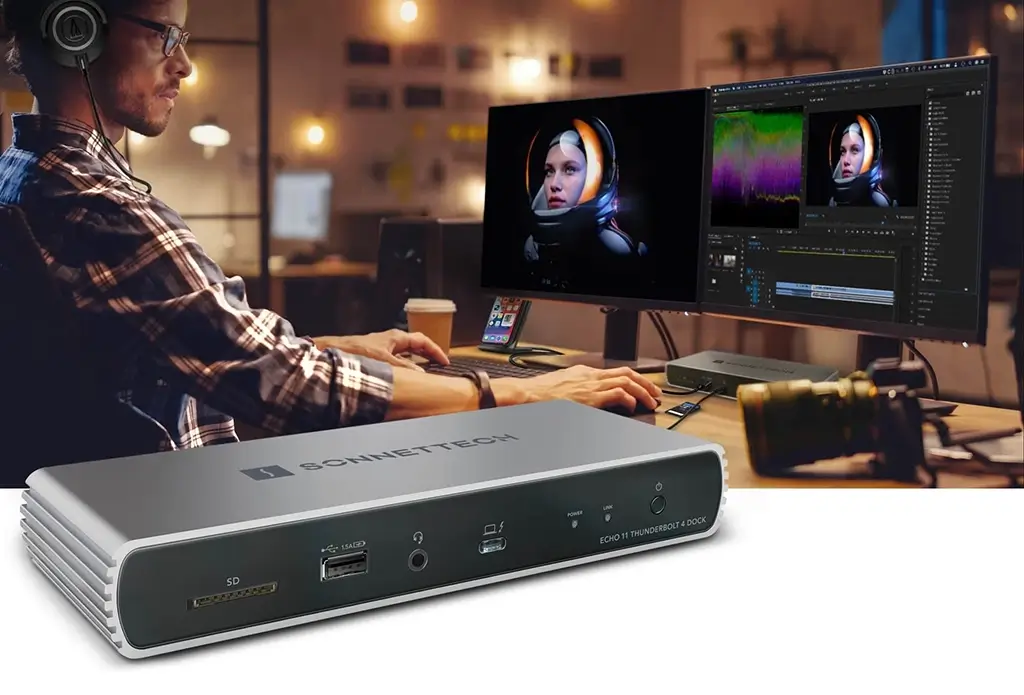

Sonnet’s Echo™ 11 Thunderbolt 4 Dock – the connections you expect from a Thunderbolt™ dock plus the Thunderbolt hub you’ve always wanted. With Echo 11 Thunderbolt 4 Dock, a single cable connects your laptop to your digital world through a universal docking station.

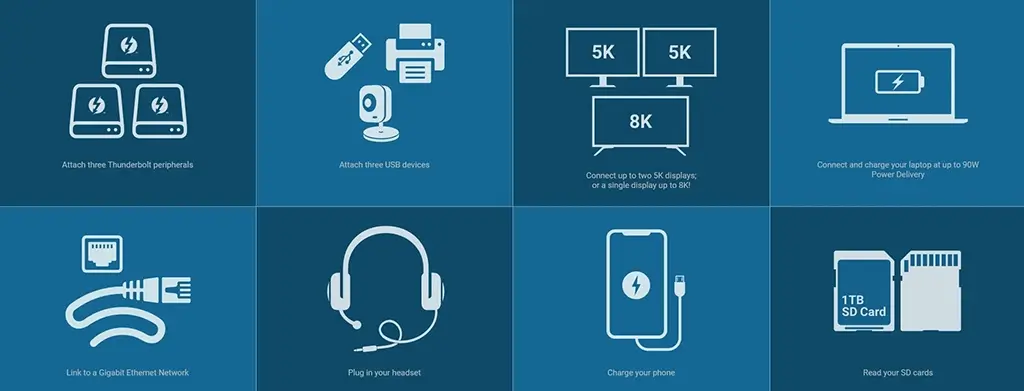

Connect
Your Peripherals and Power Your Computer with One Cable
Plug in your monitor(s), Thunderbolt devices, USB peripherals, and Ethernet cable. Then connect them all with a single Thunderbolt cable from the dock to your computer. Echo 11 Thunderbolt 4 Dock can also power your laptop with up to 90W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.
Thunderbolt Multiplied–
Turn One Thunderbolt Port into Three
Truly Universal Connectivity for Work and Play

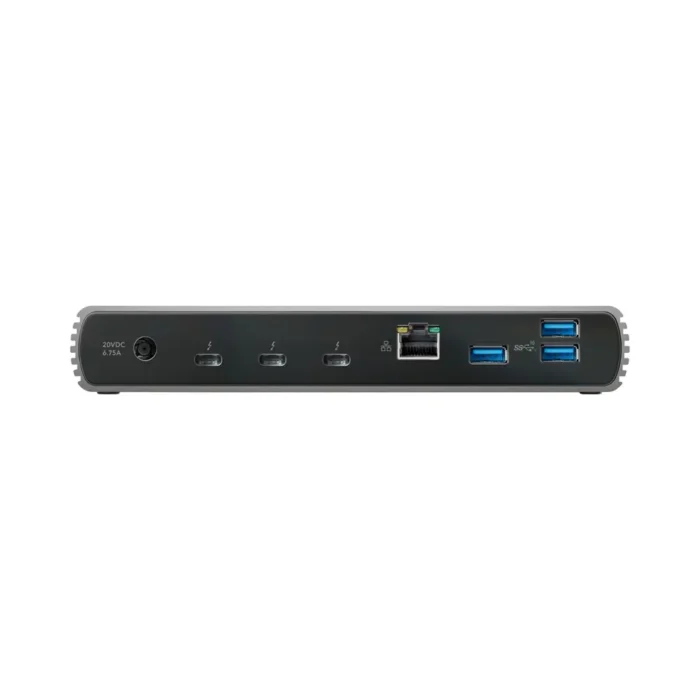

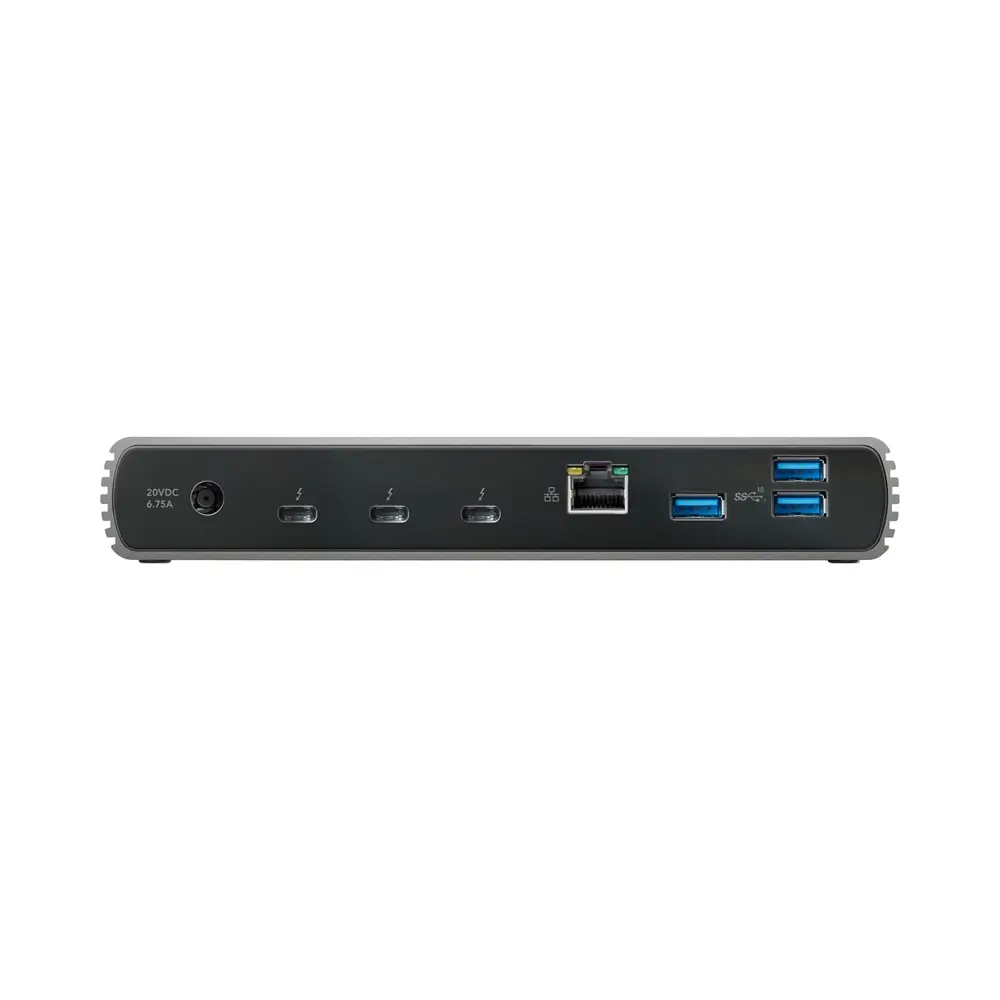

Echo 11 Dock features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to connect Thunderbolt peripheral devices. The Thunderbolt ports also support USB4 and USB 3 peripherals. For connected peripherals using bus power, the dock’s Thunderbolt peripheral ports provide 15W each, supporting even the most demanding bus-powered Thunderbolt and USB peripherals.
Versatile Thunderbolt Expansion
Perfect for Mac and supported Windows computers, including Apple M series Macs with limited Thunderbolt ports. Connect the dock and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.
Powerful
10Gbps USB Ports for Bus-powered Devices

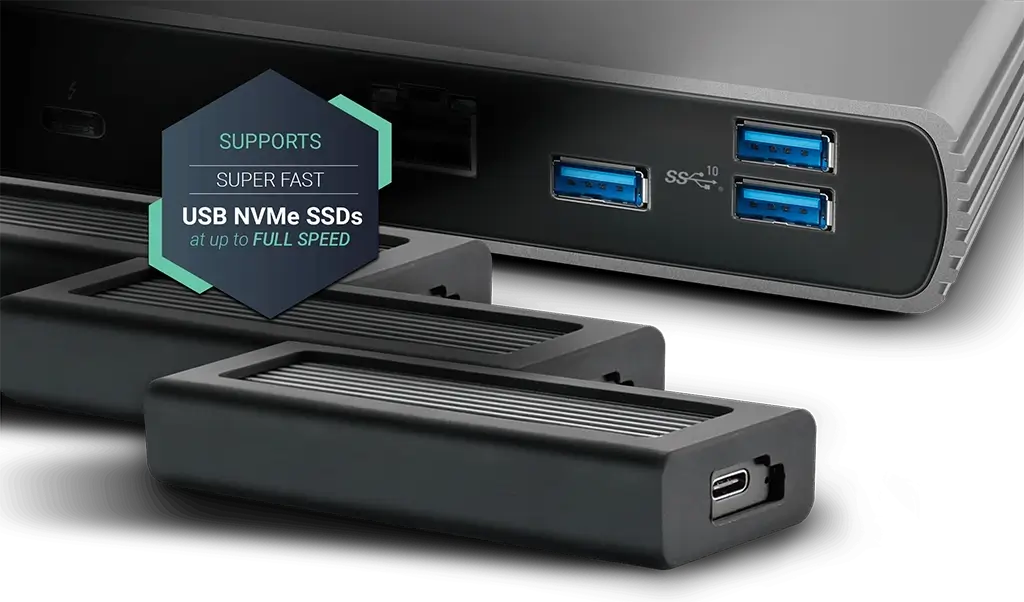

Echo 11 Thunderbolt 4 Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports on the back to support super fast USB NVMe SSDs at up to full speed. And unlike some other docks, Echo 11 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.
Thunderbolt Certified for Mac, Windows, Chromebook, and iPad Pro
Echo 11 Thunderbolt 4 Dock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 4 and USB4 Windows computers; Thunderbolt 3 Windows computers with an Intel 8th Gen (2018) or newer CPU; Thunderbolt 4 and USB4 Chromebook computers; and M series iPad Pro. See Tech Specs for current computer and OS compatibility information.
Display Options

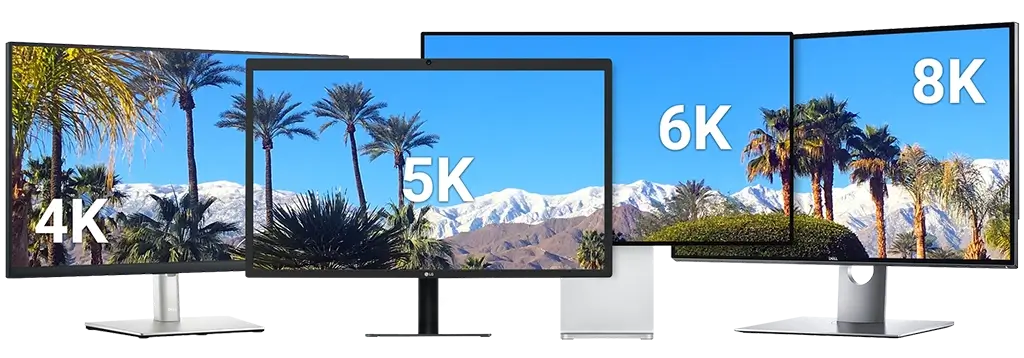

Connect up to One 8K or Two 5K Monitors
Depending on your computer’s video capability, Echo 11 Thunderbolt 4 Dock supports one (always 4K or 5K; up to 6K or 8K) monitor through its Thunderbolt ports, or up to two 5K or Apple Pro Display XDR monitors; see Tech Specs. You can plug in Thunderbolt 3 or USB-C monitors directly or you may connect other display types (HDMI, DisplayPort) by using a Thunderbolt compatible adapter (sold separately).
Charge
Leave Your Charger In the Backpack
Connected to your portable computer with the included Thunderbolt cable, Echo 11 Thunderbolt 4 Dock provides up to 90W of power (Power Delivery), meaning it can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.
Network Port
Fast Wired Network Connection
Echo 11 Thunderbolt 4 Dock includes a Gigabit Ethernet port, perfect for connecting your broadband internet directly to your computer without another device competing for bandwidth on your WiFi setup. With the appropriate drivers already installed under macOS and Windows, setup is simple.
Peripheral Charger
Handy Charging Port

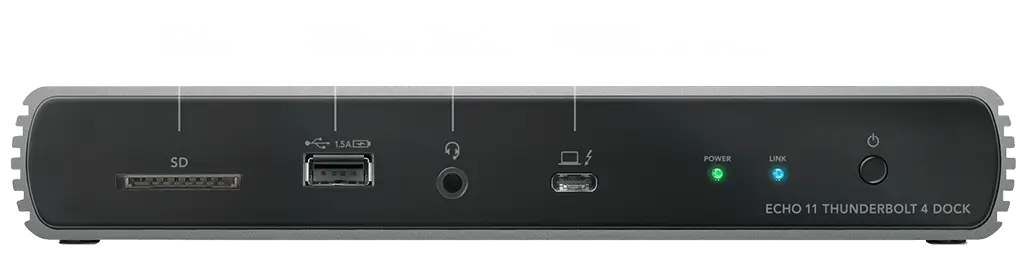

Echo 11 Dock includes a USB 2.0 charging port on the front capable of charging your iPhone®, iPad®, or other device.
Media Reader

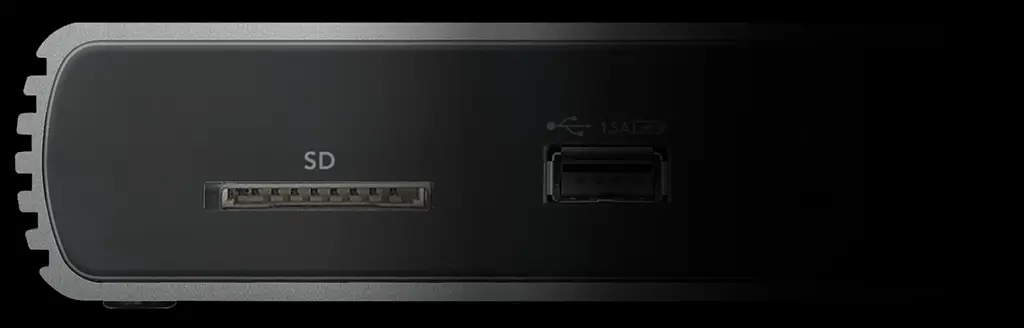

Fast UHS-II SD Card Reader
The included SD card slot is compatible with SD™, SDHC™, and SDXC™ memory cards, and supports 320 MB/s read speeds with UHS-II SDXC cards to quickly offload images and video. Also supports microSD, microSDHC, and microSDXC cards when used with adapters.
Additional information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 20 × 7 × 3 cm |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Host Connection |
USB-C (Thunderbolt 4) Supporting USB Power Delivery up to 90 W via Detachable Cable |
| Max Resolution |
2 Displays Supported: 7680 x 4320 (Single) 3840 x 2160 (Dual) |
| Network I/O |
1x RJ45 (10/100/1000 Mb/s) |
| USB I/O |
3x USB-C (Thunderbolt 4) 3x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0 |
| Video I/O |
NO |
