CEDAR Audio DNS 2 Two-Channel Dialogue Noise Suppressor
- Dialogue noise suppression unit
- For Location and Studio Use
- Real-Time Noise Suppression
- 2 XLR Analogue In and Out
- AES XLR Input and Output
- AD/DA Resolution: 24-Bit
- 12V Operation and Camera Mounting Points

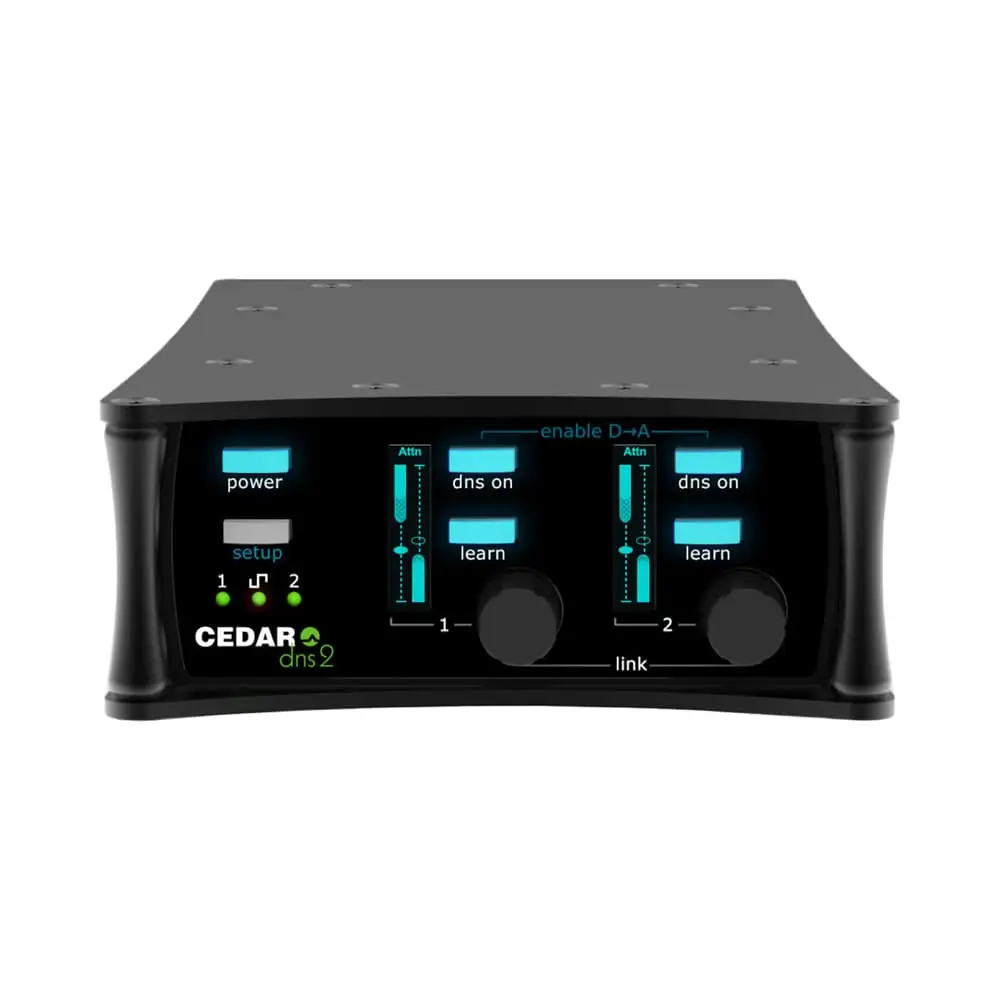

CEDAR DNS 2 dialogue noise suppressor
CEDAR’s dialogue noise suppression (DNS) technology eliminates traffic noise, air conditioning, wind, rain, babble and general background noise from audio signals. It will also help to compensate for unfavourable acoustic conditions and poor microphone placement, and will even suppress excessive reverberation.
The 2-channel DNS 2 is the first DNS designed specifically for portability and extreme simplicity of use. It hosts a new DNS algorithm that requires nothing more than switching on the Learn function that identifies and adapts to the background noise, and then dialing in the amount of noise attenuation required. Retaining the near-zero latency of all its predecessors, it’s suitable for use in all situations – location recording, live-to-air broadcasting, live sound in venues such as theatres, concert halls, conferences venues, and places of worship, as well as studio work and post.

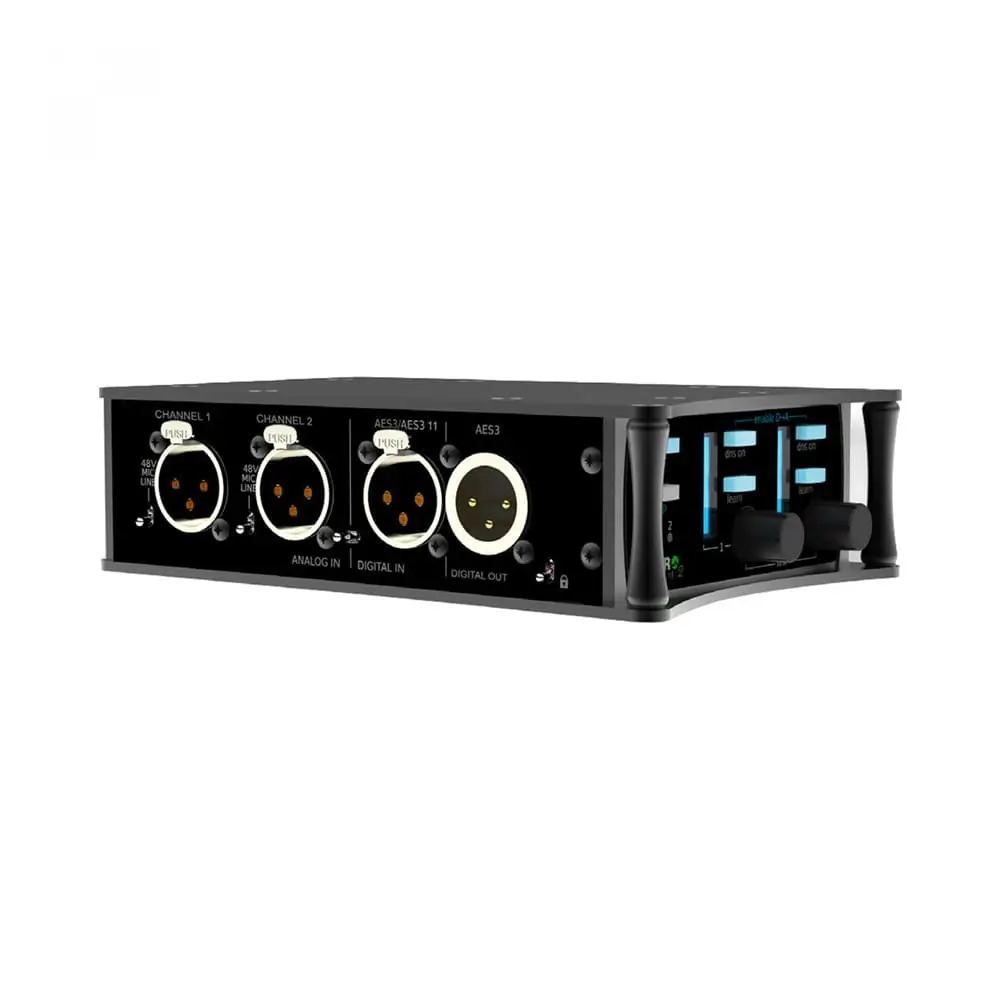

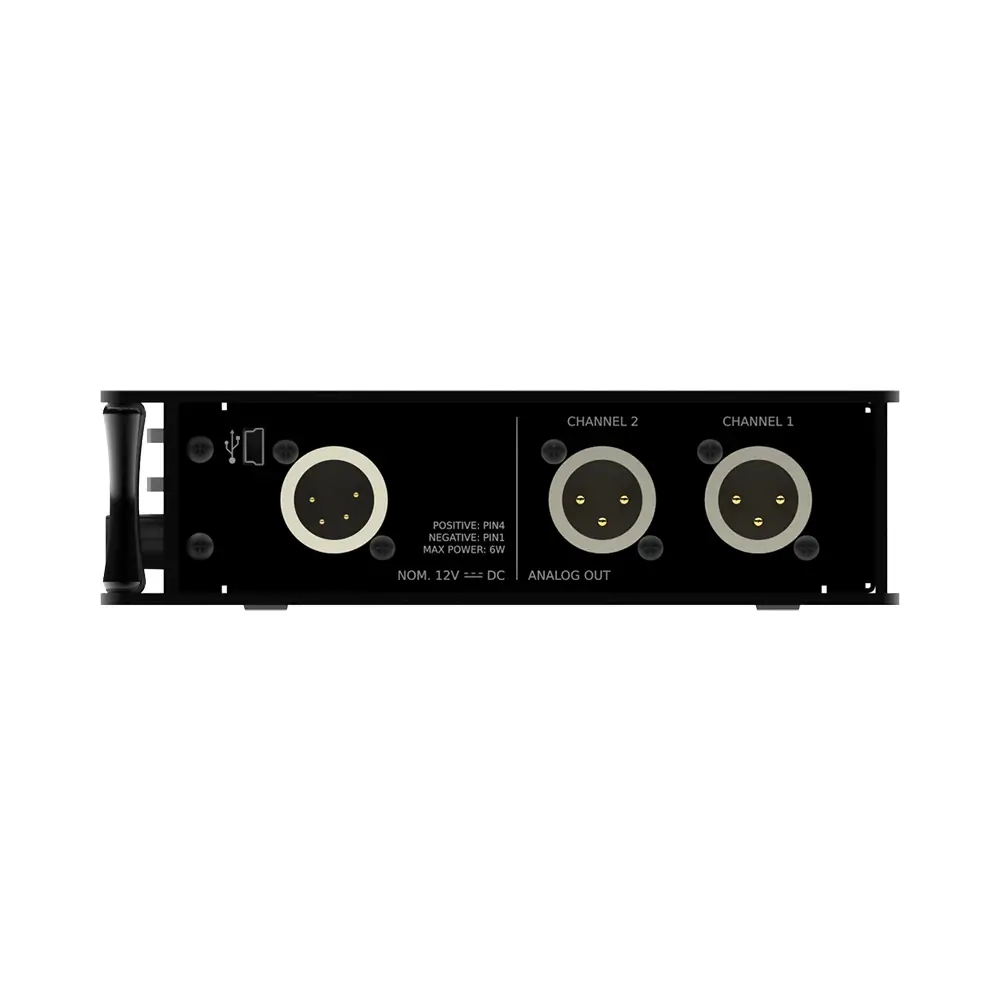

What’s more, despite being so small and light that you can slip it inside your pocket or equipment bag, the DNS 2 offers analogue line and microphone inputs (the latter with optional 48V phantom powering), an AES3/AES11 digital input, and both analogue and digital outputs. This increases its flexibility even further, and its 12V power input means that you can use it in the middle of a field as easily as in the studio or the edit suite.
| Weight | 1.04 kg |
|---|---|
| Dimensions | 25.65 × 16.76 × 10.922 cm |
| Number of Channels: |
2 |
| Process Type: |
CEDAR DNS with Learn |
| Mic/Line Inputs: |
2 x Balanced XLR3F |
| Line Output: |
2 x Balanced XLR3M |
| Output Signal Level : |
+4 dBu Nominal |
| Maximum Output: |
+24 dBu |
| AD/DA: |
24-Bit Linear PCM |
| Phantom Power Mic Inputs: |
48V ±4 V, 10 mA per Mic |
| Digital Input: |
1 x AES3 or AES11 via Balanced XLR3F |
| Output: |
1 x AES3 via Balanced XLR3M |
| Sample Rate: |
Sync Range: 40 kHz to 100 kHz |
| Resolution: |
40-Bit, Floating-Point |
| Latency: |
<0.1 ms |
