Blackmagic URSA Cine EVF

AED 6,863.000 Excl. VAT

  • For URSA Cine 12K Cinema Camera
  • Also Works with PYXIS 6K Cameras
  • 1920 x 1080p60 Resolution OLED Display
  • USB-C Connection to Camera
  • Zoom, Exposure, Record Buttons
  • Rotating Bracket, Tally LED
  • +5/-5 Diopter, 15mm Rod Clamp
  • 19 & 15mm Carbon Fiber Rods

In stock

SKU: CINEURSAB/EVF Categories: ,
Description

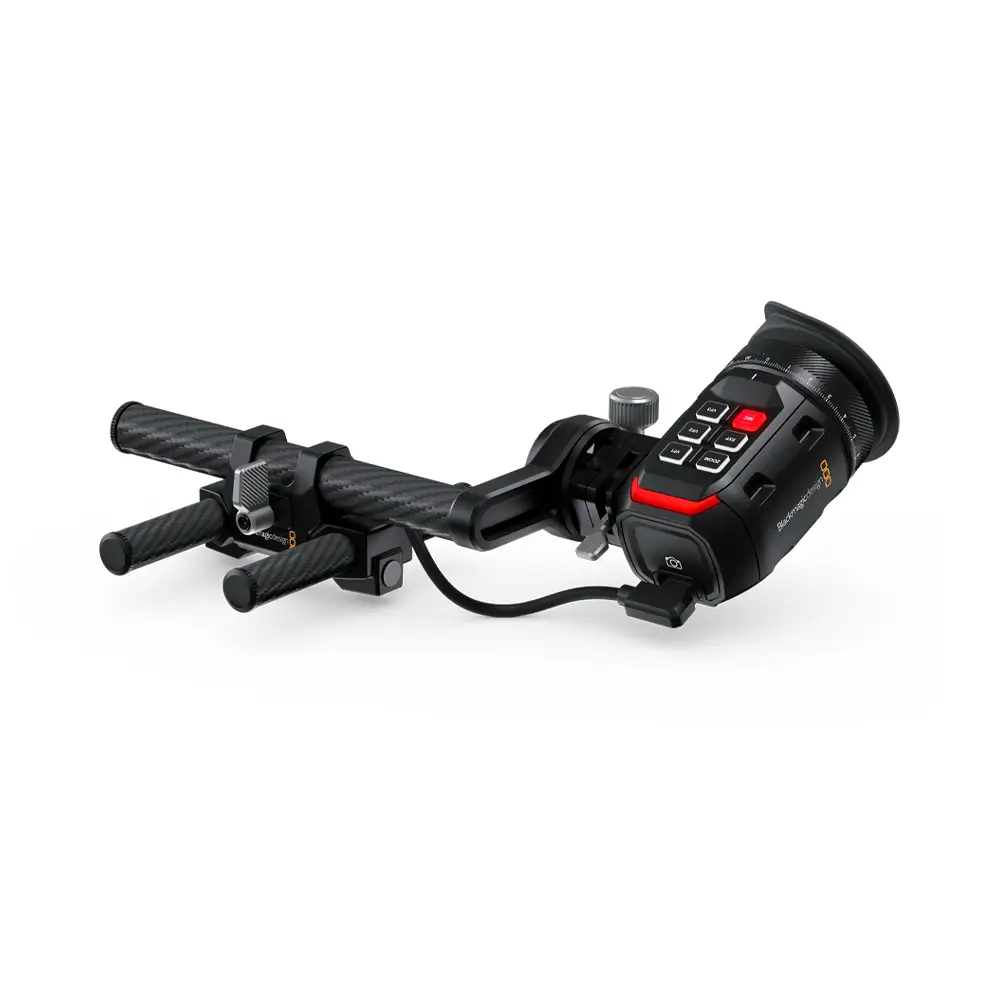

Add the high-resolution URSA Cine EVF to your Blackmagic Design URSA Cine 12K or PYXIS 6K camera for crisp, clear images, making shooting easy in any environment. The EVF features a 1920 x 1080 color OLED display supporting up to 60 fps to view your image with status information, frame guides, and even a built-in focus chart to help you achieve the sharpest focus. It mounts on top of your camera using the included bracket assembly, which includes a 15mm rod clamp, a 19mm cross rod, and two carbon fiber 15mm rods. A tally light allows you to clearly see when the camera is rolling.

The built-in proximity sensor switches on the EVF only when it’s in use to save power, and it features a 4-element glass diopter that provides a range of adjustments. The EVF connects to the URSA Cine 12K or PYXIS 6K using a USB-C cable, which is also used for firmware updates. Also included are two different rubber eyecups to give you options for comfort and size.

NOTE: The Blackmagic URSA Cine Handle is required for mounting the EVF onto Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras.

Compatibility
  • Blackmagic URSA Cine 12K LF cameras
  • Blackmagic PYXIS 6K cameras
  • Blackmagic URSA Cine Handle
  • The included Blackmagic URSA Cine EVF Extension is compatible with standard extended viewfinder supports
Additional information
Connections

Video Inputs
USB-C

Power Input
USB-C

Data Input / Output
USB-C

Computer Interface
USB-C for software updates.

Display Resolution

Full 1920 x 1080.
6.22 Million dots

Display Type

OLED

Frame Rates

Up to 60fps

Focus

4 Element diopter.

Diopter Range

-5 to +5

Controls

Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.

Overlays

Built in overlay display processor and top mounted buttons.

Eyepiece

Can be tilted vertically and extended for left or right eye use.

Tally

LED tally light.

Mounting Options

Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.

Power Requirements

Powered over USB‑C.
