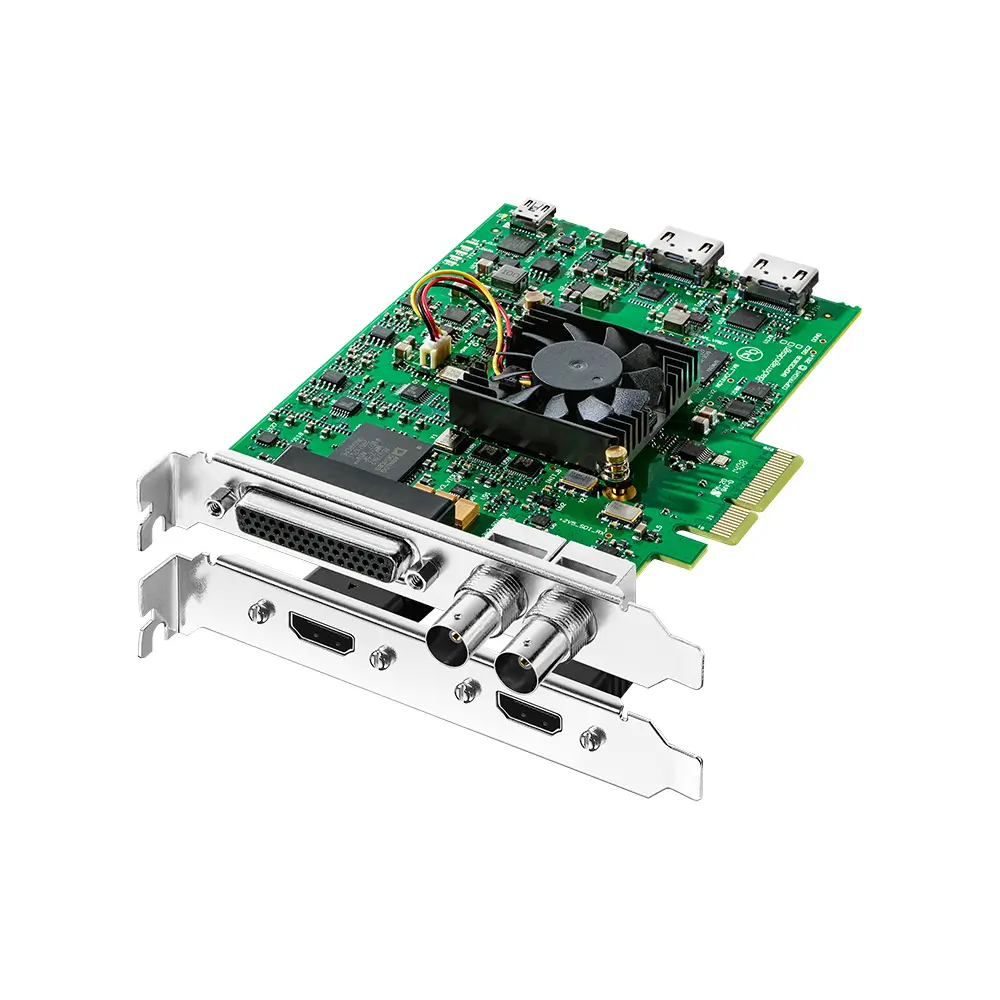

Blackmagic Design DeckLink Studio 4K

AED 2,374.000 Excl. VAT

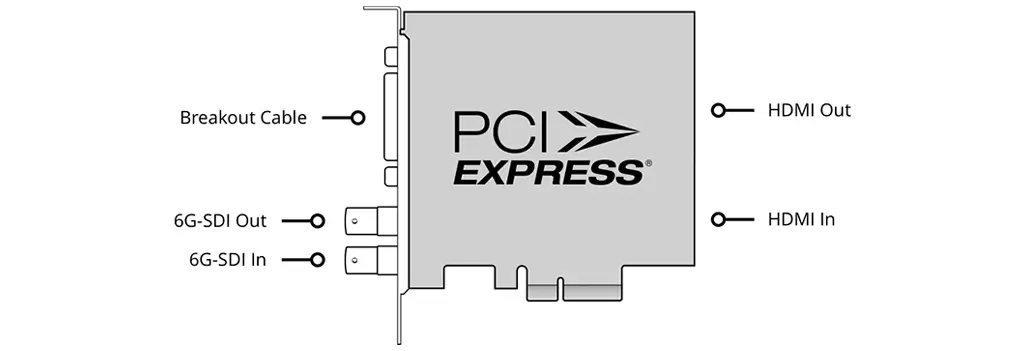

6G-SDI Input/Output
4K HDMI Input/Output
PCIe Interface
Supports SD, HD, 2K, and 4K Formats
UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
1080p 4:4:4 by Single-Link 3G-SDI
Analog I/O via Breakout Cable
Genlock, RS-422, SD/HD Keyer
Down/Up/Cross Conversions
Mac OS X, Windows, and Linux Compatbile

Available on backorder

Add to wishlist

SKU: BDLKSTUDIO4K Categories: Blackmagic Design, Capture and Playback

Description
Additional information

Description

DeckLink Studio 4K

Capture and playback 6G-SDI, HDMI 4K and analog in SD, HD and Ultra HD.

Perfect for Post Production

Works with all file formats up to 8K DC

Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve. Depending on the model you choose, DeckLink cards support the complete range of formats used in today’s high end film, television and commercial post production. You get 12‑bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D and more! There are DeckLink models to support either file or tape based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even digital cinema projectors.

Select Your Favorite Model

There’s a perfect DeckLink model for every job! The high performance DeckLink 8K Pro models and DeckLink 4K Extreme 12G feature the latest advanced 12G technology for Ultra HD and 8K. You can also choose from 1.5G, 3G, 6G, and 12G‑SDI models that feature different combinations of SDI, analog and HDMI connections. There are even multi channel models that allow you to use a single card to capture and playback from multiple sources at the same time! All models support embedded SDI audio for full compatibility with professional broadcast equipment such as decks, monitors, projectors and more.

Highest Quality Connections

Every DeckLink card features high quality connections so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment. DeckLink 8K Pro Mini features 4 independent mini BNC 12G-SDI connections, DeckLink 8K Pro G2 includes Quad Link 12G-SDI, while other models feature single and dual link 6G and 12G‑SDI, or single link 3G-SDI. In addition, some DeckLink cards include a professional analog component, S-video and composite connections, along with 2 channels of AES/EBU and 4 channels of balanced analog audio in and out. All models include Black Burst/Tri-sync reference and serial deck control. The 6G and 12G-SDI cards feature multi rate connections that automatically detect and switch speed for working with all SD, HD and Ultra HD formats. The advanced DeckLink 8K Pro models and DeckLink 4K Extreme 12G support additional high resolution DCI formats and higher frame rates!

Unrivaled Video Quality

DeckLink lets you work with compressed video formats such as ProRes and DNxHD as well as 10‑bit uncompressed YUV and 12‑bit RGB video. When working with uncompressed, all images are a mathematically perfect pixel-for-pixel clone of the source, without any generational loss, so you have the confidence you’re working at the absolute highest quality possible. Get sharper keying with green screens, cleaner compositions, superior color correction and more!

Advanced Technology

Get the latest 6G-SDI and 12G-SDI technology so you can capture and playback in full resolution Ultra HD, 4K or even 8K video, while remaining fully compatible with all SD and HD-SDI equipment! That’s up to 16 times the resolution of regular 1080 HD video at a massive 7680 x 4320 image size! DeckLink SDI 4K and the DeckLink Studio 4K include 6G-SDI, while the advanced DeckLink 8K Pro models have Quad Link 12G-SDI and DeckLink 4K Extreme 12G includes dual link 12G-SDI connections for higher color resolution, dual stream 3D stereoscopic support and frame rates up to 60p! Both DeckLink 8K Pro models and the DeckLink 4K Extreme 12G are perfect choices for DaVinci Resolve editing and color correction!

Use Your Favorite Software
DeckLink cards work with the software you love to use!

Mac

No other capture and playback cards are supported by more software applications for Mac. Get drivers that work with fantastic editing software such as DaVinci Resolve, Avid Media Composer, Final Cut Pro X, Premiere Pro and News Cutter. For visual effects get full compatibility with Fusion, Nuke, After Effects and Photoshop. For audio, DeckLink cards work with Fairlight audio in DaVinci Resolve, ProTools, Nuendo and Cubase. For streaming, you can use OBS and Wirecast.

Windows

Get access to a massive range of windows software! DeckLink supports WDM, DirectShow and QuickTime so you can use applications such as DaVinci Resolve, Avid Media Composer and News Cutter, Premiere Pro, Sony Vegas Pro and more. For visual effects use Fusion, After Effects and Photoshop. Audio software supported includes Nuendo, Cubase and more. When streaming you get compatibility with OBS, Xsplit Broadcaster and Wirecast.

Linux

DeckLink cards are open standard capture cards and are perfect for the development of Linux based video applications. They’re designed to work perfectly with DaVinci Resolve for editing, color correction and professional audio. There’s also a free, well documented SDK that makes it easy for you to develop specific solutions to meet your needs. Blackmagic’s Design Media Express is also available for capture and playback when using DeckLink with Linux operating systems.

Additional information

Weight	0.1673 kg
Dimensions	14.10 cm
Connections	SDI Video Inputs 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. SDI Video Outputs 1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. Analog Video Inputs 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD. Analog Video Outputs 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD. Analog Audio Inputs 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Analog Audio Outputs 4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs. AES/EBU Audio Inputs 2 Channels unbalanced with sample rate converter. AES/EBU Audio Outputs 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature. SDI Audio Inputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. SDI Audio Outputs 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. HDMI Video Inputs 1 x HDMI type A connector. HDMI Video Outputs 1 x HDMI type A connector. HDMI Audio Inputs 8 Channels embedded in SD, HD, 4K. HDMI Audio Outputs 8 Channels embedded in SD, HD, 4K Sync Input Tri-Sync or Black Burst. Device Control Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. Computer Interface PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
Supported Codecs	AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR & DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Video Standards	SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards (SDI Only) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p* * SDI Only SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Video Sampling 4:2:2, 4:4:4* *4K is 4:2:2. SDI Color Precision 8, 10-bit RGB 4:4:4 in all modes up to 1080p25 2K DCI, 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 601, REC 709 HDMI Video Sampling 4:4:4, 4:2:2 & 4:2:0 HDMI Color Precision 10-bit RGB HD 10-bit YUV in HD and 4K HDMI Configuration HDMI 1.4b. Automatically configures to connected display. Audio Sampling Television standard sample rate of 48 kHz at 24 bit. Color Precision 10-bit Color Space REC 601, REC 709 HDMI Resolution Pixel for pixel up to 4K resolutions. Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing	HD Down Conversion Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. HD Up Conversion Built in, high quality software up converter from SD to HD on input. Selectable between 16:9 Zoom or anamorphic. Cross Conversion Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback. Real Time Effects DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. Colorspace Conversion Hardware based real time.
