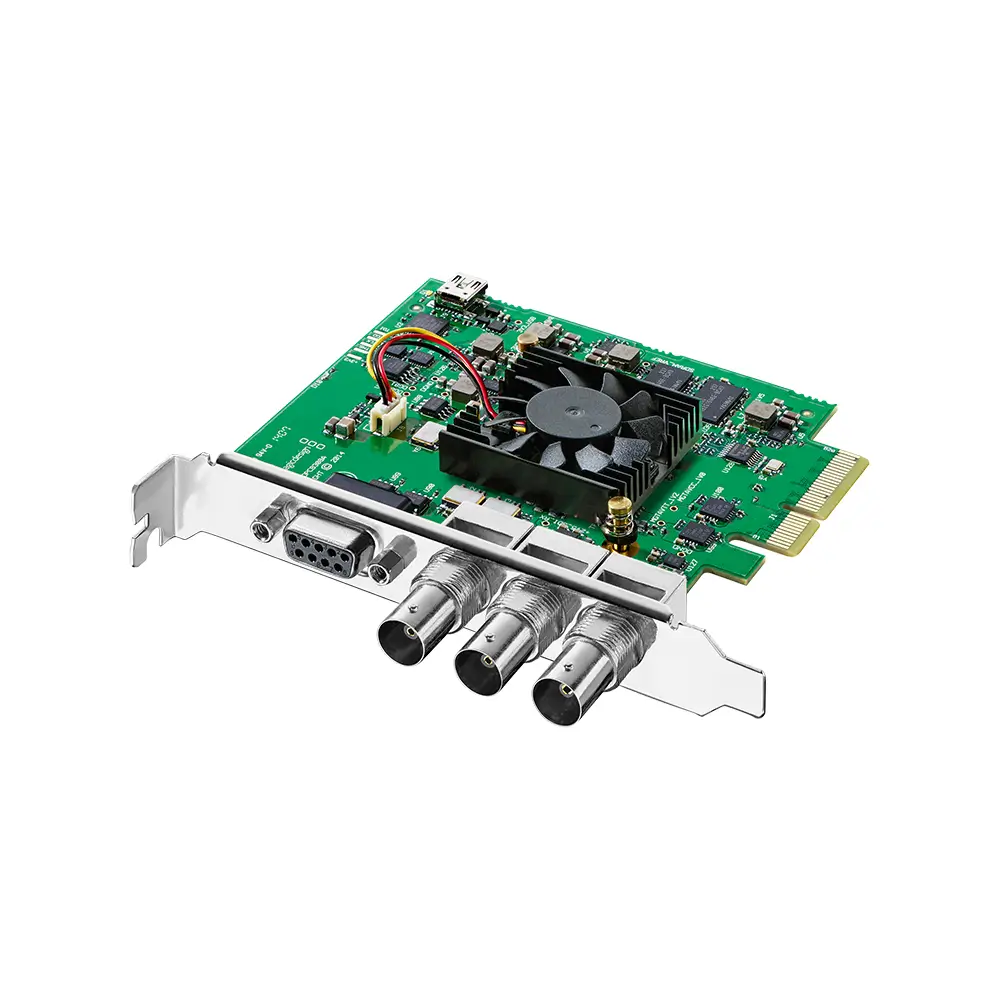

Blackmagic Design Decklink SDI 4K
AED 1,174.000 Excl. VAT

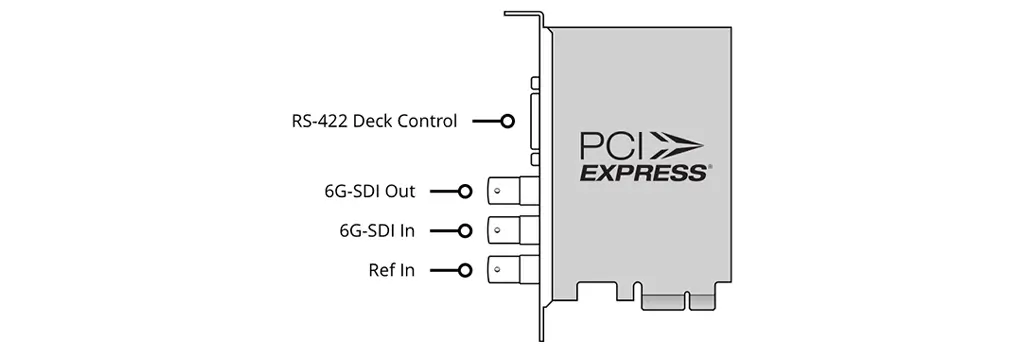

- SD/HD/3G/6G-SDI Input/Output
- PCIe Interface
- UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
- 1080p 4:4:4 by Single-Link 3G-SDI
- 10-Bit Processing
- RS-422 Deck Control
- Internal Keying
- Reference Input
- Down/Up/Cross Conversions
- macOS, Windows, and Linux Compatible
Available on backorder
DeckLink SDI 4K
Perfect for Post Production
Works with all file formats up to 8K DC
Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve. Depending on the model you choose, DeckLink cards support the complete range of formats used in today’s high end film, television and commercial post production. You get 12‑bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D and more! There are DeckLink models to support either file or tape based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even digital cinema projectors.
Select Your Favorite Model
There’s a perfect DeckLink model for every job! The high performance DeckLink 8K Pro models and DeckLink 4K Extreme 12G feature the latest advanced 12G technology for Ultra HD and 8K. You can also choose from 1.5G, 3G, 6G, and 12G‑SDI models that feature different combinations of SDI, analog and HDMI connections. There are even multi channel models that allow you to use a single card to capture and playback from multiple sources at the same time! All models support embedded SDI audio for full compatibility with professional broadcast equipment such as decks, monitors, projectors and more.
Highest Quality Connections
Every DeckLink card features high quality connections so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment. DeckLink 8K Pro Mini features 4 independent mini BNC 12G-SDI connections, DeckLink 8K Pro G2 includes Quad Link 12G-SDI, while other models feature single and dual link 6G and 12G‑SDI, or single link 3G-SDI. In addition, some DeckLink cards include a professional analog component, S-video and composite connections, along with 2 channels of AES/EBU and 4 channels of balanced analog audio in and out. All models include Black Burst/Tri-sync reference and serial deck control. The 6G and 12G-SDI cards feature multi rate connections that automatically detect and switch speed for working with all SD, HD and Ultra HD formats. The advanced DeckLink 8K Pro models and DeckLink 4K Extreme 12G support additional high resolution DCI formats and higher frame rates!
Unrivaled Video Quality
DeckLink lets you work with compressed video formats such as ProRes and DNxHD as well as 10‑bit uncompressed YUV and 12‑bit RGB video. When working with uncompressed, all images are a mathematically perfect pixel-for-pixel clone of the source, without any generational loss, so you have the confidence you’re working at the absolute highest quality possible. Get sharper keying with green screens, cleaner compositions, superior color correction and more!
Advanced Technology
Get the latest 6G-SDI and 12G-SDI technology so you can capture and playback in full resolution Ultra HD, 4K or even 8K video, while remaining fully compatible with all SD and HD-SDI equipment! That’s up to 16 times the resolution of regular 1080 HD video at a massive 7680 x 4320 image size! DeckLink SDI 4K and the DeckLink Studio 4K include 6G-SDI, while the advanced DeckLink 8K Pro models have Quad Link 12G-SDI and DeckLink 4K Extreme 12G includes dual link 12G-SDI connections for higher color resolution, dual stream 3D stereoscopic support and frame rates up to 60p! Both DeckLink 8K Pro models and the DeckLink 4K Extreme 12G are perfect choices for DaVinci Resolve editing and color correction!
Use Your Favorite Software
DeckLink cards work with the software you love to use!
Mac
No other capture and playback cards are supported by more software applications for Mac. Get drivers that work with fantastic editing software such as DaVinci Resolve, Avid Media Composer, Final Cut Pro X, Premiere Pro and News Cutter. For visual effects get full compatibility with Fusion, Nuke, After Effects and Photoshop. For audio, DeckLink cards work with Fairlight audio in DaVinci Resolve, ProTools, Nuendo and Cubase. For streaming, you can use OBS and Wirecast.
Windows
Get access to a massive range of windows software! DeckLink supports WDM, DirectShow and QuickTime so you can use applications such as DaVinci Resolve, Avid Media Composer and News Cutter, Premiere Pro, Sony Vegas Pro and more. For visual effects use Fusion, After Effects and Photoshop. Audio software supported includes Nuendo, Cubase and more. When streaming you get compatibility with OBS, Xsplit Broadcaster and Wirecast.
Linux
DeckLink cards are open standard capture cards and are perfect for the development of Linux based video applications. They’re designed to work perfectly with DaVinci Resolve for editing, color correction and professional audio. There’s also a free, well documented SDK that makes it easy for you to develop specific solutions to meet your needs. Blackmagic’s Design Media Express is also available for capture and playback when using DeckLink with Linux operating systems.
| Weight | 0.128 kg |
|---|---|
| Dimensions | 9.53 cm |
| Connections |
SDI Video Inputs SDI Video Outputs SDI Audio Inputs SDI Audio Outputs Sync Input Device Control Computer Interface |
| Supported Codecs |
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4. |
| Video Standards |
SD Video Standards HD Video Standards 2K Video Standards (SDI Only) Ultra HD Video Standards 4K Video Standards SDI Compliance SDI Metadata Support Audio Sampling Video Sampling Color Precision Color Space Multiple Rate Support |
| Processing |
HD Down Conversion HD Up Conversion Cross Conversion Real Time Effects Colorspace Conversion |
