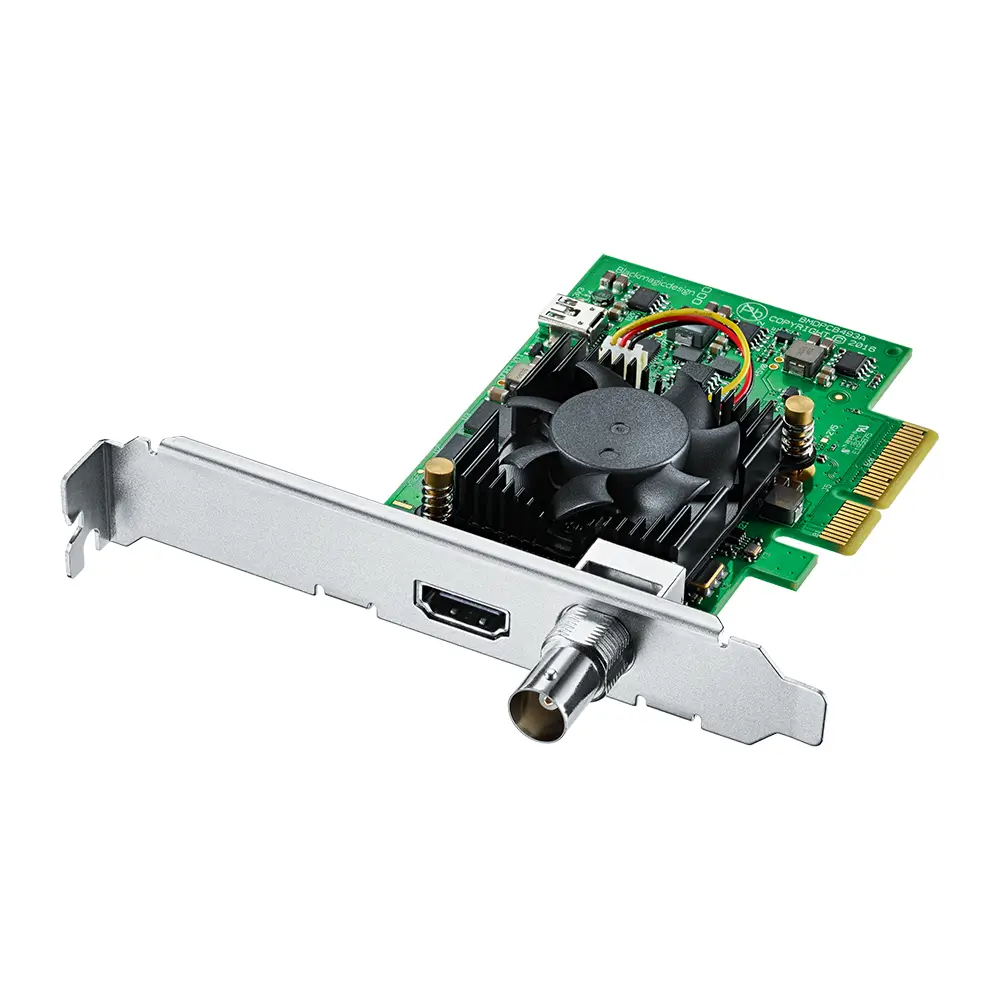

Blackmagic Design DeckLink Mini Recorder 4K
AED 791.000 Excl. VAT
- SD/HD/3G/6G-SDI Input
- HDMI Input
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible
In stock

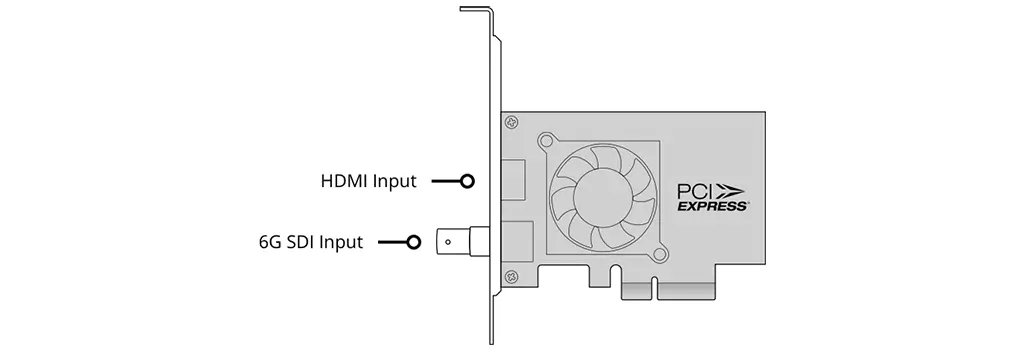

Record SD, HD, or 4K footage via HDMI or SDI with the Blackmagic Design DeckLink Mini Recorder 4K. Whether recording for broadcast or backing up older media to newer, more robust formats for current projects, the Decklink Mini Recorder 4K has you covered. The input panel holds a single SD/HD/3G/6G-SDI input and an HDMI 2.0 input, both capable of DCI and UHD 4K resolutions.
Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution input of nearly any project. Wide software support including Blackmagic Design’s own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple’s Final Cut Pro X, Avid’s Media Composer, and Adobe’s Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.
The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.
Color Space Conversion: Hardware-based, real-time color space conversion
HD Up-Conversion: Software-based down-conversion during video playback
| Weight | 0.09 kg |
|---|---|
| Dimensions | 11.94 cm |
| Connections |
SDI Video Inputs SDI Audio Inputs HDMI Video Inputs HDMI Audio Inputs Computer Interface |
| Supported Codecs |
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2. |
| Video Standards |
SD Video Standards HD Video Standards 2K Video Standards (SDI ONLY) Ultra HD Video Standards 4K DCI Video Standards SDI Compliance SDI Metadata Support Audio Sampling SDI Video Sampling SDI Color Precision Color Space SDI HDR Support HDMI Video Sampling HDMI Configuration HDMI Color Precision HDMI HDR Support Multiple Rate Support Copy Protection |
| Processing |
Colorspace Conversion HD to SD Down Conversion HD Up Conversion |
