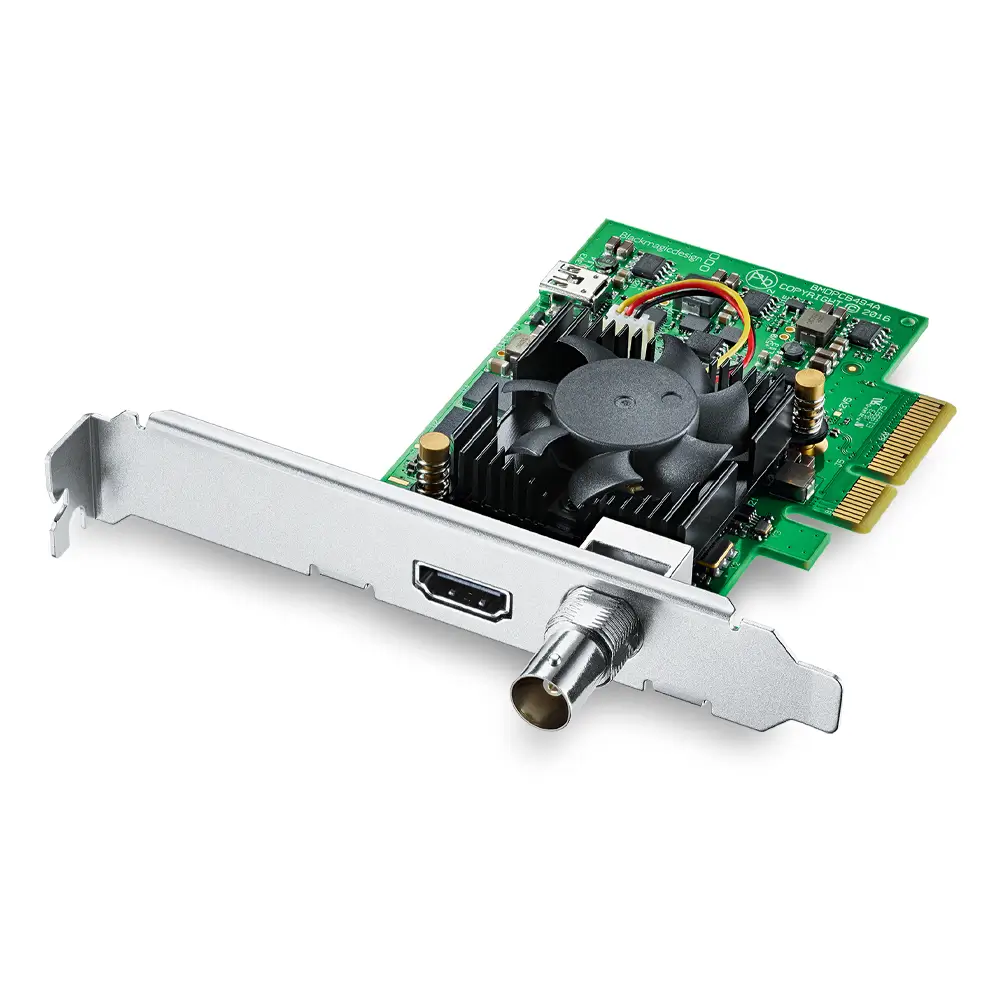

Blackmagic Design DeckLink Mini Monitor 4K
Click to enlarge
Blackmagic Design

Blackmagic Design DeckLink Mini Monitor 4K

AED 791.000 Excl. VAT

  • SD/HD/3G/6G-SDI Output
  • HDMI Output
  • PCI-Express 2.0 x4 Interface
  • DCI 4K, UHD, HD, and SD Video Support
  • 10-Bit Processing
  • Hardware Color Space Conversion
  • Software HD Down-Conversion
  • MacOS X, Windows, and Linux Compatible

In stock

Add to compare
Add to wishlist
SKU: BDLKMINIMON4K Categories: ,
Description

DeckLink Mini Monitor 4K is a low profile PCI Express playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.

Additional information
Dimensions 12 cm
Connections

SDI Video Outputs
1 x 10 bit SD/HD/Ultra HD switchable.

SDI Audio Outputs
16 channels embedded in SD, HD, Ultra HD.

HDMI Video Outputs
1 x HDMI 2.0a connector.

HDMI Audio Outputs
8 Channels embedded in SD, HD, Ultra HD.

Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Video Standards

SD Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.

2K Video Standards (SDI Only)
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.

SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.

SDI Video Sampling
4:4:4 & 4:2:2

Color Space
REC 601, REC 709, REC 2020.

SDI HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics.

HDMI Video Sampling
4:4:4, 4:2:2 & 4:2:0

HDMI Configuration
HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.

HDMI Resolution
Pixel for pixel HD resolution output to connected device.

HDMI Color Precision
Up to 12-bit (Deep Color)

HDMI HDR Support
HDR static metadata packing, HLG and PQ transfer characteristics.

Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
Processing

HD to SD Down Conversion
Software based down conversion during video playback.

HD Cross Conversion
Software based cross conversion from 720p to 1080HD on playback.

Colorspace Conversion
Hardware based real time.

Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
