BirdDog OG4
AED 9,295.000 Excl. VAT
- 4 x 12G-SDI Inputs/Outputs
- Independently Configurable Ports
- SFP+ Port
- Full NDI Encoding and Decoding
Available on backorder

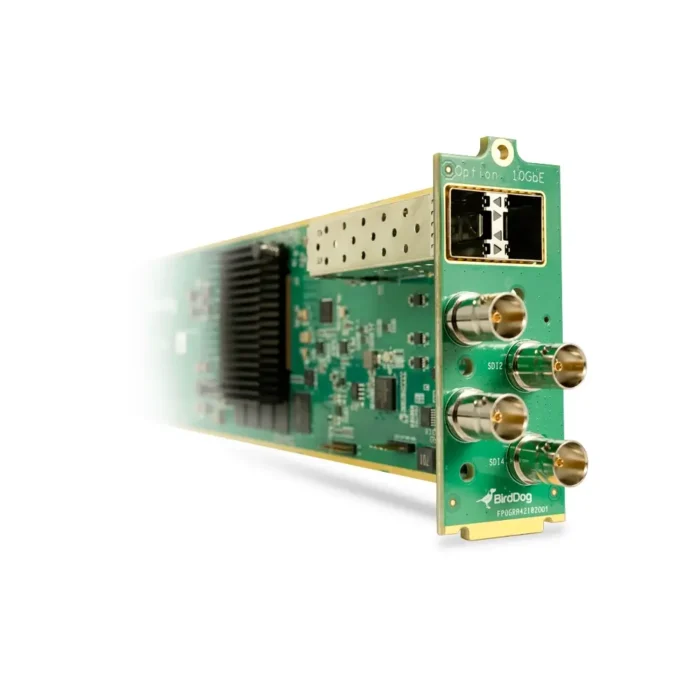

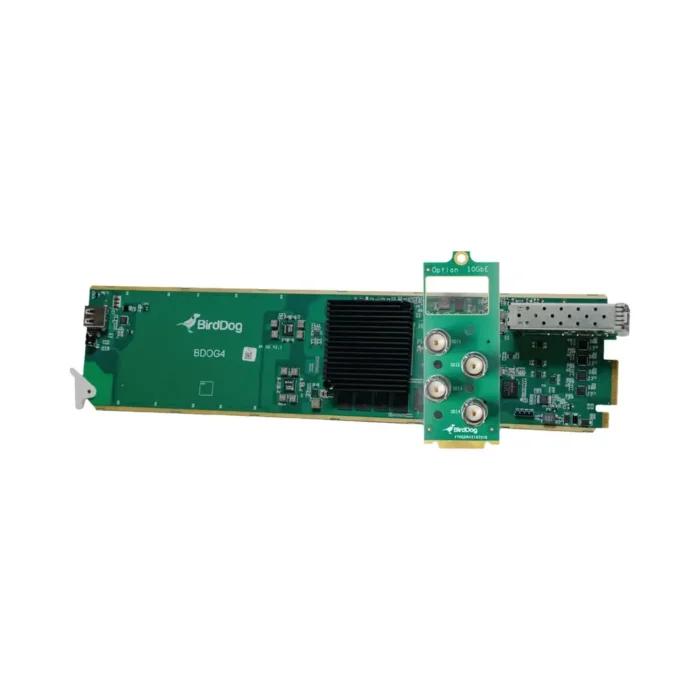

OG4. The World’s First NDI® openGear card.
Delivering four independently configurable 12G SDI channels with breathtaking 4Kp60 performance, the OG4 is built for seamless, high-speed integration into professional workflows.Â
The BirdDog OG4 is your game-changing tool for dynamic, versatile, and high-performance video production.Â

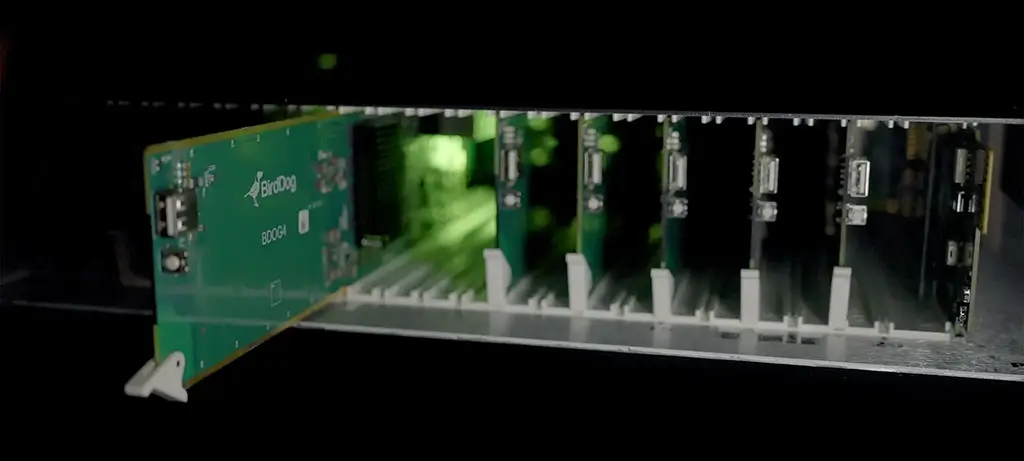

openGear oGx Frame Compatible.
OG4 is fully compatible with the 4th generation of the openGear® platform, oGx. openGear is an open-architecture and modular 2RU rack frame system that allows for OG’s from various manufacturers to live together in the same frame in total harmony.Â
Professional Cooling. Professional Power.
openGear frames include integrated cooling fans to provide maximum cooling for all cards and can be configured with dual, redundant power supplies for maximum reliability and uptime.
Independent Channel Control.
Each channel has independent control of frame rates and resolutions so you can mix and match. Set channel 1 to 4Kp60 and channel 2 to 1080i50. Card must be set to Encode or Decode.
| Weight | 0.096 kg |
|---|---|
| Dimensions | 33.5 × 7.5 × 2.4 cm |
| System Requirements |
3rd Gen openGear oGx modular frame. For 1Gb Ethernet operation, the frame requires either an OG3-N or OG3-NS controller card installed. The 8322-S controller card does not provide external 1 Gb Ethernet connectivity. Both the Ross Dashboard and BirdDog WebUI interfaces must run on a computer that has a physical wired Ethernet connection. Wireless connections do not allow device discovery. |
| OpenGear Frame Support |
Requires oGx frame, the 4th generation of the openGear platform. |
| Supported Video Formats |
UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD 1920x1080i 50, 59.94, 60 HD 1280x720p 50, 59.94, 60 |
| Video I/O Connectivity |
UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD 1920x1080i 50, 59.94, 60 HD 1280x720p 50, 59.94, 60 |
| Audio Input |
SDI 2-ch Per SDI connector |
| Audio Output |
SDI 2-ch Per SDI connector |
| Network Connectivity |
OpenGEAR Network Port (Integrated in Chassis backplane) 1 x 1Gbps SFP+ Network Port 1 x 10Gbps optional module, Optical 10GbE |
| Control Support |
System management and control On-device WebUI, Published RESTful API, Q-Sys plugin, Crestron, Zoom, openGear Dashboard control system Health monitoring On-device WebUI |
