ATEM SDI PRO ISO
AED 3,161.000 Excl. VAT
- 4-Channel Live Stream 3G-SDI Switcher
- Program and 4 x Input ISO Recording
- Generates DaVinci Resolve Project
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- 2-Channel Digital Audio Mixer per Source
- 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
In stock

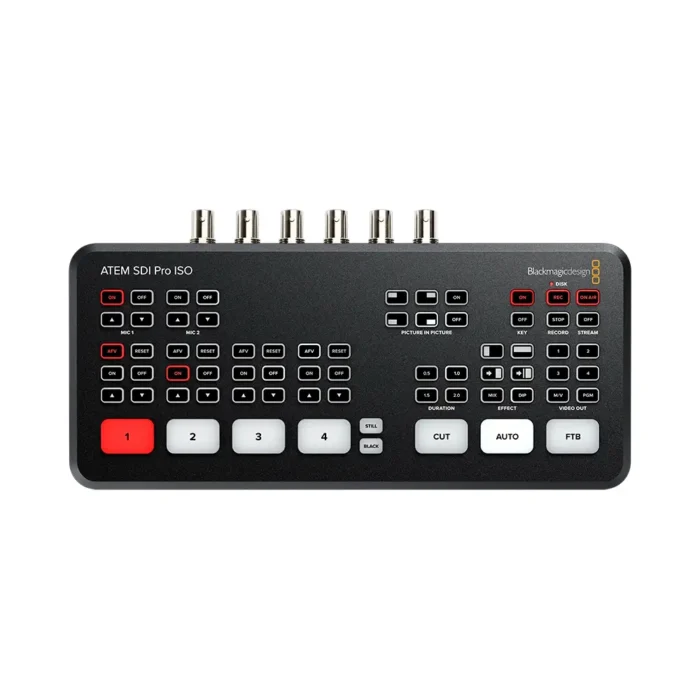

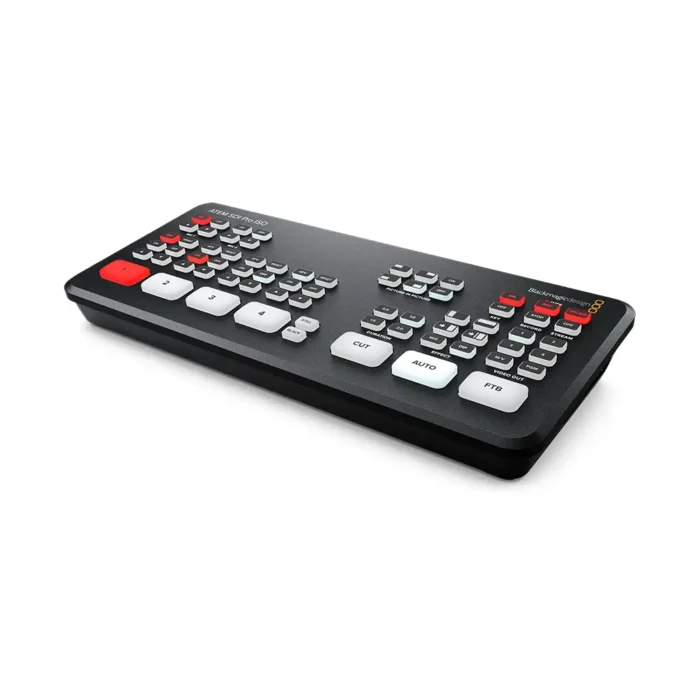

The ATEM SDI Pro ISO Switcher from Blackmagic Design is a powerful four-input live-production switcher, tailored for multi-camera live streaming up to HD quality. With integrated control features, it allows live streaming over Ethernet and recording via its USB output. Not only can the device record the main program output, but it also captures individual 3G-SDI inputs directly to an external USB drive (not included). This setup captures embedded and analog audio inputs, and generates a DaVinci Resolve project file of your live stream, enabling post-production editing and adjustments using the captured source material.

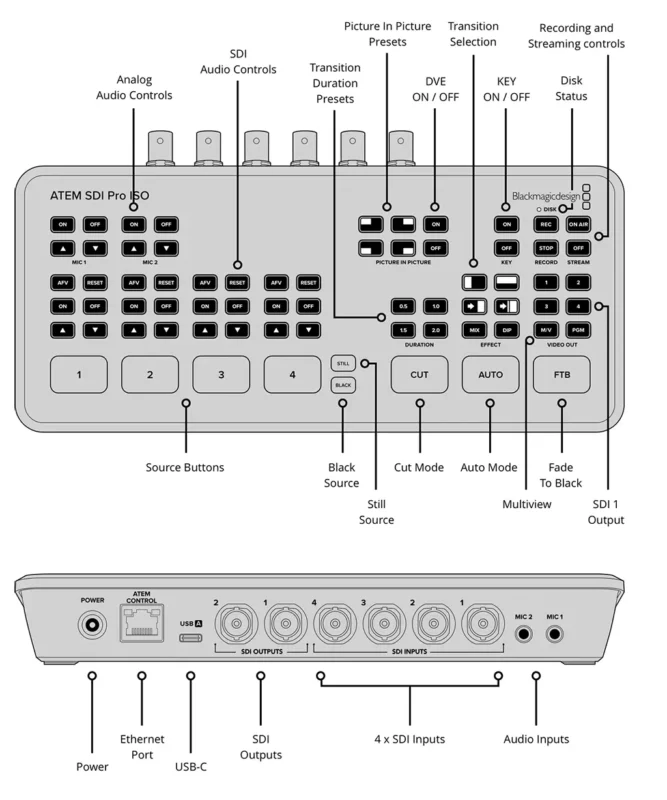

Maintaining the same form factor and button layout as the ATEM Mini Pro, the ATEM SDI Pro ISO adds advanced functionality such as ISO recording and DaVinci Resolve project generation. It supports upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, DVE transition keyers, pattern generators, and color generators. The media player supports up to 20 stills in formats like PNG, TGA, BMP, JPEG, and TIFF.
With the ATEM Software Control Panel, you can monitor data rates, audio meters, configuration, and the status of your live stream. It also enables setup for streaming to the optional Blackmagic Design Streaming Bridge. The switcher can stream video up to 1080p HD and features quick-access buttons for stream, on-air, and record functions, powered by its hardware encoder—removing the need for external streaming software.
Additional key features include:
Capture of the switched program stream and isolated inputs with embedded audio.
Seamless DaVinci Resolve project file creation for live program post-production.
Full control and support for BMPCC 6K/4K cameras with tally light control.
Timecode sync across all cameras for streamlined production workflows.
Simultaneous USB recording with support for MultiDock, allowing live hard drive switching.
Advanced configuration options using XML files.
The ATEM SDI Pro ISO ensures a professional-level production experience, with software multiview for program previews, on-air status, audio meters, and much more.
| Weight | 0.68 kg |
|---|---|
| Dimensions | 23.75 × 11.88 × 3.5 cm |
| Media Player |
Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Product Specifics |
Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE With Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768. |
| Standards |

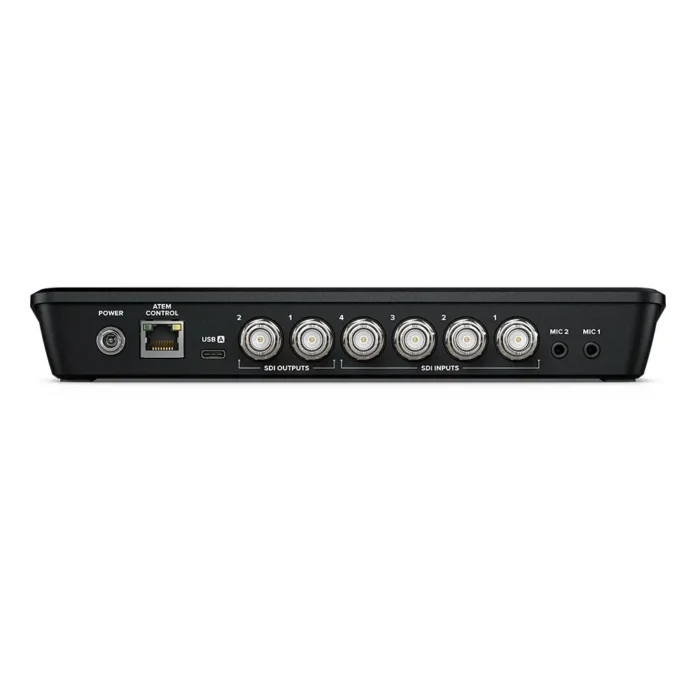

Total Video Inputs 4 Total Outputs 3 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None SDI Video Inputs 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 SDI inputs. Frame Rate and Format Converters On all 4 SDI inputs. SDI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| Audio |
Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections. |
| Streaming |
Direct Streaming ATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB?C. |
| Recording |
Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 6 x 2 channel audio inputs recorded as separate 24?bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system. |
| Multi View Monitoring |
Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 SDI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD |
| Control |
Control Panel Built in control panel. Software control panel with camera control included. Supports optional hardware panel. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB?C connection. Ethernet or USB?C used for updating the software. Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Included ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11. |
| Operating Systems |
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11. |
| Power Requirements |
Power Supply 1 x External 12V power supply. Power Usage 36W |
| What's Included? |
ATEM SDI Pro ISO External 12V DC power supply with international socket adapters |
