ATEM SDI Extreme ISO - Video Production Studio with 9-stream Recording Engine

ATEM SDI Extreme ISO – Video Production Studio with 9-stream Recording Engine

5,943.00 Excl. VAT

8-Channel 3G-SDI Live Streaming Switcher
Supports up to 1080p60
RTMP Streaming via Ethernet or USB-C
Record Program Out and Individual Inputs
11-Input, 2-Channel Audio Mixer
Input Frame Rate and Format Converter
Re-Sync on All 3G-SDI Inputs
HD Multiview Output with up to 16 Views
Local and Software Switching
4 x Upstream, 2 x Downstream Keyers

Available on backorder

SKU: SWATEMMXEPCEXTISO Categories: ATEM Production Switchers, Blackmagic Design

Description
Additional information

Description

Extreme: Double the Power of ATEM SDI Pro

This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.

Change your livestreams for the better

The Blackmagic Design ATEM SDI Extreme ISO will change the way you livestream. With Ethernet connection, the ATEM SDI Extreme ISO can livestream directly to your favorite platforms, including YouTube, Twitch, and Facebook, all in stunning quality without dropping frames. Also, if you’re out on the field and need to access the Internet quickly, the ATEM SDI Extreme ISO can connect via USB to Apple or Android phones and utilize their 5G or 4G mobile data. Record easily to USB flash disks in H.264 video files and AAC audio, and upload your files wherever you need them. What’s more, users can feel comfortable using a variety of broadcast-quality cameras with the ATEM SDI Extreme ISO because all sources re-synch to the switcher automatically. That's nine separate H.264 video streams, packing in eight clean ISO video feeds in addition to program video!

All about that audio

However you roll, the ATEM SDI Extreme ISO can connect both desktop and lapel microphones to its dual independent 3.5mm stereo audio inputs. You’ll easily be able to control the audio levels, thanks to dedicated buttons on the ATEM's face. The Extreme model gains users a headphone jack for direct workflow optimization. You’ll also benefit from a Fairlight audio mixer with compressor, limiter, and 6-band EQ — live sound mixing during your streams and broadcasting has never been easier!

A brilliant broadcast-quality switcher

For those interested in careers in broadcasting, the ATEM SDI Extreme ISO offers features found in high-end broadcast studios like ATEM Advanced Chroma Key, Fairlight audio mixer, DVE, Still Store for graphics, and more. Select the Cut or Auto buttons to choose between cut or effects transitions like dissolve, dip to color DVE squeeze, DVE push, and more. Access even more extended features, thanks to the built-in ATEM Software Control app on Mac/Windows through USB or Ethernet.

When you first receive your ATEM SDI Extreme ISO, it’ll function in “cut bus” mode. Users can easily change this to “program/preview” style operation to suit their needs. The former operational mode takes little effort to master, while the latter operational mode most closely resembles that used by professional broadcasters.

Professional production for a wide variety of applications

Business presentations, interviews, and more just got better! Hook the ATEM SDI Extreme ISO up to Skype, Zoom, or Microsoft Teams and deliver your PowerPoint presentations with tools like picture in picture. Education and training videos will benefit from multi-camera productions, fast setup, and the ATEM Software Panel. eSports competitions become easily tackled with a frame rate of 60 fps — instead of lagging, that means you get a super quick and responsive picture. Lastly, investors and Kickstarter presenters can easily connect cameras with different shots of products while also showing the business plan slide from a tethered laptop or computer. Whatever application you use it for, the ATEM SDI Extreme ISO makes production easy.

A video mixer with a view

With ATEM SDI Extreme ISO’s multiview, you’ll be able to monitor a professional multiview of your video inputs in use. ATEM SDI Extreme ISO users can toggle between 16 custom views at a time, including preview, program, audio mix, and statuses for recording and streaming. Tally indicators also let you know when each source is on air. Custom labels and audio meters further help you toward a broadcast or livestream that’s always better than the last!

Chroma keying, virtual sets, and SuperSource!

The ATEM SDI Extreme ISO hooks you up with an uber-powerful green-screen keying effect with four separate ATEM Advanced Chroma Keyers. This enables per-camera keying, with the other four computer inputs available for designing professional virtual sets. Macro setups let you load your chosen backgrounds into media players. Use a color picker to sample background colors, take advantage of a foreground color corrector, and precisely control edge and flare. Even create graphics and use them in concert with the Chroma Key for title overlays!

The ATEM SDI Extreme ISO makes multi-layering easier with SuperSource, providing four extra DVE layers and a background layer. Essentially, you can assign a SuperSource DVE to any ATEM SDI Extreme input and effortlessly layer your sources overtop a unique background for instantaneous and pro-grade picture-in-picture results — ideal for multi-source interviews and more!

Additional information

Weight	2.26 kg
Dimensions	53.59 × 27.18 × 6.6 cm
Media Player	Media Players 2 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Product Specifics	Upstream Keyers 4 Downstream Keyers 2 Advanced Chroma Keyers Up to 4 Linear/Luma Keyers Up to 4 Transition Keyer DVE only. Total Number of Layers 9 Pattern Generators 5 Color Generators 2 DVE With Borders and Drop Shadow 2 Interface Minimum monitor resolution of 1366 x 768.

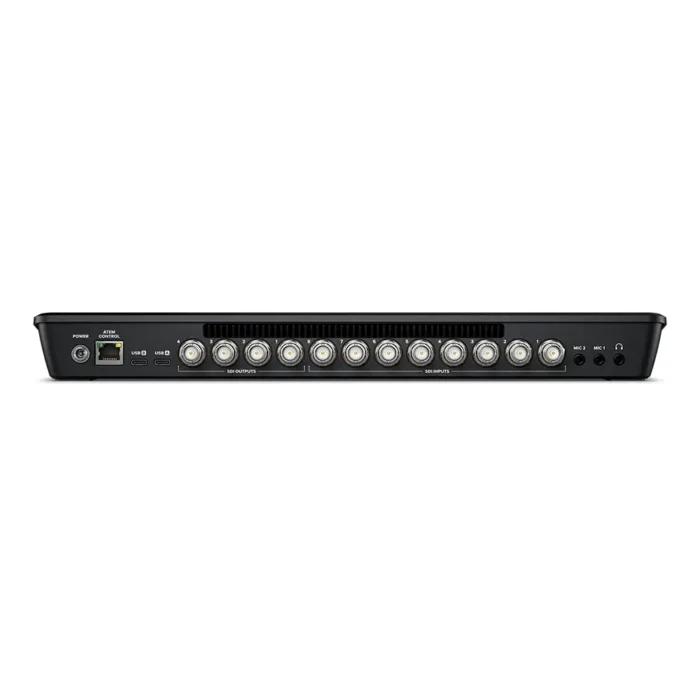

Standards	Total Video Inputs 8 Total Outputs 6 Total Aux Outputs 4 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs 1 x 3.5mm stereo mini jack. Timecode Connection None SDI Video Inputs 8 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 8 SDI inputs. Frame Rate and Format Converters On all 8 SDI inputs. SDI Program Outputs 4 Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. Computer Interface 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Audio	Audio Mixer 11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections.
Streaming	Direct Streaming ATEM SDI Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB?C.
Recording	Direct Recording Video and Audio USB-C 3.1 Gen 1 expansion port can record directly to external media. Video Recording 8 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording 10 x 2 channel audio inputs recorded as separate 24?bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x SDI 2 channel embedded audio inputs. Switching Program switching recorded as a DaVinci Resolve project .drp file. Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi View Monitoring	Multi View Monitoring Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 SDI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard HD
Control	Control Panel Built in control panel. Software control panel with camera control included. Supports optional hardware panel. Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Extreme ISO also supports direct USB?C connection. Ethernet or USB?C used for updating the software. Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Included ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11.
Operating Systems	Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power Requirements	Power Supply 1 x External 12V power supply. Power Usage 36W
What's Included?	ATEM SDI Extreme ISO External 12V DC power supply with international socket adapters
