ATEM SDI
AED 1,380.000 Excl. VAT
- 4-Channel Live Stream 3G-SDI Switcher
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2-Channel Digital Audio Mixer
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
- Color and Pattern Generators
- USB-C Streaming/Webcam Output
Available on backorder

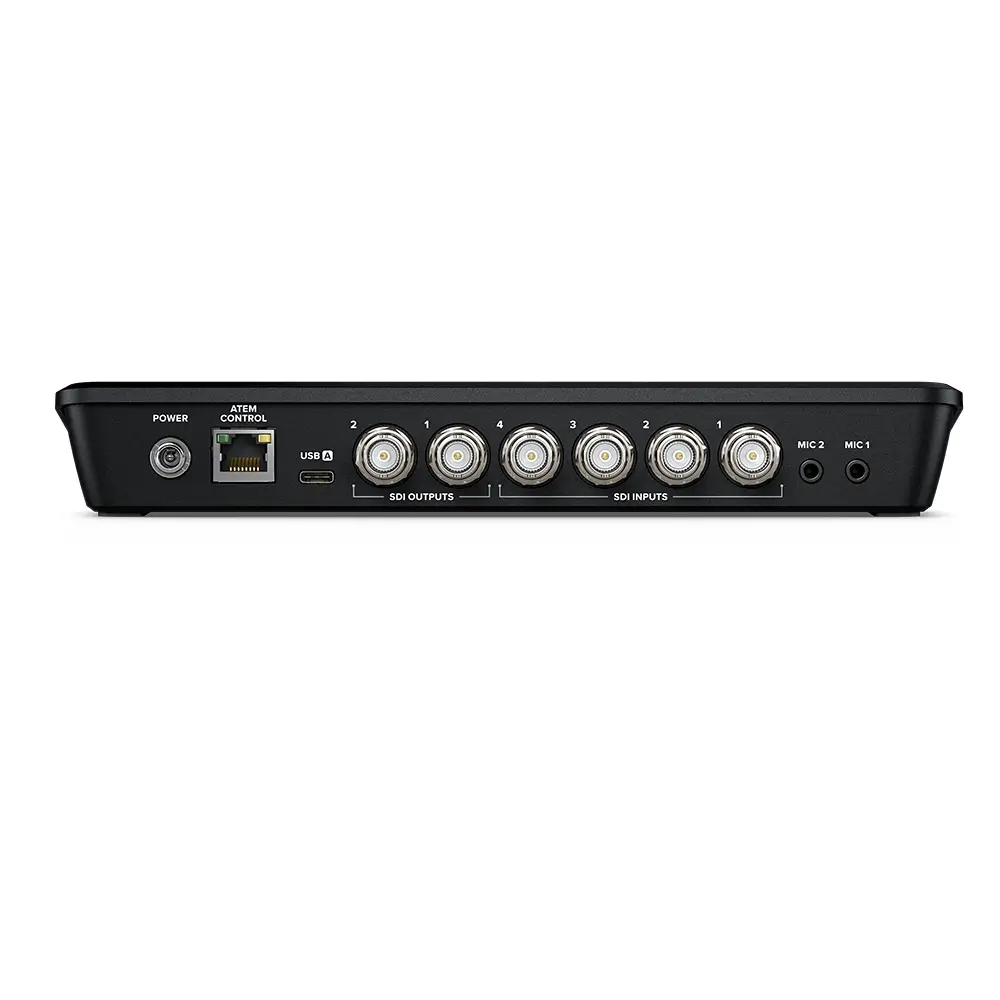

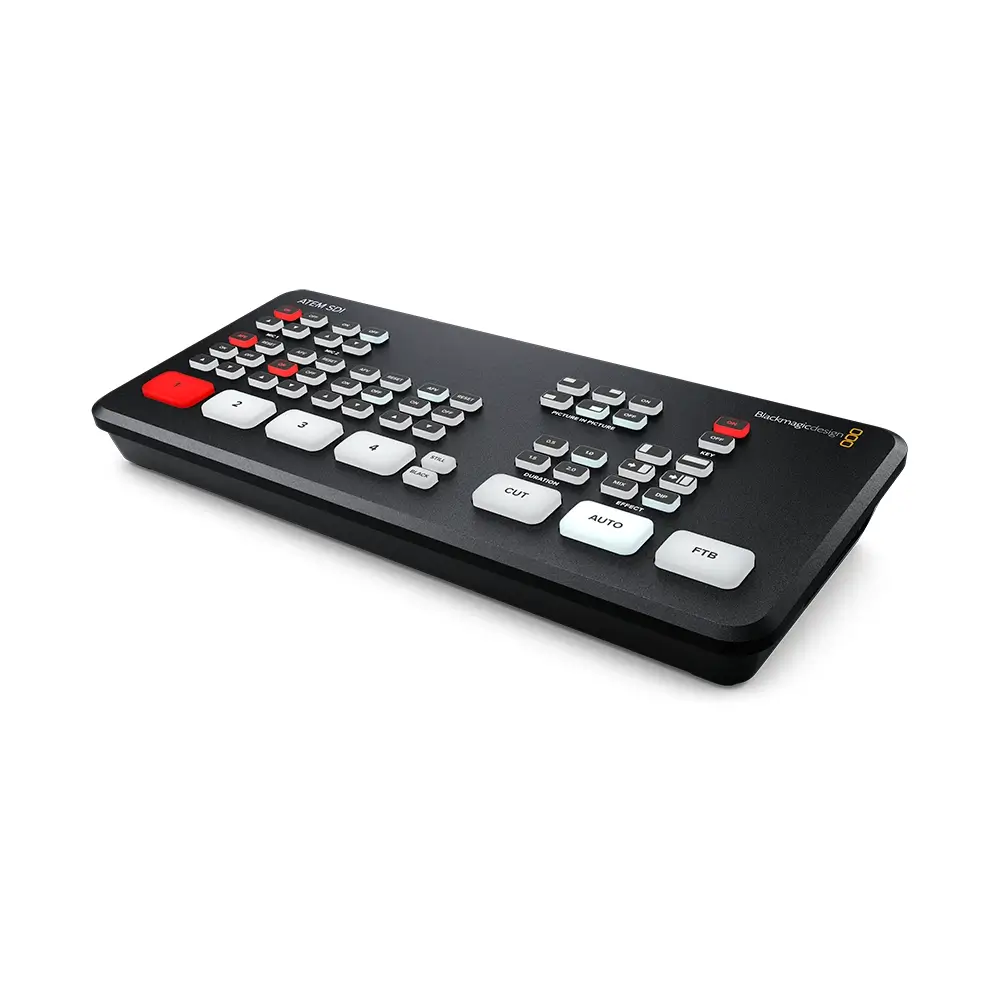

The ATEM SDI by Blackmagic Design is a compact, multi-camera live-streaming switcher designed for internet or broadcast applications. Ideal for gaming consoles, corporate streams, or HD camera setups, it features four SDI inputs, each capable of handling up to 1080p60 video. The device offers two 3G-SDI outputs for projectors or external monitors, a USB-C output for 1080p60 streaming to computers, and an RJ45 Ethernet port for system management, remote control, and updates.

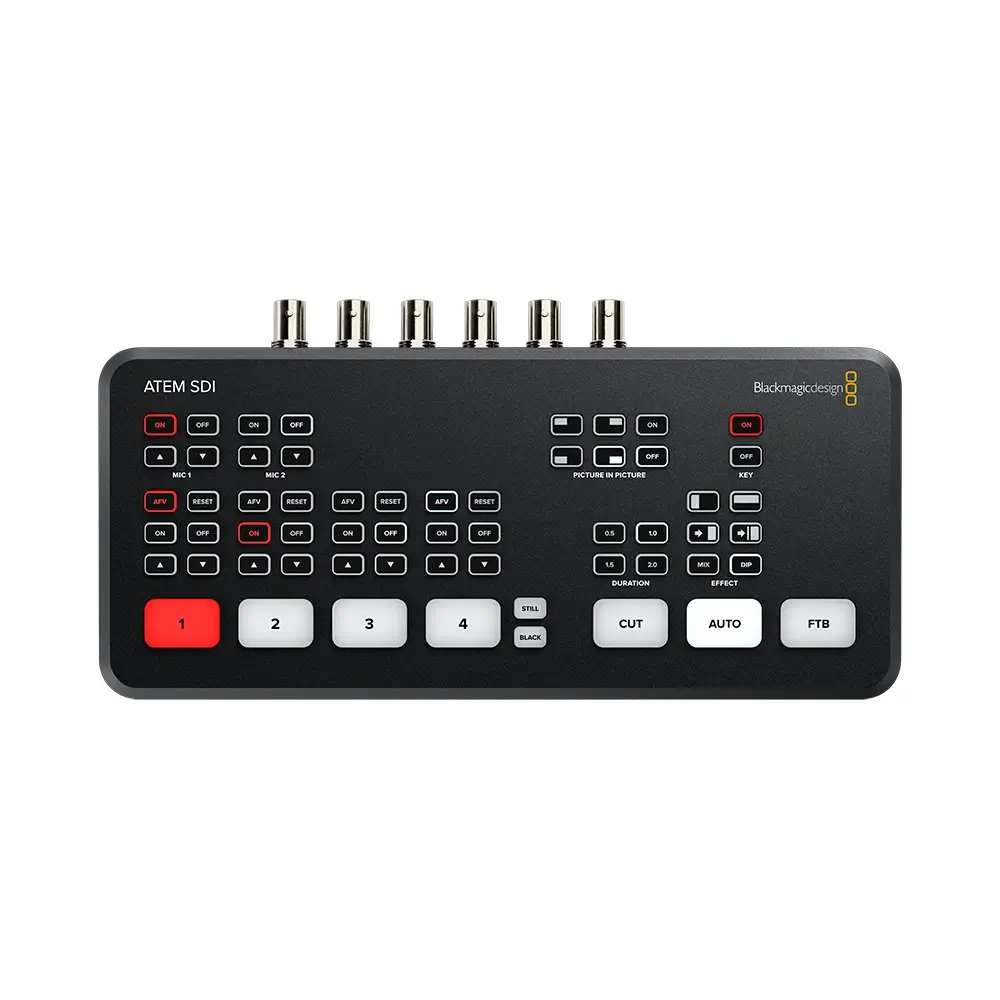

The integrated control panel provides backlit, easy-to-use buttons for selecting camera inputs, controlling transitions, and managing keyers, settings, and the digital video effects (DVE). It includes upstream and downstream keyers, advanced chroma keying, two linear/luma keyers, DVE transition keyers, pattern generators, and two color generators.
For media support, it offers fill and key image support for up to 20 stills in formats like PNG, TGA, BMP, JPEG, and TIFF. The SDI output ensures a minimum resolution of 1366 x 768 for stream monitoring and is compatible with the ATEM Software Control Panel via Ethernet for advanced control and configuration.
| Weight | 0.68 kg |
|---|---|
| Dimensions | 23.75 × 11.88 × 3.5 cm |
| Media Player |
Media Players 1 Channels Fill and key for each Media Player. Media Pool Still Image Capacity 20 with fill and key. Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Product Specifics |
Upstream Keyers 1 Downstream Keyers 1 Advanced Chroma Keyers 1 Linear/Luma Keyers 2 Transition Keyer DVE only. Total Number of Layers 5 Pattern Generators 1 Color Generators 2 DVE With Borders and Drop Shadow 1 Interface Minimum monitor resolution of 1366 x 768. |
| Standards |
Total Video Inputs 4 Total Outputs 3 Total Aux Outputs 2 Total Audio Inputs 2 x 3.5mm stereo mini jack. Total Audio Outputs None, embedded audio only. Timecode Connection None SDI Video Inputs 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. Video Input Re-Sync On all 4 SDI inputs. Frame Rate and Format Converters On all 4 SDI inputs. SDI Program Outputs 2 Ethernet Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection. Computer Interface 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection. |
| Audio |
Audio Mixer 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. Analog Input Unbalanced stereo Analog Input Delay Up to 8 frames Input Impedance 1.8k Max Input Level +6dBV Mic Plug In Power Available on both 3.5mm mini jack connections |
| Recording |
Control Panel Built in control panel. Software control panel included. Supports optional hardware panel. Control Panel Connection Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection. Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Included ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11. |
| Operating Systems |
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11. |
| Power Requirements |
Power Supply 1 x External 12V power supply. Power Usage 36W |
| What's Included? |
ATEM SDI External 12V DC power supply with international socket adapters |
