ATEM Mini Pro
1,174.00 Excl. VAT
- Fast to set up and easy to use
- 4 standards-converted HDMI inputs
- USB webcam out and HDMI out
- Fairlight audio mixer with EQ and dynamics
- DVE for picture-in-picture (PIP)
- Transition effects and green screen chroma key
- 20-stills media pool for titles
- Free ATEM Software Control included
- Direct recording to USB flash disks in H.264 format
- Direct streaming via Ethernet to YouTube Live and more platforms
- Multiview display with:
- 4 cameras
- Media
- Preview and program
- Status of recording, streaming, and audio
In stock (can be backordered)

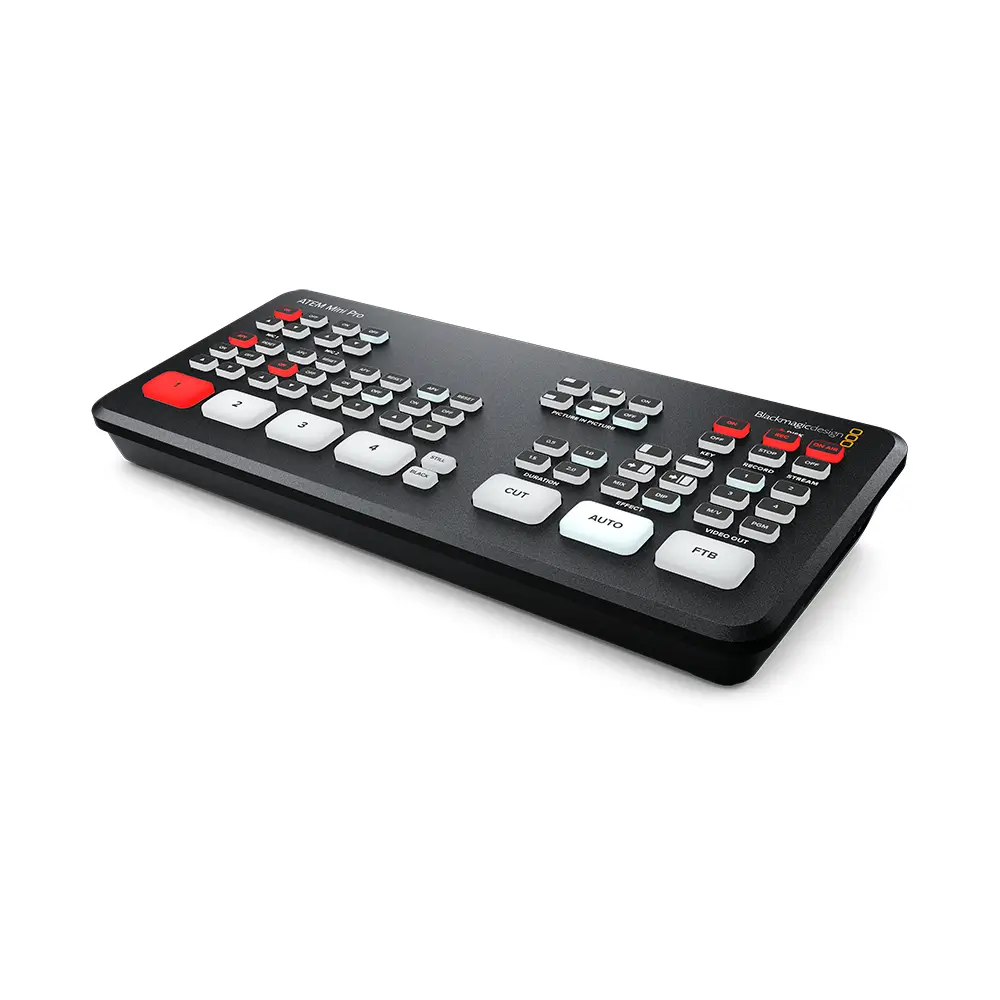

The ATEM Mini Pro from Blackmagic Design is an advanced four-input live production switcher, building on the success of its predecessor, the ATEM Mini. Designed for live streaming and broadcast applications, it offers versatile multi-camera switching for a range of inputs, including gaming consoles, corporate streams, and HD cameras, delivering up to 1080p HD video.
Key upgrades in the ATEM Mini Pro include a built-in hardware encoder for direct live streaming without the need for additional software. It features real-time streaming status information, live stream data rates, simultaneous recording to USB drives, and a timecode generator, along with stream caching and multiview program preview support. The Pro version also integrates fully with Blackmagic Design Pocket Cinema Camera 4K and 6K models, providing tally light control and automatic timecode synchronization.

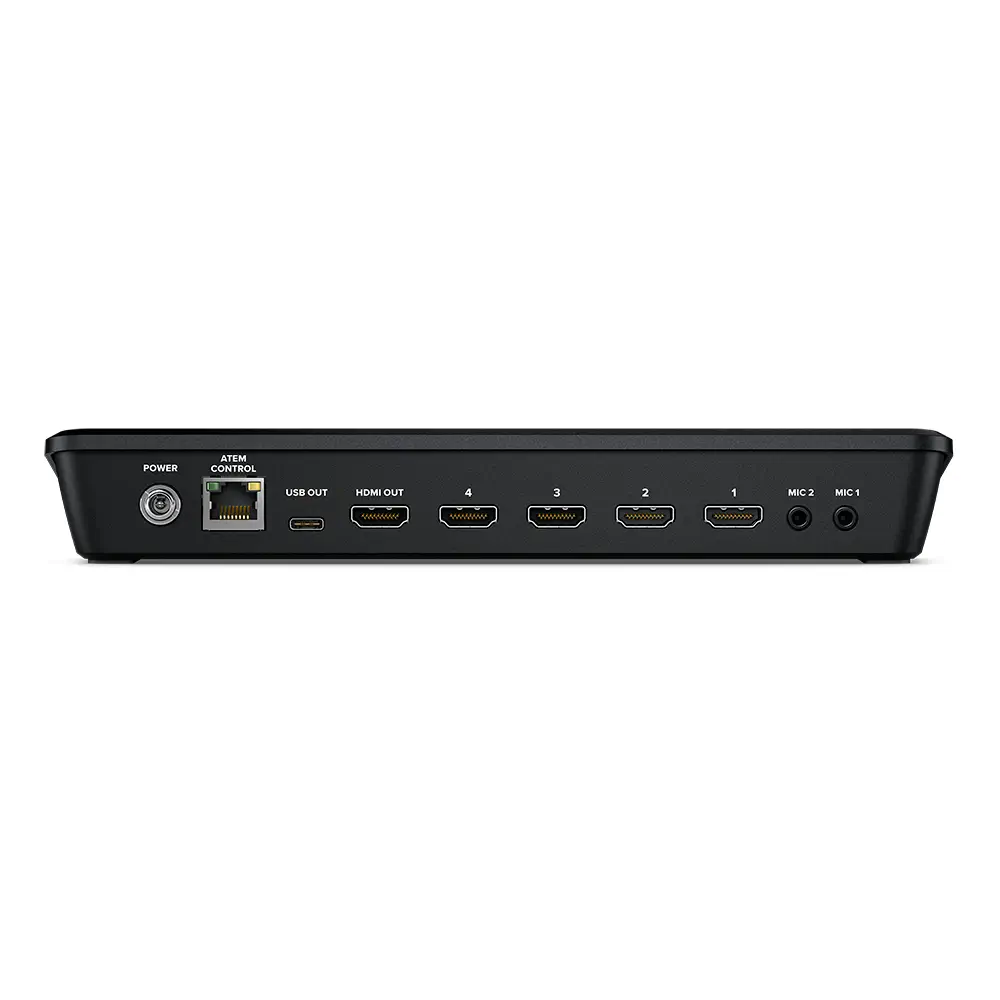

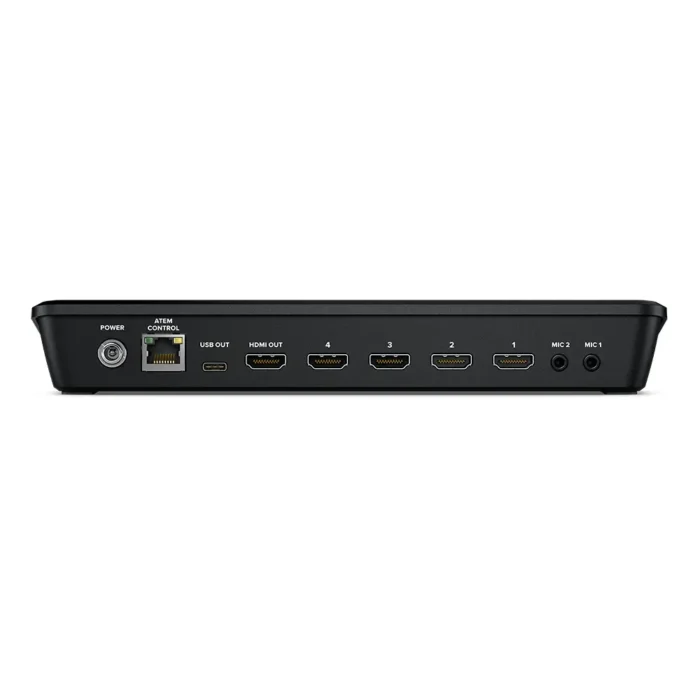

On the rear panel, four HDMI inputs allow for up to 1080p video sources, while an HDMI output supports monitoring via a projector or multiview display. Additionally, the unit’s USB Type-C output enables HD video recording directly to a computer, and an RJ45 Ethernet port supports direct streaming, remote control, and system updates.

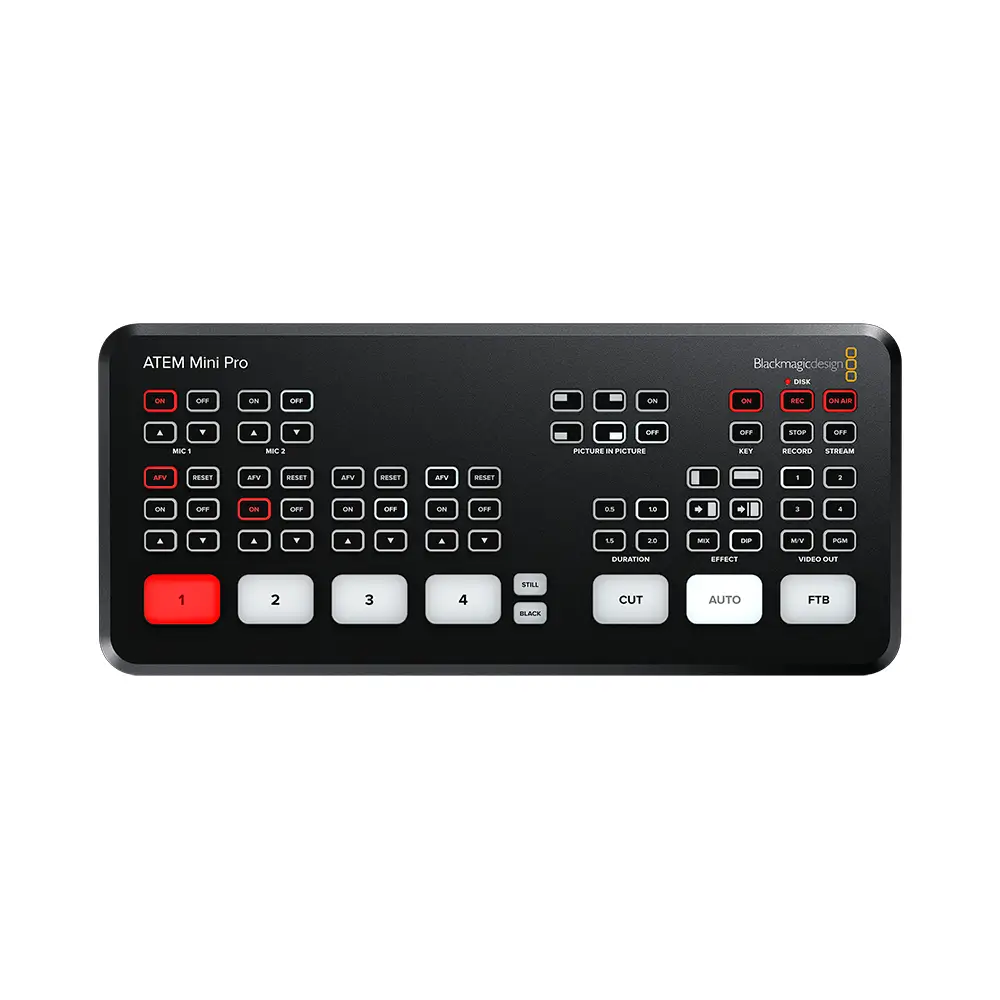

The control surface features familiar backlit buttons for selecting camera inputs, controlling transitions, and operating the Digital Video Effects (DVE) for powerful transitions like push, spin, and squeeze. New quick access buttons for recording and streaming make it easy to start and stop streams or hot-swap drives with the Blackmagic MultiDock.
For professional video productions, the ATEM Mini Pro boasts upstream and downstream keyers, an advanced chroma keyer for green screen effects, and the ability to load media such as stills in formats like PNG, TGA, BMP, JPEG, and TIFF. Its integrated Fairlight audio mixer offers fine-tuned control over camera and external audio inputs, featuring six-band parametric EQ, compression, gating, and more.
Overall, the ATEM Mini Pro is a powerful, user-friendly solution for live productions, combining intuitive hardware controls with professional-grade streaming and recording capabilities.
| Dimensions | 23.75 × 10.35 × 3.5 cm |
|---|---|
| Connections |
Total Video Inputs Total Outputs Total Aux Outputs Total Audio Inputs Total Audio Outputs Timecode Connection HDMI Video Inputs Video Input Re-Sync Frame Rate and Format Converters HDMI Program Outputs Ethernet Computer Interface |
| Standards |
HD Video Input Standards HD Video Output Standards Video Streaming Standards Ultra HD Video Standards Video Sampling Color Precision Color Space HDMI Input Resolutions from Computers Colorspace Conversion |
| Product Specifics |
Upstream Keyers Downstream Keyers Advanced Chroma Keyers Linear/Luma Keyers Transition Keyer Total Number of Layers Pattern Generators Color Generators DVE with Borders and Drop Shadow Interface |
| Audio |
Audio Mixer Analog Input Analog Input Delay Input Impedance Max Input Level Mic Plug In Power |
| Streaming |
Direct Streaming |
| Recording |
Direct Recording Media Format |
| Multi View Monitoring |
Multi View Monitoring Multi View Video Standard |
| Media Player |
Media Players Channels Media Pool Still Image Capacity Media Pool Still Image Format |
| Control |
Control Panel Control Panel Connection Control Panel Compatibility Control Panel Included |
| Software |
Software Updates Configuration |
| Operating Systems |
Mac 13.0 Ventura, |
| Power Requirements |
Power Supply Power Usage |
| What's Included? |
ATEM Mini Pro |
